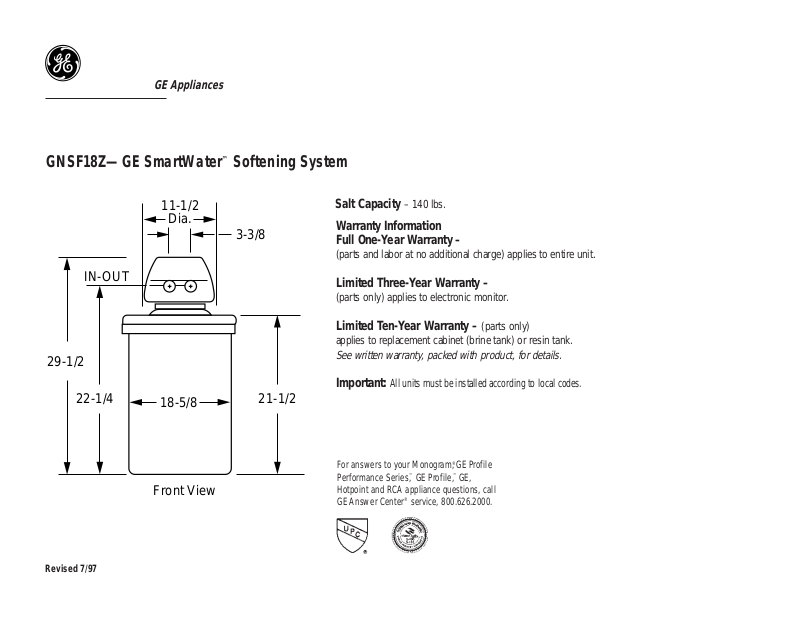

GE GNSF18Z Specification

GE Appliances

GNSF18Z—GE SmartWater™ Softening System

11-1/2 Dia.

3-3/8

IN-OUT

29-1/2

22-1/4		18-5/8		21-1/2

Front View

Salt Capacity – 140 lbs.

Warranty Information Full One-Year Warranty –

(parts and labor at no additional charge) applies to entire unit.

Limited Three-Year Warranty –

(parts only) applies to electronic monitor.

Limited Ten-Year Warranty – (parts only)

applies to replacement cabinet (brine tank) or resin tank.

See written warranty, packed with product, for details.

Important: All units must be installed according to local codes.

For answers to your Monogram,®GE Profile

Performance Series,™ GE Profile,™ GE,

Hotpoint and RCA appliance questions, call

GE Answer Center® service, 800.626.2000.

Revised 7/97

GE Appliances

OUTSIDE FAUCET (HARD WATER)

SOFT, COLD

WATER

SOFT, HOT

WATER

IS THE TRANSFORMER PLUGGED INTO A CONTINUOUSLY "LIVE" 120V-60Hz OUTLET?

DID YOU SET THE TIMER TO THE

CORRECT TIME OF DAY, AND

WATER HARDNESS NUMBER?

WATER

HEATER

BE SURE THE ELECTRIC OR

FUEL SUPPLY TO THE WATER

HEATER IS ON

DID YOU FILL THE BRINE TANK WITH

SALT?

EXTREMELY IMPORTANT

WATER

SOFTENER

OUTSIDE FAUCET (HARD WATER)

GROUND

STRAP BE SURE HARD WATER IS

PLUMBED INTO SOFTENER

VALVE INLET

BE SURE BYPASS VALVE STEM IS

POSITIONED FOR SOFT WATER "SERVICE"

BE SURE VALVE DRAIN HOSE RUNS

DIRECTLY TO AN ACCEPTABLE DRAIN

POINT, AND IS NOT PINCHED, KINKED

OR ELEVATED TOO HIGH IF RUN

OVERHEAD. DID YOU PROVIDE AN

AIR-GAP AT THE DRAIN POINT?

HARD WATER TO HOUSE

WATER METER

MAIN SHUTOFF

VALVE

•Install softener at point-of-entry into house before water heater. Needs to be within five feet of water inlet.

•Install within ten feet of proper drainage; e.g. drain, standpipe or a sump which does not drain directly to outside.

•Within ten feet of 120V, 60Hz electrical outlettransformer must be plugged into an inside outlet.

•All units must be installed according to local plumbing and electrical regulations.

THE BRINE TANK OVERFLOW	SECURED
HOSE IS A GRAVITY DRAIN. BE
SURE THE HOSE IS NOT RAISED
HIGHER THAN THE FITTING ON
THE TANK AND IS SECURED
NOTE: Should not be installed in
direct sunlight, freezing conditions,
or where unit can get wet.

For answers to your Monogram,®GE Profile Performance Series,™ GE Profile,™ GE, Hotpoint and RCA appliance questions, call GE Answer Center® service, 800.626.2000.

Revised 7/97
