GNE29GGK
GE® ENERGY STAR® 28.5 Cu. Ft. French-Door Refrigerator

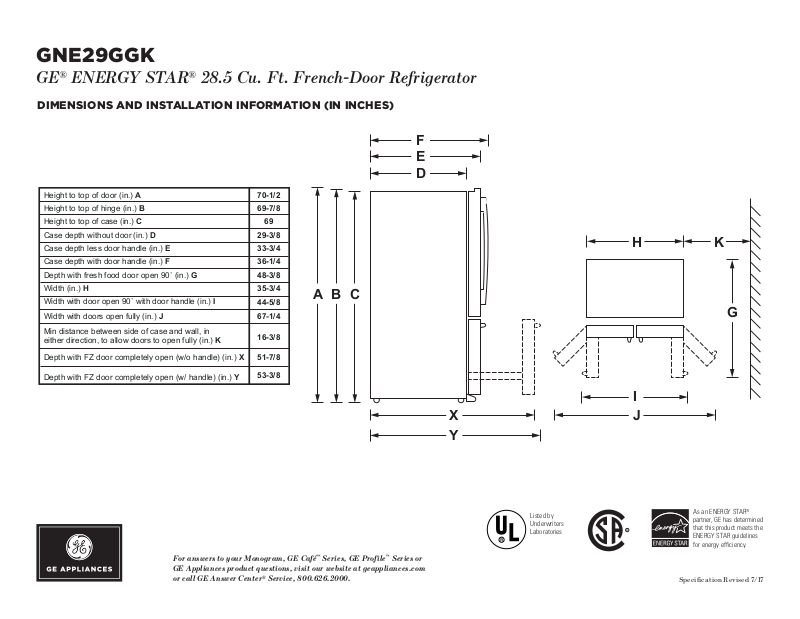

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
F
E
D
Height to top of door (in.) A |
70-1/2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Height to top of hinge (in.) B |
69-7/8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Height to top of case (in.) C |
69 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Case depth without door (in.) D |
29-3/8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Case depth less door handle (in.) E |
33-3/4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Case depth with door handle (in.) F |
36-1/4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Depth with fresh food door open 90˚ (in.) G |
48-3/8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Width (in.) H |
35-3/4 |
|
|
A |
|
B C |
|
|
||||||
|
|
|
|
|
|
|
||||||||
Width with door open 90˚ with door handle (in.) I |
44-5/8 |
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Width with doors open fully (in.) J |
67-1/4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Min distance between side of case and wall, in |
16-3/8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
either direction, to allow doors to open fully (in.) K |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Depth with FZ door completely open (w/o handle) (in.) X |
51-7/8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Depth with FZ door completely open (w/ handle) (in.) Y |
53-3/8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
X
Y
Listed by
Underwriters
Laboratories
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
H K
G
I
J
As an ENERGY STAR® partner, GE has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Specification Revised 7/17
GNE29GGK
GE® ENERGY STAR® 28.5 Cu. Ft. French-Door Refrigerator
FEATURES AND BENEFITS
TwinChill™ evaporators – Separate climates in the fresh food and freezer sections help keep foods fresh
Showcase LED lighting – Positioned throughout the interior and under fresh food doors to spotlight foods inside the refrigerator and in the freezer
Two humidity-controlled drawers and 1 full-width drawer
Factory-installed icemaker with water filtration system – Refrigerator comes ready to automatically create filtered ice
Advanced water filtration uses RPWFE replacement filter – Reduces trace pharmaceuticals from water and ice* (* Removes 98% of ibuprofen, atenolol, fluoxetine, progesterone and trimethoprim. These pharmaceuticals are not necessarily in all users’ water)
Internal controls with actual-temperature display – Eliminate the guesswork of temperature setting with actual degrees displayed digitally
Model GNE29GGKWW – High-gloss White
Model GNE29GGKBB – High-gloss Black
As an ENERGY STAR® partner, GE has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Specification Revised 7/17
