GE GMS10AAR Specification

GEAppliances

GMS10AAR – GE® Maunal Defrost Single Door Refrigerator

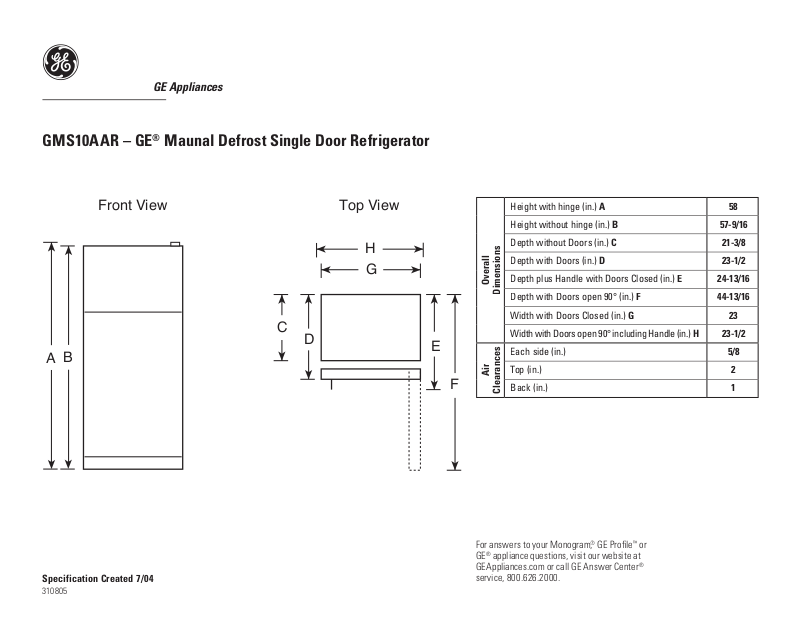

Front View

Top View

H

G

C D E A B

F

Specification Created 7/04

			Height with hinge (in.) A	58
			Height without hinge (in.) B	57-9/16
		<![if ! IE]> <![endif]>n	Depth without Doors (in.) C	21-3/8
	<![if ! IE]> <![endif]>Overall		Depth with Doors (in.) D	23-1/2
		<![if ! IE]> <![endif]>Dimensi
			Depth plus Handle with Doors Closed (in.) E	24-13/16
			Depth with Doors open 90° (in.) F	44-13/16
			Width with Doors Closed (in.) G	23
	<![if ! IE]> <![endif]>Air	<![if ! IE]> <![endif]>Clearances	WidthwithDoorsopen90°includingHandle(in.) H	23-1/2
			Back (in.)	5/8
			Each side (in.)
			Top (in.)	2

For answers to your Monogram,® GE Profi le or GE® appliance questions, visit our website at

GEAppliances.com or call GE Answer Center® service, 800.626.2000.

310805

GEAppliances

GMS10AAR – GE® Maunal Defrost Single Door Refrigerator

Features and Benefits

• 9.6 cu. ft. Capacity (Fresh Food 8.64 cu. ft., Freezer .94 cu. ft.)

• Full-Width Vegetable/Fruit Crisper

• 2 Adjustable Fresh Food Cabinet Shelves

• 5 Door Shelves (2 Egg)

• Tall Bottle Storage

• Dairy Compartment

• Egg Storage Bin (with Pockets)

• Full-Width Freezer Compartment Shelf

• 2 Ice ’N Easy Trays

• Freezer Chiller Tray with Baffle

• White Door Handle

• Model GMS10AAR – White

Specification Created 7/04

310805
