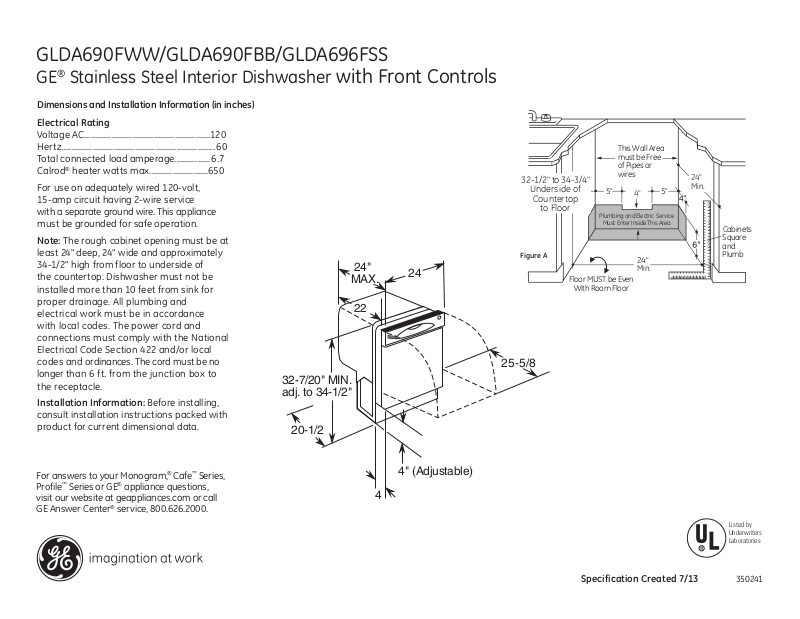

GLDA690FWW/GLDA690FBB/GLDA696FSS
GE® Stainless Steel Interior Dishwasher with Front Controls
Dimensions and Installation Information (in inches)
Electrical Rating |
|
Voltage AC............................................................ |
120 |
Hertz......................................................................... |
60 |
Total connected load amperage................. |
6.7 |
Calrod® heater watts max............................ |
650 |
For use on adequately wired 120-volt, 15-amp circuit having 2-wire service with a separate ground wire. This appliance must be grounded for safe operation.
Note: The rough cabinet opening must be at least 24" deep, 24" wide and approximately 34-1/2" high from floor to underside of
the countertop. Dishwasher must not be installed more than 10 feet from sink for proper drainage. All plumbing and electrical work must be in accordance with local codes. The power cord and connections must comply with the National Electrical Code Section 422 and/or local codes and ordinances. The cord must be no longer than 6 ft. from the junction box to the receptacle.
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
For answers to your Monogram,® Cafe™ Series, Profile™ Series or GE® appliance questions, visit our website at geappliances.com or call GE Answer Center® service, 800.626.2000.
24" 24
MAX.
|
|
|
This Wall Area |
|
|
|
|
|
|
|
|
|
|||
|
|
|
must be Free |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
of Pipes or |
|
|
|
|
32-1/2"34to-1/2"34-3/4"1/ |
|
wires |
|
|
|
|
|
|
|
|
|
|
|
||
nderside of |
5" |
|
5" |
|
|
||
Underside of |
4" |
|
|
||||
ertop |
|
|
|
|
|
||
|
|
|
|
|
|||
Countertop |
|
|
|
|
|
|
|
|
to Floor |
||
to Floor |
|||
|
Plumbing and Electric Service |
||
|
Must Enter Inside This Area |
||
Figure A |
|
24" |
|
|
|
|
|
|
|
Min. |
|
|
Floor MUST be Even |
||
|
With Room Floor |
||
22
25-5/8
32-7/20" MIN. adj. to 34-1/2"
20-1/2
4" (Adjustable)
4
24"
Min.
Cabinets Square and Plumb
Listed by Underwriters Laboratories
Specification Created 7/13 |
350241 |
