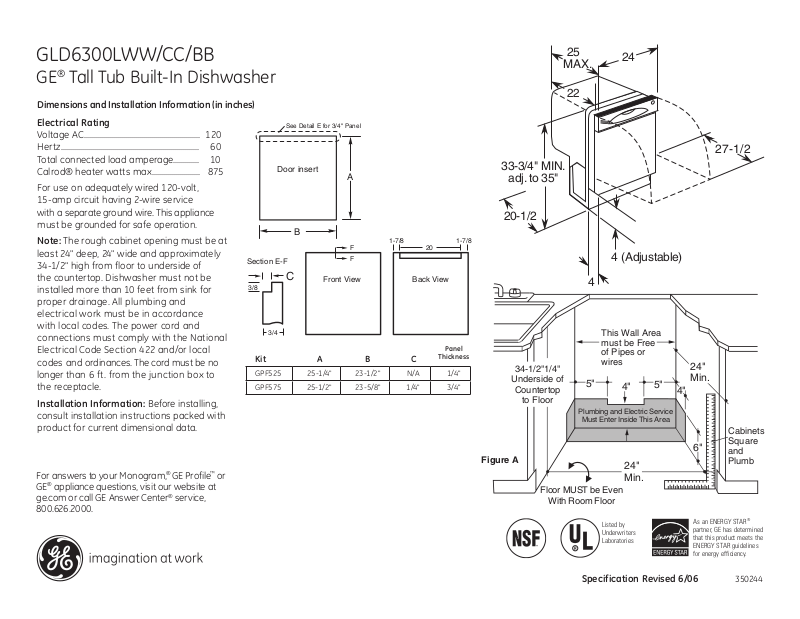

GE GLD6300LWW, GLD6300LCC, GLD6300LBB Specification

GLD6300LWW/CC/BB

GE® Tall Tub Built-In Dishwasher

Dimensions and Installation Information (in inches)

Electrical Rating

See Detail E for 3/4" Panel

Voltage AC..........................................................

120

.....................................................................Hertz

Total connected load amperage.............

Door insert

Calrod® heater watts max........................

875

For use on adequately wired 120-volt,

15-amp circuit having 2-wire service

with a separate ground wire. This appliance

must be grounded for safe operation.

Note: The rough cabinet opening must be at

1-7/8

least 24" deep, 24" wide and approximately

Section E-F

34-1/2" high from floor to underside of

the countertop. Dishwasher must not be

Front View

Back View

installed more than 10 feet from sink for

3/8

proper drainage. All plumbing and

electrical work must be in accordance

with local codes. The power cord and

3/4

connections must comply with the National

Panel

Electrical Code Section 422 and/or local

Kit

codes and ordinances. The cord must be no

Thickness

longer than 6 ft. from the junction box to

GPF525

25-1/4"

23-1/2"

N/A

1/4"

the receptacle.

GPF575

25-1/2"

23-5/8"

1/4"

3/4"

Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.

For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.

	25	24
	MAX.	24
	MAX.
	22

27-1/2

33-3/4" MIN. adj.to 35"

20-1/2

4 (Adjustable)

34-1/2"1/4" Underside of Countertop to Floor

This Wall Area must be Free of Pipes or wires

4" 5"

Plumbing and Electric Service

Must Enter Inside This Area

Figure A		24"
		24"
		Min.
	Floor MUST be Even
	With Room Floor

24"

Min.

Cabinets

Square 6" and

Plumb

Listed by		As an Energy Star®
		partner, GE has determined
Underwriters
		that this product meets the
Laboratories
		Energy Star guidelines

		for energy efficiency.

Specification Revised 6/06

350244

GLD6300LWW/CC/BB

GE® Tall Tub Built-In Dishwasher

Features and Benefits

•Giant Tub with Maximum Capacity DuronTM Racking - Washes even the largest cookware in durable, polymer-coated racks guaranteed to hold up to heavy use with a 5-year limited warranty (see warranty for details)

•Two Utility Shelves in Tiered Upper Rack with StemSafeTM, Silver - Provide extra room for small items and an extra layer of security for washing delicate stemware

•Maximum Capacity 3-Piece Silverware Basket with 3 Cell Covers and ExtraBasketTM - Provides the ultimate flexibility, keeping silverware and small items separate; allows the baskets to be placed in either the upper or lower rack

•6-Level BrilliantCleanTM Wash System with CleanSensorTM - Scrubs dishes clean with 3 full-sized wash arms, 6 levels of wash action and a sensor that continually monitors and adjusts the wash cycle for a superior clean

•Light-Touch Electronic Controls with 6 Cycles/3 Options - Require only a gentle touch to start your preferred cycle and wipe clean easily

•Countdown display with 1-9 hour Delay Start - Signals remaining cycle time and makes it easier than ever to wash dishes at any hour, taking advantage of reduced energy rates or washing dishes even when the family is asleep

•SpeedCycleTM - Cuts the length of the normal cycle in half, washing and drying lightly soiled dishes effectively in 45 minutes or less

•QuietPowerTM 3 Sound Package - Dramatically reduces the sound of washing the dishes

•Model GLD6300LWW - White on white

•Model GLD6300LCC - Bisque on bisque

•Model GLD6300LBB - Black on black
