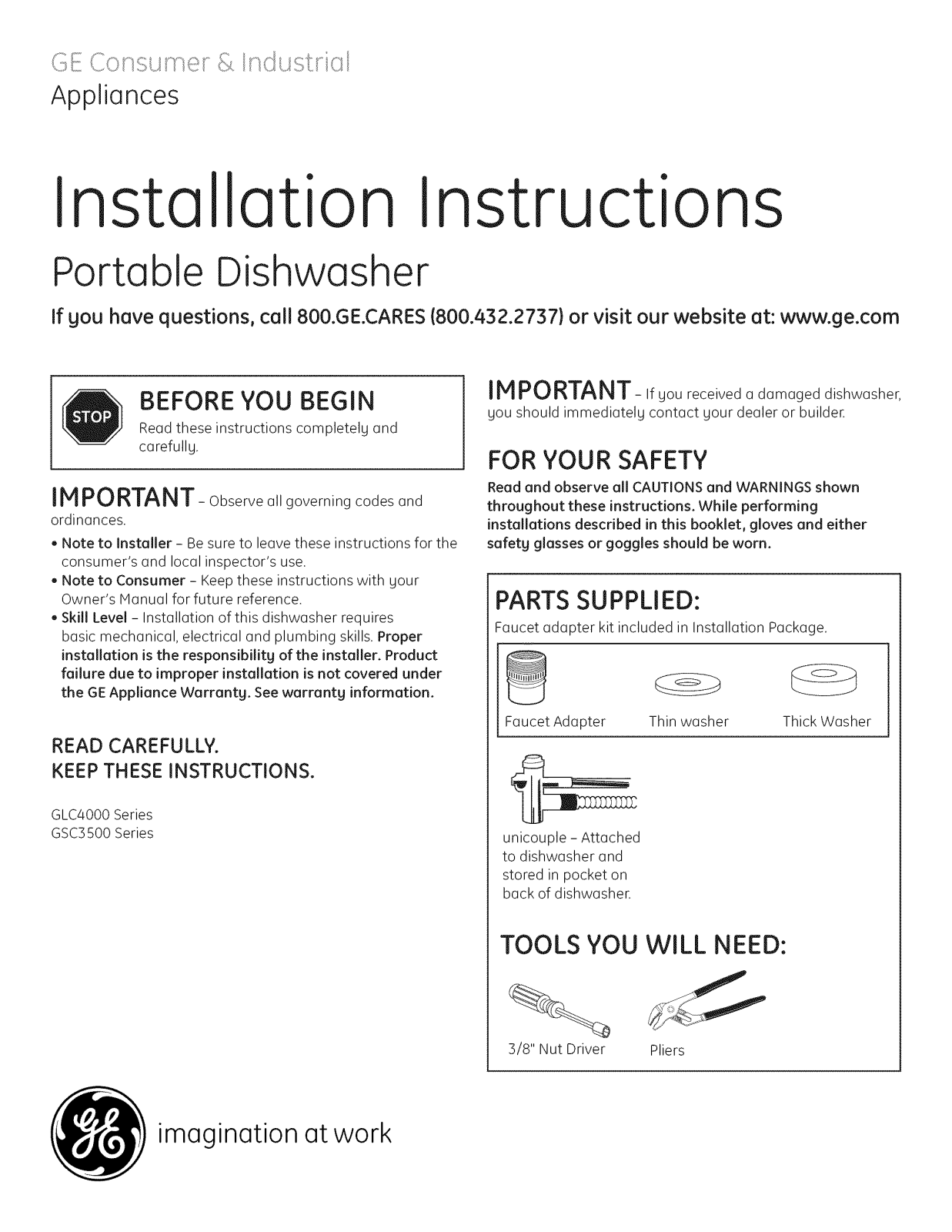

GE GLC4100N00BB, GLC4100N00WW, GLC4100N10BB, GLC4100N10WW Installation Guide

_, _/ _ / _ _ ' / _'_ _ _ _

Appliances

Installation Instructions

Portable Dishwasher

If you have questions, call 800.GE.CARES (800.432.2737) or visit our website at: www.ge.com

BEFORE YOU BEGIN

Readthese instructions completely and

carefully.

I!I PORTANT- Observe all governing codes and

ordinances.
, Note to Installer - Be sure to leave these instructions for the

consumer's and local inspector's use.

, Note to Consumer - Keep these instructions with your

Owner's Manual for future reference.

, Skill Level - Installation of this dishwasher requires

basic mechanical, electrical and plumbing skills. Proper

installation is the responsibilitg of the installer. Product
failure due to improper installation is not covered under
the GEAppliance Warranty. Seewarranty information.

READ CAREFULLY.
KEEP THESE INSTRUCTIONS.

GLC4000 Series
GSC3500 Series

I11PORTANT-,f youreceiveda damaged dishwasher,

you should immediately contact your dealer or buildeE

FOR YOUR SAFETY

Readand observe all CAUTIONSand WARNINGS shown

throughout these instructions. While performing
installations described in this booklet, gloves and either
safety glasses or goggles should be worn.

PARTSSUPPLIED:

Faucet adapter kit included in Installation Package.

Faucet Adapter Thin washer Thick Washer

unicouple - Attached

to dishwasher and
stored in pocket on

back of dishwasher.

(_ imag

TOOLS YOU WILL NEED:

3/8" Nut Driver Pliers

ination atwork

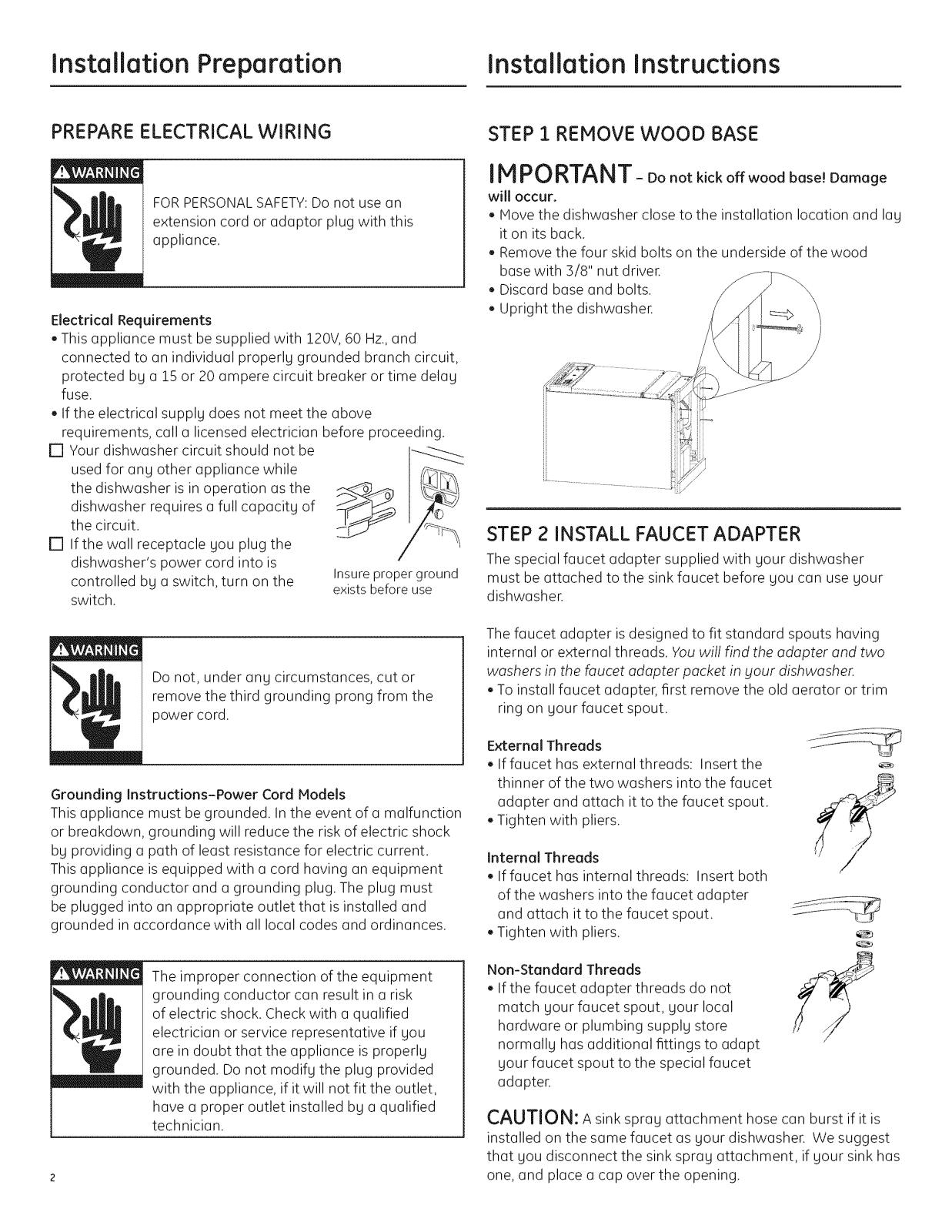

Installation Preparation Installation Instructions

PREPARE ELECTRICAL WIRING

FORPERSONALSAFETY:Donot use an

extension cord or adaptor plug with this
appliance.

Electrical Requirements
oThis appliance must be supplied with 120V,60 Hz, and

connected to an individual properlg grounded branch circuit,

protected bg a 15 or 20 ampere circuit breaker or time delag
fuse.

, If the electrical supplg does not meet the above

requirements, call a licensed electrician before proceeding.

[] Yourdishwasher circuit should not be

used for ang other appliance while

the dishwasher is in operation as the

dishwasher requires afull capacitg of

the circuit.

[] Ifthe wall receptacle gou plug the

dishwasher's power cord into is
controlled bg a switch, turn on the

switch.

Insure proper ground

exists before use

STEP 1 REMOVE WOOD BASE

IMPORTANT- Do not kick off wood base! Damage

will occur.
, Move the dishwasher close to the installation locution and lag

it on its back.
Remove the four skid bolts on the underside of the wood
base with 3/8" nut driver
Discard base and bolts.

Upright the dishwasher

STEP 2 INSTALL FAUCET ADAPTER

The special faucet adapter supplied with gour dishwasher
must be attached to the sink faucet before gou can use gour

dishwasher.

Do not, under ang circumstances, cut or
remove the third grounding prong from the
power cord.

Grounding Instructions-Power Cord Models

This appliance must begrounded. Inthe event of a malfunction

or breakdown, grounding will reduce the risk of electric shock
bg providing a path of least resistance for electric current.

This appliance is equipped with a cord having an equipment

grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is installed and
grounded in accordance with all local codes and ordinances.

The improper connection of the equipment

grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or service representative if gou
are in doubt that the appliance is properlg
grounded. Do not modifg the plug provided
with the appliance, if it will not fit the outlet,
have a proper outlet installed bg aqualified

technician.

Thefaucet adapter isdesigned to fit standard spouts having
internal or external threads. You will find the adapter and two
washers in the faucet adapter packet in your dishwasher.

To install faucet adapter, first remove the old aerator or trim

ring on gour faucet spout.

External Threads
, If faucet has external threads: Insert the

thinner of the two washers into the faucet
adapter and attach it to the faucet spout.

Tighten with pliers.

Internal Threads
, If faucet has internal threads: Insert both

of the washers into the faucet adapter
and attach it to the faucet spout.

Tighten with pliers.

Non-Standard Threads
o If the faucet adapter threads do not

match gour faucet spout, gour local
hardware or plumbing supplg store
normallg has additional fittings to adapt
gour faucet spout to the special faucet
adapter.

CAUTION: A sink sprag attachment hose can burst if it is

installed on the same faucet as gour dishwasher. We suggest
that gou disconnect the sink sprag attachment, if gour sink has
one, and place a cap over the opening.
