GE
Lighting Solutions
Industrial Lighting
GL5 GLB™ (GL5)
imagination at work
Product Features
GE Indoor Lighting luminaires are designed to produce optimum illumination from the lamp, optical system and ballast,
while providing specific light patterns for specific applications. These reliable systems help to improve safety and energy
savings, while enhancing productivity and efficiency, to put your industrial workplace in the best possible light.
Applications
• For 10-25 ft. (3-8 meter) applications in warehouses,
assembly plants, material handling, maintenance,
manufacturing, inspection, and other areas where
economics and energy-efficient light sources are
important
Housing
• Die-cast aluminum ballast housing
Finish
• Electrocoat gray or white polyester paint finish
Ratings
• Listed Suitable for Wet or Damp locations
depending on mounting receptacle used
• Listed for metal halide lamps in polymeric lamp
containment barriers
• Listed to Canadian standards & codes
Mounting
Unique Features
• UV stabilized injection molded prismatic refractor for
low brightness
• Enclosed and gasketed optics
• In-line EZ Connect™ plug-in adapter port allows for:
• hook/loop, cord & NEMA plug
• plug-in diagnostics capability
• plug-in modular wiring systems
• plug-in fuse kits
• 40° C ambient standard
• Safety chain provisions
• Mogul base socket - E39 standard
• Shipped as components: Ballast, Optical
• Magnapack available for ballast
• Threaded slide-in mounting adapter for easy mounting
Reflector
• Alzak finish on reflector

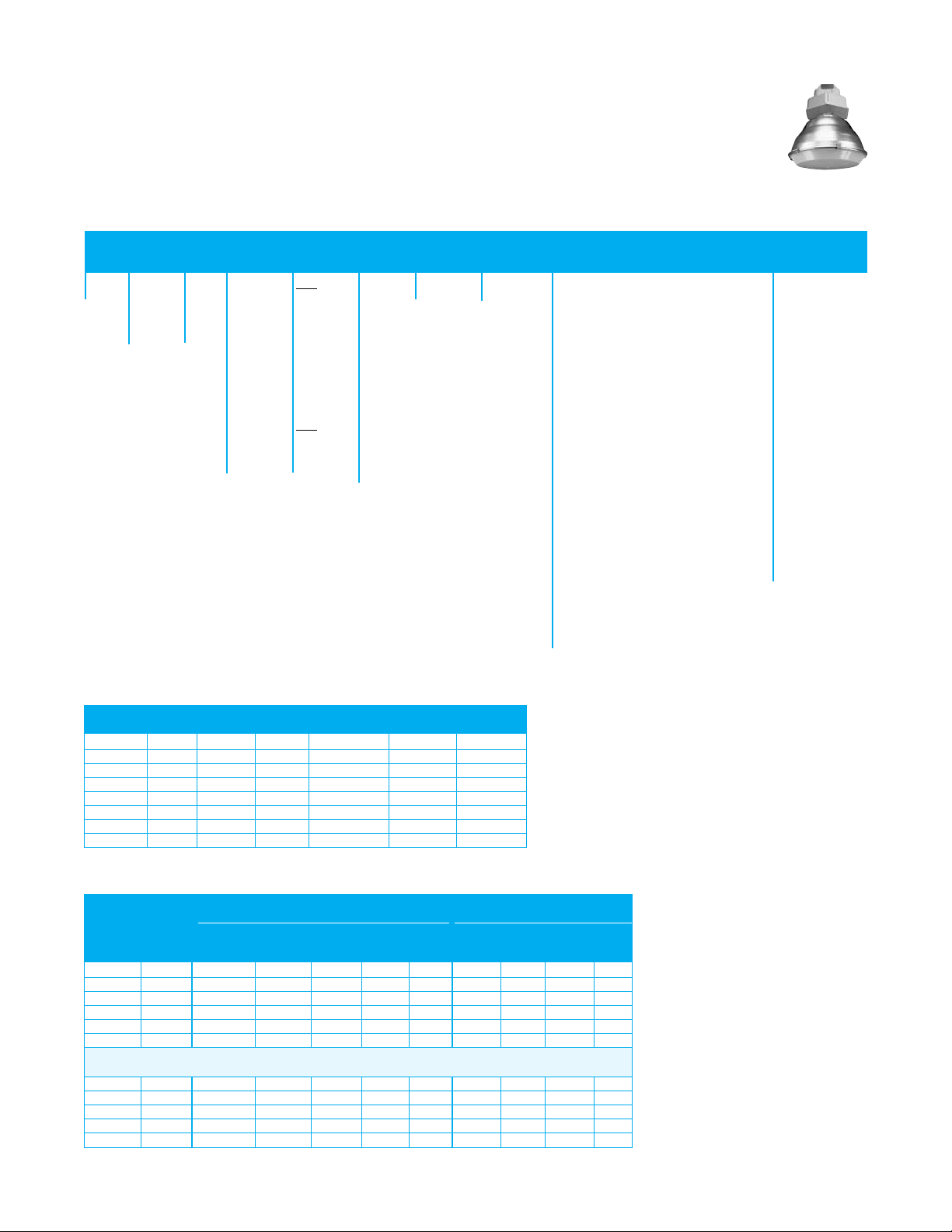

Ordering Number Logic
GL5 GLB™ (GL5)
GL5 EA
_ _ _ - _ - _ _ - _ - _ - _ - _ _ - _ _ - _ _ - _
PROD. ID
GL5 = GLB
Luminaire
COLOR
G = Gray
Electro
Coat
W = White
Polyester
Powder
WATTAGE
15 = 150
17 = 175
25 = 250
32 = 320
35 = 350
40 = 400
LIGHT
SOURCE
E = Energy
Act Compliant
Pulse MH
(EPMH)
S = HPS
For
International
Markets only
M = MH
P = Pulse
Start
MH
Note: Lamp is
vertical base
up. Lamp not
included.
VOLTAGE
60Hz
0 = 120/208/
240/277
MULTIVOLT
1 = 120
2 = 208
3 = 240
4 = 277
5 = 480
D = 347
F = 120X347
T = 220
50Hz
6 = 220
R = 230
Y = 240
G = 380
BALLAST
TYPE
See Ballast
Selection
Table
A =Autoreg
D =
System 3
Bi Level
Autoreg
G =
(CANADIAN)
Mag-reg with
grounded
socket shell
H = HPF
Reactor or
Lag
OPTICAL
CODE
EA = Enclosed
Acrylic
Photometric Selection Table
EA, SA, PA OPTICAL - Enclosed Optical
Light Spacing Socket Photometric Optical
Wattage Source Criteria Position Curve Code Code
150 (55V) HPS 1.8 H 179000 EA,SA,PA AH
250 HPS 1.8 F 178193 EA, SA,PA AF
400 HPS 1.8 F 178193 EA, SA,PA AF
175 EPMH 1.9 H 178999 EA,SA,PA AH
250 EPMH 1.9 H 178999 EA,SA,PA AH
320(ED28)*
EPMH 1.9 H 178999 EA,SA,PA AH
350 EPMH 1.8 A 178195 EA,SA,PA AA
400 EPMH 1.8 A 178195 EA,SA,PA AA
PHOTOMETRY
XX = Select
Code Below
Photometry
CODE
XX = Select Code Below
11 = Pendant mounting
13 = Provision for Slide-on Primary Electrical Disconnect .
Order TWOBP Box (Thru Feed Capability Only)
Separately.
(Not available with W option)
14 = Provision for Slide-on Primary Electrical
Disconnect. (Pendant and Thru Feed Capability)
Order PED Box Separately
(Not available with W option)
15 = Prewire with EZ-Loop, Cord and Plug Part of
“Power Hook”. Order Receptacle/Hook Box
Separately. (Not CSA/CUL)
31 = Prewire with EZ-Hook, 3-ft (0.9 Meters)
#16/3 Cord, and Nema Plug
33 = Prewire with EZ-Loop, 3-ft (0.9 Meters)
#16/3 Cord, and Nema Plug (Order locking
receptacle hook box separately.)
67 = Pendant, Nut and Hanger Hub Mounting.
(For use with “D” or “W”, Wet Locations Option, only)
MODULAR PREWIRE
41 = ACS with 3-ft (0.9 meter) cord & EZ-Hook
69 = ACS with 6-ft (1.8 meter) cord & EZ-Hook
43 = ACS with 3-ft (0.9 meter) cord & EZ-Loop
70 = ACS with 6-ft (1.8 meter) cord & EZ-Loop
PLUG-N-GO
51 = Plug-N-Go with 3 ft. (0.9 meter) Cord & Hook
71 = Plug-N-Go with 6 ft. (1.8meter) Cord & Hook
53 = Plug-N-Go with 3 ft. (0.9 meter) Cord & Loop
72 = Plug-N-Go with 6 ft. (1.8 meter) Cord & Loop
Note: ACS = Flex 3+
Plug-N-Go = FSC Series
*320 watt, ED28 pulse start MH
MOUNTING
CODE
OPTIONS
B = Time Delay
Automatically
Switch Quartz
F = Fusing (Not
available with
W option)*
G = Secondary
Wiring Access.
7/8 in. dia.
knockout (Not
available with W
option)
Q = Non-Time Delay
Automatically
Switch Quartz
R = Non-Switched
Quartz.(Not
available CSA/
CUL)
T = E40 / European
Socket
W = Wet Location
(For use with
Mounting Code
15 and 67 only)
*Not available with
multivolt
Ballast Selection Table
Ballast Type / Voltage
60HZ 50HZ
120, 208 120
Light 240, 277 x
Wattage Source Multivolt 480 347 347 220 220 230 240 380
150 HPS A A A A A,H N/A N/A N/A N/A
250 HPS A A,D,G A,D A A,H A,H A,H A,H M
400 HPS A A,D,G A,D A A,H A,H A,H A,H M
175 MH A A A A A N/A N/A N/A N/A
250 MH A A,D A,D A A A A A N/A
400 MH A A,D A,D A A A A A N/A
PULSE START METAL HALIDE LIGHT SOURCE
BALLAST SELECTION TABLE
175 EPMH N/A A A A N/A N/A N/A N/A N/A
250 EPMH A A A A N/A N/A N/A N/A N/A
320 EPMH A A A A N/A N/A N/A N/A N/A
350 EPMH A A A A N/A N/A N/A N/A N/A
400 EPMH A A A A N/A N/A N/A N/A N/A
NOTE: N/A = Not Available
* H is HPF-Linear Reactor available as
277 volt only.
Cannot be used with Automatic Switch
Quartz Option.
CANADIAN NOTES:
1. “A”, Autoreg, and “D”, Bilevel Autoreg
available 120, 277 or 347 volts only
2. 208, 240, and 480 volts require CWI ballast.
Use “G” when available. Contact factory for
all others.
3. Multivolt not available.
4. 208, 240 and 480 volts with “G” ballast not
available with switched quartz.
Product Dimensions
3/4in NPSC Thread
Installed Height
25.11in
(638mm)
23.63in DIA (600mm)
Future Height
25.81in
(656mm)
DIMENSIONS
For wet location dimensions 1.72 inches (44mm) must
be added to overall height.
• Approximate Net Weight Ballast and Optical: 36 lbs (16 kgs)
DATA
GE Lighting Solutions • 1-888-MY-GE-LED • www.gelightingsolutions.com
1 - 8 8 8 - 6 9 - 4 3 - 5 3 3
GE Lighting Solutions, LLC is a subsidiary of the General Electric Company. The GE brand and logo are trademarks of the General Electric Company.
© 2012 GE Lighting Solutions, LLC. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.
OLP-3002 (Rev. 06/06/12)
