GE ZONELINE
SINGLE PACKAGED
VERTICAL AIR
CONDITIONERS
Product Guide
Quiet & comfortable with
VERTICAL ZONELINE
2
Easy to install and
maintain, Zoneline
®
Single Packaged Vertical
units keep your guests cool
and comfortable — and
your energy costs low.
1 SPACE-SAVING DESIGN
Vertical design leaves more usable
space with installation in a closet or
out-of-sight area and gives rooms a
more home-like feel. With proper
ducting, a single unit can serve
®
multiple rooms.
2 EFFICIENT
Zoneline units are some of the most
ecient single packaged vertical units
in the industry. And greater energy
eciency means lower utility bills.
3 RELIABLE
Every component is engineered
to provide exceptionally quiet
and reliable cooling and heating
performance for a perfectly
comfortable and relaxing environment.
3

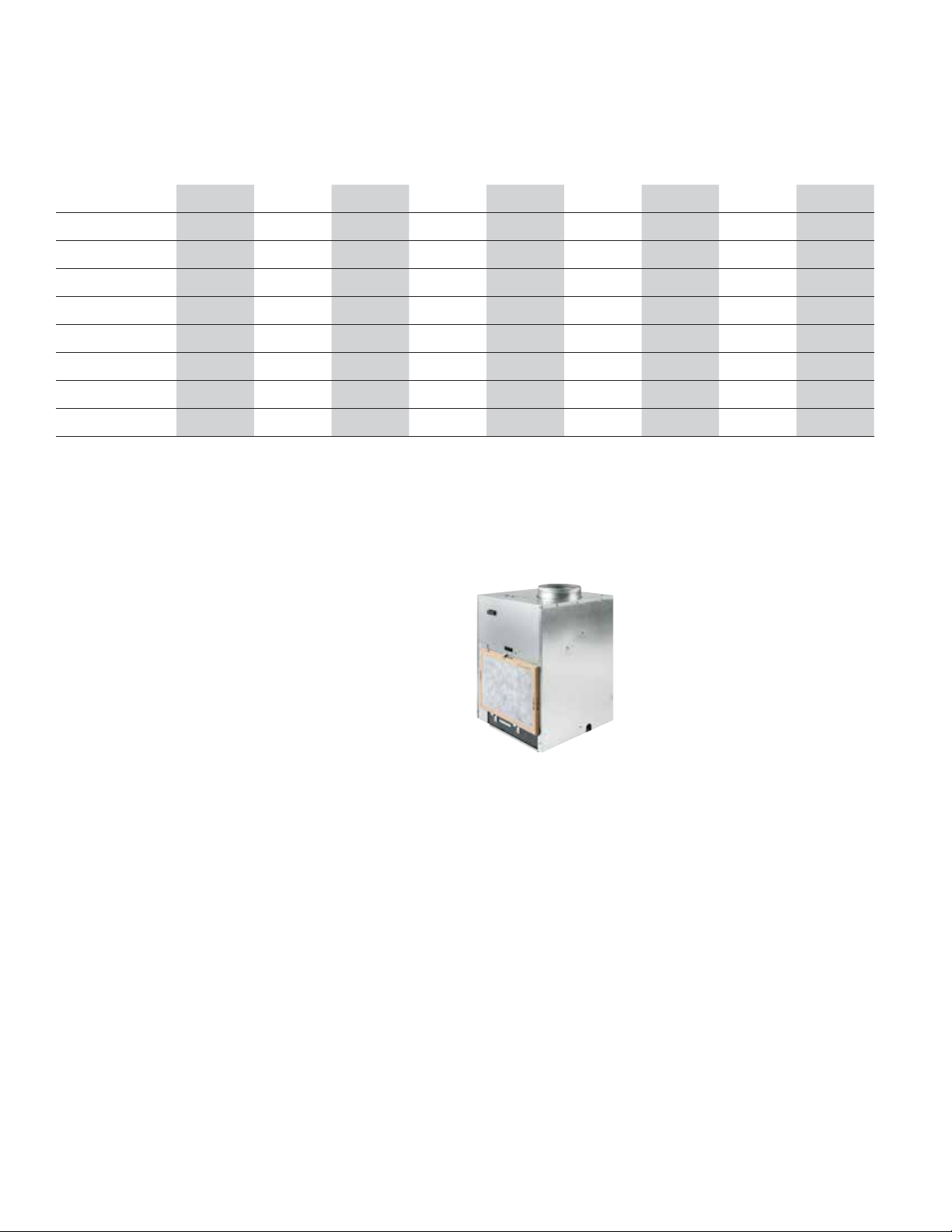

ZONELINE® SINGLE PACKAGED VERTICAL
AIR CONDITIONER SPECIFICATIONS
AZ90 SERIES
MARKETING MODEL AZ90E09D2C AZ90E09D3C AZ90E09D5C AZ90E12D2C AZ90E12D3C AZ90E12D5C AZ90E18D2C AZ90E18D3C AZ90E18D5C
Cooling (BTUh) 9200/9000 9200/9000 9200/9000 12200/11900 12200/11900 12200/11900 17000/16800 17000/16800 17000/16800
EER (BTUh/WaTT) 10.5/10.5 10.5/10.5 10.5/10.5 10.4/10.4 10.4/10.4 10.4/10.4 9.0/9.0 9.0/9.0 9.0/9.0
VolTagE (V) 230/208 230/208 230/208 230/208 230/208 230/208 230/208 230/208 230/208
ampERagE 15 20 30 15 20 30 15 20 30
UniT WidTh (in.) 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8
UniT dEpTh (in.) 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8
UniT hEighT (in.) 32-1/4 32-1/4 32-1/4 32-1/4 32-1/4 32-1/4 32-1/4 32-1/4 32-1/4
indooR CFm*
(hi/loW) (0.1 ESp)
450/405 450/405 450/405 450/420 450/420 450/420 480/400 480/400 480/400
MINIMUM CLEARANCES
Front – Allow 3" minimum in front of unit.
Sides – Allow 3" minimum on each side of unit.
Platform – Field-supplied; refer to installation
instructions.
Side-access closets – Not recommended for
new installations.
OVERALL UNIT DIMENSIONS
AZ90E09/12/18, AZ91H09/12:
32-1/4" H × 23-1/8" W × 23-1/8" D
AZ91H18:
47-1/4" H × 23-1/8" W × 23-1/8" D
AZ90E09/12/18, AZ91H09/12
AZ91H18
Specifications subject to change.
4
* Indoor CFM at 0.1 External Static Pressure
AZ91 SERIES
MARKETING MODEL AZ91H09D2C AZ91H09D3C AZ91H09D5C AZ91H12D2C AZ91H12D3C AZ91H12D5C AZ91H18D2C AZ91H18D3C AZ91H18D5C
Cooling (BTUh) 9400/9400 9400/9400 9400/9400 12200/12000 12200/12000 12200/12000 18200/18000 18200/18000 18200/18000
EER (BTUh/WaTT) 10.4/10.4 10.4/10.4 10.4/10.4 10.0 10.0 10.0 10.0 10.0 10.0
hEaTing (BTUh) 8400/8400 8400/8400 8400/8400 11100/10900 11100/10900 11100/10900 16800/16400 16800/16400 16800/16400
Cop @ 47° 3.0/3.0 3.0/3.0 3.0/3.0 3.0/3.0 3.0/3.0 3.0/3.0 3.0/3.0 3.0/3.0 3.0/3.0
VolTagE (V) 230/208 230/208 230/208 230/208 230/208 230/208 230/208 230/208 230/208
ampERagE 15 20 30 15 20 30 15 20 30
UniT WidTh (in.) 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8
UniT dEpTh (in.) 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8
UniT hEighT (in.) 32-1/4 32-1/4 32-1/4 32-1/4 32-1/4 32-1/4 47-1/4 47-1/4 47-1/4
indooR CFm*
(hi/loW)
450/420 450/420 450/420 450/420 450/420 450/420 450/400 450/400 450/400
AZ91 SERIES
MARKETING MODEL AZ91H09E2C AZ91H09E3C AZ91H09E5C AZ91H12E2C AZ91H12E3C AZ91H12E5C AZ91H18E2C AZ91H18E3C AZ91H18E5C
Cooling (BTUh) 9400 9400 9400 12400 12400 12400 18000 18000 18000
EER (BTUh/WaTT) 10.3 10.3 10.3 10.0 10.0 10.0 10.0 10.0 10.0
hEaTing (BTUh) 8500 8500 8500 11300 11300 11300 16500 16500 16500
Cop @ 47° 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0
VolTagE (V) 265 265 265 265 265 265 265 265 265
ampERagE 15 20 30 15 20 30 15 20 30
UniT WidTh (in.) 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8
UniT dEpTh (in.) 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8 23-1/8
UniT hEighT (in.) 32-1/4 32-1/4 32-1/4 32-1/4 32-1/4 32-1/4 47-1/4 47-1/4 47-1/4
indooR CFm*
(hi/loW)
450/420 450/420 450/420 450/420 450/420 450/420 450/400 450/400 450/400
Specifications subject to change.
5
ZONELINE® PARTS & ACCESSORIES
RAVA L2
ALUMINUM OUTDOOR
GRILL—AZ90/91
RAVRG1
ACCESS PANEL WITH
RAVWPT8
TELESCOPING WALL
PLENUM 5-1/2" - 8"
RAVRG2
RETURN AIR GRILL
RETURN AIR GRILL FOR
SMALL CHASSIS
—AZ90/91
ZONELINE® THERMOSTATS
AZ90 SERIES
RAVWPT14
TELESCOPING WALL
PLENUM 8" - 14"
RAVRG3
ACCESS PANEL WITH
RETURN AIR GRILL
FOR LARGE
CHASSIS—AZ91
RAVDP18
DRAIN PAN KIT 18,000
LARGE CHASSIS—AZ91
RAVTRANS
TRANSITION PIECE FOR
REPLACEMENT OF EXISTING
GE APPLIANCES VERTICAL
WITH NEW AZ90/91
RAK164D2
COOLING WITH ELECTRIC HEAT
DIG ITAL R E M O T E THERMOSTAT
• 24V AC digital remote wall thermostat
with single-stage cooling and single-stage
heating for resistance heat models
• Requires 5-wire hookup
AZ91 SERIES
RAK148D2
HEAT PUMP DIGITAL REMOTE
TH E RMOSTAT
• 24V AC digital remote wall thermostat
with single-stage cooling and 2-stage
heating for heat pump models
• Requires 6-wire hookup
6
RAK164F2
DIGITAL TWO FAN SPEED THERMOSTAT
FOR ELECTRIC RESISTANCE
• Two fan speeds
• 24V AC digital remote wall thermostat
with single-stage cooling and single-stage
heating for resistance heat models
• Requires 6-wire hookup
RAK148F2
DIGITAL TWO FAN SPEED
THERMOSTAT FOR HEAT PUMP
• Two fan speeds
• 24V AC digital remote wall thermostat
with single-stage cooling and 2-stage
heating for heat pump models
• Requires 7-wire hookup
RAK164P2
COOLING WITH ELECTRIC HEAT
PROGRAMMABLE REMOTE THERMOSTAT
• 24V AC programmable remote wall thermostat
with single-stage cooling and single-stage
heating for resistance heat models
• Programmable for 7-day or 5+2-day programs
• Requires 5-wire hookup
RAK148P2
HEAT PUMP PROGRAMMABLE
REMOTE THERMOSTAT
• 24V AC programmable remote wall
thermostat with single-stage cooling and
2-stage heating for heat pump models
• Programmable for 7-day or 5+2-day
programs
• Requires 6-wire hookup
ZONELINE SINGLE PACKAGED VERTICAL UNIT NOMENCLATURE
The Vertical Zoneline chassis is identified by a model number defining the type of unit, cooling capacity, electrical
information and optional features included on the unit. When specifying or ordering the Zoneline chassis, use of this
nomenclature will ensure receiving the correct unit.
AZ91H12D3C
Zoneline
Chassis series
90= electric resistance
single packaged
vertical unit
91= heat pump single
packaged vertical unit
Nominal cooling capacity
09=9,000 BTUh cooling
12=12,000 BTUh cooling
18=18,000 BTUh cooling
Unit type
E= cooling with electric
resistance heat
H= heat pump with
electric resistance heat
Voltage/Phase/Frequency
D= 230/208 Volt, single
phase, 60 Hz
E= 265 Volt, single phase,
60 Hz
Heater wattage/
Amps
2= 2.4 kW; 15 amp
3=3.4 kW; 20 amp
5=5.0 kW; 30 amp
Special
features
C= Corrosion
treated
Visit Zoneline.com for more information.
ZONELINE SINGLE PACKAGED VERTICAL UNIT WARRANTY
For the period of
ONE YEAR
From the date of the
original purchase
GE Appliances will replace
Any part of the air conditioner which fails due to a defect in materials or workmanship. During
this limited one-year warranty, GE Appliances will provide, free of charge, all labor and related
service costs to replace the defective part.
FIVE YEARS
From the date of the
original purchase
SECOND THROUGH
FIFTH YEAR
From the date of the
original purchase
Sealed Refrigerating System, if any part of the Sealed Refrigerating System (the compressor,
condenser, evaporator, and all connecting tubing) should fail due to a defect in materials or
workmanship. During this limited five-year warranty, GE Appliances will provide, free of
charge, all labor and related service costs to
replace the defective part.
Fan Motors, Switches, Thermostat, Heater, Heater Protectors, Compressor Overload,
Solenoids, Circuit Boards, Auxiliary Controls, Thermistors, Freeze Sentinel, Frost Controls,
Capacitors, Varistors and Indoor Blower Bearing, if any of these parts should fail due to a
defect in materials or workmanship. During this additional four-year limited warranty, the
customer will be responsible for any labor and related service costs.
7
GE is a trademark of the General Electric Company.
Manufactured under trademark license.
Appliance Park
Louisville, KY 40225
geappliances.com
zoneline.com
888.231.2548
Pub. No. 20-S0027-1 PC88082
