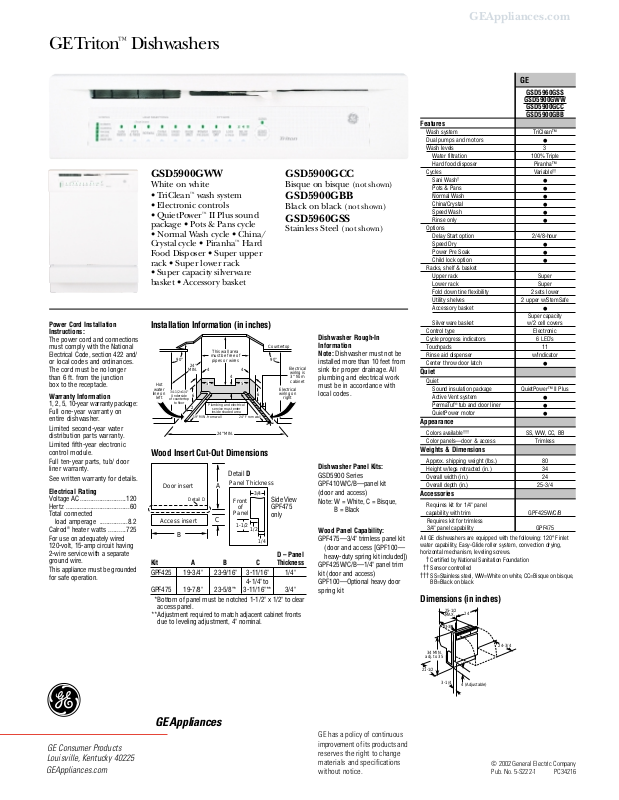

GE GE TRITON DISHWASHER Catalog

GE Appliances

GE Consumer Products Louisville, Kentucky 40225

GEAppliances.com

GE has a policy of continuous improvement of its products and reserves the right to change materials and specifications without notice.

GSD5900GWW

White on white

• TriClean

™

wash system

• Electronic controls

• QuietPower

™

II Plus sound

package • Pots & Pans cycle

• Normal Wash cycle • China/ Crystal cycle • Piranha

™

Hard Food Disposer • Super upper rack • Super lower rack

• Super capacity silverware basket • Accessory basket

GSD5900GCC

Bisque on bisque (not shown)

GSD5900GBB

Black on black (not shown)

GSD5960GSS

Stainless Steel (not shown)

GETriton™Dishwashers

GEAppliances.com

Power Cord Installation Instructions:

The power cord and connections must comply with the National Electrical Code, section 422 and/ or local codes and ordinances. The cord must be no longer than 6 ft. from the junction box to the receptacle.

Warranty Information

1, 2, 5, 10-year warranty package: Full one-year warranty on entire dishwasher.

Limited second-year water distribution parts warranty.

Limited fifth-year electronic control module.

Full ten-year parts, tub/ door liner warranty.

See written warranty for details.

Electrical Rating

Voltage AC..........................120

Hertz ....................................60

Total connected

load amperage ................8.2

Calrod

heater watts ..........725

For use on adequately wired 120-volt, 15-amp circuit having 2-wire service with a separate ground wire.

This appliance must be grounded for safe operation.

Dishwasher Rough-In Information Note:

Dishwasher must not be installed more than 10 feet from sink for proper drainage. All plumbing and electrical work must be in accordance with local codes.

This wall area

must be free of

pipes or wires

Countertop

Hot

water

line on

left

Plumbing and electrical

service must enter inside shaded area

24" From wall

24" MIN.

90°

19" MIN. from wall

24"

MIN.

34-1/2±1/4"

Underside

of countertop

to floor

90°

Electrical wiring on

right

Electrical

wiring is

3" from cabinet

25-1/2 MAX.

21-1/2

3-1/4

4 (Adjustable)

34 MIN.

adj. to 35

24-3/4

23-3/8

Installation Information (in inches)

Wood Insert Cut-Out Dimensions

Panel Thickness

Front

Panel

1-1/2

1/2

1/4

3/4

Access insert

Detail D

Door insert

D – Panel

Kit A B C Thickness

GPF425 19-3/4" 23-9/16" 3-11/16" 1/4"

4-1/4" to

GPF475 19-7/8" 23-5/8"* 3-11/16"** 3/4"

*Bottom of panel must be notched 1-1/2" x 1/2" to clear

access panel.

**Adjustment required to match adjacent cabinet fronts

due to leveling adjustment, 4" nominal.

Dishwasher Panel Kits:

GSD5900 Series GPF410W/C/B—panel kit (door and access) Note: W = White, C = Bisque,

B = Black

Wood Panel Capability:

GPF475—3/4" trimless panel kit

(door and access [GPF100—

heavy-duty spring kit included]) GPF425W/C/B—1/4" panel trim kit (door and access) GPF100—Optional heavy door spring kit

GSD5960GSS

GSD5900GWW

GSD5900GCC GSD5900GBB

Features

Wash system TriClean™ Dual pumps and motors ● Wash levels 3

Water filtration 100% Triple Hard food disposer Piranha™

Cycles Variable

††

Sani Wash

†

●

Pots & Pans ● Normal Wash ● China/Crystal ● Speed Wash ● Rinse only ●

Options

Delay Start option 2/4/8-hour Speed Dry ● Power Pre Soak ● Child lock option ●

Racks, shelf & basket

Upper rack Super Lower rack Super Fold down tine flexibility 2 sets lower Utility shelves 2 upper w/StemSafe Accessory basket ●

Super capacity

Silverware basket w/2 cell covers Control type Electronic Cycle progress indicators 6 LED’s Touchpads 11 Rinse aid dispenser w/Indicator Center throw door latch ●

Quiet

Sound insulation package QuietPower™ II Plus

Active Vent system ●

PermaTuf®tub and door liner ●

QuietPower motor ●

Appearance

Colors available

†††

SS, WW, CC, BB

Color panels—door & access Trimless

Weights & Dimensions

Approx. shipping weight (lbs.) 80 Height w/legs retracted (in.) 34 Overall width (in.) 24 Overall depth (in.) 25-3/4

Accessories

Requires kit for 1/4" panel capability with trim GPF425W/C/B Requires kit for trimless

3/4" panel capability GPF475

All GE dishwashers are equipped with the following: 120°F inlet water capability, Easy-Glide roller system, convection drying, horizontal mechanism, leveling screws.

†

Certified by National Sanitation Foundation

††

Sensor controlled

†††

SS=Stainless steel, WW=White on white, CC=Bisque on bisque, BB=Black on black

Dimensions (in inches)

Side View GPF475 only

Detail D
