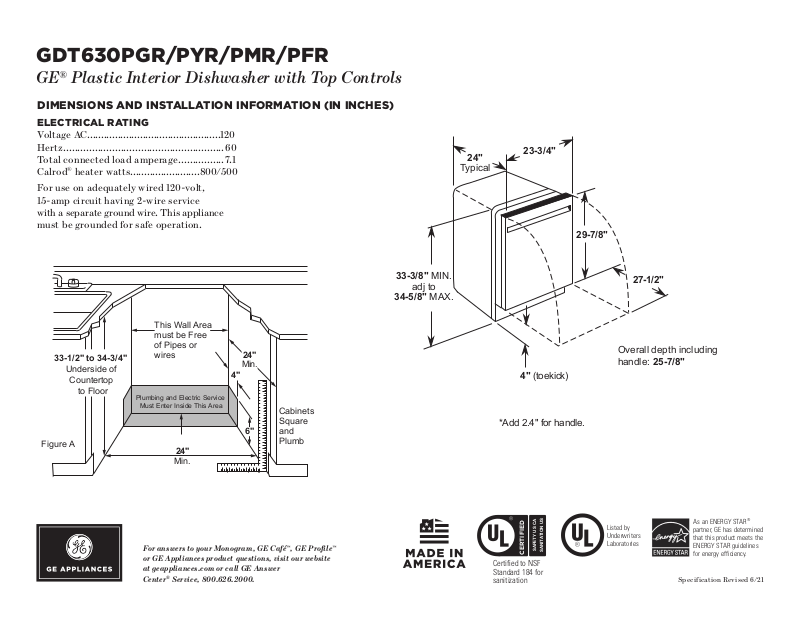

Page 1
GDT630PGR/PYR/PMR/PFR
GE® Plastic Interior Dishwasher with Top Controls
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
ELECTRICAL RATING
Voltage AC................................................120
Hertz ........................................................ 60
Total connected load amperage ................ 7.1
Calrod® heater watts.........................800/500
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
24"
Typical
23-3/4"
29-7/8"
33-1/2" to 34-3/4"
Underside of
Countertop
to Floor
Figure A
This Wall Area
must be Free
of Pipes or
wires
Plumbing and Electric Service
Must Enter Inside This Area
24"
Min.
For answers to your Monogram, GE Café™, GE Profile™
or GE Appliances product questions, visit our website
at geappliances.com or call GE Answer
Center® Service, 800.626.2000.
4"
24"
Min.
6"
Cabinets
Square
and
Plumb
33-3/8" MIN.
adj to
34-5/8" MAX.
4" (toekick)
*Add 2.4" for handle.
SAFETY US CA
SANITATION US
CERTIFIED
Certified to NSF
Standard 184 for
sanitization
27-1/2"
Overall depth including
handle: 25-7/8"
Listed by
Underwriters
Laboratories
Speci fication Revised 6/21
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
Page 2

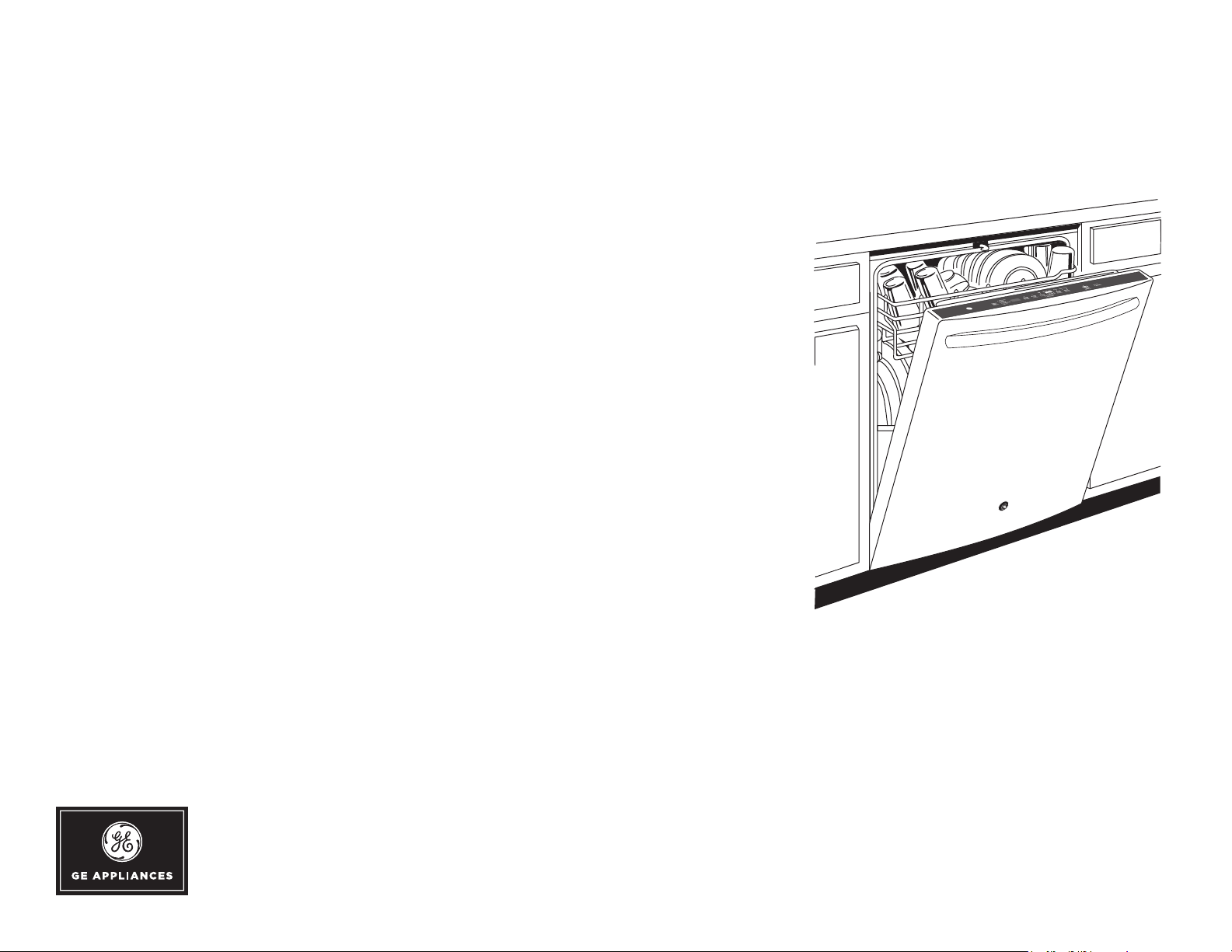

GDT630PGR/PYR/PMR/PFR
GE® Plastic Interior Dishwasher with Top Controls
FEATURES AND BENEFITS
Third Rack – This dishwasher with third rack storage lets you easily clean more items in fewer loads. It
gives you extra loading flexibility with a place to wash and dry silverware, spatulas, lids and more
Bottle Jets – This dishwasher with bottle jets ensures a deep clean for tall items, narrow glasses, jars
and more. In the upper rack, each of the four bottle wash jets direct water and detergent inside to
effectively wash hard-to-reach areas
Dry Boost™ – Dry Boost outperforms standard heated dry dishwashers by getting hard-to-dry items like
plastics up to 3 times drier when compared to heated dry
Active Flood Protect – This dishwasher features Active Flood Protect, to prevent potential overflows
for greater peace of mind. A water sensor alarm cancels the wash cycle before a flood may occur and
alerts you with blinking lights and an alert tone.
Smooth Touch Controls – Touch controls are easy to wipe clean and offer simple, dependable
cycle selection
Wash Zone – Wash a true half load in the upper or lower rack whenever you need to, instead of waiting
on a full load. Just choose your wash zone: upper or lower. The feature works in combination with most
cycles, saving you time and conserving energy
Steam + Sani – Save time with a steam and sanitize option that loosens tough soils before the wash
cycle begins, so you get a complete wash with no pre-rinsing or soaking necessary. Plus, a sanitization
cycle reduces 99.999% of bacteria on dishes.
Autosense Wash Cycle – This energy efficient dishwasher has an AutoSense Cycle that detects the soil
level and amount of dishes, then automatically adjusts wash settings for the ultimate clean
Powerful Wash Performance – Get a complete wash with no pre-rinse, thanks to a variety of powerful clean
wash cycles. No matter how many dishes you load or how dirty they are, rest assured you'll get spotless
results every time.
50 dBA
Model GDT630PFRDS – Black Slate
Model GDT630PMRES – Slate
Model GDT630PYRFS – Fingerprint Resistant Stainless Steel
Model GDT630PGRBB – Black
Model GDT630PGRWW – White
Available in Pocket Handle Model
Speci fication Revised 6/21
