Page 1
JSS86SP
29-7/8"
36"
Wall-Mounted
30" min
See note A
Side Wall
Note A: 30" Minimum to bare cabinet, see
installation instructions heights less than 30"
30"
0" permitted
recommend
6" space to
each side wall
0"
minimum
to cabinets
below
cooktop
36"
24"
Recommended
7-1/2"
6-1/2"
2-1/2"
30"
single ovens
double ovens
3"
4"
single ovens
double ovens
2-1/2"
29-7/8"
48-1/4"
*27-3/8"
*Depth including door handle is approximately 28-1/4".
37-1/4"
36"
ADA

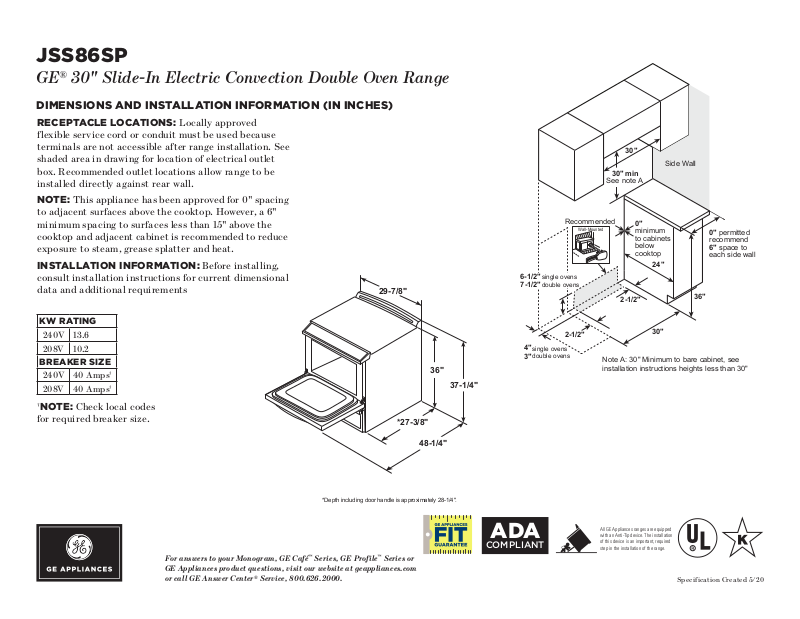

GE® 30" Slide-In Electric Convection Double Oven Range
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
RECEPTACLE LOCATIONS: Locally approved
flexible service cord or conduit must be used because
terminals are not accessible after range installation.
shaded area in drawing for location of electrical outlet
box. Recommended
outlet locations allow range to be
installed directly against rear wall.
NOTE: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.
INSTALLATION INFORMATI O N : Before installing,
consult installation instructions for current dimensional
data and additional requirements
KW RATI N G
240V 13.6
208V 10.2
BREAKER SIZE
240V 40 Amps
208V 40 Amps
†
NOTE: Check local codes
†
†
for required breaker size.
See
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
COMPLIANT
All GE Appliances ranges are equipped
with an Anti-Tip device. The installation
of this device is an important, required
step in the installation of the range.
Specification Created 5/20
Page 2
JSS86SP
GE® 30" Slide-In Electric Convection Double Oven Range
FEATURES AND BENEFITS
Fit Guarantee – This electric range will fit your existing 30" cut-out, or
GE Appliances will help pay for modifications up to $300.
12"/9" Dual Element – A dual burner cooktop lets you choose between 12-inch and
9-inch electric elements for a more convenient cooking experience.
True European Convection – Enjoy consistent baking thanks to an advanced
convection system that pairs a third heating element with a rear fan for a high level
of precision.
9"/6" Power Boil Element – A power boiler produces concentrated heat for rapid
boiling in a flexible 9-inch/6-inch burner size, so you spend less time waiting and
more time cooking.
Fifth Element Warming Zone – A convenient low-heat warming zone provides even
temperature control for foods on the cooktop.
Fast Preheat – Preheat the oven quickly and cut down on preheat time with a
speedy preheat feature.
Steam Clean – A steam cleaning option cleans the oven cavity in a 30-minute cycle
with less odor and heat.
Hidden Baking Element – This oven features a hidden baking element that gets rid
of hard-to-reach areas and makes cleanup easier.
Glass Touch Controls – Quickly set temperatures and make other oven adjustments
thanks to sleek touch controls that are also easy to clean.
Large Capacity Double Oven – Cook an entire meal at once with a 6.7 cubic foot
total capacity double oven which provides enough room for multiple dishes.
Model JSS86SPSS – Stainless Steel
Visit geappliances.com for more info
Specification Created 5/20
