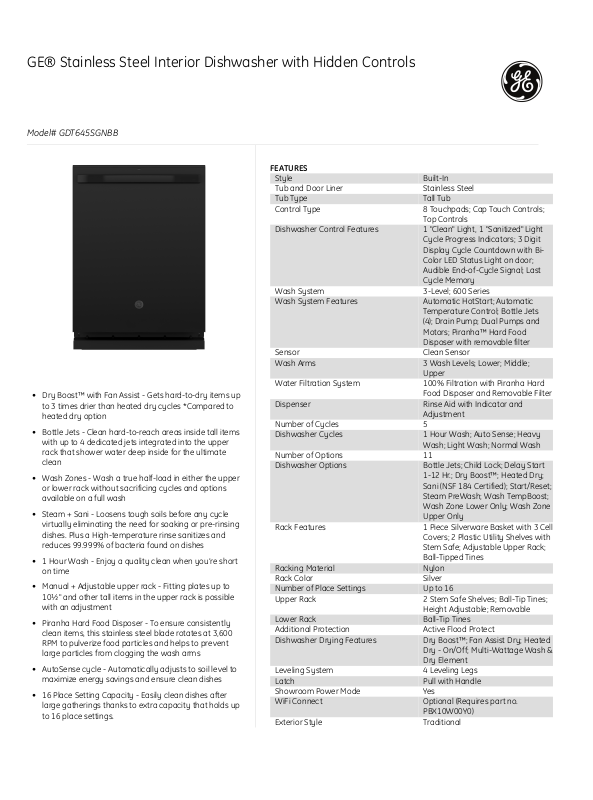

GE® Stainless Steel Interior Dishwasher with Hidden Controls
Model# GDT645SGNBB
FEATURES
Style Built-In
Tub and Door Liner Stainless Steel
Tub Type Tall Tub
Control Type 8 Touchpads; Cap Touch Controls;
Dishwasher Control Features 1 "Clean" Light, 1 "Sanitized" Light
Wash System 3-Level; 600 Series
Wash System Features Automatic HotStart; Automatic
Sensor Clean Sensor
Wash Arms 3 Wash Levels; Lower; Middle;
Water Filtration System 100% Filtration with Piranha Hard
• Dry Boost™ with Fan Assist - Gets hard-to-dry items up
to 3 times drier than heated dry cycles *Compared to
heated dry option
• Bottle Jets - Clean hard-to-reach areas inside tall items
with up to 4 dedicated jets integrated into the upper
rack that shower water deep inside for the ultimate
clean
• Wash Zones - Wash a true half-load in either the upper
or lower rack without sacrificing cycles and options
available on a full wash
• Steam + Sani - Loosens tough soils before any cycle
virtually eliminating the need for soaking or pre-rinsing
dishes. Plus a High-temperature rinse sanitizes and
reduces 99.999% of bacteria found on dishes
• 1 Hour Wash - Enjoy a quality clean when you’re short
on time
• Manual + Adjustable upper rack - Fitting plates up to
10½" and other tall items in the upper rack is possible
with an adjustment
• Piranha Hard Food Disposer - To ensure consistently
clean items, this stainless steel blade rotates at 3,600
RPM to pulverize food particles and helps to prevent
large particles from clogging the wash arms
• AutoSense cycle - Automatically adjusts to soil level to
maximize energy savings and ensure clean dishes
• 16 Place Setting Capacity - Easily clean dishes after
large gatherings thanks to extra capacity that holds up
to 16 place settings.
Dispenser Rinse Aid with Indicator and
Number of Cycles 5
Dishwasher Cycles 1 Hour Wash; Auto Sense; Heavy
Number of Options 11
Dishwasher Options Bottle Jets; Child Lock; Delay Start
Rack Features 1 Piece Silverware Basket with 3 Cell
Racking Material Nylon
Rack Color Silver
Number of Place Settings Up to 16
Upper Rack 2 Stem Safe Shelves; Ball-Tip Tines;
Lower Rack Ball-Tip Tines
Additional Protection Active Flood Protect
Dishwasher Drying Features Dry Boost™; Fan Assist Dry; Heated
Leveling System 4 Leveling Legs
Latch Pull with Handle
Showroom Power Mode Yes
WiFi Connect Optional (Requires part no.
Exterior Style Traditional
Top Controls
Cycle Progress Indicators; 3 Digit
Display Cycle Countdown with BiColor LED Status Light on door;
Audible End-of-Cycle Signal; Last
Cycle Memory
Temperature Control; Bottle Jets
(4); Drain Pump; Dual Pumps and
Motors; Piranha™ Hard Food
Disposer with removable filter
Upper
Food Disposer and Removable Filter
Adjustment
Wash; Light Wash; Normal Wash
1-12 Hr.; Dry Boost™; Heated Dry;
Sani (NSF 184 Certified); Start/Reset;
Steam PreWash; Wash TempBoost;
Wash Zone Lower Only; Wash Zone
Upper Only
Covers; 2 Plastic Utility Shelves with
Stem Safe; Adjustable Upper Rack;
Ball-Tipped Tines
Height Adjustable; Removable
Dry - On/Off; Multi-Wattage Wash &
Dry Element
PBX10W00Y0)
Page 2
• 48 dBA - Ultra-quiet operation creates a peaceful
kitchen environment even as it delivers powerful wash
performance
Have more questions? Please contact 1-800-626-2005
Page 3
GE® Stainless Steel Interior Dishwasher with Hidden Controls
Model# GDT645SGNBB
APPROXIMATE DIMENSIONS (HxDxW)
• 34 in x 24 in x 23 3/4 in
CAPACITY
WARRANTY
• Parts Warranty - Limited 1-year entire appliance
• Labor Warranty - Limited 1-year entire appliance
• Warranty Notes - See written warranty for full
details
