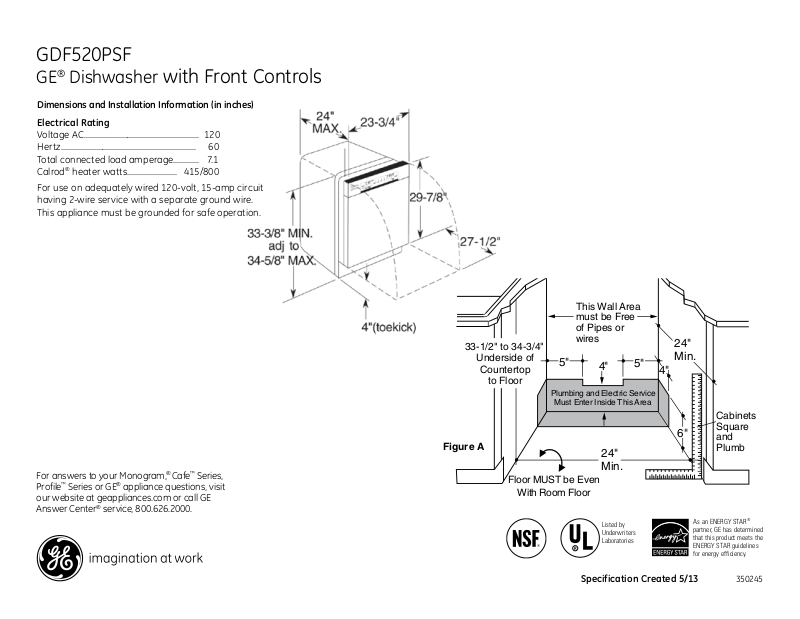

GDF520PSF

GE® Dishwasher with Front Controls

Dimensions and Installation Information (in inches)

Electrical Rating

Voltage AC.......................................................... 120

Hertz.................................................................... 60

Total connected load amperage............. 7.1

Calrod® heater watts......................... 415/800

For use on adequately wired 120-volt, 15-amp circuit
having 2-wire service with a separate ground wire.
This appliance must be grounded for safe operation.

For answers to your Monogram,® Cafe™ Series,
Profile™ Series or GE® appliance questions, visit
our website at geappliances.com or call GE
Answer Center® service, 800.626.2000.

33-1/2" to 34-3/4"

Underside of

Countertop

to Floor

Figure A

5"

Plumbing and Electric Service

Must Enter Inside This Area

Floor MUST be Even

With Room Floor

This Wall Area
must be Free
of Pipes or
wires

4"

24"
Min.

Listed by
Underwriters
Laboratories

5"

4"

24"
Min.

Cabinets

6"

Square
and
Plumb

As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.

Specification Created 5/13

350245

GDF520PSF

GE® Dishwasher with Front Controls

Features and Benefits

• GE’s most advanced wash system - Consistently clean, dry and sanitized dishes are

ensured with GE’s most advanced wash system, combining 65% more wash power*
with advanced performance features *Wash power delivered to each rack. Compared
to previous GE models

• Piranha

this stainless steel blade rotates at 3,600 RPM to pulverize food particles. The disposer
helps to prevent large particles from clogging the wash arms

• Steam Prewash - Loosens tough soils before any cycle, virtually eliminating the need

for soaking or pre-rinsing dishes

• Sanitize option (NSF Residential) - High-temperature rinse sanitizes and reduces

99.99% of bacteria found on dishes

• SpaceMaker

with this unique basket that can be placed on the rack or onto the door

• Pearlescent dark gray racks with ball tip tines - Offer durability and secure dishes

™

hard-food disposer with removable filter - To ensure consistently clean items,

®

Silverware Basket - Enjoy table-ready silverware and loading flexibility

• 2/4/8-hour Delay Start - Wash dishes at your convenience

• 54 dBA with status light on door - A dishwasher this quiet has a status light to let you

know it is running

• Dedicated Silverware Jets - Get table-ready silverware thanks to powerful jets that

focus on silverware baskets in multiple locations

• Model GDF520PSFSS – Stainless steel

Specification Created 5/13

As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.

350245
