GE FILTRATION & SOFTENING SYSTEMS

Water that is good for you and your home.

Healthy water

You practice good health when you

drink up to eight glasses of water a

day. You practice great health when

the water you drink is filtered.

Better tasting water

Water tastes better, whether it’s

straight from the tap or in beverages

like coffee, tea and juice.

Great for cooking

Cooking with filtered water

enhances the flavor of foods,

making them more appetizing.

Good for your family

You can have confidence in all

SmartWater filtration products

because they’re certified by NSF,

an independent testing institution

for water treatment products.

W

Better water for drinking,

cooking, and cleaning.

Water

is as vital to our survival and overall

well-being as the air we breathe. So, it’s

no wonder that

clean water is consistently

ranked as one of the most important

lifestyle factors in the U.S.

As America’s number one appliance brand*,

GE understands today’s lifestyle needs.

That’s why we offer SmartWater™filtration and

softening systems. Together, these systems

provide healthy water, brighter

laundry, cleaner dishes and more efficient

appliances. Install SmartWater systems and you

can improve the quality of every drop of

water in your home.

*GE is the appliance brand most often mentioned among the

brands rated as offering the best products and services

in America. Source: Louis Harris Poll, 2000

2

With a GE SmartWater system, you can improve
the most important element in your home: water!

www.GEAppliances.com

3

GE SmartWater™Filtration Systems

Water that’s good for you.

If you’re among the 75% of Americans concerned about water quality*,

you should consider a SmartWater system. Our premium filtration

Reverse Osmosis system, Carbon Filtration system

and Refrigerator/Icemaker filters help reduce contaminants

such as lead, cysts, and some chemicals, and remove unpleasant tastes

and odors. And no matter which system you choose,

you’ll find several options for easy installation.

4

Designed for simple installation, SmartWater systems

make it easy to enjoy healthy, better-tasting water for

drinking and cooking.

*WQA Consumer survey,1997.

GE SmartWater only sold
through authorized distributors.

●

●●

●

What type of drinking water filtration should you choose?

Reverse Osmosis System

GE’s best filtration process provides dual carbon filtration with Reverse Osmosis technology. This process can be found in all premium filtration
units which reduce up to 99% of contaminants.

Carbon Filtration System

Our most popular filtration systems use precarbon and postcarbon (dual stage) filters to improve water quality. Easy to install and maintain, these
systems offer a wide variety of filter options to reduce contaminants.

Faucet Mount Filter

The SmartWater faucet mount filter makes it easier and less expensive than ever to ensure water from the tap is healthy and clean.

Refrigerator/Icemaker Filter

The SmartWater filter provides clear, healthy ice right through your refrigerator dispenser. It works on all brands, all models.

www.GEAppliances.com

5

●

●

●

6

Not all features available on all models.

GE SmartWater only sold through authorized distributors.

Monitored Premium Drinking Water Filtration—
Reverse Osmosis: GE Profile Performance

™

System

This model includes

Note: bold = feature upgrade from previous model

GE’s best filtration process
reduces up to 99%* of the
elements shown in the table
at right:

Super capacity provides
up to 18 gallons** of high­quality filtered water per day.

All-in-one system needs
less space for installation
than conventional models.

GE SmartWater

™

faucet with electronic monitor clearly indicates
when filters and membrane need replacing. Designed to work
with a primary faucet, the SmartWater faucet is used only when
filtered water is needed, extending filter life. Batteries
are included.

Amber “filter” light signals when
prefilter and postfilter cartridges
need replacing. Filters should be
replaced after 6 months or 900
gallons of water use.

Green “OK” light signals that the
RO system is providing high­quality drinking water.

Amber “RO” light signals when the RO membrane needs replacing.

Designer-style faucet allows you to customize the faucet color
to complement your kitchen (see below for model/color selections).

Installation flexibility allows system to be installed vertically
or horizontally under a counter, in the basement, or in any other
convenient location.

Certified by NSF, the most highly
recognized independent testing
institution in the water treatment
industry. NSF inspects, tests and
certifies our product performance.

GE Profile
Performance

™

PNRV18ZCC

Reverse Osmosis
filtration system
with Bisque faucet
and monitor.

GE Profile
Performance

™

PNRV18ZBB

Reverse Osmosis
filtration system
with Black on black
faucet and monitor.

GE Profile
Performance

™

PNRV18ZWH

Reverse Osmosis
filtration system with
Chrome on white
faucet and monitor.

GE Profile
Performance

™

PNRV18ZBL

Reverse Osmosis
filtration system with
Chrome on black
faucet and monitor.

*Elements reduced are not necessarily present in your

water. See product specification sheet, packed with
product, for specific elements reduced by model, or call
the GE Answer Center

®

toll-free, 800.626.2000.

**As tested and validated by the Water Quality

Association using Standard S-300.

Note: Depends on water pressure, temperature and total
dissolved solids.

Reduces

Lead Mercury
Cysts Copper
Taste & Odor Sodium
Chlorine Magnesium
Sediment Sulfate
Rust Ammonia
Nitrate/Nitrite Tannins

And More!

PNRV18ZWW shown

GE Profile
Performance

™

PNRV18ZWW

Reverse Osmosis
filtration system
with White on white
faucet and monitor.

7

www.GEAppliances.com

GE Profile

™

PNRV12ZBL

Reverse Osmosis filtration system (includes tank) with Chrome on black
faucet and monitor.

This model includes

Note: bold = feature upgrade from previous model

GE’s best filtration process
reduces up to 99%* of the
elements shown in the table
at right:

Extra-large capacity provides
up to 12 gallons** of high­quality filtered water per day.

GE SmartWater™faucet with
electronic monitor

clearly
indicates when filters and membrane need replacing. Designed
to work with a primary faucet, the SmartWater faucet is used
only when filtered water is needed, extending filter life. Batteries
are included.

Amber “filter” light signals when prefilter and postfilter cartridges
need replacing. Filters should be replaced after 6 months or 900
gallons of water use.

Green “OK” light signals that the RO system is providing
high-quality drinking water.

Amber “RO” light signals when the RO membrane needs replacing.

Simple installation means system can be installed easily under a
counter, in a basement, or other convenient location.

Certified by NSF, the most highly recognized, independent testing
institution in the water treatment industry. NSF inspects, tests and
certifies our product performance.

Not all features available on all models.

Monitored Premium Drinking Water Filtration—
Reverse Osmosis: GE Profile

™

System

Premium Drinking Water Filtration—
Reverse Osmosis: GE System

This model includes

GE’s best filtration process
reduces up to 99%* of the
elements shown in the table
at right.

Large capacity provides up to
10 gallons** of high-quality
filtered water per day.

SmartWater faucet is designed
to work with a primary faucet.
This short-reach, Chrome on
black faucet is used only when filtered water is needed,
extending filter life.

Simple installation means system can be installed easily under a
counter, in a basement, or other convenient location.

Certified by NSF, the most highly recognized, independent testing
institution in the water treatment industry. NSF inspects, tests and
certifies our product performance.

GE

GXRV10ABL

Reverse Osmosis filtration system (includes tank) with short-reach
Chrome on black faucet.

Reduces

Lead Mercury
Cysts Copper
Taste & Odor Sodium
Chlorine Magnesium
Sediment Sulfate
Rust Ammonia
Nitrate/Nitrite Tannins

And More!

Reduces

Lead Mercury
Cysts Copper
Taste & Odor Sodium
Chlorine Magnesium
Sediment Sulfate
Rust Ammonia
Nitrate/Nitrite Tannins

And More!

GE SmartWater only sold through authorized distributors.

8

Undersink Dual and Single Stage
Carbon Drinking Water Filtration: GE Systems

GE

GN1S15C

• Short-reach faucet without
electronic monitor

• Lead and cyst reduction
filter included (FXULC)

• System rated for
1250 gallons of water

GX1S15C

• Same as GN1S15C, except
sold in overpacks of eight.

Reduces

Lead
Cysts
Taste & Odor
Chlorine
Sediment
Rust

GE SmartWater™faucet is used
only when filtered water is
needed, extending filter life.

Certified by NSF, the most
highly recognized, independent
testing institution in the water
treatment industry. NSF inspects,
tests and certifies our product
performance.

Simple installation means
system can be installed easily
under a counter, in a basement,
or other convenient location.

GE

GNSV30C/GNSV25C

• Long-reach black/chrome

faucet with electronic
monitor. Amber filter light
indicates when to replace
filters to ensure highest
quality water.

• Chemical/VOC lead and

cyst reduction filters included
(FXSVC dual pack)

• System rated for 540 gallons
of water

Note: bold = feature upgrade
from previous model

Reduces

Chemicals/VOC
Lead
Cysts
Asbestos
Taste & Odor
Chlorine
Sediment
Rust

Customize your faucet to
match your kitchen with a
choice of faucet colors

GNSV30CWW
White on white

GNSV30CCC
Bisque

GE

GNSL05CBL

• Long-reach faucet with

electronic monitor

• Lead and cyst reduction filters
included (FXSLC dual pack)

• System rated for
1250 gallons of water

Reduces

Lead
Cysts
Taste & Odor
Chlorine
Sediment
Rust

Dual Stage

Single Stage

Not all features available on all models.

GE SmartWater only sold through
authorized distributors.

9

www.GEAppliances.com

Refrigerator and Icemaker
Drinking Water Filtration: GE Systems

Quick connect auto shutoff
fittings allow for easy
installation and replacement
of filter.

GE

GXILQ

• Quick connect auto shutoff fittings • Filter reduces lead, cysts, chlorine
and sediment, while minimizing bad tastes and odors

• System rated for

750 gallons of water • Sold in overpacks of ten

GXITQ (not shown)

• Quick connect auto shutoff fittings • Filter reduces chlorine, sediment,
bad tastes and odors

• System rated for 2000 gallons of water • Sold in

overpacks of ten

GXITQR (not shown)

• Replacement filter only for GXITQ • Sold in overpacks of ten

GE SmartWater™filters work
on any brand side-by-side and
top-freezer refrigerators, with
or without dispensers.

Clean, filtered water for better­tasting beverages and foods.

System can be installed in
minutes without any tools. Fits
most faucet types.

System provides a constant,
convenient supply of fresh, clean
water, eliminating the need for
expensive bottled water.

Note: bold = feature upgrade from previous model

Faucet Mount Filter: GE Systems

GE

GXFM03C

• Faucet mount filtration system • Filter included • Replacement filters are easy
to install • Reduces chlorine, sediment, bad tastes and odors • Eliminates up to
99% of lead in drinking water • Removes 99.99% of cryptosporidium and
giardia • Our most economical way to reduce lead and cysts • 200-gallon/
3-month capacity • Reduces parasites that can cause illness • Superior carbon
block filter • Sold in overpacks of six

FXMLC

• Replacement filter

• Sold in overpacks of eight

Reduces

Lead
Cysts
Taste & Odor
Chlorine
Sediment
Rust

Not all features available on all models.

GE SmartWater only sold through
authorized distributors.

10

Reduces

Sediment

Rust

GE

GNWH08C

• Built-in valve-on and bypass positions.

• Easy-turn bypass design and pressure
relief valve make changing filter easy.

• Sediment and rust are decreased by
as much as 16,000 gallons or
3 months (filter included).

• Installation kit included for
easy installation.

• Clear sump.

• 3/4" inlet/outlet included for simple
installation on main cold water line.

GXWH08C

• Same as GNWH08C, except sold in
overpacks of eight.

GE SmartWater only sold through authorized distributors.

Water that is good for you

and your home.

Household filtration systems improve all the

water that enters your home by reducing sand,

sediment and rust. These systems are the perfect

complement to water softeners and

drinking water filtration systems.

GE SmartWater™Household Filtration Systems

Reduces sediment and rust at
your main water supply inlet.

Appliance saver reduces sedi­ment service issues on your
appliances, water heater and
plumbing fixtures.

11

Soft water feels noticeably
smoother to your skin.

Hard water build-up is significantly reduced,
making tubs, showers and sinks easier to clean.

Dishes are cleaner, with less
soap and hard water spotting.

Water that is good for you

and your home.

A recent U.S. geological study has demonstrated that

hard water is found in 85% of the country.

If your water supply is hard, you can find

peace of mind in the form of a

GE SmartWater

™

softening system.

GE SmartWater only sold through authorized distributors.

GE SmartWater™Softening Systems

www.GEAppliances.com

Towels are 45% whiter while
using 1/3 less detergent.
Clothes are softer, cleaner
and last longer.

12

GE SmartWater™Softening Systems

High-efficiency super capacity,
combined with salt-efficiency,
provides cost savings and
convenience.

Electronic controls are set
easily, without calculations or
complicated programming.
Simply turn the unit on, set the
time of day, and set the hardness
level of your water supply.

Demand-initiated regeneration
system intuitively monitors
water usage to maximize salt
usage and assure ample supply
of soft water.

Free installation kit with bypass
valve, drain tubing, and other
necessary parts is included.

GE Profile Performance

™

PNSF39Z

• 38,500-grain super capacity helps assure an
ample supply of soft water and accommodates
lifestyle changes.

• 300-lb. salt storage reduces the need for frequent
salt replacement.

•

Backlit LCD display is easy to read, even in
dark locations.

•

72-hour program and time memory maintains
hardness and regeneration time settings, regardless
of whether the power is off or the unit is unplugged
for extended periods. No batteries needed—unit
recharges itself when power is restored.

•

Advanced electronic water management system
monitors:

–Capacity remaining (the data button indicates

how much capacity is remaining and whether
or not to command an extra regeneration)

–Gallons used (indicates how many gallons of

water have been used per day, as well as the
average gallons used over the past 7 days)

–Flow rate (shows how much water is flowing

through the softener)

• 24-volt electronic system simplifies installation
and maintenance.

For Families
of 4 or More

For Families
of 4 or More

GE Profile

™

PNSF35B

• 35,000-grain extra-large capacity helps assure an
ample supply of soft water and accommodates
lifestyle changes.

•

300-lb. salt storage reduces the need for frequent
salt replacement.

• 6-hour program and time memory maintains
hardness and regeneration time settings, regardless
of whether the power is off or the unit is unplugged
for extended periods. No batteries needed—unit
recharges itself when power is restored.

• 24-volt electronic system simplifies installation
and maintenance.

For Families

of 2 to 4

For Families

of 2 to 4

Note: bold = feature upgrade
from previous model

Not all features available on all models.

GE SmartWater only sold through authorized distributors.

13

www.GEAppliances.com

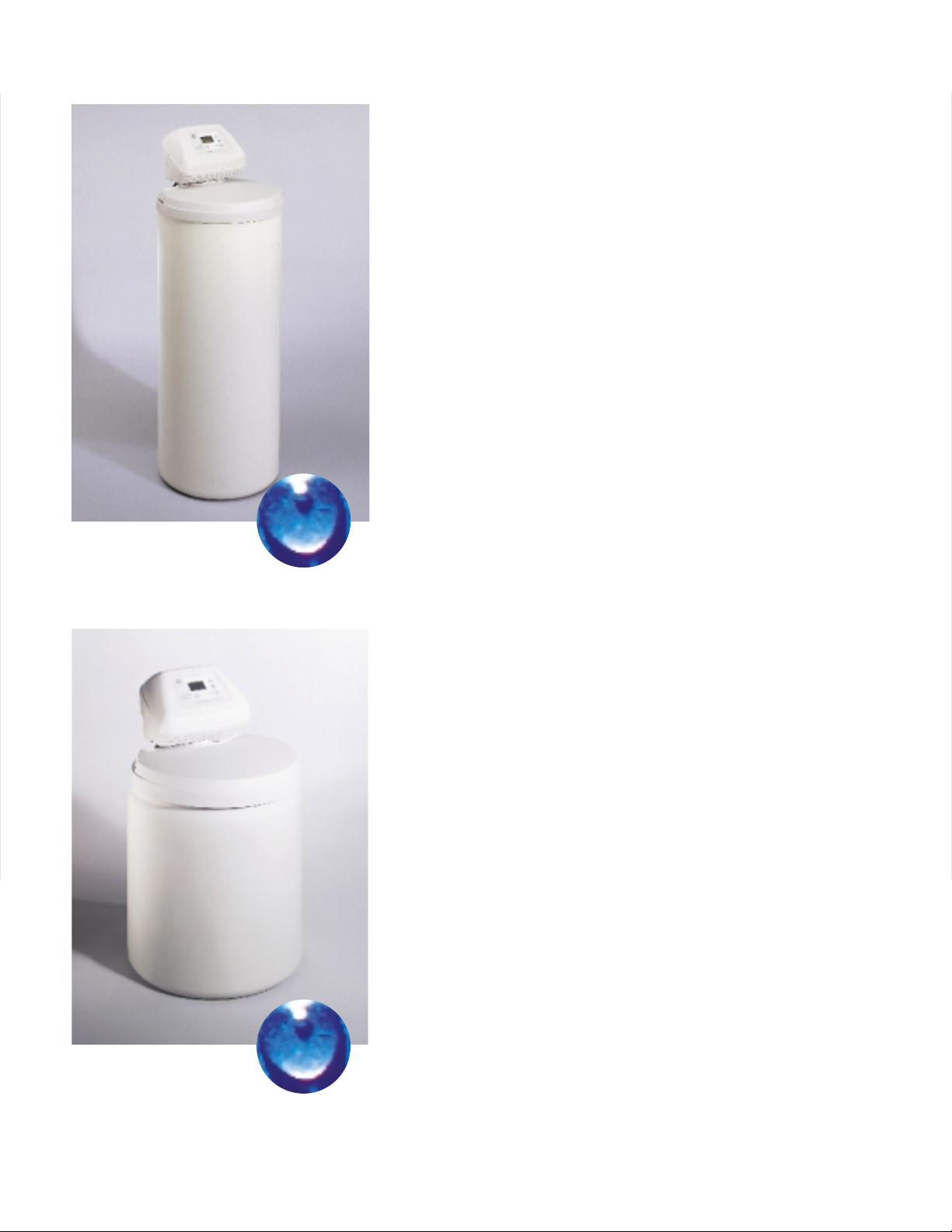

GE

GXSF27B

• 27,000-grain large capacity helps assure an
ample supply of soft water and accommodates
lifestyle changes.

• 200-lb. salt storage reduces the need for frequent

salt replacement.

• 6-hour program and time memory maintains

hardness and regeneration time settings, regardless
of whether the power is off or the unit is unplugged
for extended periods. No batteries needed—unit
recharges itself when power is restored.

• 24-volt electronic system simplifies installation
and maintenance.

For Families

of 2 or Less

For Families

of 2 or Less

GE

GNSF18Z

• Compact housing provides installation flexibility.

• 18,000-grain large capacity helps assure an ample

supply of soft water.

• 140-lb. salt storage, combined with the compact
size, simplifies salt loading.

For Condos

and Small

Spaces

For Condos

and Small

Spaces

14

GE

FXULC

• Sold in overpacks of eight

GE

FXUTC

• Sold in overpacks of twelve

GE

FXSLC

• Sold in overpacks of six

GE

FXSVC

• Sold in overpacks of six

GE TrueFit™Replacement Filters for Drinking Water Filtration Systems

The SmartWater™taste and
odor filter

reduces the offensive
smell of chlorine, which can affect
the taste of beverages and
cooked foods.

The

SmartWater lead/cyst filter

removes up to 99% of lead in
your water supply. This filter also
removes cryptosporidium, a
parasite commonly found in lakes
and rivers, and it reduces bad
tastes and odors.

The

SmartWater VOC filter

is designed to remove up to 99%
of VOCs, chemicals commonly
used in herbicides, pesticides
and gasoline additives. This filter
also reduces lead/cysts, as well
as bad tastes and odors in your
water supply.

GOOD

Reduces

Taste & Odor
Chlorine
Sediment
Rust

BETTER

Reduces

Lead
Cysts
Taste & Odor
Chlorine
Sediment
Rust

BEST

Reduces

Chemicals/VOC
Lead
Cysts
Asbestos
Taste & Odor
Chlorine
Sediment
Rust

Dual and Single Stage

Carbon Filtration

Our TrueFit filters are compatible with most water

filtration systems, including those made by other

manufacturers (Omni

®

, Kenmore®, Culligan™and

more). Plus, they’re easy to use: Even if a replacement

filter is installed upside down, your home will still

get the benefits of filtered water. That’s something

filters made by other manufacturers can’t do.

Another advantage of TrueFit filters is that

they gives you the opportunity to upgrade

your water filtration system.

Three types of filters are available:

15

www.GEAppliances.com

GE SmartWater™Filtration Systems Optional Accessories

Premium Filtration Accessories

Dual and Single Stage Filtration Accessories

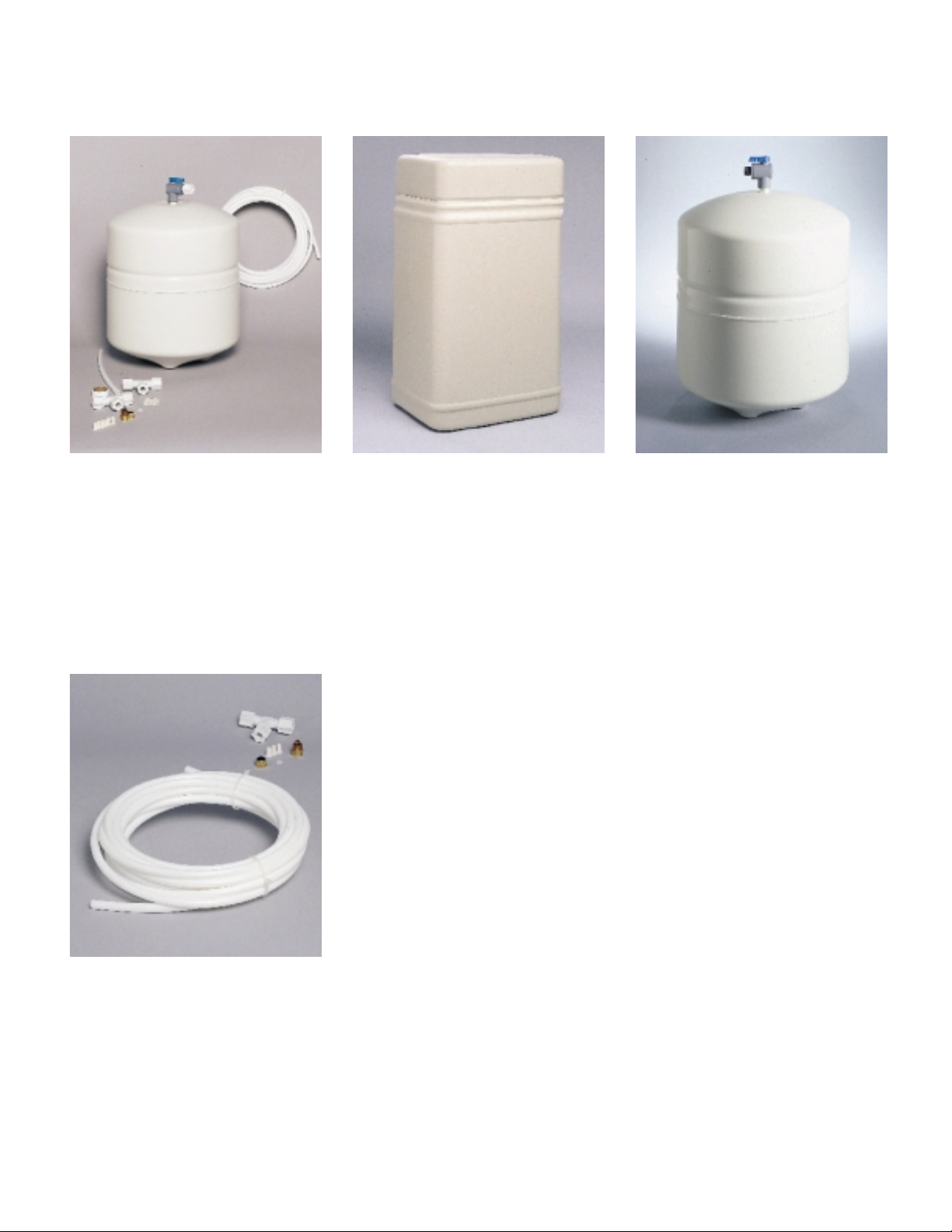

RVTNK1

Supplemental tank

An extra storage tank is available for
added capacity needs.

(17" H x 11" D)
Models: PNRV18Z, PNRV12ZBL and GXRV10ABL.

UCKIT

Icemaker connection kit

This hookup kit provides the added convenience
of filtered water through your refrigerator dispenser.
It includes all necessary items for connection.

Sold in overpacks of six.

Models: GNSV30C, GNSV25CBL, GNSL05CBL, GX1S15C,
GN1S15CBL

RVKIT

Icemaker connection kit

This hookup kit provides the added
convenience of filtered water through your
refrigerator dispenser. It includes a
supplemental tank (RVTNK1), in addition
to all necessary items for connection.

Models: PNRV18Z, PNRV12ZBL and GXRV10ABL.

RV18CBNT

Storage cabinet

This cabinet conceals filter unit, providing
a neater appearance. It allows horizontal
installation, with a convenient storage surface.

(12" W x 10 1/2" D x 22" H)
Model: PNRV18Z.

16

GE SmartWater™Reverse Osmosis Filtration Systems

FLOW

21

10"

Overall Width

Including Filter System

Automatic
Shutoff
Assembly

Sink p-trap

Drain Line

Tank Shutoff Valve

Closed Open

Leadwires

Battery Pack

Electronic Box

Air Gap Device
Inside Faucet

RO Produce
Water Faucet

3/8" Tubing, Marked FAUCET

1/4" Tubing,

Marked

1/4" BARB

Into Air Gap

Device

Tools Needed:

• Screwdriver

• Pliers

• Drill

Disposer

3/8"

Drain Tubing

Drain line

Hot Cold

Sink P-Trap
Tank
Shutoff

17

11" Dia.

9

RO Product Water

Faucet Mounted

Through Sink

Electronics Box

Leadwire Connection

Battery Holder

Reverse Osmosis System

16

17

5-1/2

Depth

Tools Needed:

• Screwdriver

• Pliers

• Drill

Disposer

GE Profile Performance

™

PNRV18ZWW

PNRV18ZCC PNRV18ZWH
PNRV18ZBB PNRV18ZBL PNRV12ZBL GXRV10ABL

Capacity

Storage Tank Capacity (gals.) 1.9 1.9 2.1 1.3

Features

SmartWater Faucet Electronic Monitor Electronic Monitor Electronic Monitor Short-Reach

White on white

Bisque Chrome with white

Faucet Color Black on black Chrome with black Chrome with black Chrome with black
Output Per Day (gals.) – Production Rate

18* 18* 12 10

(gpd) as tested by WQA Standard S-300
Process Water Used (per gal.) 4 4 4 4
Working Pressure (psi) 40 min. - 125 max. 40 min. - 125 max. 40 min. - 125 max. 40 min. - 125 max.
Max. TDS Removal (ppm) 2000 2000 2000 2000
Percent TDS Removal** (ppm) 75-92 75-92 75-92 75-92
Percent Cysts Reduction 99.95 effective 99.95 effective 99.95 effective 99.95 effective
Max. Hardness 10 grains 10 grains 10 grains 10 grains
Feed Water pH limits 4-10 4-10 4-10 4-10
Operation and Storage Water Temperature 40-100° F 40-100° F 40-100° F 40-100° F
Auto Shut-Off ●●●●

Filters & Membrane

FX18M FX18M FX12M FX12M

RO Membrane Thin Film Polyamid (TFP) Thin Film Polyamid (TFP) Thin Film Polyamid (TFP) Thin Film Polyamid (TFP)
Pre-Filter (Sediment) FX18P-Act. Carbon Block FX18P-Act. Carbon Block FX12P-Carbon Composite FX12PA-Carbon Block
Post-Filter (Taste/Odor) FX18P-Gran. Act. Carbon FX18P-Gran. Act. Carbon FX12P-Carbon Composite FX12PA-Carbon Block
RO Filtration Indicator Electronic Electronic Electronic
Filter Change Indicator Electronic Electronic Electronic

Under Counter Installation (kit included) ●●●●
Optional Basement Installation

(hardware not included) ●●●●

Appearance

Style All-In-One All-In-One Bracket Bracket
Unit Color Grey Grey Grey White
Filter Housing Opaque Opaque Opaque Opaque

Weights & Dimensions

Approximate Shipping Weight (lbs.) 16 16 23 20

17 x 16 x 5-3/4 (unit) 17 x 16 x 5-3/4 (unit)

Overall W x H x D (in.) 10 x 21 x 10 10 x 21 x 10 11 x 17 x 11 (tank) 9 x 15 x 9 (tank)

Power/Ratings

Faucet Monitor Power Requirement 4 AA batteries (included) 4 AA batteries (included) 4 AA batteries (included)

Accessories (available at additional cost)

Supplemental Tank RVTNK1 RVTNK1 RVTNK1 RVTNK1
Storage Cabinet RV18CBNT RV18CBNT
Icemaker Connection Kit RVKIT RVKIT RVKIT RVKIT

*Output according to ANSI/ NSF Standard 58 as tested by Spectrum Labs, Inc. is 14 gals. per day. Feed water over 10 grains of hardness may affect performance of the

filtration system.

**Feed water = 50 psig, 77°F, pH = 7.5 ± 5 and 750 ppm TDS as sodium chloride. Product water produced, amount of waste and percent rejection will vary with changes in

pressure, temperature and total dissolved solids. Feed water over 10 grains of hardness may affect performance of the filtration system.

GE Reverse Osmosis Models PNRV18Z,
PNRV12Z and GXRV10ABL Series are tested
and certified to ANSI/NSF Standard 58 for
TDS and cyst reduction.

NSF Approved

NSF is the most highly recognized independent
testing institution in the water treatment
industry. NSF inspects our manufacturing
facilities, structurally tests our product, tests
our product to make sure nothing harmful is
added to the water, and certifies our product
performance as specified on the performance
data sheet (inside the product box).

GE Profile

™

GE

The GE Reverse Osmosis models PNRV18Z,
PNRV12Z and GXRV10ABL Series have been
quality tested by an independent laboratory,
Spectrum Labs, Inc.

Caution: Do not use with water that is micro­biologically unsafe or of unknown quality,
without adequate disinfection before or after the
system. Systems certified for cyst reduction may
be used on disinfected water that may contain
filterable cysts. This reverse osmosis unit
contains a replaceable membrane cartridge
treatment component critical for effective
removal of Total Dissolved Solids. The water
should be tested periodically to verify that the
system is performing satisfactorily.

Models PNRV18Z
Installation Information (in inches)

Model PNRV12ZBL
Installation Information (in inches)

Model GXRV10ABL
Installation Information (in inches)

3/8"

Drain Tubing

Drain line

Hot Cold

Sink P-Trap

15

9" Dia.

7

RO Product Water

Faucet Mounted

Through Sink

Reverse Osmosis System

16

17

5-1/2

Depth

Tools Needed:

• Screwdriver

• Pliers

• Drill

Disposer

Installation and Parts Information

Note: R.O. System can be installed up to 30 feet from point-of-use/faucet.
Note: Can be installed under counter (as shown), in basement, or other convenient location.

Before installing, see installation instructions packed with product for complete details.

Replacement Membranes, Pre- and Post-Filters

Call SmartWater Services, toll-free 800.952.5039 for convenient ordering.

Water Test Kit

To order a water test kit, call 800.626.2000.

17

www.GEAppliances.com

GE SmartWater™Water Filtration Systems

Installation and Parts Information

Note: Can be installed under counter (as shown), in basement, or other convenient location.

Before installing, see installation instructions packed with product for complete details.

Replacement Filters

Call GE SmartWater Services toll-free 800.952.5039 to order replacement filters.

Water Test Kit

To order a water test kit, call 800.626.2000.

COLD WA TER LINE

13

12

MOUNTING SCREWS

FILTERED W ATER FA UCET*

INSERT

TUBING

WASHER

ADAPTOR

NUT
TUBING

NUT

Filter

* FAUCET VARIES WITH MODELS

Models GNSV30C/GNSV25C/GNSL05C
Installation Information (in inches)

Model GN1S15C
Installation Information (in inches)

GNSV25CBL,GNSV30CCC, GNSV30CWW, GN1S15CBL and
GNSL05CBL are Tested and Certified by NSF International against
ANSI/NSF Standard 42 for Particulate Reduction Class I, Chlorine
Reduction Class I and Taste and Odor Reduction.

GN1S15CBL and GNSL05CBL are Tested and Certified by NSF
International against ANSI/NSF Standard 53 for Lead, Cysts, Turbidity,
Asbestos and Lindane Reduction.

GNSV25CBL, GNSV30CCC and GNSV30CWW are Tested and Certified
by NSF International against ANSI/NSF Standard 53 for Lead, Cysts,
Turbidity, Asbestos and VOC Reduction.

GNSV30CWW

GNSV30CCC GX1S15C
GNSV25CBL GNSL05CBL GN1S15CBL

Features

SmartWater™ Faucet Electronic Monitor Electronic Monitor Short-Reach

White on white

Bisque

Faucet Color Chrome w/black Chrome w/black Chrome w/black
Feed Water Pressure (psi) 40 min.-125 max. 40 min.-125 max. 40 min.-125 max.
Feed Water Temperature 40-100°F 40-100°F 40-100°F
Filtered Water Flow (gpm) 0.6 0.6 0.6
Filter I Filter Set–FXSVC Filter Set–FXSLC FXULC

Filter Cartridge Block Act. Carbon Polyspun Depth Filter Spiral Wound Act. Carbon

Filter Set–FXSVC Filter Set–FXSLC

Filter II (VOC) (Lead,Cysts) N/A

Filter Cartridge Block Act. Carbon Spiral Wound Act. Carbon N/A
Particulate Removal Absolute 1 micron Nominal 0.5 micron Nominal 0.5 micron
Chlorine Reduction (percent / gals.) 98/540 98/1250 98/1250
Filter Life 6 months 6 months 6 months
Lead Reduction (percent / gals.) 99/540 99/1250 99/1250
Cysts Reduction (percent) 99.99 99.99 99.99
Turbidity Reduction (percent) 99 99 99
Lindane Reduction (percent / gals.)

(A Pesticide) ● 91/1250 91/1250
Asbestos Reduction (percent) 99 99 99

Filter Change Indicator Electronic Electronic Sticker
Installation Kit ●●●

Fittings ●●●

Optional Basement Installation
(hardware not included) ●●●

Appearance

Style Bracket Bracket Bracket
Unit Color White White White
Filter Housing White White White

Weights & Dimensions

Approximate Shipping Weight (lbs.) 7 7 3.8
Overall W x H x D (in.) 12 x 13 x 4-5/8 12 x 13 x 4-5/8 5-1/2 x 13 x 4-3/4

Shipping

Quantity Per Pack 1 1 8/1

Power/Ratings

Faucet Monitor 2 AA batteries 2 AA batteries
Power Requirement (included) (included) N/A

Accessories (available at additional cost)

Icemaker Connection Kit UCKIT UCKIT UCKIT

UNFCTWW

Faucet WOW
Replacement Filter

Taste and Odor Filter FXUTC
Lead and Crystal Filter FXSLC FXULC
Carbon Filter FXSVC (dual pack) 91/1250 91/1250

Caution: Do not use with water that is microbiologically unsafe or of unknown quality, without adequate disinfection before or
after the system. Systems certified for cysts reduction may be used on disinfected water that may contain filterable cysts.

NSF Approved

NSF is the most highly recognized independent testing institution in the water treatment
industry. NSF inspects our manufacturing facilities, structurally tests our product, tests our
product to make sure nothing harmful is added to the water, and certifies our product
performance as specified on the performance data sheet (inside the product box).

COLD WA TER LINE

13

6

MOUNTING SCREWS

FILTERED W ATER FA UCET

TUBING

WASHER

ADAPTOR

NUT

TUBING

Filter

GE Single Stage
Drinking Water

GE Dual Stage
Drinking Water

18

GE SmartWater™Refrigerator/Icemaker
Filtration Systems

GE SmartWater™Faucet Mount
Filtration System

GE SmartWater

™

Household Water Filtration Systems

Important: All units must be installed according to local codes.

Caution: Do not use with water that is microbiologically unsafe or of unknown quality,

without adequate disinfection before or after the system. Systems certified for cysts
reduction may be used on disinfected water that may contain filterable cysts.

Replacement Filters

Call GE SmartWater Services toll-free 800.952.5039 to order replacement filters.

GE

GXILQ GXITQ

Features

Feed Water Pressure (psi) 25 min.-125 max. 25 min.-125 max.

Feed Water Temperature 40-100°F 40-100°F

Filtered Water Flow (gpm) 0.5 0.5

Filter Life 6 months 6 months

Filter Cartridge Act. Carbon Act. Carbon

Particulate Removal Nominal 1 micron Nominal 5 micron

Chlorine Reduction (gals.) 750 93% per 2000

Lead Reduction (percent / gals.) 99/750

Cysts Reduction (percent / gals.) 99.95/750

Filter Change Indicator Sticker Sticker

Fittings Quick Connect Quick Connect

Plumbing Connections 1/4" 1/4"

Auto Shut-Off Valve ●●

Appearance

Style Bracket

Unit Color White White

Filter Housing White White

Weights & Dimensions

Approximate Shipping Weight (lbs.) 2 2

Overall W x H x D (in.) 16 x 2-1/2 x 2-1/2 14 x 2 x 2

Accessories (● = included)

Installation Kit ●●

Replacement Filter GXITQR

GE

GNWH08C
GXWH08C

Features

Feed Water Pressure (psi) 20 min.-125 max.
Feed Water Temperature 40-100°F
Filtered Water Flow (gpm) 4-12
Filter Life 3 months
Filter Change Indicator Sticker
Bypass Valve 2-Position

Appearance

Unit Color White
Filter Housing Clear

Weights & Dimensions (single)

Approximate Shipping Weight (lbs.) 4
Overall W x H x D (in.) 5-1/2 x 14-1/2 x 5

Shipping

Quantity Per Pack 1/6

Accessories (● = included at additional cost)

Installation Kit ●

Wrench ●

Replacement Filter

Polyspun FXUSC
String Wound FXWSC
Pleated FXWPC
Carbon Paper FXWTC

Important: All units must be installed according to local codes.

Caution: Do not use with water that is microbiologically unsafe or of unknown quality,

without adequate disinfection before or after the system. Systems certified for cyst
reduction may be used on disinfected water that may contain filterable cysts.

Replacement Filters

Call GE SmartWater Services toll-free 800.952.5039 to order replacement filters.

GE

GXFM03C

Features

Feed Water Pressure (psi) 30 min.-100 max.
Feed Water Temperature 40-100°F
Filtered Water Flow (gpm) 0.6
Filter

Capacity (gal.) 200
Life (months) 3
Filter Cartridge Carbon Block
Chlorine Reduction 98%
Lead Reduction 99%
Cysts Reduction 99.99%
Turbidity Reduction 99%
Particulate Removal 0.5 Micron (Nominal)

Appearance

Style Faucet Mount
Unit Color White
Filter Housing White

Weights & Dimensions

Approximate Shipping Weight (lbs.) 0.8
Overall W x H x D (in.) 3.4 x 6.9 x 5.7

Accessories (● = included)

Replacement Filter FXMLC

Typical Installation

OUT

IN

Water In

Inlet 3/4" NPT

Apply Several

Wraps of

Teflon Tape

Compression

Adaptor

Brass

Ferrule

Nut

Filtered

Water

CLAMP

Grounding Wire

CLAMP

19

www.GEAppliances.com

GE SmartWater™Softening Systems

PNSF39Z PNSF35B GXSF27B GNSF18Z

Capacity

Capacity (grains) Super-38,500* Extra-Large-35,000* Large-27,000* Compact-18,000*

Features

Efficiency (grains per lb.-salt) 5200** 5200** 5200** 5000**
Max. Hardness Removal (gpg) 110 100 95 25
Max. Clear Water Iron Reduction (ppm) 8 6 5 3
Resin Filter Type Std. mesh Std. mesh Std. mesh Std. mesh
Resin Weight (lbs.) 52.00 49.4 36.9 38
Resin Quantity (cu. ft.) 1.00 .95 .71 .73
Resin Tank Size (in inches) 10 x 35 10 x 35 8 x 40 10 x 21
Salt Capacity (lbs.) 300 300 200 140
Water Used for Regeneration (gals.) 43-52 40-45 40-50 25-30
Regeneration Time (min.) Approx. 118 Approx. 118 Approx. 118 Approx. 120
Service Flow Rate (at 15 psi drop) 10 9 8 7
Systems Monitor ●
Electronic Controls Backlit LCD ●●●
Permanent Settings Memory ●● ● ●
Plumbing Connection 3/4"-NPT 3/4"-NPT 3/4"-NPT 3/4"-NPT

Appearance

Spacesaver Design ●
Style Cabinet Cabinet Round Round
Unit Color Grey Grey Grey Grey
Electronic-Demand Driven ●● ● ●

Weights & Dimensions

Approximate Shipping Wt. (lbs.) 108 103 94 66
Overall W x H x D (in.) 14 x 45-1/4 x 24 14 x 45-1/4 x 24 18-1/4 x 48-3/4 x 18-1/4 18-5/8 x 29-1/2 x 18-5/8

Power/Ratings

Electronic Rating 24V, 60Hz 24V, 60Hz 24V, 60Hz 24V, 60Hz

*PNSF39Z-Test protocol @ 16.0 lbs. of salt. PNSF35B-Test protocol @ 15.2 lbs. of salt. GXSF27B-Test protocol @ 11.4 lbs. of salt.

GNSF18Z-Test protocol @ 6.3 lbs. of salt.

**PNSF39Z-Test protocol @ 2.9 lbs. of salt. PNSF35B-Test protocol @ 2.8 lbs. of salt. GXSF27B-Test protocol @ 2.0 lbs. of salt.

GNSF18Z-Test protocol @ 1.6 lbs. of salt.

Important: All units must be installed according to local codes.

Note: Before installing, see installation instructions packed with product for complete details, or call GE QuickSpecs 800-432-3729.

GE Profile
Performance

™

GE Profile

™

GE

48-3/4

41-1/4

Front View

IN-OUT

18-1/4

Dia.

3-3/8

Salt Capacity – 200 lbs.

Models PNSF39Z and PNSF35B

Model GXSF27B

Model GNSF18Z

29-1/2

22-1/4

18-5/8

Front View

IN-OUT

21-1/2

11-1/2

Dia.

3-3/8

Salt Capacity – 300 lbs.

Installation Information (in inches)

Salt Capacity – 140 lbs.

IN

3-3/8

OUT

IN-OUT

38-1/2 38-1/2

24

14

Top Vie w

45-1/4 45-1/4

35

Side View Front View

14

35

GE Appliances

General Electric Company
Louisville, Kentucky 40225

www.GEAppliances.com

Drinking Water Filtration

SmartWater™filtration systems improve the quality
of your water for drinking and cooking by
reducing contaminants such as lead, cysts and
certain chemicals, as well as decreasing undesirable
tastes and odors. Several options are available
for easy installation.

Whether you choose our premium filtration
Reverse Osmosis system, the Carbon Filtration
system or a Refrigerator/Icemaker filter, you’ll
enjoy high-quality, healthy water in your home.

Softening and Household Filtration

Water hardness is a common problem affecting more
than 85% of homes in the United States. SmartWater
softening systems help eliminate the problems hard
water can cause. Clothes and dishes are cleaner and
appliances may run better with softened water.

Household filtration systems filter all the water that
enters your home, reducing sand, sediment and rust.
These systems are the perfect complement to water
softener and drinking filtration systems.

GE Appliances on the Web
www.GEAppliances.com

Everything you want to know about GE appliances.

The GE Answer Center

®

800.626.2000

Questions? Call anytime.

GE Genuine Parts

800.626.2002

Accessories to enhance, upgrade or fix it.

GE Appliance Service

800.432.2737
(800.GE.CARES)

Product service at your convenience.

Industry leading service support from—

GE is the appliance brand most often mentioned
among the brands rated as offering the best products
and services in America.

*

*Source: Louis Harris Poll – 2000

America’s

#

1

Preferred

Appliance

Brand

© 2001 General Electric Company
Pub. No. 27-S011 PC23098

GE has the technology to make every drop of water better.

GE has a policy of continuous improvement of
its products and reserves the right to change
materials and specifications without notice.
