EV Charging Station

Introduction

The GE EV Charging Station offers Level II charging capable of reducing charge
time from 12-18 hours to 4-8 hours with service needs of 208-240VAC at 40A,
assuming a 24kWh battery and a full-cycle charge. GE recognizes that this is an
industry that will develop and change over time and, as a result, the EV Charging
Station is designed to accommodate future changes and technological advances.
The EV Charging Station is “future proof” through a modular design, giving the
owner the ability to upgrade the unit with field installable modules without
replacing the charging station.

GE has over 40 years of experience in the manufacture of RV pedestals, which
provides knowledge and familiarity for the manufacture of EV charging stations.
In addition, a crucial component to the implementation of EV charging stations
is the upstream infrastructure needed for installation. GE has over 100 years
of experience in the manufacture of electrical distribution systems. As a result,
we are able to offer a complete EV infrastructure solution that includes the
EV Charging Station and the associated upstream infrastructure.

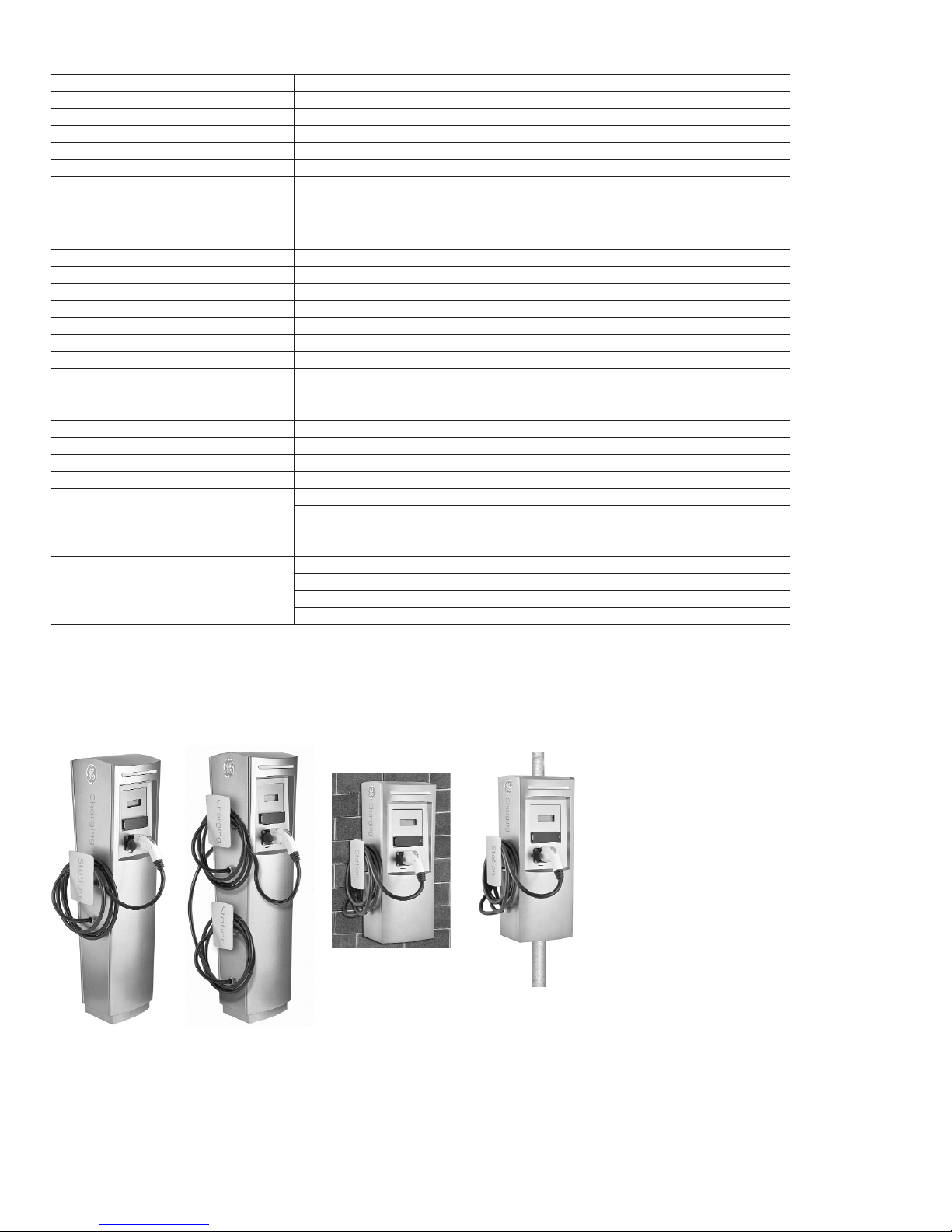

Product Details

The GE EV Charging Station has a list of features that are upgradeable, resulting in a robust and reliable solution
for the need of EV charging infrastructure.

• The cord holder serves to keep the cord organized and out of the way of parking spaces, sidewalks and streets

• LED light to display charger status

• Option for a Radio Frequency Identification (RFID) reader: users can gain charging authorization by swiping
RFID cards in front of the readers

• Ethernet network offered for RFID authorization service

• RFID software application registers usage of the EV Charging Station, enabling data collection, and will also
monitor status of communication between RFID and EVSE

• Vacuum Fluorescent Display (VFD) screen showing greetings, instructions and charging station messages

• Nuisance tripping avoidance and auto re-closure

• Vehicle ground monitoring circuit

• Single phase metering, displayed on included VFD

• A building ventilation interface signal can be provided to operate facility and garage fans when required

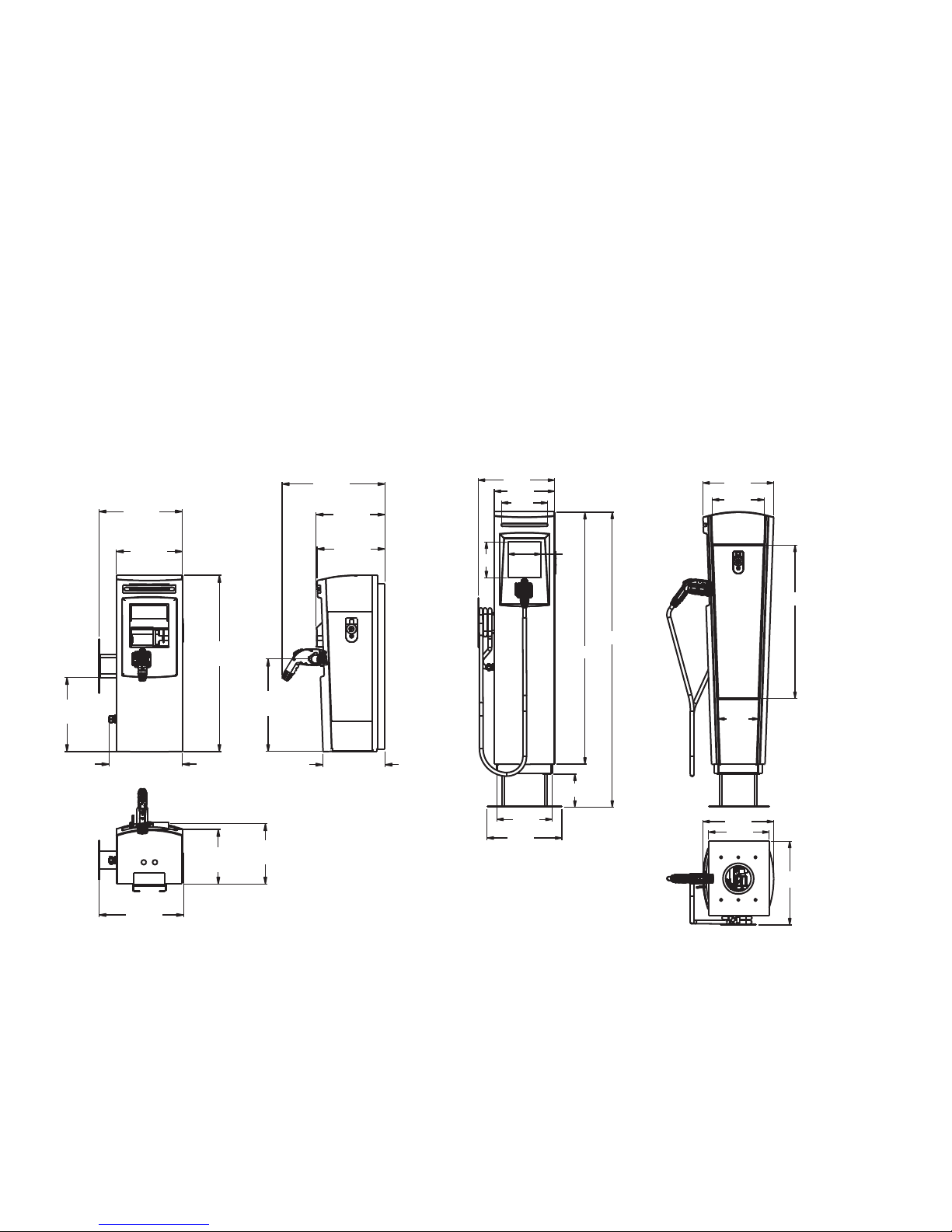

GE EV Charging Station – a closer look

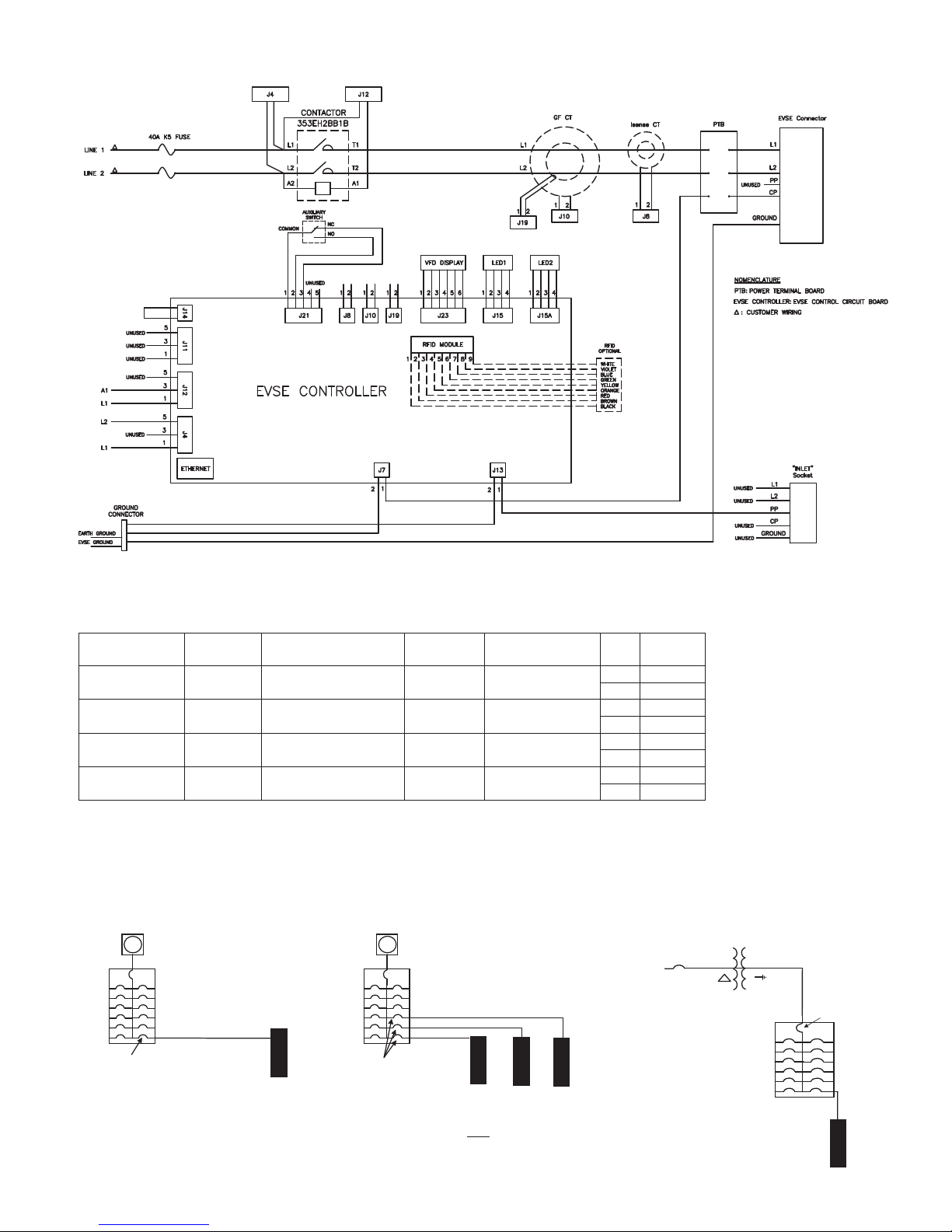

Control Unit

• Provides user with charger status and messages
via LED bar, Vacuum Fluorescent Display (VFD) and
external communications

• Allows user configurable overload protection

• Performs CCID20 ground fault protection per UL 2231

• Provides single phase metering

• Handles SAE J1772 functions

Contactor

• Responsible for energizing and de-energizing the
connector

• Operates in conjunction with controller to meet
UL and NEC requirements

Connector

• Compliant with SAE J1772 standard

• UL listed for EVSE applications

Fuses

• Provides overload and short circuit protection

LED indication of charge status

Plug holder

RFID Reader

Base to accept connection
and fasten to concrete

Cord holder

Cord connection to unit

Vacuum Fluorescent Display (VFD)

Access panel (on side)
