Page 1

electric ranges

New product introductions —July 2005 GE Profile™ and GE® free-standing electric ranges

Page 2

Page 3

Free-standing electric range quick pitch

The maximum in cooking performance and versatility

ge.com

Superb Performance

The Precise Air™ convection system delivers optimal heat circulation and temperature accuracy in the oven for perfectly browned and evenly baked foods.

Exceptional Versatility

A variety of adjustable elements are available to achieve optimal results and convenience.

Distinguished Appearance

Full stainless steel door and gloss handle and trim on color models deliver an attractive cutting-edge design

that coordinates and complements other appliances and kitchen décor.

Remarkable Cleanability

Glass-touch controls, hidden bake oven interior, selfclean oven racks and removable lower oven liner make

cleaning simple.

Page 4

What’s new: GE Profile™ free-standing electric range

The maximum in cooking performance and versatility

Lower oven

• Adds additional 1.2 cu. ft. of cooking capacity

• 140º–450º capability for warming and baking

• Upper and lower heating elements

• Provides additional storage when not in use

• Easy-to-clean removable porcelain-enameled drawer liner

• Available on JB968

12"/9"/6" tri-ring element

12"

• Three cooking areas in one element

• 3,000 watt element

• Accommodates various-sized pots and pans

• Available on JB988 and JB968

12"/9" dual element (not shown)

• Two cooking areas in one element

• 3,000 watt element

• Available on JB910 and JB900

Largest total cooking capacity—6.5 cu. ft.

• 5.3 cu. ft. upper oven

• 1.2 cu ft. lower oven

• Available on model JB968

Not all features available on all models.

Page 5

ge.com

Larger oven window

• Enhanced Big ClearView™ window is one of the largest in the industry

• 10% more viewing area than previous GE Profile models

• Available on all GE Profile models

Warming drawer

• Keeps meals ready to serve at temperatures from 140° to 220°

• Variable temperature settings

• Removable porcelain-enameled drawer liner

• Available on JB910 and JB900

Enhanced appearance

• Stainless sculptured handles available on all stainless GE Profile models

• Gloss handles and vents on all GE Profile white, bisque and black models

Self-clean oven racks and drip bowls (not shown)

• Durable construction

• Approved for use during self-clean oven mode

• Self-clean oven racks available on all GE Profile models and self-clean drip bowls available on JBP49

Page 6

What’s new: GE® free-standing electric range

The maximum in cooking performance and versatility

5.3 cu. ft. capacity

• Extra-large oven capacity

• Room to cook more at once

• Available on all GE models

12"/9" Dual element

• Two cooking areas in one element

• 3,000 watt element

• Accommodates various-sized pots and pans

• Available on JBP84, JBP81, JBP80 and JBP70

Not all features available on all models.

Hidden bake oven interior

• Delivers a clean interior appearance

• Available on JBP84

Page 7

Warming drawer

• Keeps meals ready to serve

• Variable temperature settings

• Removable porcelain-enameled drawer liner

• Available on JBP84 and JBP81

ge.com

Enhanced appearance

• Big hearth-shaped window is 14% larger than previous models available on JBP84, JBP81, JBP80, JBP70, JBP66, JBP65, JBS55, JBP35 and JBP24

• Full length stainless steel door and stainless steel handle available on stainless models

• Gloss handles and vent trim on all GE white, bisque and black models

Self-clean oven racks and drip bowls

• Durable construction

• Approved for use during self-clean oven mode

• No-hassle cleaning

• Self-clean oven racks available on JBP84, JBP81 and JBP80

• Self-clean oven racks and drip bowls available on JBP35

Page 8

Feature gallery: GE Profile™ free-standing electric ranges

Precise Digital Control System

Delivers accurate control on the cooktop, ensuring even heating and less temperature variation. Model JB988 only.

Dual purpose elements

Can be used for conventional cooking or precision warming. Model JB988 only.

12"/9"/6" tri-ring

™

element

Accommodates various-sized pots or pans for the ultimate in cooking versatility.

Stainless sculptured handle

Provides a sleek and contemporary look that coordinates with other

GE Profile model JB968SK

GE Profile Appliances.

Lower oven

Offers an additional

1.2 cu. ft. of capacity for convenient baking and warming from 140º–450º.

Big ClearView™ window

Makes monitoring the progress of food easy.

*Traditional QuickSet VI controls on stainless models. Not all features available on all models.

Page 9

ge.com

CleanDesign cooktop

Provides a seamless design to make cleaning quick and easy.

Adjustable elements

Offers a convenient choice

of using 9"/12" or 6"/9" heating element, depending on the size of the pan.

Bridge element

Combines three elements into one large cooking area, ideal for oversized pans.

GE Profile model JB910WK

Warming zone

Provides low heat capability to keep foods warm and ready to serve.

New gloss handle

and vent trim

Adds a touch of subtle elegance that blends naturally with any appliance color.

Warming drawer

Provides variable temperature control from 140° to 220° to keep foods warm.

Page 10

Feature gallery: GE® free-standing electric ranges

QuickSet V oven controls

Feature easy to use electronic touch pads to simplify oven operation.

Bridge element

Combines three elements into one large cooking area, ideal for oversized pans.

Warming zone

Provides low heat capability for foods keeping them warm and ready to serve.

Adjustable elements

Offers a convenient choice of using 9"/12" or 6"/9" heating element, depending on the size of the pan.

CleanDesign cooktop

GE model JBP84SK

Provides a seamless design to make cleaning quick and easy.

Warming drawer

Provides variable temperature control from 140° to 220° to keep foods warm.

Not all features available on all models.

Page 11

ge.com

New gloss handle

and vent trim

Adds a touch of subtle elegance that blends naturally with any

appliance color.

Stainless steel door

and handle

Provides a modern exterior appearance that complements surrounding décor.

True color cooktop

Mirrors the color of the range body to provide a uniform appearance from top to bottom.

GE model JBP80TK

Self-clean drip bowls

Provide no-hassle cleaning by simply placing them in the oven during self-clean mode.

Storage drawer

Convenient drawer can be used for storing cookware

or kitchen accessories.

Big hearth-shaped window

An extra-large window makes monitoring the progress of food easy.

Page 12

The inside story: GE Profile™ and GE® free-standing electric ranges

GE Profile upper oven interior

5.3 cu. ft. upper oven capacity

Gives consumers the room they need to cook large meals.

Precise Air™ convection system

Uses an innovative fan that reverses direction for optimal baking performance.

Auto Recipe™ conversion

Automatically converts standard recipe temperatures to proper convection settings.

JB968 interior

Multiple mode convection

Offers three specialized modes for different cooking needs: single-rack convection baking, multi-rack convection baking, and convection roasting.

Self-clean oven with Hidden bake interior

Conveniently cleans the oven cavity without the need for scrubbing, and the hidden bake element makes cleanup even easier.

TrueTem p™ system

Provides even heat distribution and precise oven control.

Certified Sabbath mode

Allows consumers to keep cooked foods warm on the Jewish Sabbath and Jewish holidays.

Not all features available on all models.

Page 13

GE upper oven interior

ge.com

6-pass PowerBake

Loops throughout the oven, delivering evenly cooked foods.

Heavy-duty self-clean oven racks

Double-coated porcelain racks provide extra support and no longer require hand cleaning.

JBP80 interior

True Europ ean convection

Use a third dual loop heating element to deliver uniform and savory results.

Dual element bake

Alternates the upper broiling element and the lower baking element for even heating and optimal results.

Oven meat probe

Displays the internal temperature and signals when meats are cooked to perfection.

Six embossed rack positions

Allows consumers to take full advantage of the oven capacity and adjust racks for oversized cookware.

Broiler Pan

Helps confine drippings that collect during roasting or broiling.

Page 14

The inside story: GE Profile™ and GE® free-standing electric ranges

Lower oven interior - An additional 1.2 cu. ft. capacity adds a second oven to bake at a separate temperature.

Bake

140º to 450º warming and baking makes it ideal for pizzas, breads or casseroles.

Removable drawer liner

Provides additional convenience for quick and easy cleaning.

Full-extension drawer

Allows users to pull out the drawer to the fullest length for easy loading, unloading and cleaning.

Warm

Prepared foods can stay warm and ready to serve.

Store

Cookware can be stored when the lower oven is not in use.

Dual element bake

Upper and lower elements provide even heating and optimal results.

Not all features available on all models.

Page 15

Warming drawer interior

ge.com

Multiple settings

Provide added convenience with low, medium and high.

Lower warming element

Warming capability

Helps keep meals coordinated, warm and ready for the table.

Storage space

Allows cookware to be placed in one organized location.

Removable drawer liner

Provides additional convenience for quick and easy cleaning.

Page 16

Dare to compare

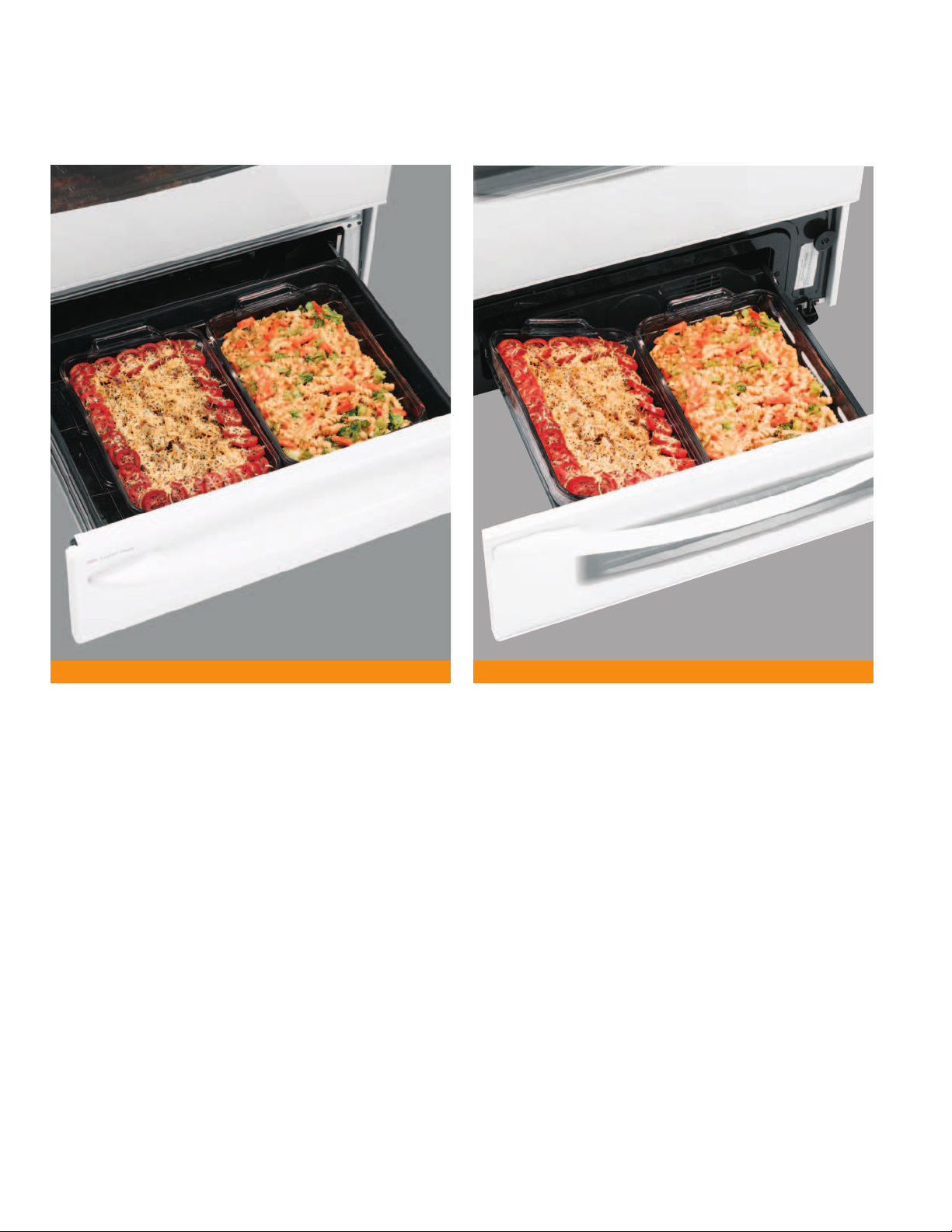

Lower oven capacity

GE Profile™ double oven range – Model JB968 Frigidaire Double Oven range – Model GLEFM397

• GE Profile lower oven has a total capacity of 1.2 cu. ft.

• GE Profile lower oven is large enough for two 9 x 13 casserole dishes

• GE Profile lower oven is on full-extension AccuRide

™

• Frigidaire lower oven is too small for two 9 x 13 casserole dishes

• Frigidaire lower oven does not fully extend

• Frigidaire delivers less than GE

ball bearing slides

• GE delivers all the cooking capacity you need

Page 17

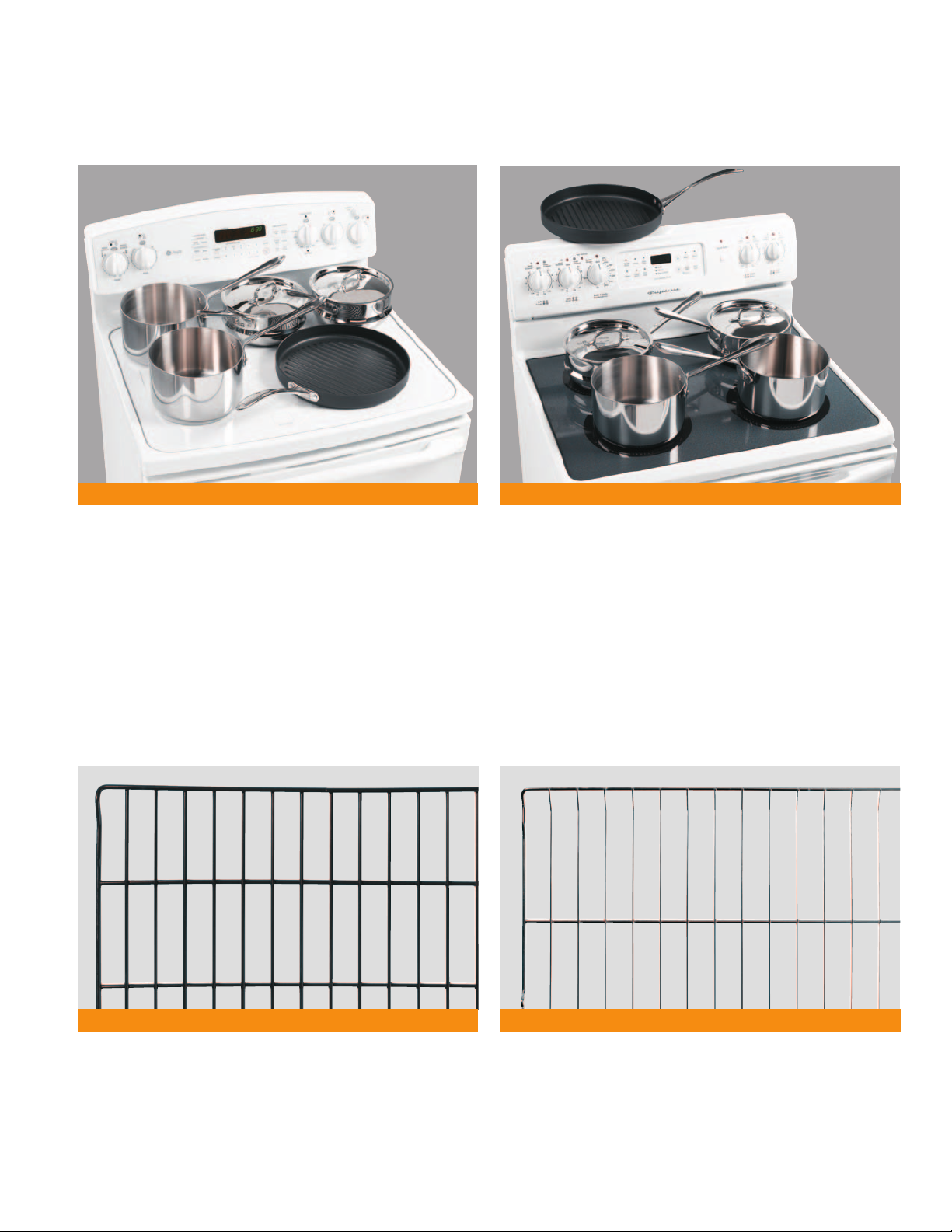

Cooktop versatility

ge.com

GE Profile double oven range – Model JB968 Frigidaire Double Oven range – Model GLEFM397

• GE Profile electric range are designed to use the entire cooktop, providing ample cooking space

• Cooktop versatility is dominant on the GE Profile cooktop with: — 12"/9"/6" tri-ring element — 6" elements — Bridge element — Fifth warming element

• Cookware shown: 12" grill pan, Two-4qt. sauce pans, Two-3qt. sauce pans

• GE delivers all the cooking capacity you need

• Frigidaire double oven cooktop does not have: 12" element or Bridge element or Fifth warming element

• In this example, the 12" grill pan is to large for the Frigidaire 9" element and does not have a fifth element

• Frigidaire delivers less than GE

Cleanability

GE Profile™ double oven range –Model JB968 Frigidaire Double Oven Range –Model GLEFM397

• GE oven racks are: Self-clean Double coated porcelain Heavy-duty — heavy twin cross bars — 50% thicker tines running front to back

• GE provides the ultimate in cleanability

• Frigidaire oven racks are: NOT self-clean (must hand clean) Chrome plated Not heavy-duty — No twin crossbars — No thick tines

• Frigidaire provides less than GE

Page 18

Show and tell

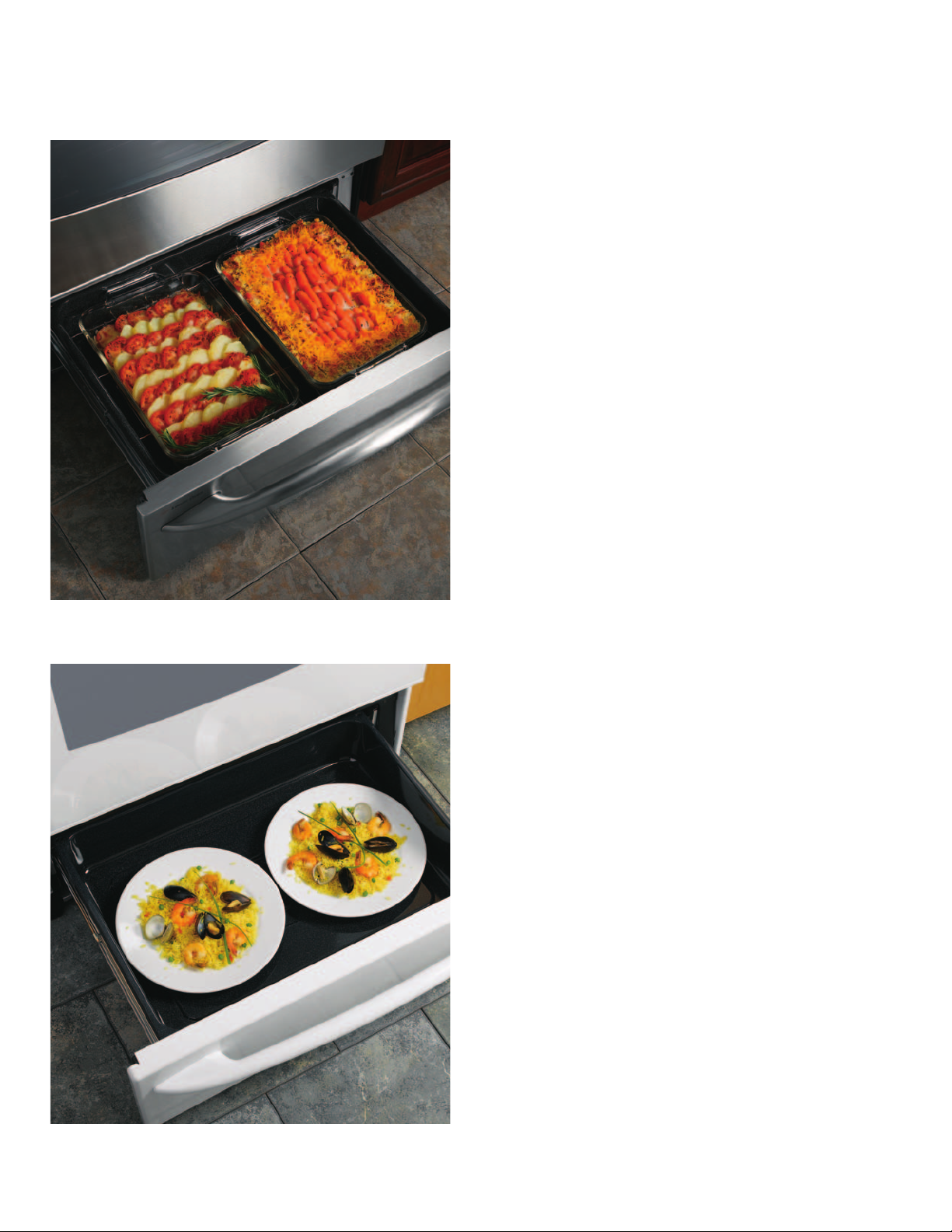

Lower oven demo

• Use 120v demo cord kit Pub. No. 3-A029.

• Plug in range to any standard 120-volt outlet.

• Place two 9 x 13 casserole dishes in the lower oven on

the baking rack.

• Show the consumer the huge 5.3 cu. ft. upper oven, point to the graphic on the backsplash “Double Oven Range.” Show them the knob control for the oven and tell them it is an electric oven that bakes from 140 to 450 degrees. Then pull open the lower oven.

• Tell the consumer that this range has two ovens. Both ovens can be used at the same time to cook two different dishes at different temperatures. Lift out the casserole dish and hand it to the customer and tell them the lower oven is ideal for a 9 x 13 casserole, as well as pies, cookies, rolls, biscuits, muffins, and pizza.

• Lift out the lower oven liner to show them it can be removed for easy cleaning.

• Order and use lower oven POP Pub. No. 3-D155.

Warming drawer demo

• Use 120v demo cord kit Pub. No. 3-A029.

• Plug in range to any standard 120-volt outlet.

• Place two 9 x 13 casserole dishes in the drawer.

• Show the consumer the huge 5.3 cu. ft. upper oven,

point to the graphic on the backsplash “Warming drawer.” Show them the knob control for the drawer and tell them it warms from 140 to 220 degrees. Then pull open the drawer.

• Tell the consumer that both the oven and the drawer can be used at the same time to cook/warm two different dishes at different temperatures. Lift out the casserole dish and hand it to the customer.

• Lift out the drawer liner to show them it can be removed for easy cleaning.

Page 19

ge.com

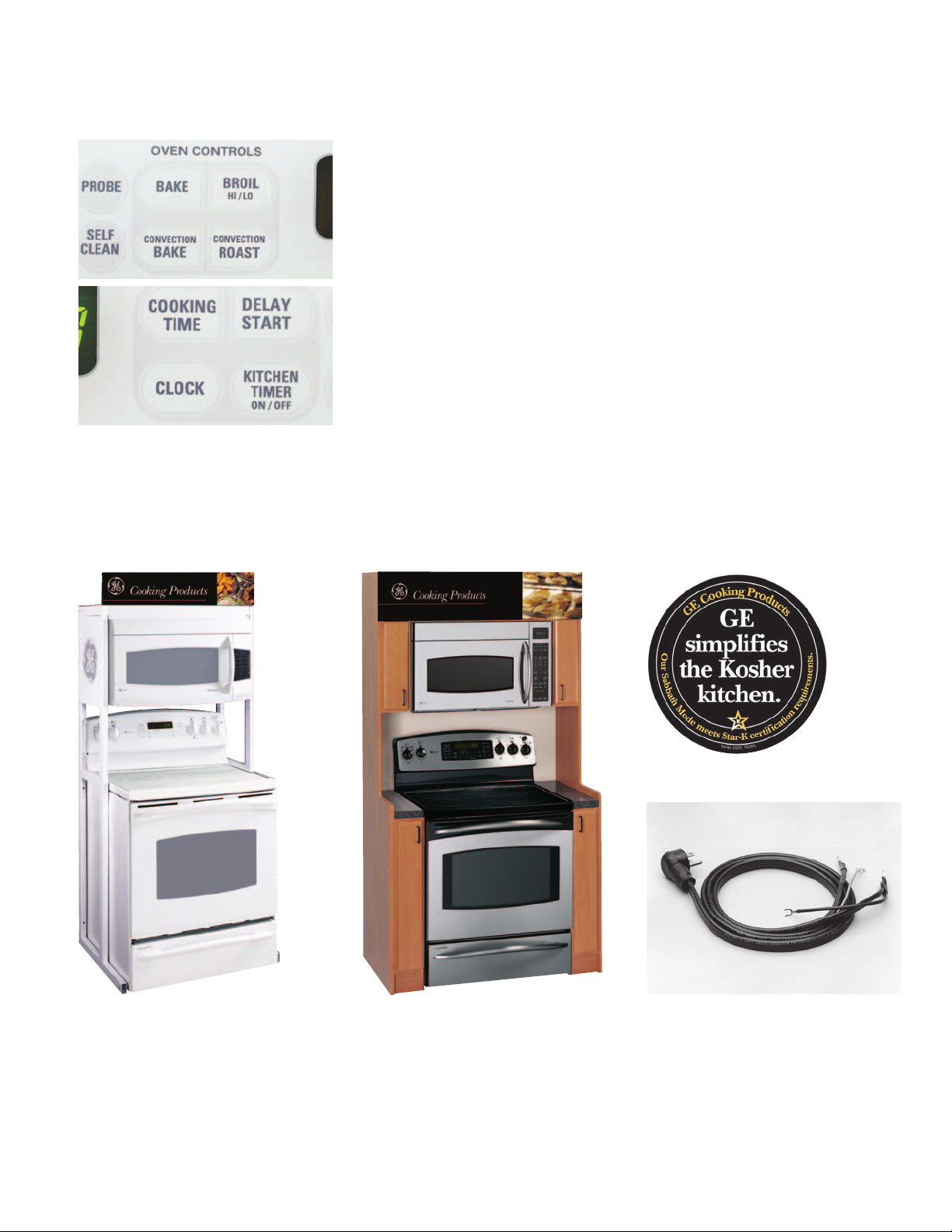

Sales demo mode

• Plug the range into any standard 120 volt outlet.

• Press and hold both the BAKE and BROIL pads at the same time, hold until

SF appears in the display.

• Then, at the same time, touch the CLOCK and KITCHEN TIMER pads.

• The control will then continuously scroll through each oven function.

• To end the sales display mode touch the START pad. With the range plugged in, the following can be demonstrated:

Oven Light & the Big ClearView Digital time and temperature displays Hi/Lo broil settings Variable self clean time Automatic self clean door latch Convection bake control setting fan operates

™

Window

Convection roast control setting fan operates Reminder timer

Pub. No. 3-D241

Tubular free-standing display

Designed to display a free-standing range and an Advantium™ or Spacemaker® microwave oven.

72 -1/2 " H x 3 2-1 /4" W x 25 "D Pub. No. 4-D001

Free-standing or slide-in/ drop-in display

Designed to display a free-standing, slide-in or drop-in range and an Advantium or Spacemaker microwave oven.

82"H x 44"W x 26-3/4"D Pub. No. 3-D131

Demonstration cord kit

For use with 30" free-standing electric ranges with electronic controls. Provides power to the controls, convection fan and lights, but will not energize heating elements. Kit contains one cord and instructions

Pub. No. 3-A029

Page 20

GE Profile™ free-standing electric ranges

Available new models

GE Profile 30" free-standing electric range JB988

• Self-clean oven

• Super-large 5.3 cu. ft. oven capacity

• PreciseAir

• Hidden bake oven interior

• 12"/9"/6" tri-ring element

• Fifth element warming zone

• Precise Digital Control System

• Self-clean heavy-duty oven racks

• Tr ueTe mp™ system

• Dual purpose elements

™

convection system

™

GE Profile 30" free-standing double-oven electric range JB968

• 6.5 cu. ft. total capacity

• Self-clean oven

• PreciseAir convection system

• Hidden bake oven interior

• Lower oven

• 12"/9"/6" tri-ring element

• Bridge element

• Fifth element warming zone

• Self-clean heavy-duty oven racks

• QuickSet VI glass touch controls**

• TrueTemp system

• Stainless steel sculptured handle

• Gloss handle and vent trim on white, bisque and black models

GE Profile 30" free-standing electric range JB910

• Self-clean oven

• Super-large 5.3 cu. ft. oven capacity

• PreciseAir convection system

• Hidden bake oven interior

• Warming drawer

• Self-clean heavy-duty oven racks

• 12"/9" dual element

• Bridge element

• QuickSet VI glass touch controls*

GE Profile cooktop colors

True white True bisque Black/stainless steel

*Traditional QuickSet VI controls on stainless models. Not all features available on all models.

Page 21

ge.com

GE Profile 30" free-standing electric range JB900

• Self-clean oven

• Super-large 5.3 cu. ft. oven capacity

• TrueTemp system

• Warming drawer

• 12"/9" dual element

• 9"/6" dual element

• Fifth element warming zone

• Self-clean heavy-duty oven racks

• QuickSet V oven controls

GE Profile 30" free-standing electric range JBP49

• Self-clean oven

• Super-large 5.3 cu. ft. oven capacity

• TrueTemp system

• QuickSet V oven controls

• Coil heating elements

• Big ClearView

• Hidden bake oven interior

• Self-clean heavy-duty oven racks and drip bowls

• Dual element bake

™

window

GE’s QuickSet oven controls

QuickSet V

QuickSet IV, plus:

• Auto self-clean

• Large digital temperature display

• Variable broil

• Warming drawer

QuickSet VI

QuickSet V, plus:

• Temperature probe

• Extra-large graphics and touch pads

Page 22

GE® free-standing electric ranges

Available new models

GE 30" free-standing electric range JBP84

• Self-clean oven

• True European convection system

• Hidden bake oven interior

• Tr ueTe mp

• Bridge element

• 12"/9" dual element

• Fifth element warming zone

• Warming drawer

• Self-clean heavy-duty oven racks

• Quickset V oven controls

™

system

GE 30" free-standing electric range JBP81

• Self-clean oven

• Super-large 5.3 cu. ft. oven capacity

• Tr ueTe mp sys tem

• 12"/9" dual element

• 9"/6" dual element

• Warming drawer

• Fifth element warming zone

• Self-clean heavy-duty oven racks

GE 30" free-standing electric range JBP80

• Similar features as JBP81 except there is no warming drawer.

GE 30" free-standing electric range JBP70

• Self-clean oven

• 12"/9" dual element

• 9"/6" dual element

• Super-large 5.3 cu. ft. oven capacity

• Tr ueTe mp sys tem

• Ceramic glass cooktop

• Big hearth-shaped window

• Quickset lV oven controls

GE cooktop colors

True white White True bisque Bisque Stainless/black

Not all features available on all models.

Page 23

ge.com

GE 30" free-standing electric range JBP66

• Self-clean oven

• Super large 5.3 cu. ft. capacity oven

• Tr ueTe mp sys tem

• 9"/6" dual element

• Ceramic glass cooktop

• Big hearth-shaped window

• Quickset lV oven controls

GE’s QuickSet oven controls

QuickSet III

• Dual element bake

• Digital temperature display with recall

• Oven preheat light

• Electronic digital clock

• Electronic reminder timer, up to 12 hours

• Audible preheat signal

• 12-hour automatic oven shut-off

• Self-clean countdown digital display, including cool down

• Auto self-clean

GE 30" free-standing electric range JBP65

• Self-clean oven

• Super large 5.3 cu. ft. capacity oven

• Ceramic glass cooktop

• Big hearth-shaped window

• Dual element bake

• Quickset lll oven controls

QuickSet IV

QuickSet III, plus:

• Delay bake

• Delay self-clean

• Adjustable self-clean cycle time

GE 30" free-standing coil range JBP35

• Self-clean oven

• Super large 5.3 cu. ft. capacity oven

• Coil heating elements

• Two 8" and two 6" burners

• Self-clean oven racks and drip bowls

• Big hearth-shaped window

QuickSet V

QuickSet IV, plus:

• Auto self-clean

• Large digital temperature display

• Variable broil

• Warming drawer

Page 24

30" free-standing CleanDesign™ electric ranges

™

GE Profile

JB988SK JB988TK JB988KK

Features

Self-clean oven Convection Convection Convection Self-clean latch Auto Auto Auto Auto Auto Oven capacity (cu. ft.) (upper/lower) 5.3 5.3 / 1.2 5.3 5.3 5.3 5.3 5.3 5.3 5.3 5.3 5.3 / 5.2 5.3 Hidden bake oven interior Oven racks 3 heavy-duty3 heavy-duty 3 heavy-duty 2 heavy-duty3 heavy-duty2 heavy-duty2 heavy-duty22222 Self-clean oven racks

Ceramic-glass cooktop One- piece upsw ept cookto p 6"/9"/12" tri-ribbon heating element 1 (3000W) 1 (3000W) 9"/12" dual-ribbon heating element 1 (3000W) 1 (3000W) 1 (3000W) 1 (3000W) 1 (3000W) 1 (3000W) 1 (3000W) 6"/9" du al-ribbo n heating element 1 ( 2500W) 1 (2500W) 1 (2500W) 1 (2500W) 1 (2500W) 8" ribbon heating element 1 (2000W) 1 (2000W) 1 (2000W) 2 (2000W) 2 (2000W) 7" ribbon heating element 2 (1800W) 2 (1800W) 2 (1800W)

Bridge element 1 (800W) 1 (800W) 1 (800W) Total wattage 4400 4400 4400

6" ribb on heati ng elemen t 3 (1500 W) 1 (1500 W) 1 (15 00W) 2 (1500W) 1 (150 0W) 2 (1500W) 2 (1500W ) 2 (150 0W) 2 (1500W) 2 (1500 W) 2 (1 500W) 2 (1500W)

6" warm ing zone Infinite heat controls Tru eTemp™ sy ste m Six-pass power bake element True European convection Precise Air™ Precise Air Precise Air

Convection bake Convection roast

Surface unit controls Dig. glass touch Knob Knob Knob Knob Knob Knob Knob Knob Knob Knob Knob

QuickSet oven controls Proof m ode/Warm mode ● / ●● / ●● / ● – / ● Digit al tempera ture displ ay Oven function icons Digipad numeric entry Delay bake Oven light pad Control lock capability Oven/cooktop Oven Oven Oven Self-clean cool-down time display Light self-clean option Delay clean option Auto oven shut-off w/override w/override w/override w/override w/override w/override w/override w/override w/override w/override w/override w/override Certified Sabbath mode Audible preheat signal Dual element bake Oven meat probe Hot surface lights Cooktop Cooktop Cooktop Cooktop Cooktop Cooktop Cooktop Cookto p Oven “ON” light Self-clean cycle light Interior oven light Auto/pad Auto/pad Auto/pad Auto/pad Pad Pad Pad Pad Pad Pad Pad Pad Lower oven (140° to 450°)

Dual element bake Removable liner

Warmin g drawer (140 ° to 220°)

Removable liner Storage drawer Broil er pan wit h grid Roasting rack/Conve ction cookbook ● / ●● / ●● / —

JB988BK

Black

Tru e wh ite

True bisque

Black

4 cook /warm

(1) 8" a nd (3) 6" 1 (120W) 1 (120W) 1 (120 W) 1 (120 W) 1 (120W) 1 (120W) 1 (120W )

Multi-/

single-rack

Precis e Digital

Cont. System™

JB968SK JB968TK JB968KK JB968BK

●●●

● ●●●●●●

Black

Tru e wh ite

True bisque

●●●● ●●●●●●●●

●●●● ●●●●●●

●●● ●

●●●● ●●●●●●●●

●●●●●

●●●● ●●●●●●

●●●● ●●●●●●●●

●●●● ●●●●●●

●●●●

●●●● ●●●●●●

●●●● ●●●●●●●●

●●●

●●●● ●●●●●●●●

●●●● ●●●●●●●

●●●● ●●●●●●●●

●●●● ●●●●●●●

Black

Multi-/

single-rack

QuickSet VI glass touch QuickSet VI QuickSet V QuickSet V QuickSet IV QuickSet IV QuickSet IV Q uickSet IV QuickSet IV QuickSet III QuickSet III

JB910SK

JB910TK JB910KK JB910BK

Black

Tru e wh ite

True bisque

Black

●●●●●●●●●●●

Multi-/

single-rack

●

●●●●●

JB900SK JB900TK JB900KK JB900BK

●

Black

Tru e wh ite

True bisque

Black

Appearance

Color appearance*

Frameless glass oven door

Oven door with window Big ClearView™ Big ClearView Big ClearView Big ClearView Big hear th Big hearth Big hearth Big hearth Big hearth Big heart h Designer-style handle Sculptured Sculptured Sculptured Sculptured

Weight s & Dimensio ns

Overall oven interior dimensions (WxHxD in inches)

SS / WW /

CC / BB

Stainless steel

White Bisque

Black

SS / WW /

CC / BB

Stainless steel

White

Bisque

Black

SS / WW /

CC / BB

Stainle ss steel

White

Bisque

Black

SS / WW /

CC / BB

Stainless steel

White Bisque

Black

Approx. shipping weight (lbs.) 206 238 225 211 223 201 198 184 181 175 174 174

Power/Ratings

KW ratin g @ 240V 13.4 14.2 1 3.7 13. 3 13.7 12.9 12.1 11.6 12.0 11.0 10.5 10.5 208V 10.1 10.7 10. 3 10 10.3 9.7 9.1 8.7 9.0 8.3 7.9 7.9 Amp rating @ 240V / 208V 40 40 40 40 40 40 40 40 40 40 40 40

* SS = Stainless s teel with black accent s, WW = Wh ite with w hite glass door, CC = Bisq ue with bis que glass door, BB = Blac k with bla ck glass do or, WH = White w ith black g lass door, C T = Bisque w ith black glass door,

CM = Color-matched indicates color of drawer matches range cooktop (either white or bisque).

All ran ges are shi pped with cooktop cle aning crem e & pad.

JBP84SK JBP84TK JBP84KK JBP84BK

Convection

Black

Tru e wh ite

True bisque

Black

SS / WW /

CC / BB

Stainless steel

White

Bisque

Black

24-1/8 x 19-1/2 x 19-3/8

JBP81SK JBP81TK JBP81KK JBP81BK

Black

Tru e wh ite

True bisque

Black

●

SS / WW /

CC / BB

Stainless steel

White

Bisque

Black

●●●●●●●●

JBP80SK JBP80TK

JBP80WK

JBP80KK JBP80CK JBP80BK

●●●●●●

Black Tru e wh ite Pat. white

True bisque

Pat. bisque

Black

SS/ WW / WW /CC /

CC / BB

Stainless steel

White

Bisque Bisque

Black

JBP72SK JBP72TK JBP72KK JBP72BK

Black

Tru e wh ite

True bisque

Black

SS / WW /

CC / BB

Stainless steel

White

Bisque

Black

JBP70SK

JBP70WK

JBP70BK

Black

Pat. white

Black

SS / WW /

Stainless steel

White Black

JBP66SK

JBP66WK

JBP66CK JBP66EK JBP66BK

JBP65SK JBP65WK JBP64WK

JBP64CK

JBS55SK

JBS55WK

JBS55BK

Standard-clean

Black

Pat. white

Pat. bisque

Black Black

●●●●

SS / WW /

CC / BB /

WH, CT

Stainless steel

White

Bisque

Black Black

Black Pat. white Pat. white

Pat. bisque

SS/ WW /

WW /CC

Stainless steel

White

Stainless steel White Black

Big hearth

Hearth Big hearth

24-1/8 x 19-1/2

x 19-3/8

24-1/8 x 19-1/2

x 19-1/4

Pat. white

SS / WW /

Black

White Black

24-1/ 2 x

19-1/2

x 19-3/8

Page 25

30" free-standing QuickClean™ electric ranges

ge.com

GE Profile GE

JBP35SK

JBP35WK

JBP49WK

JBP49CK

Features

Oven cleaning Self-clean Self-clean Self-clean Self-clean Self-clean Standard Standard Self-clean Standard Standard Oven capacity (cu. f t.) 5.3 5.3 5. 3 5.3 / 5.0 5.0 5.0 5.0 5.0 5.0 5.0 Oven racks 2 heavy-duty2 heavy-duty22222222 Self-clean oven racks ●● Self-clean dripbowls ●● Upswept porcelain-enameled cooktop ●●●●●●●●●● Clean -Well™ cook top syste m ●●●●●●● ● Lift- up cookto p w/dual s upport r ods ●●●●●●●●●● 8" hea ting elem ents 2 (6 turns ) 2 ( 6 turns) 2 (5 t urns) 2 (5 tu rns) 2 (5 tur ns) 2 (5 turn s) 1 (5 turns) 1 ( 5 turns) 1 (5 turns) 1 (5 turns) 6" heat ing eleme nts 2 (5 turns) 2 (5 turns) 2 (4 turns) 2 (4 t urns) 2 (4 tu rns) 2 (4 tur ns) 3 (4 turn s) 3 (4 turns) 3 ( 4 turns) 3 ( 4 turns) Warming option ● Infinite heat controls ●●●●●●●●●● Plug-in Calrod® heating elements ● ●●●●●●●●●

Remova ble 1-piece d rip bowls Self-clean oven racks Tru eTemp™ sy ste m ●●● Six-pass power bake element ●●● Convenience controls ●●●●● QuickSet oven controls QuickSet V QuickSet IV Quick Set IV QuickSet III QuickSet III Digit al tempera ture displ ay ●●●●● Electronic oven control s ●●● Auto oven shut-off w/override w/override w/override w/override w/override Delay bake ●●● Oven light pad ●●●● Start pad ●●●● Delay clean option ●●● Auto self-clean ●●●●● Self-clean cool down time display ●●●●● Audible preheat signal ●●●●● Certified Sabbath mode ●●●●● Clock a nd minute t imer ●●●●●● Dual element bake ●●●●●●●●●● Heating element “ON” indicator light ●●●●●●●●●● Interior oven light Auto/switch Pad Pad Pad Switch Switch Switch Switch Preheated oven light Display ●●●●

Removable full-width storage drawer Broil er pan wit h grid

JBP49BK

Grey Black Black

●●

White

Bisque

Black

●●●●●●●●●●

Appearance

Color appearance*

Frameless glass oven door*

Oven door with window Big ClearView Big hearth Big hearth Removable oven door

Designer-style handle Sculptured ●●●●●●●●●Visor Textured steel side panels ●●●●●●●●●●

CC BB

White

Bisque

Black

●●●●●●●●●●

JBP35CK JBP35EK JBP35BK

Black Grey Black Black Black

Stainless steel

CM* CM* CM* CM*

CC BB

WH/CT

Stainless steel

White

Bisque

Black Black

JBP27WK

JBP27CK JBP27BK

Chrome Chrome

Black Chrome Chrome

White Bisque

Black

CC BB

White Bisque

Black

Weight s & Dimensio ns

Overall oven interior dimensions (WxHxD in inches) Appro x. shippi ng weight ( lbs.) 18 6 173 172 170 144 158 141 157 157 154 / 141

Power/Ratings

KW ra ting @ 240V 11.7 11.7 11.7 11.7 11.7 12.6 11 .5 11.2 11. 2 11.4 208V 8.8 8.8 8.8 8.8 8.1 9.9 9.1 6.9 6.9 9.0 Amp rating @ 240V / 208V 40 40 40 40 40 40 40 40 40 40

* W W = White wi th white do or, CC = Bisque with bisq ue door, BB = B lack with b lack door, WH = White with black doo r, CT = B isque with black door, CM = Color-Matched indicates color of oven door or s torage drawer matches range

cookto p (either white, bla ck or bisqu e).

24-1/8 x 19-1/2 x 19 -3/8

JBP24WK

JBP24EK JBP22BK

White Black

CM*

WH/CT

White Black Black

Big hearth

ClearView ClearView ClearView Big ClearView ClearView

24-1/8 x 19-1/2

x 19-3/8

24-1/8 x 19-1/2

x 19-1/4

JBP21WH

JBP21BH

White

CM*

WH/CT

White Black

23-3/4

x 19 x 18-1/2

JBS27SH

JBS27WH

JBS27CH JBS27BH JBS07H

Black Chrome Chrome

Black Chrome

Stainless steel

CM* CM* CM*

CC BB W W/CC/BB

Stainless steel

White

Bisque

Black Porcelain CM* Porcelain CM* Porcelain CM*

23-3/4

x 19 x 18-1/2

White/

Bisque/B lack CM* CM* CM*

23-3/4

x 19 x 18-1/2 24 x 18 -1/2 x 19 24 x 18-1/2 x 19

JBP15WJ

JBP15CJ JBP15BJ JBS15H

Chrome Chrome

Black Chrome Chrome

CC BB W W/CC/BB

JBS03BH

JBS03H

WH/CT WH/CT

Black glass

Porcelain CM*

23-3/4

x 19 x 18-1/2

Page 26

30" free-standing electric ranges (continued)

Dimensions (in inches)

Model A B C* D JB988 JB968 JB910 JB900 JBP49 JBP84 JBP81 JBP80 JBP72 JBP70 JBP66 JBP65 JBP64 JBS55 JBP35 JBP27 JBP24

* Dimension from wall to front of closed oven door

handle is 27-3/8" on models JB988/968/910/900 and 27-3/4" on model s JBP84/81/80/72/70/66/65/64 /49/ 35/27/24 an d JBS55.

29-7/8 46-1/2 25-3/8 47-5/8 29-7/8 46-1/2 25-3/8 47-5/8 29-7/8 46-1/2 25-3/8 47-5/8 29-7/8 46-1/2 25-3/8 47-5/8 29-7/8 46-1/2 25-3/8 47-5/8 29-7/8 46-7/8 25-3/8 47-5/8 29-7/8 46-7/8 25-3/8 47-5/8 29-7/8 46-7/8 25-3/8 47-5/8 29-7/8 46-7/8 25-3/8 47-5/8 29-7/8 46-7/8 25-3/8 47-5/8 29-7/8 46-7/8 25-3/8 47-5/8 29-7/8 46-7/8 25-3/8 47-5/8 29-7/8 46-7/8 25-3/8 47-5/8 29-7/8 46-7/8 25-3/8 47-5/8 29-7/8 46-7/8 25-3/8 47-5/8 29-7/8 46-7/8 25-3/8 47-5/8 29-7/8 46-7/8 25-3/8 47-5/8

Dimensions and installation information (in inches) for models JBP22/21 and JBS27/07/03

†

1/4

2-1/4

Installation information (in inches)

2-1/2

Acceptable electrical

outlet area

7-1/2

REAR WALL

3-1/2

CENTER LINE

2-1/4

*Dimension from wall to front of closed oven door handle is 27-3/8 on JB988/968/910/900 models and 27-3/4 on models JBP84/81/80/72/70/66/65/64/ 49/35/27/24 and JBS55.

Note: Conforms to U.L. requirements for 0" spacing for adjacent walls below countertops. To reduce possibility of scorching of walls , it is recom mended a mi nimum of 1-1/2" sp acing be al lowed from adjacent side walls to allow for possible extended, high-heat,

2-1/2

no-load heating element operation. Receptacle locations: For 30" Free-Standin g Ranges loc ally

approved flexible service cord or conduit must be used because termi nals are not accessible after ran ge install ation. Se e s haded area drawing for location of electrical outlet box. Recommended outlet locations allow range to be installed directly against wall.

7-1/2

Dimensions and installation information (in inches) for models JBP15 and JBS15

ACCEPTABLE ELECTRICAL

OUTLET AREA

29-7/8

7-1/2

†

The range may be placed with a 0" clearance (flush) at the back wall and side walls if the range side trims extend beyond the cabinet fronts at least 1/4". Self-clean models only.

*Dimension from wall to front

of closed door without handle

Dimensions (in inches)

Model A B C* D JBP22 JBP21 JBS27 JBS07 JBS03BH JBS03H

* Dimension from wall to front of closed oven door handle is 28-1/2" on

model J BP22/21, JBS27/03BH; 28 -3/8" on JBS07; 28" a nd JBS03H.

Note: 30" ra nges confor m to U.L. requ irements fo r 0" spacin g from adj acent walls below countertops. To reduce possible scorching of walls, engineering recommends a mini mum of 1-1/2" spaci ng to allow for possib le extend ed, high he at, no-lo ad heating element operation.

Receptacle locations: Locally approved flexible service cord or conduit must be used b ecause te rminals ar e not access ible afte r range ins tallation . See shad ed area in drawing for location of electrical outlet box. Recommended outlet locations allow range to be installed directly against wall.

Listed by Underwriters Laboratories

29-7/8 46-7/8 26-3/8 46-3/8 29-7/8 46-7/8 26-3/8 46-3/8 29-7/8 46-7/8 26-1/4 46-1/4 29-7/8 46-7/8 26-1/4 46-1/4 29-7/8 46-7/8 26-3/8 46-3/8 29-7/8 46-7/8 26-1/4 46-1/4

All GE r anges are e quipped with an Anti-Tip device. The installation of this device is an important, required step in the insta llation of the range.

46-7/8

1/4

26-1/4*

46-1/4

Dimensions (in inches)

Model A B C* D JBP15 JBS15

* Dimension from wall to front of closed oven door handle is 28-1/2" on

model J BP15 and 27-1/8" on mo del JBS15.

Elec tric free- standing r ange Anti- tip bracket (Part No. 164D3799P 002)

JB988/968/910/900, JBP84/81/80/72/70/66/65/64/49/35/27/24/22 and JBS55

Anti- tip bracket (Part No. 183D6270P 001)

JBS27/07/15/03 and JBP21/15

29-7/8 46-7/8 26-3/8 46-3/8 29 -7/8 46 -7/8 26 -1/4 4 6-1 /4

Page 27

40" electric ranges

Features

Oven cleaning

Oven racks 8" heating elements 2 6" heating elements 2 Removable drip bowls O ne-piece chrome Clock a nd minute t imer Ele ctronic Automatic oven timer Master Heating element “ON” indicator light Interior oven light Oven cycling light 2 Storage drawer

Broiler pan

Appearance

Color appearance* WW Oven door with window Master oven

Weight s & Dimensio ns

Overall oven interior dimensions (WxHxD in inches) Approx. shipping weight (lbs.) 224

Power/Ratings

KW rating @ 240V 14.2

Amp ra ting 240V / 208V 40

*WW = White on wh ite.

208V 10.7

JCP67F

Master oven—self-clean

Companion oven—

standard

Master oven—2

Companion oven—1

●

Master oven—1

Companion oven—1

Master oven—

22-5/8 x 15-7/8 x 18 -1 /8

Companion oven—

9-9/16 x 16 x 19-1/2

40" range dimensions and installation information (in inches)

44-1/8**

40-1/8

47-1/4

18-1/2

*Dimension from wall to front of closed oven door handle.

27-3/8*

Receptacle locations: For al l 40" Free-Stan ding Range s locally ap proved flex ible serv ice cord or co nduit mus t be used b ecause ter minals are n ot accessible after range installation. See shaded area in drawing for location of electrical outlet box.Recommended outlet locations allow range to be installed directly against rear wall.

Installation information: Before installing, consult installation instructions packed with product for current dimensional data.

All GE r anges are e quipped wi th an Anti-Ti p device. T he install ation of th is device is an important, required step in the installation of the range.

Elect ric free- standing r ange Anti-t ip bracket ( part no. 1 64D3799P0 02) JB988/968, JB910/900, JBP84/81/80/72/70/66/65/64/49/35/27/24/21, JBS15

Anti- tip bracket (part no. 183D6270P0 01) JBS27/26/07/03

** Includes required 4" door swing allowance for side-hinged

oven or storage co mpartme nt door.

Top View

40-1/8

7" MAX.

Center line of range

Floor

Locate outlet in shaded area. Wall mount only.

ge.com

Wall

Page 28

Superb Performance

The Precise Air™ convection system delivers optimal heat circulation and temperature accuracy in the oven for perfectly browned and evenly baked foods.

Exceptional Versatility

A variety of adjustable elements are available to achieve optimal results and convenience.

Distinguished Appearance

Full stainless steel door and gloss handle and trim on color models

deliver an attractive cutting-edge design that coordinates and complements other appliances and kitchen décor.

A Century of Quality and Innovation

For more than a century, GE has been committed to producing innovative products that change the way people live. The result of thorough research and rigorous testing, GE appliances are designed for years of dependable performance. Today, the GE tradition of quality and innovation continues.

GE Consumer & Industrial

Appliances General Electric Company Louisville, KY 40225

ge.com

GE has a policy of continuous improvement of its products and reserves the right to change materials and specifications without notice.
