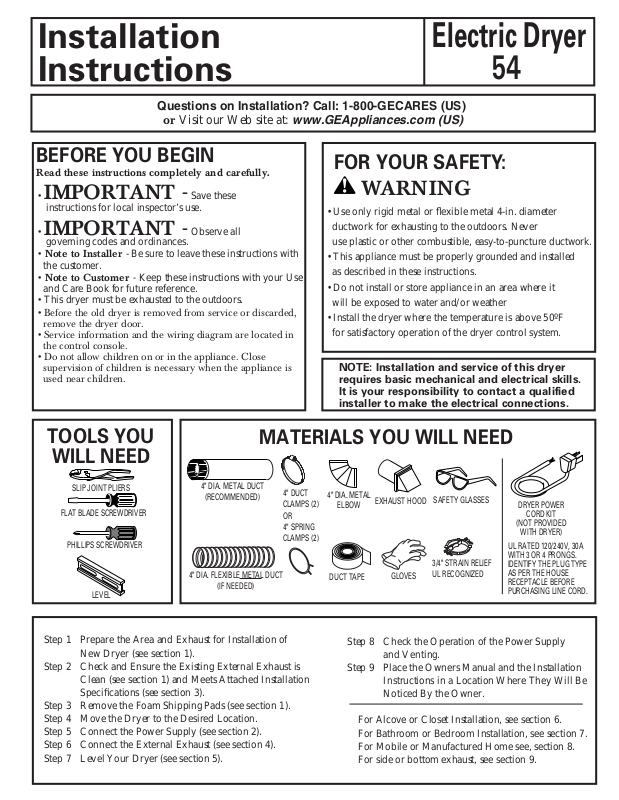

GE Electric Dryer Installation Instructions

Installation

Electric Dryer

Instructions

Questions on Installation? Call: 1-800-GECARES (US)

or Visit our Web site at:

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT - Save these

instructions for local inspector’s use.

IMPORTANT - Observe all

•

governing codes and ordinances.

• Note to Installer - Be sure to leave these instructions with
the customer.

• Note to Customer - Keep these instructions with your Use
and Care Book for future reference.

• This dryer must be exhausted to the outdoors.

• Before the old dryer is removed from service or discarded,
remove the dryer door.

• Service information and the wiring diagram are located in
the control console.

• Do not allow children on or in the appliance. Close
supervision of children is necessary when the appliance is
used near children.

54

www.GEAppliances.com (US)

FOR YOUR SAFETY:

WARNING

• Use only rigid metal or flexible metal 4-in. diameter
ductwork for exhausting to the outdoors. Never
use plastic or other combustible, easy-to-puncture ductwork.

• This appliance must be properly grounded and installed
as described in these instructions.

• Do not install or store appliance in an area where it
will be exposed to water and/or weather

• Install the dryer where the temperature is above 50ºF
for satisfactory operation of the dryer control system.

NOTE: Installation and service of this dryer
requires basic mechanical and electrical skills.
It is your responsibility to contact a qualified
installer to make the electrical connections.

TOOLS YOU

MATERIALS YOU WILL NEED

WILL NEED

SLIP JOINT PLIERS

FLAT BLADE SCREWDRIVER

PHILLIPS SCREWDRIVER

LEVEL

Step 1 Prepare the Area and Exhaust for Installation of

New Dryer (see section 1).

Step 2 Check and Ensure the Existing External Exhaust is

Clean (see section 1) and Meets Attached Installation

Specifications (see section 3).
Step 3 Remove the Foam Shipping Pads (see section 1).
Step 4 Move the Dryer to the Desired Location.
Step 5 Connect the Power Supply (see section 2).
Step 6 Connect the External Exhaust (see section 4).
Step 7 Level Your Dryer (see section 5).

4" DIA. METAL DUCT

(RECOMMENDED)

4" DIA. FLEXIBLE METAL DUCT

(IF NEEDED)

4" DUCT
CLAMPS (2)
OR
4" SPRING
CLAMPS (2)

4" DIA. METAL

ELBOW

DUCT TAPE

EXHAUST HOOD

GLOVES

Step 8 Check the Operation of the Power Supply

and Venting.

Step 9 Place the Owners Manual and the Installation

Instructions in a Location Where They Will Be

For Alcove or Closet Installation, see section 6.
For Bathroom or Bedroom Installation, see section 7.
For Mobile or Manufactured Home see, section 8.
For side or bottom exhaust, see section 9.

Noticed By the Owner.

SAFETY GLASSES

UL RATED 120/240V, 30A

3/4" STRAIN RELIEF
UL RECOGNIZED

WITH 3 OR 4 PRONGS.
IDENTIFY THE PLUG TYPE
AS PER THE HOUSE
RECEPTACLE BEFORE
PURCHASING LINE CORD.

DRYER POWER

CORD KIT

(NOT PROVIDED

WITH DRYER)

Installation Instructions

Minimum Clearance Other Than Alcove or Closet Installation

Minimum clearance to combustible surfaces and for air opening are: 0 in. clearance both sides and 1 in. rear. Consideration
must be given to provide adequate clearance for installation and service.

1 PREPARING FOR INSTALLATION
OF NEW DRYER

EXTERNAL
DUCT
OPENING

DUCT TAPE OR
DUCT CLAMP

4" METAL DUCT

DUCT TAPE OR
DUCT CLAMP

TIP: Install your dryer before installing your washer.
This will allow better access when installing dryer exhaust.

REMOVING LINT FROM WALL
EXHAUST OPENING

2 ELECTRICAL CONNECTION
INFORMATION

WARNING - TO REDUCE THE RISK OF
FIRE, ELECTRICAL SHOCK AND PERSONAL
INJURY:

• DO NOT USE AN EXTENSION CORD OR AN
ADAPTER PLUG WITH THIS APPLIANCE.

Dryer must be electrically grounded in accordance with
local codes and ordinances, or in the absence of local
codes, in accordance with the NATIONAL ELECTRI­CAL CODE, ANSI/NFPA NO. 70.

ELECTRICAL REQUIREMENTS

This dryer must be connected to an individual branch circuit,
protected by the required time-delay fuses or circuit breakers. A
four or three-wire, single phase, 120/240V or 120/208V, 60Hz,
30 amp circuit is required.

If the electric supply does not meet the above specifications, then
call a licensed electrician.

GROUNDING INSTRUCTIONS

This dryer must be connected to a grounded metal, permanent
wiring system, or an equipment-grounding conductor must be run
with the circuit conductors and connected to the equipment­grounding terminal on the appliance.

INTERNAL DUCT
OPENING

WALL

CHECK THAT EXHAUST
HOOD DAMPER OPENS
AND CLOSES FREELY.

TILT THE DRYER SIDEWAYS
AND REMOVE THE FOAM
SHIPPING PADS BY
PULLING AT THE SIDES
AND BREAKING THEM
AWAY FROM THE DRYER
LEGS. BE SURE TO
REMOVE ALL OF THE
FOAM PIECES AROUND
THE LEGS.

CONNECTING DRYER USING 4-WIRE
CONNECTION (MUST BE USED FOR
MOBILE HOME INSTALLATION)

NOTES: SInce January 1,1996, the National Electric code requires
that the new constructions utilize a 4-wire connection to

an electric dryer

WARNING:Only a 4-conductor cord shall be used when the

appliance is installed in a location where grounding through the
neutral conductor is prohibited. Grounding through the neutral is

.

prohibited for the new branch-circuit installations, mobile homes,
recreational vehicles, and areas where local codes prohibit
grounding through the neutral conduction.

REMOVE GROUND STRAP
AND DISCARD. KEEP GREEN
GROUND SCREW

SCREWS
(3)

HOT
WIRE

L1

N

L2

NEUTRAL
(White)

HOT
WIRE

RELOCATE GREEN
GROUND SCREW
HERE

3/4", UL
RECOGNIZED
STRAIN RELIEF

GREEN OR
YELLOW WIRE

STRAIN
RELIEF
BRACKET

4 #10 AWG MINIMUM COPPER

COVER

2

CONDUCTORS OR 120/240V 30A POWER
SUPPLY CORD KIT MARKED FOR USE
WITH DRYERS & PROVIDED WITH
CLOSED LOOP OR SPADE TERMINALS
WITH UPTURNED ENDS (NOT SUPPLIED).

Installation Instructions

1. Turn off the circuit breaker (s) (30 amp) or remove the dryer’s
circuit fuse at the electrical box.

2. Be sure the dryer cord is unplugged from the wall receptacle.

3. Remove the power cord cover located at the lower back.

4. Remove and discard ground strap. Keep the green
ground screw for step 7.

5. Install 3/4 in. UL recognized strain relief to power
cord entry hole. Bring power cord through strain relief.

6. Connect power cord as follows:

the terminal block (marked N).

7. Attach ground wire of power cord with the green ground
screw (hole above strain relief bracket). Tighten all
terminal block screws (3) completely.

8. Properly secure power cord to strain relief.

9. Reinstall the cover.

A. Connect the 2 hot lines to the outer screws of
the terminal block (marked L1 and L2).
B. Connect the neutral (white) line to the center of

WARNING: NEVER LEAVE THE

COVER OFF OF THE TERMINAL BLOCK.

CONNECTING DRYER USING 3-WIRE
CONNECTION

IF REQUIRED, BY LOCAL CODE,
INSTALL EXTERNAL GROUND
(NOT PROVIDED) TO GROUNDED
METAL, COLD WATER PIPE, OR
OTHER ESTABLISHED GROUND
DETERMINED BY A QUALIFIED
ELECTRICIAN.

GREEN
GROUND
SCREW

SCREWS
(3)

GROUND
STRAP

HOT
WIRE

L1

L2

STRAIN RELIEF
BRACKET

3/4", UL
RECOGNIZED
STRAIN RELIEF

3 EXHAUST INFORMATION

WARNING - USE ONLY METAL 4-IN. DUCT.
DO NOT USE DUCT LONGER THAN SPECIFIED
IN THE EXHAUST LENGTH TABLE.

Using exhaust longer than specified length will:

The correct exhaust installation is YOUR RESPONSIBILITY.
Problems due to incorrect installation are not covered
by the warranty.

The MAXIMUM ALLOWABLE length of the exhaust system
depends upon the type of duct, number of turns, the type of
exhaust hood (wall cap), and all conditions noted below. Both
rigid and flexible metal duct are shown in the table below.

• Increase the drying times and the energy cost.

• Reduce the dryer life.

• Accumulate lint, creating a potential fire hazard.

EXHAUST LENGTH

RECOMMENDED MAXIMUM LENGTH

Exhaust Hood Types

Recommended

4" DIA.

4"

No. of 90º

Elbows

0
1
2
3
4

If using flexible metal duct, please refer to page 5.

Rigid

Metal

90 Feet
60 Feet
45 Feet
35 Feet
25 Feet

4" DIA.

Flexible

Metal

55 Feet
40 Feet
30 Feet
20 Feet
15 Feet

Use only for short

run installations

Rigid

Metal

60 Feet
45 Feet
35 Feet
25 Feet
15 Feet

4" DIA.

2-1/2"

Flexible

Metal

45 Feet
30 Feet
20 Feet
15 Feet
10 Feet

NEUTRAL
(White)

COVER

1. Turn off the circuit breaker (s) (30 amp) or remove the dryer’s
circuit fuse at the electrical box.

2. Be sure the dryer cord is unplugged from the wall.

3. Remove the power cord cover located at the lower back.

4. Install 3/4 in. UL recognized strain relief to power cord
entry hole. Bring power cord through strain relief.

5. Connect power cord as follows:
terminal block (marked L1 and L2).
the terminal block (marked N).

6. Be sure ground strap is connected to neutral (center)
terminal of block and to green ground screw on cabinet
rear. Tighten all terminal block screws (3) completely.

7. Properly secure power cord to strain relief.

8. Reinstall the cover.

A. Connect the 2 hot lines to the outer screws of the
B. Connect the neutral (white) line to the center of

WARNING: NEVER LEAVE THE

3 #10 AWG MINIMUM COPPER
CONDUCTORS OR 120/240V 30A POWER
SUPPLY CORD KIT MARKED FOR USE
WITH DRYERS & PROVIDED WITH CLOSED
LOOP OR SPADE TERMINALS WITH
UPTURNED ENDS (NOT SUPPLIED).

HOT
WIRE

COVER OFF OF THE TERMINAL BLOCK.

HOOD OR WALL CAP

EXHAUST SYSTEM CHECK LIST

• Terminate in a manner to prevent back drafts or entry of birds or
other wildlife.

• Termination should present minimal resistance to the exhaust air flow
and should require little or no maintenance to prevent clogging.

• Never install a screen in or over the exhaust duct.

• Wall caps must be installed at least 12 in. above ground level or any other
obstruction with the opening pointed down.

• If roof vents or louvered plenums are used, they must be equivalent to a
4-in. dampened wall cap in regard to resistance to air flow, prevention of
back drafts, and maintenance required to prevent clogging.

SEPARATION OF TURNS

For best performance, separate all turns by at least 4 ft. of straight duct,
including distance between last turn and exhaust hood.

TURNS OTHER THAN 90º

• One turn of 45º or less may be ignored.

• Two 45º turns should be treated as one 90º turn.

• Each turn over 45º should be treated as one 90º turn.

SEALING OF JOINTS

• All joints should be tight to avoid leaks. The male end of each section of
duct must point away from the dryer.

• Do not assemble the ductwork with fasteners that extend into the duct.
They will serve as a collection point for lint.

• Duct joints can be made air and moisture-tight by wrapping the
overlapped joints with duct tape.

• Horizontal runs should slope down toward the outdoors 1/2 inch per foot

INSULATION

Duct work that runs through an unheated area or is near air conditioning
should be insulated to reduce condensation and lint build-up.

3

This could cause lint build up.

Installation Instructions

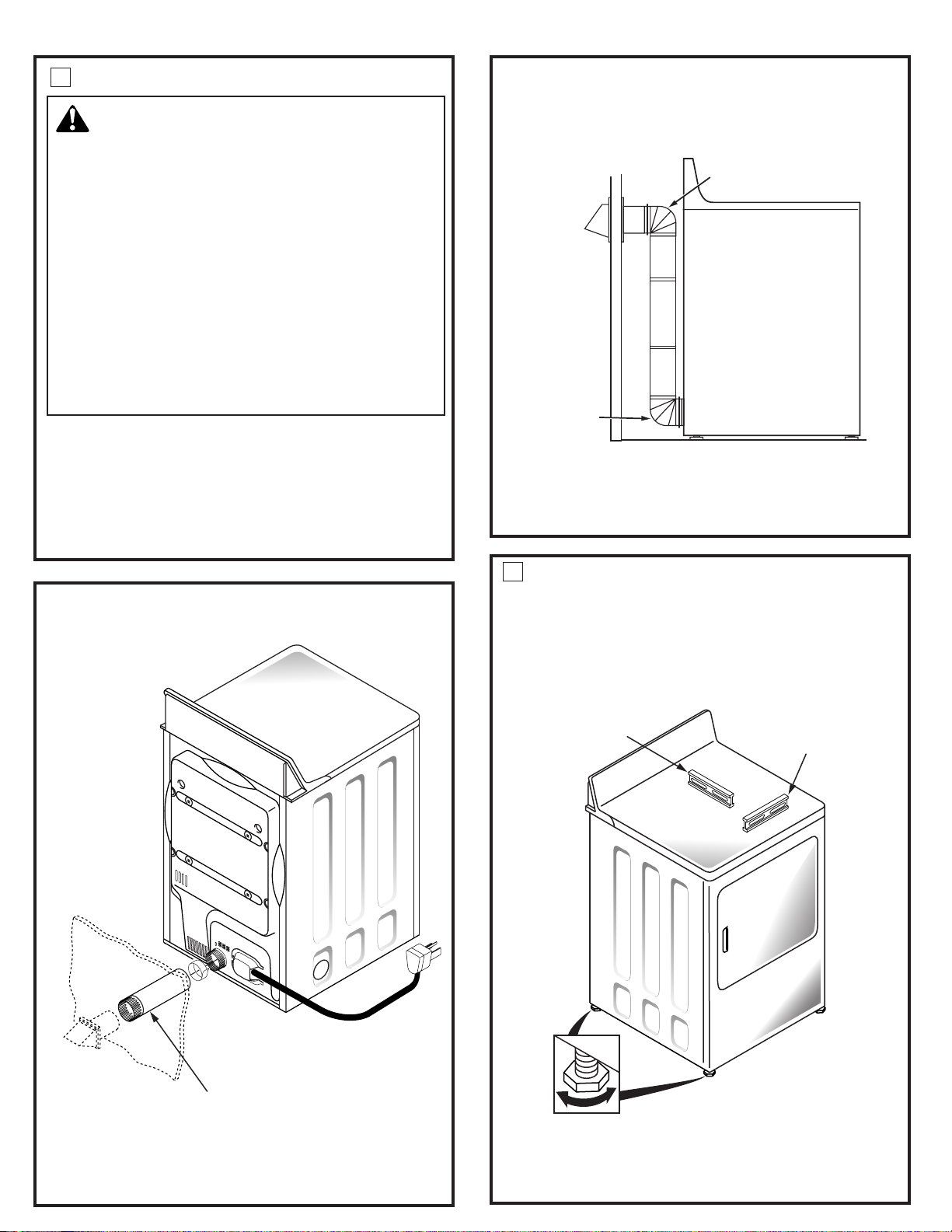

4 EXHAUST CONNECTION

WARNING - TO REDUCE THE RISK
OF FIRE OR PERSONAL INJURY:

• This dryer must be exhausted to the outdoors.

• Use only metal duct.

• Do not terminate exhaust in a chimney, any gas vent,
under an enclosed floor (crawl space), or into an attic.
The accumulated lint could create a fire hazard.

• Provide an access for inspection and cleaning of the
exhaust system, especially at turns. Inspect and clean at
least once a year.

• Never terminate the exhaust into a common duct with a
kitchen exhaust. A combination of lint and grease could
create a fire hazard.

• Do not obstruct incoming or exhausted air.

THIS DRYER COMES READY FOR REAR
EXHAUSTING. IF SPACE IS LIMITED, USE
THE INSTRUCTIONS IN SECTION 9 TO
EXHAUST DIRECTLY FROM THE SIDES OR
BOTTOM OF THE CABINET.

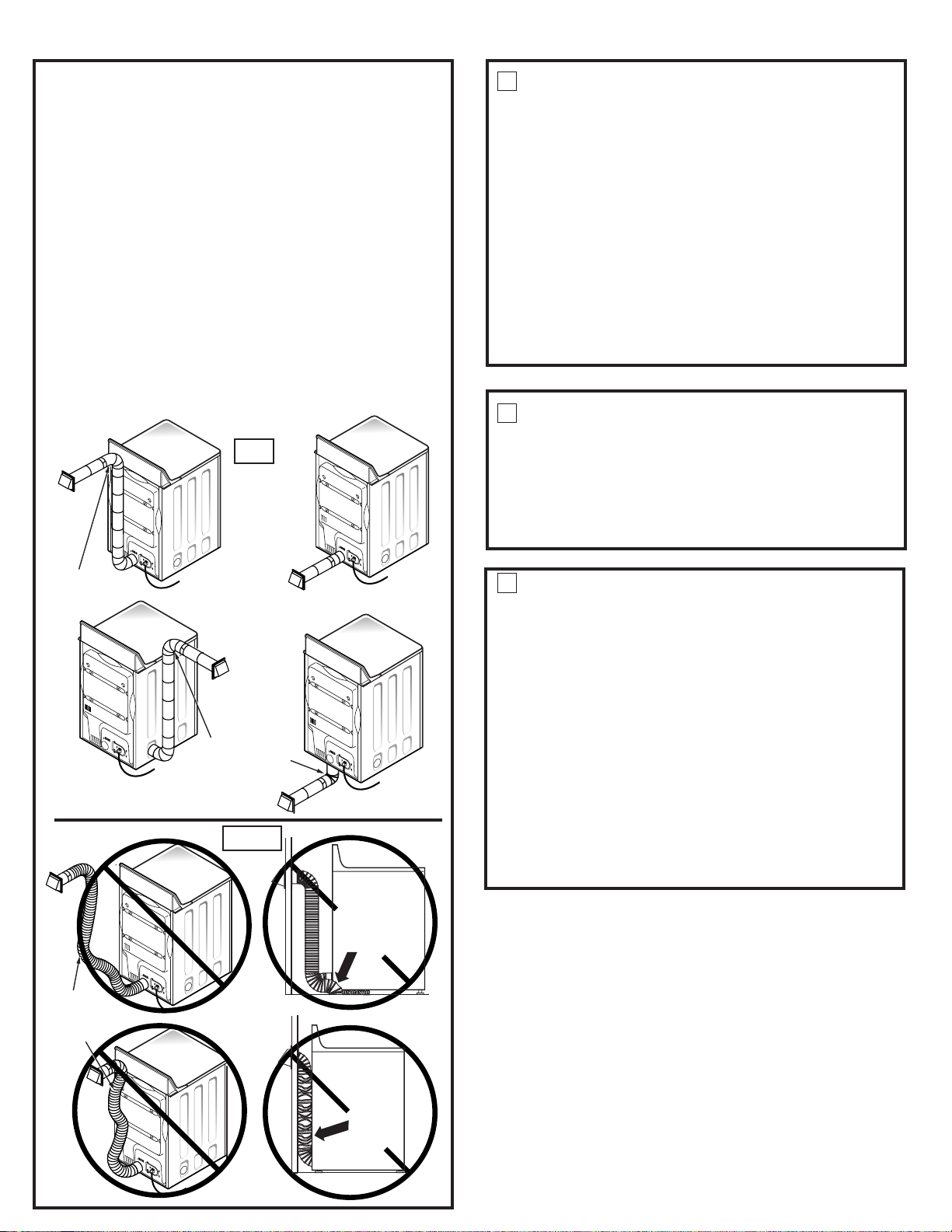

STANDARD REAR EXHAUST

(Vented above floor level)

ELBOW HIGHLY
RECOMMENDED

RECOMMENDED
CONFIGURATION
TO MINIMIZE
EXHAUST
BLOCKAGE.

ELBOW HIGHLY
RECOMMENDED

NOTE: ELBOWS WILL PREVENT DUCT
KINKING AND COLLAPSING.

STANDARD REAR EXHAUST

(Vented at floor level)

FOR STRAIGHT
LINE INSTALLATION,
CONNECT THE
DRYER EXHAUST
TO THE EXTERNAL
EXHAUST HOOD USING
DUCT TAPE OR CLAMP.

5 LEVELING AND STABILIZING
YOUR DRYER

STAND THE DRYER UPRIGHT NEAR THE FINAL LOCATION AND ADJUST
THE 4 LEVELING LEGS, AT THE CORNERS, TO ENSURE THAT THE DRYER
IS LEVEL FROM SIDE TO SIDE AND FRONT TO REAR.

LEVEL
FRONT-TO-BACK.

LEVEL
SIDE-TO-SIDE.

(CORD NOT SUPPLIED

WITH DRYER)

CUT THE METAL EXHAUST
DUCT (NOT SUPPLIED) TO THE
PROPER LENGTH.

NOTE: WE STRONGLY RECOMMEND SOLID METAL EXHAUST DUCTING.
HOWEVER, IF FLEXIBLE DUCTING IS USED IT MUST BE METAL NOT PLASTIC.

4 LEVELING
LEGS

4

Installation Instructions, Indoor Exhausting

USING FLEXIBLE METAL DUCTS

If rigid all-metal duct cannot be used, then flexible all-metal ducting
can be used, but it will reduce the maximum recommended duct
length. In special installations when it is impossible to use only
metal ducting, then UL-listed clothes dryer flexible metal transition
duct may be used as transition venting between the dryer and wall
connection only. The use of this ducting will affect dry time.

If flexible transition duct is necessary, the following directions must
be followed.

• Use the Shortest Length Possible.

• Stretch the Duct to Its Maximum Length to avoid kinks.

• Do Not Crush or Collapse the Duct.

• Never Use Transition Duct Inside the Wall or
Inside the Dryer.

• Avoid Resting the Duct on Sharp Objects.

• Venting Must Conform to Local Building Codes.

DO

6

ALCOVE OR CLOSET INSTALLATION

6

ALCOVE OR CLOSET INSTALLATION

• If your dryer is approved for installation in an alcove or
closet, it will be stated on a label on the dryer back.

• The dryer MUST be vented to the outdoors. See the
EXHAUST INFORMATION sections 3 & 4.

• Minimum clearance between dryer cabinet and adjacent
walls or other surfaces is:

• Minimum vertical space from floor to overhead cabinets,
ceiling, etc. is 52 in.

• Closet doors must be louvered or otherwise ventilated and
must contain a minimum of 60 sq. in. of open area equally
distributed. If the closet contains both a washer and a
dryer, doors must contain a minimum of 120 sq. in. of open
area equally distributed.

7
INSTALLATION

• The dryer MUST be vented to the outdoors. See
EXHAUST INFORMATION section 3 & 4.

• The installation must conform with local codes or, in the
absence of local codes, with the NATIONAL ELECTRI-
CAL CODE, ANSI/NFPA NO. 70.

0 in. either side
3 in. front and rear

BATHROOM OR BEDROOM

ELBOW HIGHLY
RECOMMENDED

DO NOT USE
EXCESSIVE
EXHAUST
LENGTH

ELBOWS HIGHLY
RECOMMENDED

DON’T

DO NOT
SIT DRYER
ON FLEXIBLE
EXHAUST.

8

MOBILE OR MANUFACTURED

HOME INSTALLATION

• Installation must conform to the MANUFACTURED
HOME CONSTRUCTION & SAFETY STANDARD,
TITLE 24, PART 32-80 or, when such standard is not
applicable, with AMERICAN NATIONAL STANDARD
FOR MOBILE HOME, ANSI/NFPA NO. 501B.

• The dryer MUST be vented to the outdoors with the
termination securely fastened to the mobile home
structure. (See EXHAUST INFORMATION
section 3 & 4.)

• The vent MUST NOT be terminated beneath a mobile or
manufactured home.

• The vent duct material MUST BE METAL.

• Do not use sheet metal screws or other fastening devices
which extend into the interior of the exhaust vent.

• See section 2 for electrical connection information.

DO NOT
CRUSH
FLEXIBLE
EXHAUST
AGAINST
WALL.

5

Installation Instructions

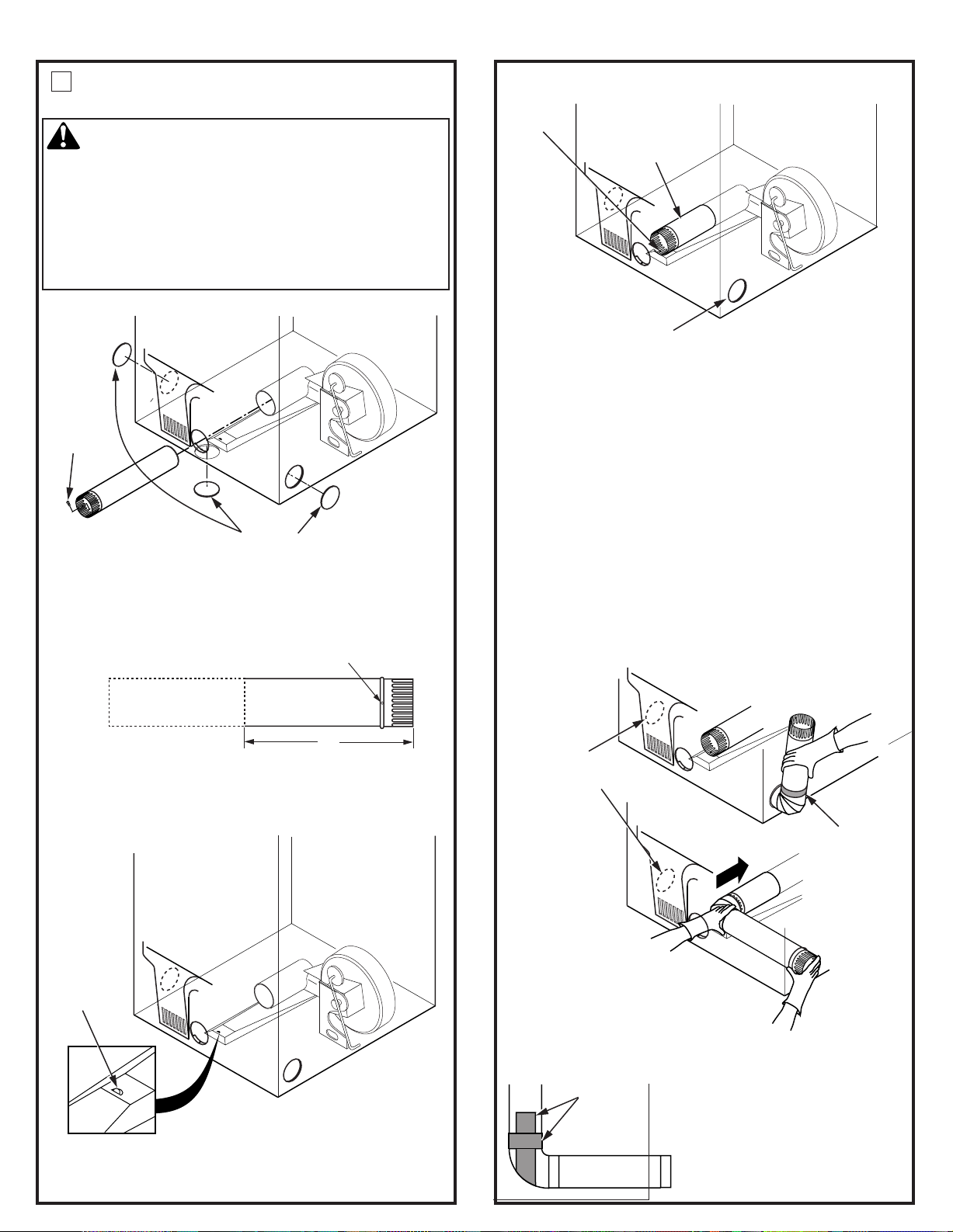

9 DRYER EXHAUST TO RIGHT, LEFT
OR BOTTOM CABINET

WARNING - BEFORE PERFORMING
THIS EXHAUST INSTALLATION, BE SURE
TO DISCONNECT THE DRYER FROM ITS
ELECTRICAL SUPPLY. PROTECT YOUR
HANDS AND ARMS FROM SHARP EDGES
WHEN WORKING INSIDE THE CABINET.
BE SURE TO WEAR GLOVES

REMOVE
SCREW
AND SAVE.

REMOVE
DESIRED
KNOCKOUT
(ONE ONLY).

Detach and remove the bottom, right or left side knockout
as desired. Remove the screw inside the dryer exhaust duct
and save. Pull the duct out of the dryer.

FIXING HOLE

ADDING NEW DUCT

FIXING
HOLE

PORTION "A"

RIGHT OR
LEFT SIDE
EXHAUST

Reconnect the cut portion (A) of the duct to the blower
housing. Make sure that the shortened duct is aligned with
the tab in the base. Use the screw saved previously to secure
the duct in place through the tab on the appliance base.

ADDING ELBOW AND DUCT FOR
EXHAUST TO LEFT OR RIGHT
SIDE OF CABINET

• Preassemble 4" elbow with 4" duct. Wrap duct tape
around joint.

• Insert duct assembly, elbow first, through the side opening
and connect the elbow to the dryer internal duct.

CAUTION: Be sure not to pull or damage the
electrical wires inside the dryer

when inserting the duct.

AB

9"

Cut the duct as shown and keep portion A.

TAB LOCATION

BEND TAB

o

UP 45

Through the rear opening, locate the tab in the middle of
the appliance base. Lift the tab to about 45º using a flat
blade screwdriver.

EXHAUST CAN
BE ADDED TO
LEFT OR RIGHT SIDE

• Apply duct tape as shown on the joint between the dryer
internal duct and the elbow.

DUCT
TAPE

CAUTION:
Internal duct joints must be
secured with tape, otherwise
they may separate and cause

6

a safety hazard.

DUCT
TAPE

Installation Instructions

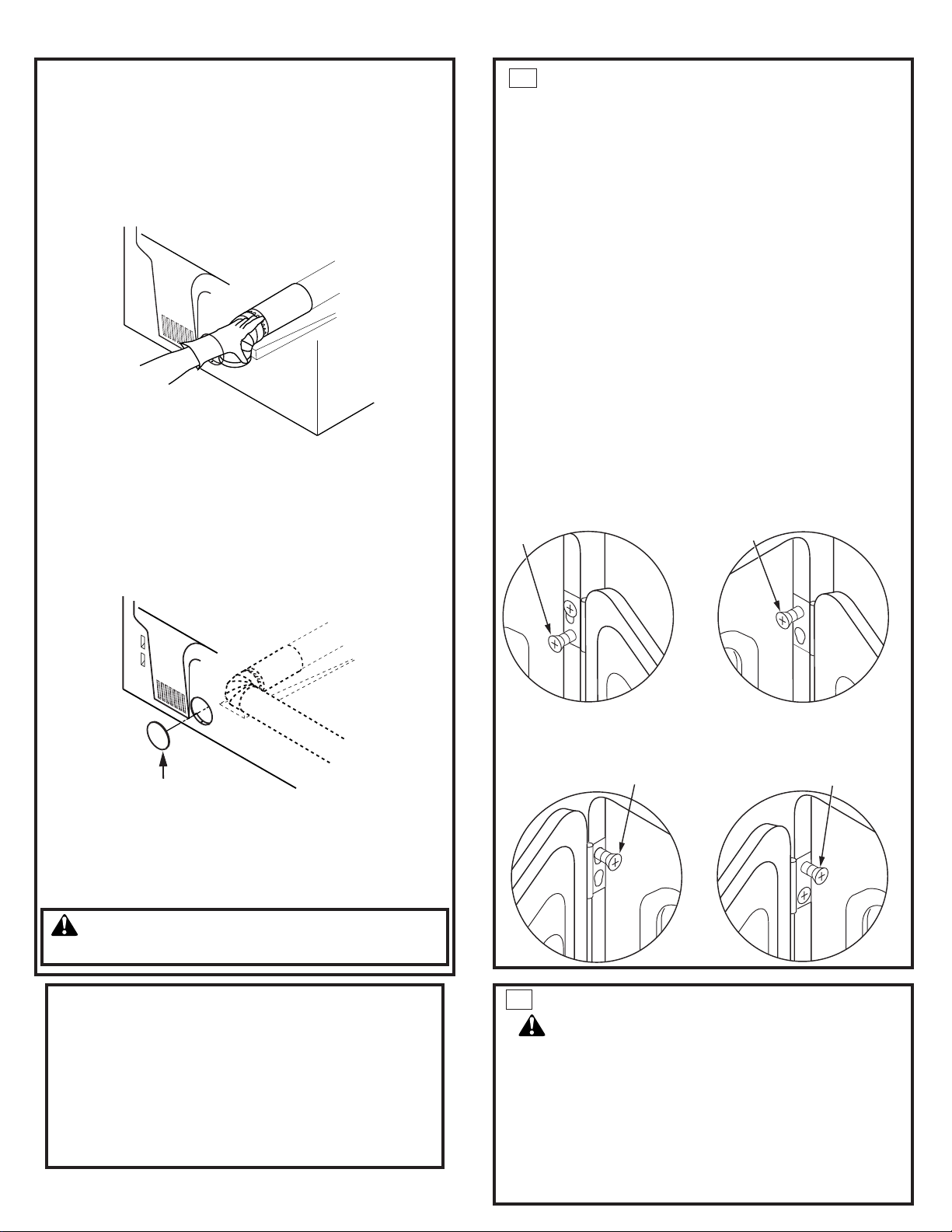

ADDING ELBOW FOR EXHAUST
THROUGH BOTTOM OF CABINET

• Insert the elbow through the rear opening and connect it to
the dryer internal duct.

• Apply duct tape on the joint between the dryer internal
duct and elbow, as shown on page 6.

CAUTION:
Internal duct joints must be secured with tape,
otherwise they may separate and cause a
safety hazard.

ADDING COVER PLATE TO REAR
OF CABINET (SIDES AND BOTTOM
EXHAUST)

10 CHANGING DIRECTION OF
DOOR OPENING

1. Open the door and remove the filler plugs opposite the
hinges. With the door completely open, remove the
bottom screws from each hinge on the dryer face. Insert
these screws about half way into the TOP holes, for each
hinge on the opposite side (where you removed the filler
plugs). Apply firm pressure to get the screw started.

2. Loosen the top screws from each hinge on the dryer face
half way. With one hand holding the top of the door and
the other hand holding the bottom, remove the door
from the dryer by lifting it UP and OUT.

3. Rotate the door 180º. Insert the door on the opposite side
of the opening by moving the door IN and DOWN
until the top hinge and the bottom hinge are resting on
the top screws inserted in step 1.

4. Remove the remaining screws from the side of the
opening from which the door was removed. With these
screws secure each hinge at the bottom. Tighten the two
top screws on each hinge. Reinsert the plastic plugs on
the side from which the door was removed.

REMOVE THE
BOTTOM SCREW
FROM EACH HINGE
ON THE DRYER
FACE.

LOOSEN THE TOP
SCREWS FROM
EACH HINGE ON
THE DRYER FACE
HALF WAY.

PLATE
(KIT WE1M454)

Connect standard metal elbows and ducts to complete the
exhaust system. Cover back opening with a plate (Kit
WE1M454) available from your local service provider.
Place dryer in final location.

WARNING - NEVER LEAVE THE BACK
OPENING WITHOUT THE PLATE. (Kit WE1M454)

TO REGISTER YOUR DRYER

CALL TOLL-FREE

1-888-269-1192

Prompt registration confirms your right to protection under the

terms of your warranty.

www.GEAppliances.com (US)

For Questions on Installation, Call: 1-800-626-2003 (US)

500A187P054 2-01 ON Pub # 31-16135

7

MOVE THE DOOR IN AND
DOWN UNTIL THE TOP HINGE

AND THE BOTTOM HINGE ARE
RESTING ON THE TOP SCREWS
INSERTED IN STEP 1.

SECURE EACH HINGE
AT THE BOTTOM AND
TIGHTEN THE TWO TOP
SCREWS OF EACH HINGE.

11 SERVICING

WARNING - LABEL ALL WIRES
PRIOR TO DISCONNECTING WHEN
SERVICING CONTROLS. WIRING
ERRORS CAN CAUSE IMPROPER AND
DANGEROUS OPERATION AFTER
SERVICING/INSTALLATION.

For servicing phone numbers for replacement parts, and
other information, refer to Owner’s Manual or visit our
Web site.

Notes
