Page 1

Lighting

™

Evolve

Wide Flood, Billboard & Spot (EFMR)

LED Flood Light

imagination at work

Page 2

Product Features

The Evolve™ LED Flood Light offers a versatile solution to many applications, including architectural wall washing and facade lighting, sports court area lighting, ag poles and billboard/bulletin lighting. With three optimized designs, there is a solution to t virtually any ood application. The sleek modern design minimizes size while maximizing application efciency for many outdoor ood applications. GE’s optical design efciently directs the light and produces superior photometrics. This product also uniquely offers a photoelectric sensor receptacle to minimize control requirements if the application calls for a dusk-to-dawn solution.

The Evolve LED Flood Light offers a reduction in system energy compared with standard HID systems, depending on applications. This reliable system also offers more than 11 years of service life to signicantly reduce maintenance frequency and expense, based on a 50,000 hour life and 12 hours of operation per day.

Applications

• General ood requirements, billboard/bulletin, spot and ag poles utilizing advanced refractive LED optical system providing high uniformity, excellent light distribution.

Housing

• Cast aluminum housing.

• Functional design integrates heat sink to ensure maximum heat transfer and long LED life.

• Meets 2G vibration standards per ANSI C136.31-2010.

LED & Optical Assembly

• Rectilinear LED arrays for optimized photometric patterns.

• Refractors designed to optimize application efciency.

• Utilizes high brightness LEDs, 75 CRI at 4300K.

• LM-79 tests and reports are performed in accordance with IESNA standards.

Lumen Maintenance

Mounting

• Trunnion mount, wall mount or pole mount.

Finish

• Corrosion resistant polyester powder painted, minimum 2.0 mil. thickness.

• Standard color: Dark Bronze

• Additional quantities and extended lead times.

colors available with minimum order

Electrical

• 120 volt electronic driver.

• System power factor is >90% and THD <20%.

• Class “A” audible sound

• Integral surge protection: – For 120VAC per IEEE/ANSI C62.41.2-2002, 6kV/3kA Location Category C-Low (120 Events).

rating.

Warranty

• 5-year limited system warranty standard.

• System rating is L70 at 50,000 hours. Contact manufacturer for Lxx rating (Lumen Depreciation) beyond 50,000 hours..

Ratings

• listed, suitable for wet locations.

• IP 65 rated optical enclosure per ANSI C136.25-2009.

• Temperature rated at –40° to 40°C.

• Compliant with the material restriction requirements of RoHS.

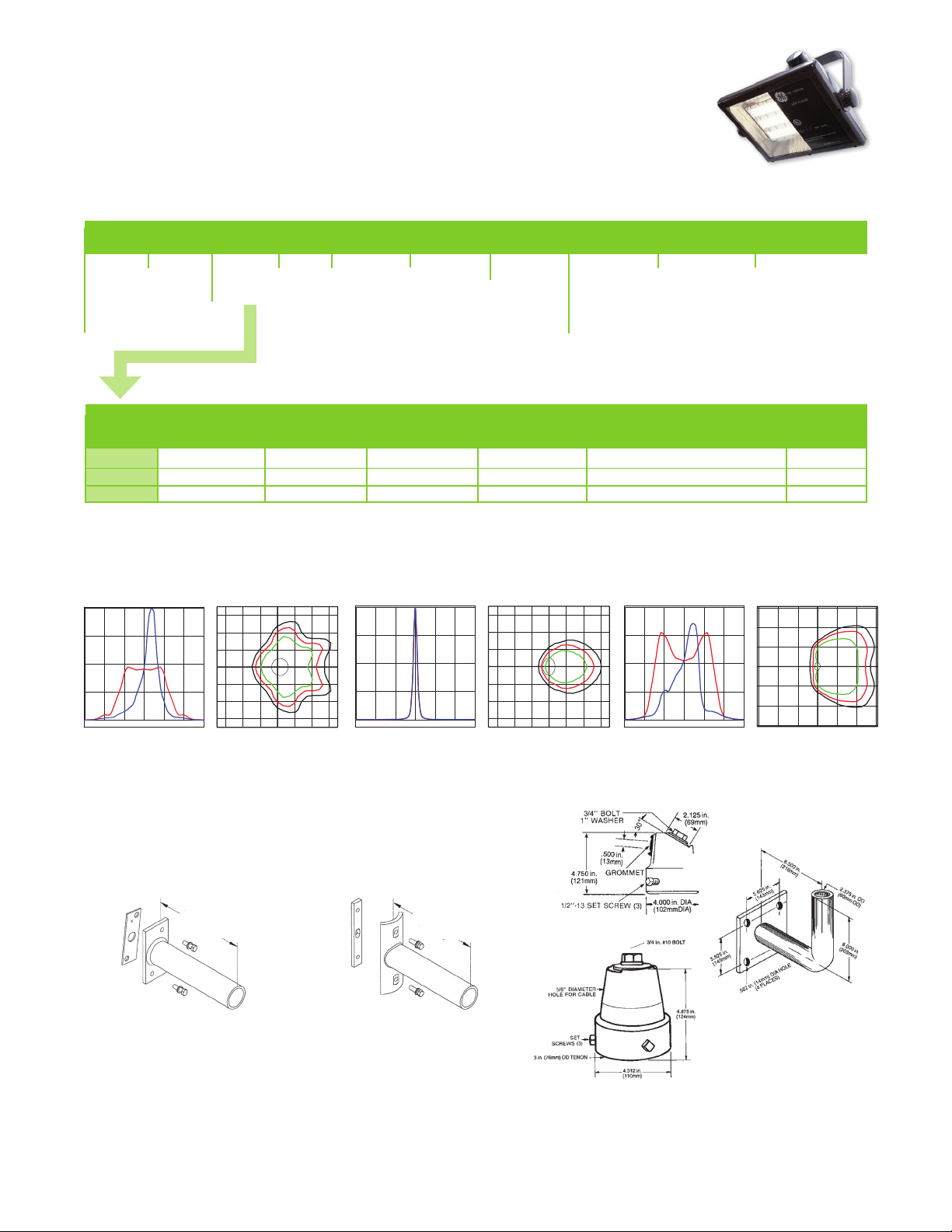

Page 3

Ordering Number Logic

Wide Flood, Billboard and Spot Flood Light (EFMR)

E F M R 1 4 3 F G 4 T D K B Z _ _ _ _ - _ - _ _ - _ _ - _ - _ - _ - _ - _ _ _ _ - _ _ _

PROD. ID

E = LED

F = Flood

Medium

M =

R = Rectangular

OPTICAL

CODE

VOLTAGE

1 = 120

OPTICAL

CODE

U = Billboard/

Bulletin

NS = Narrow Spot WF = Wide Flood

TYPE

LED COLOR

43 = 4300K

TYPICAL INITIAL

DISTRIBUTION

TEMP

ORIENTATION

F = Forward Throw G =Tempered Glass

LUMENS

4300K

FIXTURE

LENS TYPE

TYPICAL SYSTEM

WAT TAG E

120V

PE FUNCTION

4 = PE Rec. with

Shorting Cap

SUGGESTED

APPLICATIONS

MOUNTING ARM

T = Trunnion Mount

Note: Wall mount and sliptter mount are ordered and shipped separate (see below).

COLOR

DKBZ = DARK BRONZE

MOUNTING

STYLE

OPTIONS

XXX = Special Options

IES FILE

NUMBERS

4300K

BU Billboard/Bulletin 5600 90 Sign Lighter Trunnion Mount / Wall Mount / Pole Mount 454635 NS Narrow Spot 5600 90 Architecture / Flag Pole Trunnion Mount / Wall Mount / Pole Mount 454636 WF Wide Flood 5600 90 Flood / Facade / Area Trunnion Mount / Wall Mount / Pole Mount 454637

Photometrics

EFMR - Billboard/Bulletin (BU)

5,600 Lumens, 4300K (GE454635.ies)

9797

7348

4899

2449

-90 -60 -30 0 30 60 90

Max Candela = 9797 Vertical Angle = 12.5

H= Horiz. Axial Candela,

V=Vert. Axial Candela

Grid Distance in Units of

MH at 10’

and 15° tilt

-90 -60 -30 0 30 60 90

ERMR - Narrow Spot (NS)

5,600 Lumens, 4300K (GE454636.ies)

233921

175441

116960

58480

Max Candela = 233921

Vertical Angle = 0

H= Horiz. Axial Candela,

V=Vert. Axial Candela

Grid Distance in Units of

MH at 10’

and 45° tilt

EFMR - Wide Flood (WF)

5,600 Lumens, 4300K (GE454637.ies)

5165

3874

.1.2.5

-90 -60 -30 0 30 60 90

2582

1291

Max Candela = 5165 Vertical Angle = 12.5

H= Horiz. Axial Candela,

V=Vert. Axial Candela

Grid Distance in Units of

MH at 25’

and 45° tilt

Wall and Slipﬁtter Mounting Options

SQUARE POLE MOUNTING ARM

3.5 TO 4.5-inch (89 to 114mm) SQUARE

(WILL ALLOW 4 FIXTURES PER POLE @ 90 DEGREES.)

10.500 in.

[267 mm]

ORDER SEPARTELY FROM FIXTURE AS CATALOG NUMBER

SPA-EAMT10DKBZ “Dark Bronze”

(FOR RETROFITS INSTALLATIONS OTHER MOUNTING PATTERNS ARE AVAILABLE)

CONTACT FACTORY FOR OTHER AVAILABLE MOUNTING PATTERNS

SFADB-001 - 2" Slip Fitter Adapter (must order FBS wall bracket or mounting arms for slipter separately SPA or RPA below) PTADB-002 - Pole Top Adapter FBSFA2TTDB - Wall Mount Pracket for 2" Sliptter (must order slip tter adapter separately above) SPA-EAMT10DKBZ - Square Pole Mount Bracket for 2" Sliptter (must order slip tter adapter separately above) RPA-EAMT10DKBZ - Round Pole Mount Bracket for 2" Sliptter (must order slip tter adapter separately above)

ROUND POLE MOUNTING ARM

3.5 TO 4.5-inch (89 to 114mm) OD

(WILL ALLOW 4 FIXTURES PER POLE @ 90 DEGREES.)

10.500 in.

[267 mm]

ORDER SEPARTELY FROM FIXTURE AS CATALOG NUMBER

RPA-EAMT10DKBZ “Dark Bronze”

SFADB-001

FBSFA2TTDB

PTADB-002

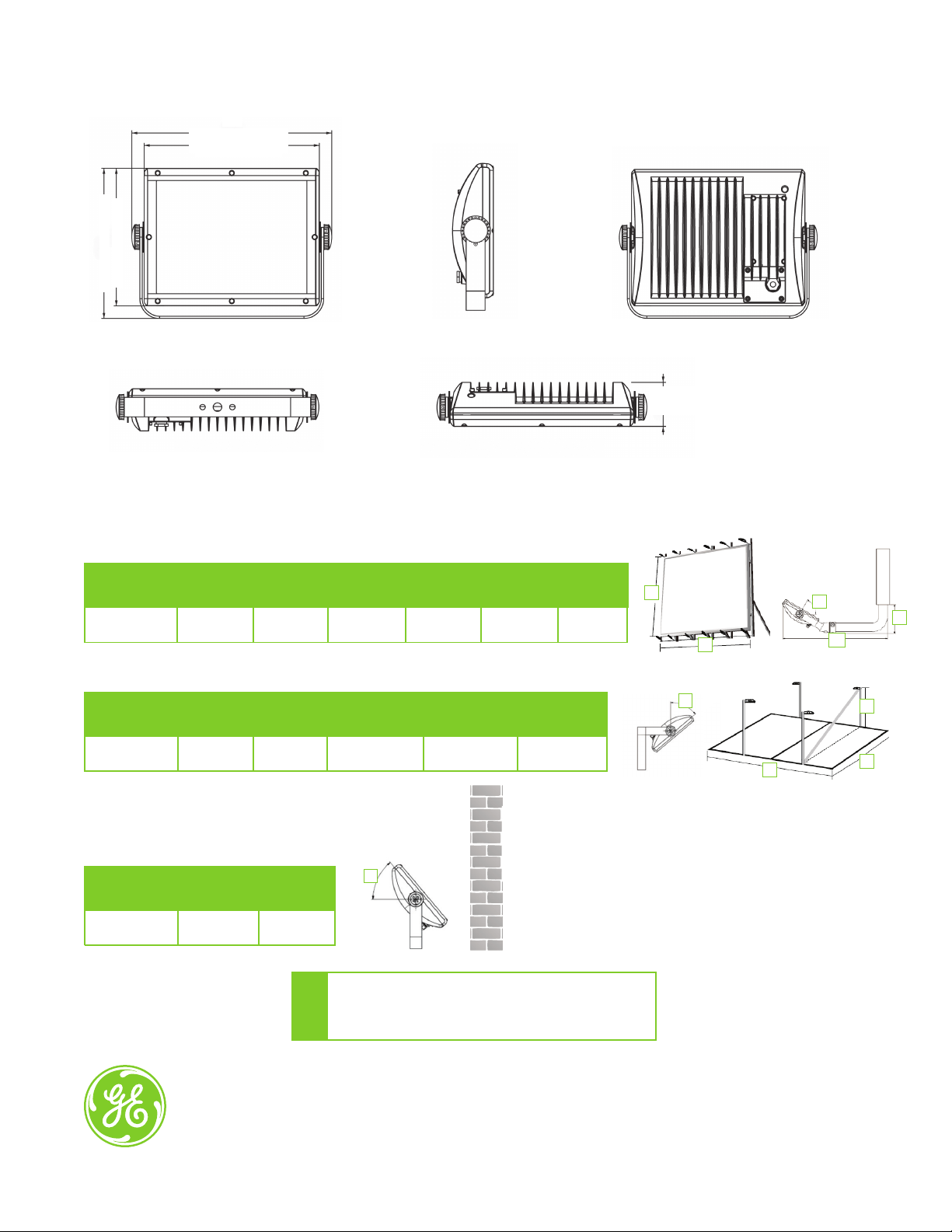

Page 4

Product Dimensions

20.4 in. (517 mm)

17.8 in. (453 mm)

14.0 in. (355 mm)

15.25 in. (388 mm)

FRONT VIEW

BOTTOM VIEW

SIDE VIEW

TOP VIEW

Applications

Billboard/Bulletin/Wall Wash Application

Application

Billboard/Bulletin BU 0° - 30° (5.79 - 7.01 m) (1.83 - 3.01 m) (< 0.91 m) (< 0.46 m)

Photometric

Distribution

Suggested

Tilt Angle

(A)

19 - 23 ft 6 - 10 ft <3.0 ft <1.5 ft

Suggested Target

Billboard Size

Width (W) Length (L)

Arm Length

(AL)

Flood Application

Application

Wide Flood WF 0° - 45° (7.62 - 10.01 m) (12.01 - 15.24 m) (15.24 - 19.81 m)

Photometric Distribution

Suggested

Tilt Angle

(A)

Suggested Pole

Mounting Height

(H)

25 - 33 ft 40-50 ft 50 - 65 ft

Suggested Target

Width (W) Length (L)

Size

Down Offset

Distance

(D)

BACK VIEW

4.25 in.

(107.8 mm)

Spot/Wall Application

Application

Spot NS 0° - 180°

Photometric

Distribution

Suggested

Tilt Angle

(A)

GE Lighting • 1-888-MY-GE-LED (1 - 888 - 69 - 43 - 533) • www.gelighting.com

GE Lighting is a subsidiary of the General Electric Company. Evolve and the GE brand and logo are trademarks of the General Electric Company. © 2013 GE Lighting. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.

• Approximate Net Weight: 26.5 lbs (12 kgs)

• Effective Projected Area: 2.26 sq ft max (0.21 sq m)

DATA

OLP-2898 (Rev. 09/09/13)
