GE EDW5100N00BB, EDW5100N00CC, EDW5100N00WW, EDW5100N10BB, EDW5100N10CC Installation Guide
...
Appliances
Installation
Instructions
Built-In Dishwasher
If you have questions, call 800.GE.CARES (800.432.2737) or visit our websJte at: www.ge.com
BEFORE YOU BEGIN
Read these instructions completelu and
carefullg.
IMPORTANT- Observe all governing codes and
ordinances.
, Note to Installer - Besure to leave these instructions for the
consumer's and local inspector's use.
Note to Consumer - Keep these instructions with your
Owner's Manual for future reference.
, Skill Level - Installation of this dishwasher requires
basic mechanical, electrical and plumbing skills.Proper
installation is the responsibilitg of the installer. Product
failure due to improper installation is not covered under
the GEAppliance Warranty. See warrantg information.
, Completion Time - 1 to 3 Hours. New installations require
more time than replacement installations.
IM PORTANT- The dishwasherMUST be installed
to allow for future removal from the enclosure if service is
required.
If gou received a damaged dishwasher, gou should
immediately contact your dealer or builder.
Optional Accessories - Seethe Owner's Manual for available
custom panel kits.
FOR YOUR SAFETY
Read and observe all CAUTIONS and WARNINGSshown
throughout these instructions. While performing
installations described in this booklet, gloves, safetg glasses
or goggles should beworn.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
InstallationPreparation
PARTS SUPPLIED
IN INSTALLATION PACKAGE:
[] Two #8-18 x 5/8" Phillips special head screws, to
secure dishwasher to underside of countertop,
[] Junction box cover and #!0 hex head screw
[] Hose Clamp
[] Drain hose (approximately 78" long)
[] Drain hose hanger
[] Side and top trim pieces (some models)
[] Literature, samples and/or coupons
MATERIALS YOU WILL NEED:
[] Ferrule, compression nut and 90° Elbow (3/8"NPT
external thread on one end, opposite end sized
to fit water supply)
[] Thread seal tape
[] UL Listed wire nuts (3)
[] GPFBS side mount kit if countertop is
granite or similar material
Junction
Box Cover
DrainHose
Screw Kit
!y? ?
#8 Phillips #10
Special Hex- Head
Head Screws J-Box Screw
5/8" long i/2" long
90° Elbow,
Ferrule and
Compression Nut
Sideand Top Trim Pieceson some models
Drain Hose Hanger
Hose Clamp
Hand
Shut-Off Thread
Valve SealTape
Wire Nuts (3}
Materials Needed for
New Installations:
[] Air gap for drain hose, if required
[] Waste tee for house plumbing, if applicable
[] Electrical cable or power cord
[] Screwtgpe hose clamp
[] Strain relief for electrical connection
[] Hand shut-offvolve (recommended)
[] Water line-3/8" minimum copper tubing
[] GPF!0L drain hose (!0' long), if needed
TOOLS YOU WILL NEED:
[] Phillips head screwdriver
[] Z/4" and 5/!6" nutdriver
[] 6" Adjustable wrench
[] Level
[] Carpenters square
[] Measuring tape
[] Safety glasses
[] Flashlight
[] Bucket to catch water when flushing the line
[] 15/16" socket (optional for skid removal)
[] Gloves
Air Gap
Screwdriver
15/16"Socket
Waste Tee Electrical Cable
(or Power Cord, if applicable}
GPF65 HoseClamp Strain Relief
Side-Mount
Bracket Kit
Level
1/4" and 5/16"
Nutdriver
Tubing Cutter
Hot Water Line
Optional
10' Drain Hose
GPFIOL
Carpenters
Square
Measuring Tape
For New Installations Onlg:
[] Tubing cutter
[] Drill and appropriate bits
[] Hole saw set
Gloves
Flashlight
Bucket
Safetg Glasses
Hole SawSet
InstallationPreparation
PREPARE DISHWASHER ENCLOSURE
ThisWallArea
must beFree
of Pipesor
34-1/2"1/4"
Underside of
Countertop
to Floor
Figure A
/
_FloorMUST be Even
With Room Floor
, The rough cabinet opening must be at least 24"deep, 24"
wide and approximatelg 34-1/2" high from floor to underside
of the countertop.
wires
--5"_ t-
Cabinets
-Square
and
Plumb
_'_ 24"
Min.
To reduce the risk of electric shock,
fire, or injurg to persons, the installer
must ensure that the dishwasher is
completelg enclosed at the time of
installation.
, The dishwasher must be installed so that drain hose is no
more than 10' in length for proper drainage.
, The dishwasher must be fullg enclosed on the top, sides and
back, and must not support ang part of the enclosure.
CLEARANCES: When
installed into a corner,
allow 2" rain. clearance
between dishwasher
and adjacent cabinet,
wall or other appliances.
Allow 28-3/8" rain. clear-
ance from the front of
the dishwasher for door
opening. Figure B
Figure B
Countertop
Clearance for Door
Opening 2" Minimum
DRAIN REQUIREMENTS
, Follow local codes and ordinances.
, Do not exceed 10' distance to drain.
NOTE:Air gap must be used, if waste tee or disposer
connection is less than 18" above floor to prevent siphoning.
DETERMINE DRAIN METHOD
The tgpe of drain installation depends on the following
questions.
[] Do local codes or ordinances require an air gap?
[] Is waste tee less than 18"above floor?
If the answer to either question is YES,Method 1MUST
be used.
, If the answers are NO,either method mag be used.
CABINET PREPARATION
, Drill a 1-1/2" diameter hole in the cabinet wall within
the shaded areas shown in Figure A for the drain hose
connection. The hole should be smooth with no sharp edges.
IMPORTANT-when
connecting drain line to disposer, Remove
check to be sure that drain plug has Drain
been removed. DISHWASHERWILL plug
NOTDRAINIF PLUGISLEFTIN PLACE.
Figure C
Method 1 - Air Gap with Waste Tee or Disposer
An air gap must be used when required b U local codes and ordi-
nances. The air gap must be installed according to manufacturer's
instructions.
__ DrainHose,Hanger _ _ DrainHoseHanger
Figure O
Method 2 - "High Drain Loop" with Waste Tee or Disposer
Tip: Avoid unnecessarg service call charges
Always be sure disposer drain plug has been removed before
attaching dishwasher drain hose to the disposer
InstallationPreparation
PREPARE ELECTRICAL WIRING
FOR PERSONAL SAFETY: Remove house
fuse or open circuit breaker before
beginning installation. Do not use an
extension cord or adapter plug with this
appliance.
Electrical Requirements
, This appliance must be supplied with 120V,60 Hz.,and
connected to an individual properly grounded branch circuit,
protected bg a !5 or 20 ampere circuit breaker or time delag
fuse.
, Wiring must be 2 wire with ground and rated for 75°C(!76°F).
, If the electrical supplg does not meet the above requirements,
call a licensed electrician before proceeding.
Grounding Instructions-Permanent Connection
This appliance must be connected to a grounded metal,
permanent wiring sgstem, or an equipment grounding
conductor must be run with the circuit conductors and be
connected to the equipment grounding terminal or lead on
the appliance.
Grounding Instructions-Power Cord Models
This appliance must be grounded. In the event of a malfunction
or breakdown, grounding will reduce the risk of electric shock
bg providing a path of least resistance for electric current.
This appliance is equipped with a cord having an equipment
grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is installed and
grounded in accordance with all local codes and ordinances.
The improper connection of the equipment
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or service representative if gou
are in doubt that the appliance is properly
grounded.
/ _ Alternate q"\
_ Receptacle i _\
Location
Cabinet
Figure E White
For models equipped with power cord: Do not modifg the plug
provided with the appliance; if it will not fit the outlet, have a
proper outlet installed bg a qualified technician.
Cabinet Preparation & Wire Routing
, The wiring mag enter the opening from either side, rear or the
floor within the shaded area illustrated above in Figure Eand
defined in Figure A.
, Cut a 1-1/2" maximum diameter hole to admit the electrical
cable. Permanent wiring connections maUpass through the
same hole as the drain hose and hot water line, if convenient.
If cabinet wall is metal, the hole edge must be covered with a
bushing.
NOTE:Power cords with plug must pass through a separate
hole.
Electrical Connection to Dishwasher
Electrical connection is on the right front of dishwasher
, For permanent connections the cable must be routed as
shown in Figure E.Cable must extend a minimum of 24" from
the rear wall.
For power cord connections, install a 3-prong grounding
tgpe receptacle in the sink cabinet rear wall, 6" min. or 18"
maximum from the opening, 6" to 18" above the floor
InstallationPreparation
PREPARE HOT WATER LINE
, The line may enter from either side, rear or floor within the
shaded area shown in Figure R
o The line maUpass through the same hole as the electrical
cable and drain hose. Or,cut an additional 1-!/2" diameter
hole to accommodate the water line. If power cord with plug
is used, water line must not pass through power cord hole.
I
I
I
Va ve
Hoti_::::::::::
From
Cabinet
Cabinet Face_,-
Figure F
Water Line Connection
Turn offthe water supply.
Install a hand shut-off valve in an accessible location, such
as under the sink. (Optional, but strongly recommended and
may be required by local codes.)
Water connection is on the left side of the dishwasher. Install
the hot water inlet line, using no less than 3/8" copper tubing.
Route the line as shown in Figure Fand extend forward at
least !9" from rear wall.
AdJustwater heater for !20°F to !50°F temperature.
Flush water line to clean out debris.
The hot water supply line pressure must be 20-120 PSI.
Turn page to begin dishwasher installation.
Dishwasher Installation
CAUTION
Do not remove wood base until gou are
readg to install the dishwasher. The dishwasher will
tip over when the door is opened if base is removed.

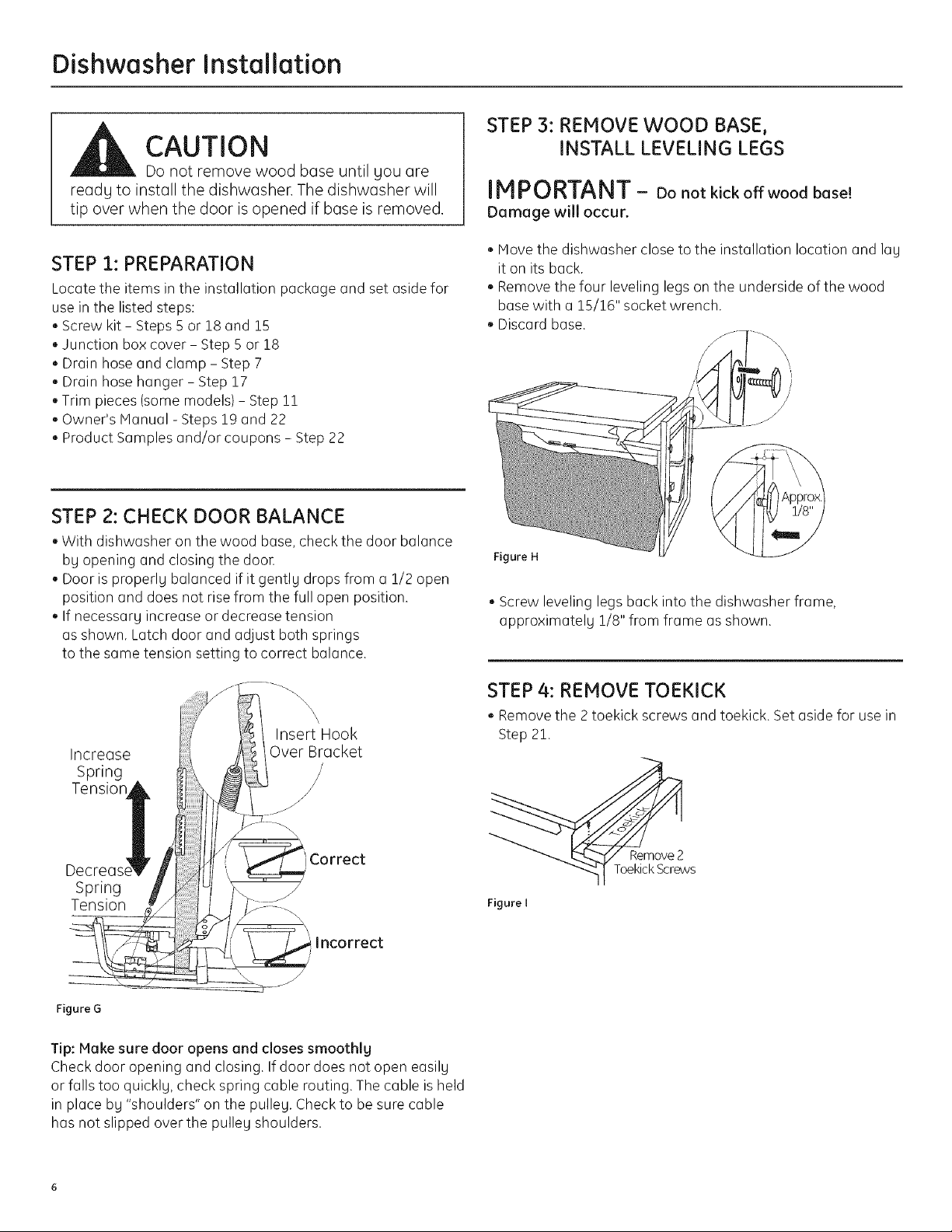

STEP 3: REMOVE WOOD BASE,
INSTALL LEVELING LEGS
IMPORTANT - Donotkickoffwoodbase!
Damage willoccur.
STEP 1:PREPARATION
Locate the items in the installation package and set aside for
use in the listed steps:
, Screw kit - Steps Sor !8 and !S
, Junction box cover- Step S or 18
, Drain hose and clamp- Step 7
, Drain hose hanger- Step 17
, Trim pieces (some models) - Step 11
, Owner's Manual - Steps 19 and 22
, Product Samples and/or coupons - Step 22
STEP 2: CHECK DOOR BALANCE
o With dishwasher on the wood base, check the door balance
bg opening and closing the door.
Door is properlg balanced if it gentlg drops from a 1/2 open
position and does not rise from the full open position.
• If necessarg increase or decrease tension
as shown. Latch door and adjust both springs
to the same tension setting to correct balance.
Insert Hook
Increase
Spring
Tensior
Over Bracket
/
/
, Move the dishwasher close to the installation location and lag
it on its back.
, Remove the four leveling legs on the underside of the wood
base with a 15/16" socket wrench.
Discard base.
Figure H
, Screw leveling legs back into the dishwasher frame,
approximatelg 1/8" from frame as shown.
STEP 4: REMOVE TOEKICK
, Remove the 2 toekick screws and toekick. Set aside for use in
Step 21.
Decreas,
Spring
Tension
Correct
Jncorrect
Figure G
Tip: Make sure door opens and closes smoothlg
Check door opening and closing. If door does not open easilg
or falls too quicklg, check spring cable routing. The cable is held
in place bg "shoulders" on the pulleg. Check to be sure cable
has not slipped over the pulleg shoulders.
Figure I
Dishwasher Installation

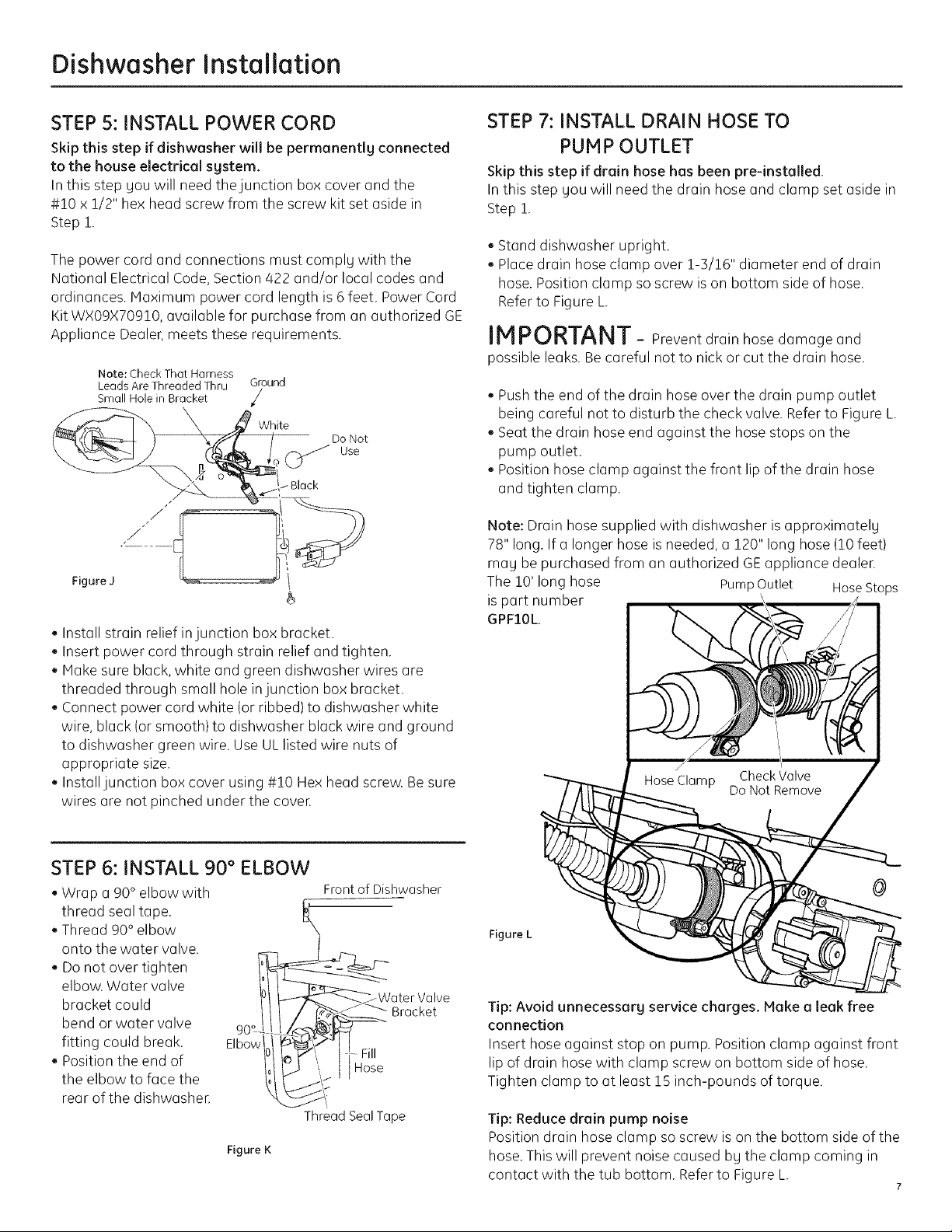

STEP 5: INSTALL POWER CORD
Skipthis step if dishwasher will be permanently connected
to the house electrical sgstem.
Inthis step you will need thejunction box cover and the
#!0 x 1/2" hex head screw from the screw kit set aside in
Step 1.
The power cord and connections must comply with the
National Electrical Code, Section 422 and/or local codes and
ordinances. Maximum power cord length is 6 feet. Power Cord
Kit WX09X70910, available for purchase from an authorized GE
Appliance Dealer, meets these requirements.
Note: Check That Harness
Leads Are Threaded Thru _Gr°und
Small Hole in Bracket /
White
Figure J
o Install strain relief in junction box bracket.
Insert power cord through strain relief and tighten.
Make sure black, white and green dishwasher wires are
threaded through small hole injunction box bracket.
Connect power cord white (or ribbed) to dishwasher white
wire, black (or smooth) to dishwasher black wire and ground
to dishwasher green wire. Use UL listed wire nuts of
appropriate size.
Install junction box cover using #!0 Hex head screw. Be sure
wires are not pinched under the cove_
Do Not
Use
STEP 7: INSTALL DRAIN HOSE TO
PUMP OUTLET
Skip this step if drain hose has been pre-installed
In this step you will need the drain hose and clamp set aside in
Step !.
Stand dishwasher upright.
Place drain hose clamp over !-3/!6" diameter end of drain
hose. Position clamp so screw is on bottom side of hose.
Refer to Figure L
IPiPORTANT - Prevent drain hose damage and
possible leaks. Be careful not to nick or cut the drain hose.
Push the end of the drain hose over the drain pump outlet
being careful not to disturb the check valve. Refer to Figure L
Seat the drain hose end against the hose stops on the
pump outlet.
Position hose clamp against the front lip of the drain hose
and tighten clamp.
Note: Drain hose supplied with dishwasher is approximately
78" long. If a longer hose is needed, a 120" long hose (!0 feet)
may be purchased from an authorized GE appliance dealer.
The 10' long hose Pump Outlet Hose Stops
is part number \
GPFIOL
STEP 6: INSTALL 90 ° ELBOW
, Wrap a 90° elbow with
thread seal tape.
, Thread 90° elbow
onto the water valve.
, Do not over tighten
elbow. Water valve
bracket could
bend or water valve 90_
fitting could break. Elbow
Position the end of
the elbow to face the
rear of the dishwasher.
Figure K
Front of Dishwasher
WaterValve
Bracket
. I IHose
ThreadSealTape
Figure L
Tip: Avoid unnecessary service charges. Make a leak free
connection
Insert hose against stop on pump. Position clamp against front
lip of drain hose with clamp screw on bottom side of hose.
Tighten clamp to at least 15 inch-pounds of torque.
Tip: Reduce drain pump noise
Position drain hose clamp soscrew is on the bottom side of the
hose. This will prevent noise caused by the clamp coming in
contact with the tub bottom. Referto Figure L
7
Dishwasher Installation

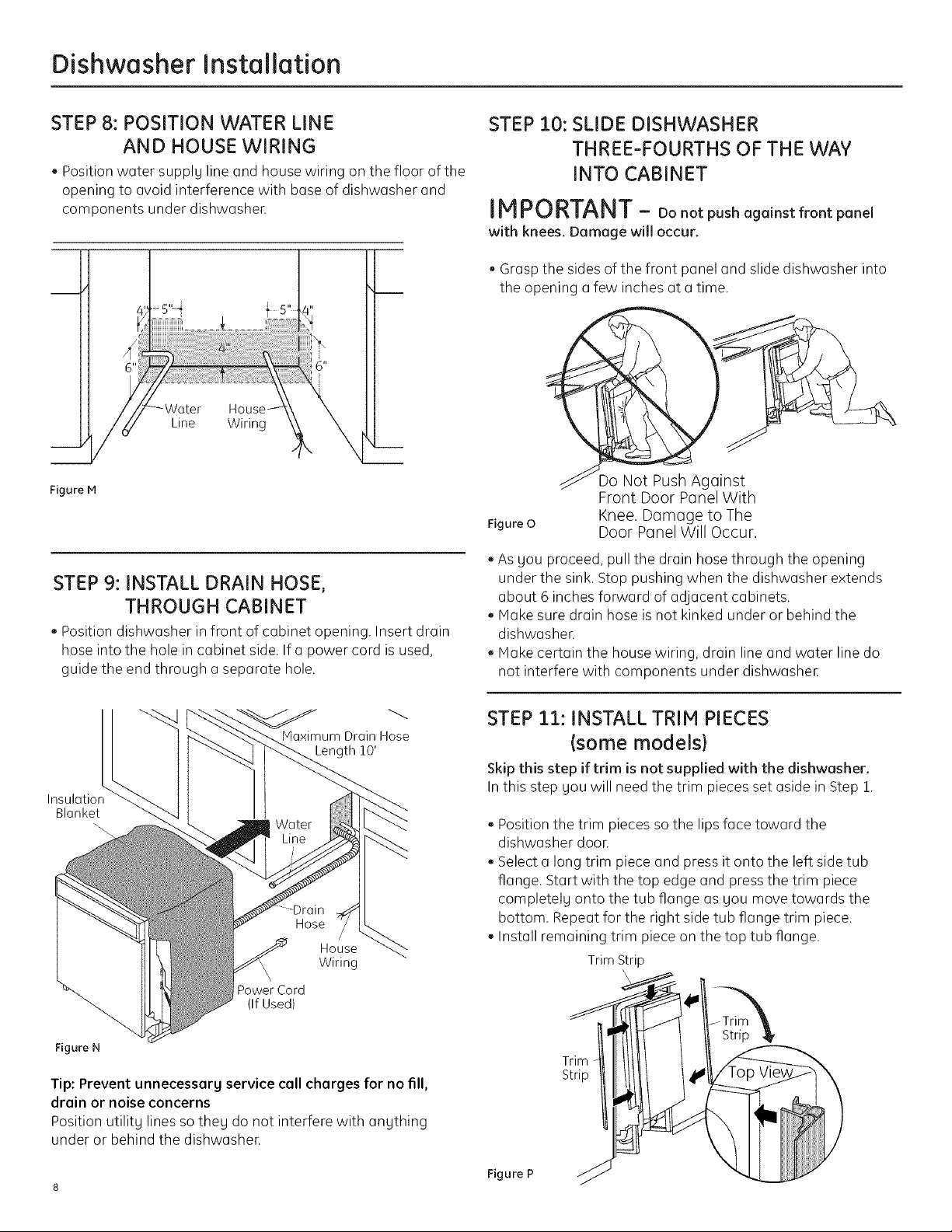

STEP 8: POSITION WATER LINE
AND HOUSE WIRING
, Position water supply line and house wiring on the floor of the
opening to avoid interference with base of dishwasher and
components under dishwasher.
House _
Line Wiring
Figure M
STEP 9: INSTALL DRAIN HOSE,
THROUGH CABINET
, Position dishwasher in front of cabinet opening. Insert drain
hose into the hole in cabinet side. Ifa power cord is used,
guide the end through a separate hole.
STEP I0: SLIDE DISHWASHER
THREE-FOURTHS OF THE WAY
INTO CABINET
IMPORTANT - Do not push against front panel
with knees. Damage will occur.
, Grasp the sides of the front panel and slide dishwasher into
the opening a few inches at a time.
Do Not Push Against
Front Door Panel With
Figure 0
, As you proceed, pull the drain hose through the opening
under the sink. Stop pushing when the dishwasher extends
about 6 inches forward of adjacent cabinets.
• Make sure drain hose is not kinked under or behind the
dishwasher.
, Hake certain the house wiring, drain line and water line do
not interfere with components under dishwasheE
Knee. Damage to The
Door Panel Will Occur.
Maximum Drain Hose
Length 10'
Insulatior
Blanket
Hose
House
Wiring
Power Cord
(If Used}
Figure N
Tip: Prevent unnecessarg service call charges for no fill,
drain or noise concerns
Position utility lines so theg do not interfere with anything
under or behind the dishwasher.
STEP II: INSTALL TRIM PIECES
(some models}
Skip this step if trim is not supplied with the dishwasher.
In this step you will need the trim pieces set aside in Step !.
, Position the trim pieces so the lips face toward the
dishwasher door.
, Select a long trim piece and press it onto the left side tub
flange. Start with the top edge and press the trim piece
completely onto the tub flange as you move towards the
bottom. Repeat for the right side tub flange trim piece.
, Install remaining trim piece on the top tub flange.
Trim Strip
Figure P 1
Dishwasher Installation
STEP 12: INSTALL GPF65 SIDE-MOUNT
BRACKETS
Skipthis step if underside of countertop is wood or
wood-like material.
, Install side-mount brackets if underside of countertop is
granite or similar material that will not accept wood screws.
Note: The brackets are available for purchase if needed. Obtain
a GPFB5kit from your authorized GEAppliance Dealer.
, Fasten the left-hand bracket to the left side
of the dishwasher frame and the right-hand
bracket to the right side of the dishwasher
frame, using the #8 pan-head screws
included with the kit. Refer to instructions
included in kit for orientation and
placement of the brackets.
Side-Mounting Brackets
Tub ........... J
Frame
Countertop Brackets
Optional
Side-Mount
Bracket Kit
/
/
STEP 13: PUSH DISHWASHER INTO
FINAL POSITION
, Check the tub insulation blanket, if equipped, to be sure it is
smoothly wrapped around the tub. It should not be "bunched
up" and it must not interfere with the door springs. If the
insulation is"bunched up" or interfering with the springs,
straighten and re-center the blanket prior to sliding the
dishwasher into its final position.
, Slide the dishwasher into the final position by pushing on
the sides of the door panel. Do not use a knee or push on the
center of the panel. If you do, damage to the panel will likely
result.
, The dishwasher isin the final position when the edges of
the front panel are flush with the adjacent cabinets and the
dishwasher is centered in the cabinet opening.
IMPORTANT - Before opening the dishwasher door,
be certain the edges of the dishwasher door panel are behind
the face of the adjacent cabinet and not up against the cabinet
face. Refer to Figure O. If the dishwasher door isopened
when the edge of the door is against the face of the cabinet,
dishwasher door damage and cabinet damage will occur.
, Open and close the dishwasher door to be sure it operates
smoothly, and does not rub on the adjacent cabinet.
Bracket
Attachment Screws
(2 Each Side)
, If you are installing the dishwasher under a counter with a
short overhang, the countertop brackets may extend beyond
the edge of the counten If this is the case, remove the excess
length by repeatedly bending the brackets at the notches
until they break off.
_-_-_Bend back
and forth
at notch
Door
Fitsand
-_-- on Cabinet Frame
Door Catches
Swings
Back
Behind
Cabinet
Frame\
/
Correct
j/
Alignment
Incorrect Alignment
will resultin doordamage
Figure Q
Tip: Prevent unnecessary service charges for panel damage
or wash performance
Check dishwasher alignment prior to opening dishwasher door
to prevent panel damage.
Make sure utility lines are not trapped or crushed behind
dishwasher. Crushed lines will restrict water flow.
Dishwasher Installation
STEP 3.4: LEVEL DISHWASHER
IMPORTANT- Dishwasher must be level for proper
dish rack operation, wash performance and door operation.
The dishwasher must be leveled left to right and front to back.
This assures the dish racks will not roll in or out on their own,
circulation water will flow to the pump inlet, and the door will
close without hitting the side of the tub.
, Remove the lower dish rack and place a level on the door and
lower rack track as shown in Figure R.
, Adjust the level of the dishwasher by individually turning the
four legs on the bottom of the dishwasher as illustrated in
Figure S.
, The dishwasher is properly leveled when the level indicator is
centered left to right and front to back. Also,the dishwasher
door should close without hitting the side of the tub.
, Replace the lower rack.
/ k
Level_/j_u_,_.. _-\\VIII
Front- /_._ ,_uc_s _._/ Check
to-Back_'// . v, \_ Level
]// / /
Figure R
STEP 15: POSITION DISHWASHER, SECURE
TO COUNTERTOP OR CABINET
In this step you will need the 2 Phillips special head screws
from the screw kit set aside in Step 1.
The dishwasher must be secured to the countertop or the
cabinet sides.When the underside of the countertop iswood,
use Method 1. Use Method 2when the underside of the
countertop is made of a material, such as granite, that will not
accept wood screws.
IMPORTANT- Prevent door panel and control panel
damage. Dishwasher must be positioned so the front panel
and control panel do not contact the adjacent cabinets or
countertop. Mounting screws must be driven straight and flush.
Protruding screw heads could scratch the door panel or control
panel and interfere with door operation.
Method 2
Secure dishwasher to underside of wood countertop.
, Recheck alignment of the dishwasher in the cabinet. Referto
Steps 13 and !4. Door panel and/or control panel must not
hit cabinets or countertop.
, Fasten the dishwasher to the underside of the countertop
with the 2 Phillips special head screws. Refer to Figure T.Make
certain screws are driven straight and flush to prevent panel
damage.
Brackets Wood Countertop
/ _
Turn Legs'/i
Figure S
Tip: Prevent unnecessarg service charges. Verifg dishwasher
is leveled
Pull the dish racks half wag out. Theg should stag put. Open
and close the doo_ The door should fit in the tub opening
without hitting the side of the tub. If the racks roll on their own,
or the door hits the side of tub, re-level the dishwasher
to Adjusts/
Figure T
Method 2
Secure dishwasher to cabinet sides. Thismethod requires
purchase ofa GPF65 Side Mount Kit. Refer to Step 12.
, Recheck alignment of the dishwasher in the cabinet. Referto
Steps 13 and 14.Door panel and/or control panel must not
hit cabinets or countertop.
, Fasten the dishwasher to the adjacent cabinets with the 2
Phillips special head screws provided. Refer to Figure U.Make
certain screws are driven straight and flush to prevent panel
damage.
Granite Countertop
Figure U
/
/
Dishwasher Installation
STEP 16: CONNECT WATER SUPPLY
Connect water supply line to 90° elbow.
o Slide compression nut, then ferrule over end of water line.
Insert water line into 90° elbow.
Slide ferrule against elbow and secure with compression nut.
IMPORTANT - Check to be sure that door spring
and/or door spring cable do not rub or contact the fill hose or
water supply line.
Test by opening and
closing the door.
Re-route the water
supply lines if a
rubbing noise or
interference
occurs.
Figure V
- 90 ° Elbow Su_' Lne
.... _.............. IJHy
Door Spring
Hot Water
o Connect drain line to air gap, waste tee or disposer
using the previously determined method. Secure hose
with a screw type clamp.
Method I - Air gap with waste tee or disposer
Waste Tee Installation Disposer Installation
FigureY
Method 2 - "High drain loop" with waste tee or disposer
With this method gou will need the drain hose hanger set aside
in Step 1.
Fasten drain hose to underside of countertop with the provided
hanger.
_ _ Drain Hose Hanger
STEP 17: CONNECT DRAIN LINE
The molded end of the drain hose will fit 5/8" through !"
diameter inlet ports on the air gap, waste tee or disposeE
Determine size of inlet port
Cut drain hose connector on the marked line,if required, to fit
the inlet port.
Cutting Line
Figure W
If a longer drain hose is required and you did not purchase
drain hose GPF!OL, add up to 42" length for a total of 120"
(!0 feet) to the factory installed hose. Use 5/8" or 7/8" inside
diameter hose and a coupler to connect
the two hose ends.
Secure the
connection
with hose
clamps.
Figure× Hose Clamp
IMPORTANT: Do not cut corrugated
portion of hose
Coupler
Hose Clamp
32"
Waste Tee Installation
Figure Z
Disposer Installation
IMPORTANT - When connecting drain line to
disposer, check to be sure that drain plug has been removed.
DISHWASHER WILL NOT DRAIN IF PLUG ISLEFT IN PLACE.
Remove
Drain
Plug
Tip: Avoid unnecessarg service cull charges for a no drain
complaint
Make sure excess drain hose has been pulled through
the cabinet opening. This will prevent excess hose in the
dishwasher cavity from becoming kinked or crushed by the
dishwasher.
Note: TOTAL DRAIN HOSE LENGTH MUST NOT EXCEED !0 FEET
FOR PROPER DRAIN OPERATION.
Dishwasher Installation

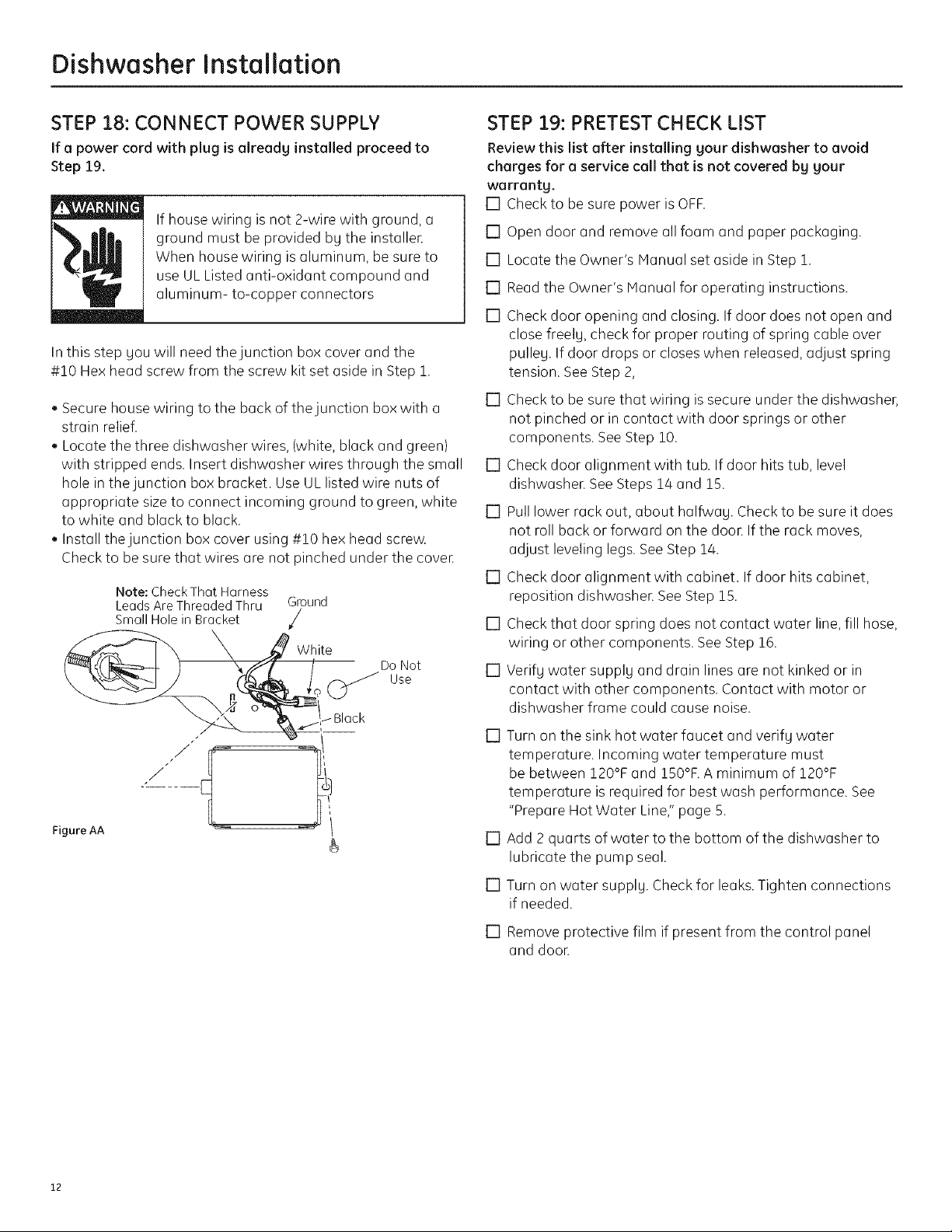

STEP 18: CONNECT POWER SUPPLY
If a power cord with plug is alreodg installed proceed to
Step 19.
If house wiring is not 2-wire with ground, a
ground must be provided bg the installer.
When house wiring isaluminum, be sure to
use ULListed anti-oxidant compound and
aluminum- to-copper connectors
Inthis step gou will need the junction box cover and the
#!0 Hex head screw from the screw kit set aside in Step !.
. Secure house wiring to the back of the junction box with a
strain relief.
. Locate the three dishwasher wires, (white, black and green)
with stripped ends. Insert dishwasher wires through the small
hole in the junction box bracket. Use UL listed wire nuts of
appropriate size to connect incoming ground to green, white
to white and black to black.
Install the junction box cover using #!0 hex head screw.
Checkto be sure that wires are not pinched under the coveE
Note: Check That Harness
Leads Are Threaded Thru Ground_
Small Hole in Bracket /
White
Do Not
Use
STEP 19: PRETEST CHECK LIST
Review this list after installing your dishwasher to avoid
charges for a service call that is not covered by your
warranty.
[] Check to be sure power is OFF.
[] Open door and remove all foam and paper packaging.
[] Locate the Owner's Manual set aside in Step !.
[] Read the Owner's Manual for operating instructions.
[] Check door opening and closing. If door does not open and
close freelg, check for proper routing of spring cable over
pulleg. If door drops or closes when released, adjust spring
tension. See Step 2,
[] Check to be sure that wiring is secure under the dishwasher,
not pinched or in contact with door springs or other
components. See Step !0.
[] Check door alignment with tub. If door hits tub, level
dishwasher. SeeSteps 14 and !5.
[] Pull lower rack out, about halfway. Check to be sure it does
not roll back or forward on the doon If the rack moves,
adjust leveling legs. See Step !4.
[] Check door alignment with cabinet. If door hits cabinet,
reposition dishwasher. SeeStep !5.
[] Check that door spring does not contact water line, fill hose,
wiring or other components. SeeStep !6.
[] Verify water supply and drain lines are not kinked or in
contact with other components. Contact with motor or
dishwasher frame could cause noise.
Figure AA
[] Turn on the sink hot water faucet and verify water
temperature. Incoming water temperature must
be between !20°F and !50°R A minimum of !20°F
temperature is required for best wash performance. See
"Prepare Hot Water Line,"page 5.
[] Add 2 quarts of water to the bottom of the dishwasher to
lubricate the pump seal.
[] Turn on water supply. Check for leaks. Tighten connections
if needed.
[] Remove protective film if present from the control panel
and door.
Dishwasher Installation

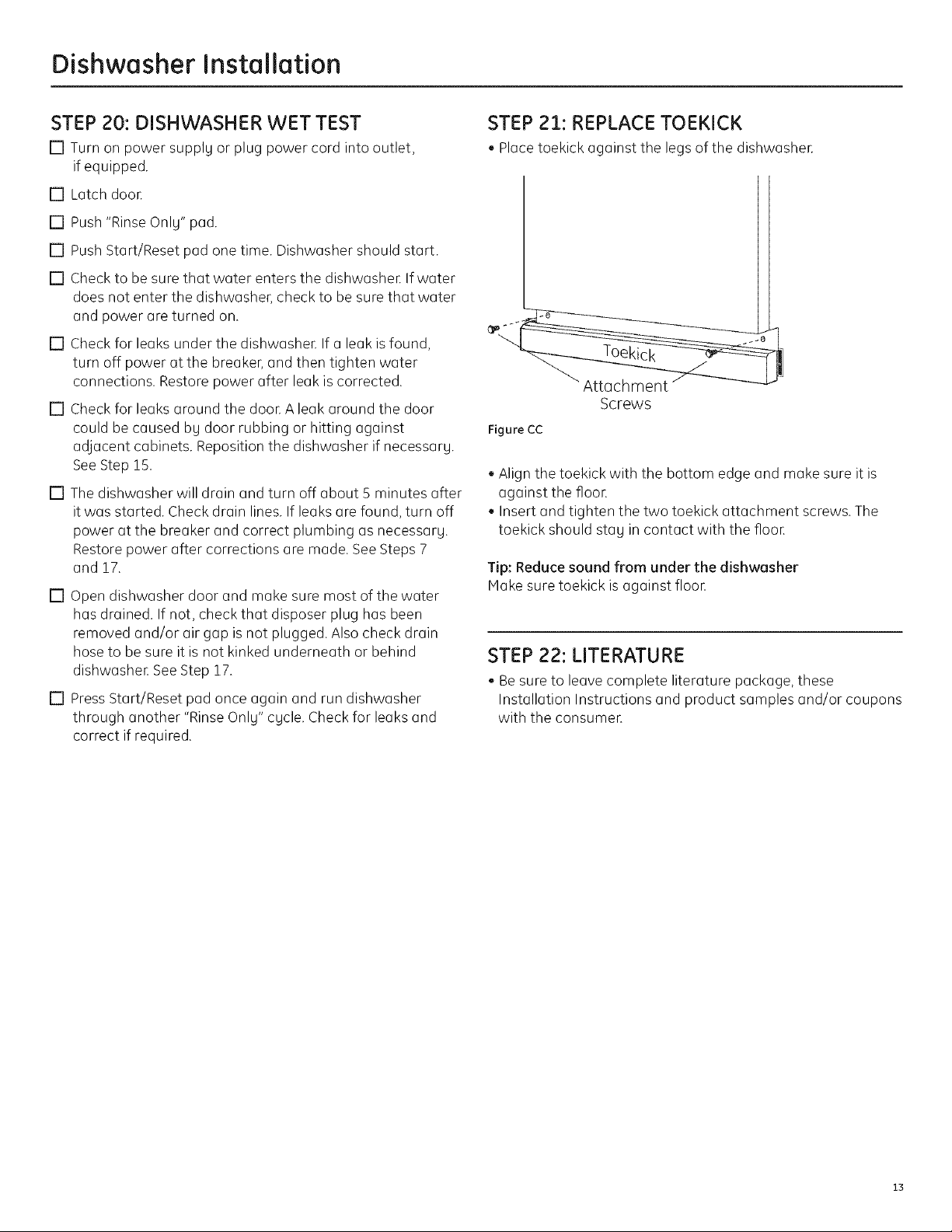

STEP 20: DISHWASHER WET TEST
[] Turn on power suppl Uor plug power cord into outlet,
if equipped.
[] Latch door
[] Push"Rinse Onlu" pad.
[] PushStart/Reset pad one time. Dishwasher should start.
[] Check to be sure that water enters the dishwasher Ifwater
does not enter the dishwasher, check to be sure that water
and power are turned on.
[] Check for leaks under the dishwasher. If a leak is found,
turn off power at the breaker, and then tighten water
connections. Restore power after leak is corrected.
[] Check for leaks around the door. A leak around the door
could be caused bu door rubbing or hitting against
adjacent cabinets. Reposition the dishwasher if necessaru.
SeeStep !5.
[] The dishwasher will drain and turn off about 5 minutes after
it was started. Check drain lines. If leaks are found, turn off
power at the breaker and correct plumbing as necessaru.
Restore power after corrections are made. See Steps 7
and :!_7.
[] Open dishwasher door and make sure most of the water
has drained. If not, check that disposer plug has been
removed and/or air gap is not plugged. Also check drain
hose to be sure it is not kinked underneath or behind
dishwasher See Step !7.
[] PressStart/Reset pad once again and run dishwasher
through another "Rinse Only" cucle. Check for leaks and
correct if required.
STEP 21: REPLACE TOEKICK
, Placetoekick against the legs of the dishwasher.
Attachment
Screws
Figure CC
, Align the toekick with the bottom edge and make sure it is
against the floor.
Insert and tighten the two toekick attachment screws. The
toekick should stag in contact with the floor
Tip: Reduce sound from under the dishwasher
Hake sure toekick is against floor
STEP 22: LITERATURE
, Be sure to leave complete literature package, these
Installation Instructions and product samples and/or coupons
with the consumer.
Notes
14
Notes
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
GE Consumer & Industrial
General Electric Compan 9
Louisville, Kentuck 9 40225
ge.com
© 2005 General Electric Compang
Pub. No. 31-30217
Dwg. No. 206C1559P157
ND06G-1871 (8/06}
Loading...
