Page 1
DSXH43EAWW—GE Extra-Large 5.7 Cu. Ft. Capacity Front-Load Dryer
GE Appliances
Specification Created 8/00

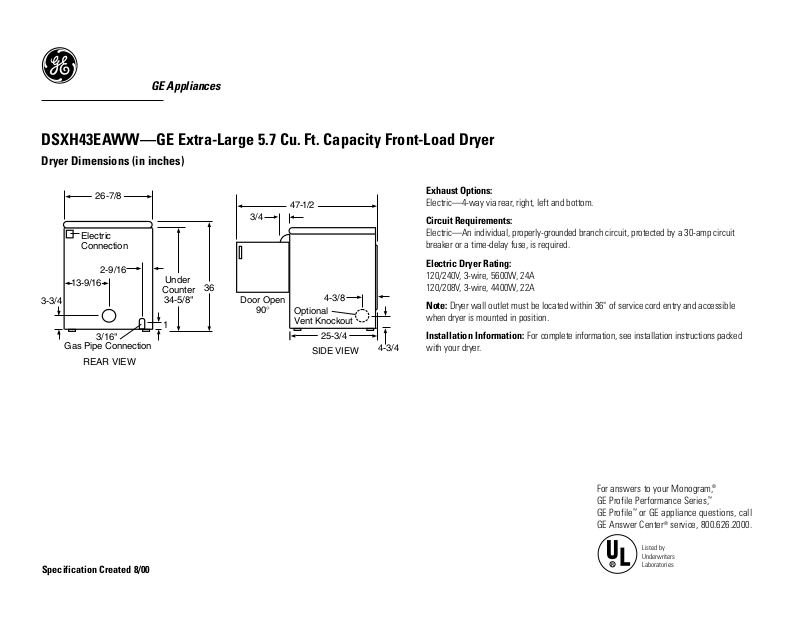

Dryer Dimensions (in inches)
Exhaust Options:
Electric—4-way via rear, right, left and bottom.
Circuit Requirements:
Electric—An individual, properly-grounded branch circuit, protected by a 30-amp circuit
breaker or a time-delay fuse, is required.
Electric Dryer Rating:
120/240V, 3-wire, 5600W, 24A
120/208V, 3-wire, 4400W, 22A
Note: Dryer wall outlet must be located within 36" of service cord entry and accessible
when dryer is mounted in position.
Installation Information: For complete information, see installation instructions packed
with your dryer.
REAR VIEW
26-7/8
3-3/4
1
36
Under
Counter
34-5/8"
3/16"
Gas Pipe Connection
Electric
Connection
2-9/16
13-9/16
SIDE VIEW
25-3/4
47-1/2
4-3/4
Optional
Vent Knockout
Door Open
90°
4-3/8
3/4
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Page 2
DSXH43EAWW—GE Extra-Large 5.7 Cu. Ft. Capacity Front-Load Dryer
GE Appliances
Specification Created 8/00
Undercounter Installation
• Accessory mounting kits are required for
undercounter installation. To order,
call 1-800-848-7722.
Washer—Order Pub. No. 14-A037
Dryer—Order Pub. No. 14-A008
Stacked Installation
• Brackets for stacking dryer over washer
are included with the dryer.
Alcove or Closet Installation
• If your dryer is approved for installation
in an alcove or closet, it will be stated
on a label on the dryer back.
• The dryer MUST be exhausted to the
outdoors.
• Minimum clearances between dryer
cabinet and adjacent walls or other
surfaces are:
0" either side
3" front and rear
• Minimum vertical space from floor to
overhead cabinets, ceilings, etc. is 52".
• Closet doors must be louvered or
otherwise ventilated and must contain
a minimum of 60 sq. in. of open area
equally distributed. If this closet contains
both a washer and a dryer, doors must
contain a minimum of 120 sq. in. of
open area equally distributed.
• The closet should be vented to the
outdoors to prevent gas pocketing in
case of a gas leak in the supply line.
• No other fuel-burning appliance shall be
installed in the same closet with the dryer.
Bathroom or Bedroom Installation
• The dryer MUST be exhausted to the
outdoors.
• The installation must conform with the
local codes, or in the absence of local
codes, with the National Fuel Gas Code,
ANSI Z223.
Minimum Clearances other than Alcove
or Closet Installations
• Minimum clearances to combustible
surfaces:
0" both sides
3" rear
36"
25-3/4"
53-1/2"
Washer
Top Sheet
Dryer
Top Sheet
Countertop
14''
29''
56''-60''
Lip on All Sides
3/4" High x 3/4" Wide
Max.
70-5/8"
25-3/4"
26-3/4"
Free-Standing Installation
Undercounter Installation
Raised/Built-In Installation
Stacked Installation
For more information on venting kits and
accessories, please call 1-800-GE-CARES.
Special Installation Requirements
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Page 3
DSXH43EAWW—GE Extra-Large 5.7 Cu. Ft. Capacity Front-Load Dryer
GE Appliances
Specification Created 8/00
Dryer Exhausting Information—Use Metal Duct Only
For complete information, see installation instructions packed with your dryer.
Ducting Materials:
For best performance, this dryer should be vented with 4” diameter all rigid metal exhaust duct. If “all rigid metal”
duct cannot be used, then “flexible all metal” venting can be used, but it will reduce the maximum recommended
duct length.
Exhaust Length Calculation:
1. Determine the number of 90° turns needed for your installation. If you exhaust to the side or bottom of dryer, add
one turn.
2. The maximum length of 4’ rigid (aluminum or galvanized) duct which can be tolerated is shown in the table. The
maximum length for flexible ducts are less than for rigid duct.
A turn of 45° or less may be ignored. Two 45° turns within the duct length should be treated as a 90° elbow. A turn
over 45° should be treated as a 90° elbow.
Exhausting the dryer to the outside is strongly recommended to prevent large amounts of moisture and lint
from being blown into the room. Gas dryers or any dryer located in a closet must be exhausted to the outside.
Caution: For personal safety do not terminate exhaust into a chimney, under any enclosed house floor (crawl space),
or into an attic, since the accumulated lint could create a fire hazard or moisture could cause damage. Never termi
nate the exhaust into a common duct or plenum with a kitchen exhaust, since the combination of lint and grease
could create a fire hazard.
Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird nesting, etc. The wall cap
must also be located at least 12” above the ground or any other obstruction with the opening pointed down. Other
terminations, such as louvered wall boxes, are acceptable provided they are equivalent to a 4” opening dampered
wall cap.
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
0 60 ft. 48 ft. 30 ft. 18 ft.
1 52 ft. 40 ft. 22 ft. 14 ft.
2 44 ft. 32 ft. 14 ft. 10 ft.
Front Loading 3 32 ft. 24 ft.
Dryers 4 28 ft. 16 ft.
Number
of
90°
Turns
Maximum Length of 4"
Dia.
Rigid Metal Duct
Maximum Length of 4"
Dia. Flexible Metal Duct
Exhaust Hood Type
Exhaust Hood Type
A
4" Opening
B
2-1/2"
Opening
A
4" Opening
B
2-1/2"
Opening
A
4
Best Performance
B
2-1/2
Page 4
Specification Created 8/00
GE Appliances
DSXH43EAWW—GE Extra-Large 5.7 Cu. Ft. Capacity Front-Load Dryer
O
FF
3
C
y
c
le
/ 4
F
a
b
r
ic
C
a
re
S
e
ttin
g
s
CYCLE SIGNAL
O
N
START
L
OUD
C
OTTTONS
REG HEAT
P
ERM
P
RESS
MED HEAT
K
NITS /
D
ELICATES
LOW HEAT
A
IR
F
LUFF
NO HEAT
FABRIC CARE
C
O
T
T
O
N
S
EA
S
Y
C
AR
E
T
IM
E
D
D
R
Y
P
E
R
M
P
R
E
S
S
D
E
L
I
C
A
T
E
S
C
O
O
L D
OW
N
O
P
T
I
M
U
M
D
R
Y
S
T
A
R
T
M
O
R
E
D
R
Y
E
X
T
E
N
D
E
D
C
O
O
L
D
O
W
N
C
O
O
L
D
O
W
N
10
20
30
40
50
60
70
L
E
S
S
D
R
Y

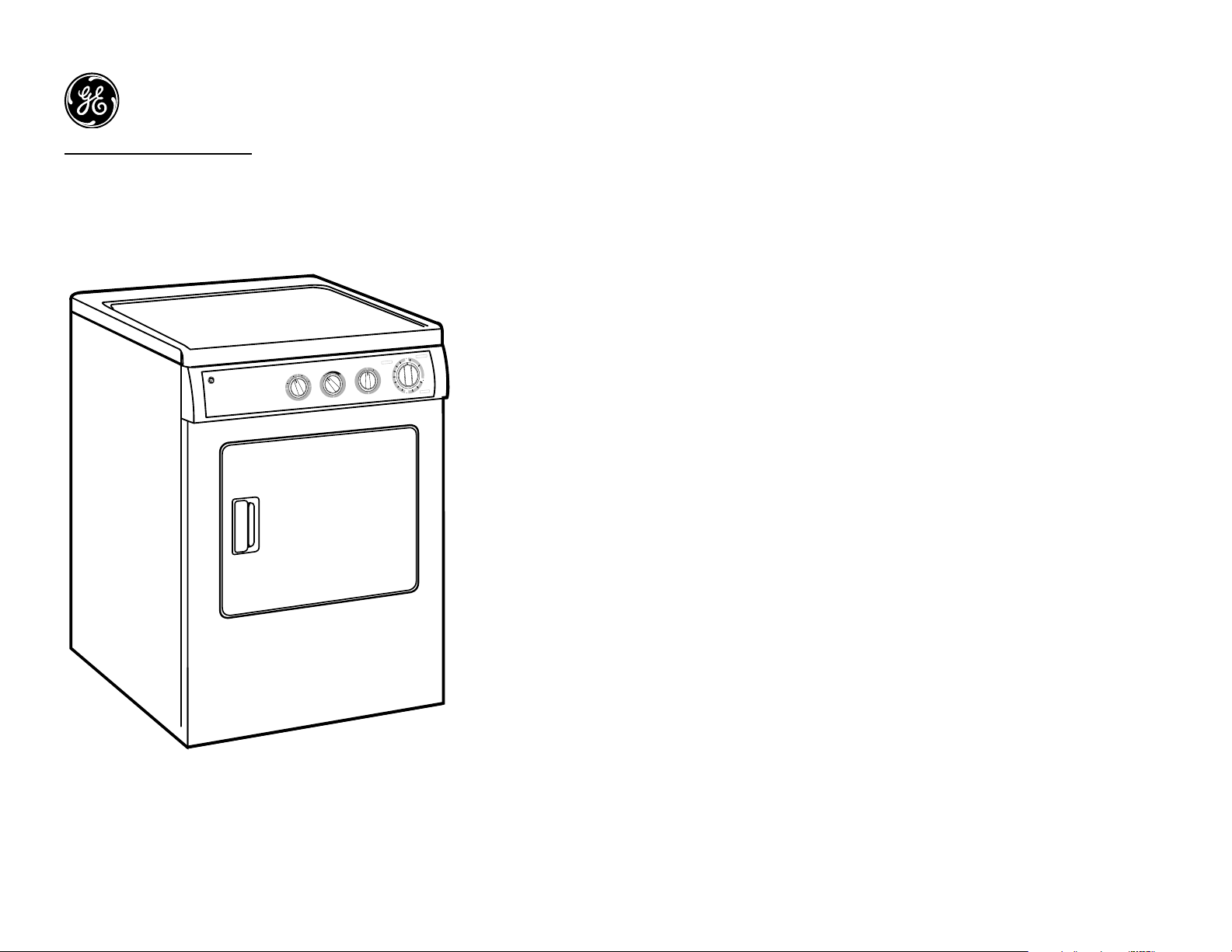

Features and Benefits
• Extra-Large (5.7 cu. ft.) Capacity
• Tumble Drying
• 4 Temperature Options: Regular/Cottons, Medium/Permanent Press, Low/Delicates and
Air Fluff/No Heat (Cool Down)
• 1 Time Dry Cycle
• 2 Auto Dry Cycles: Cottons and Easy Care
• Adjustable End-of-Cycle Signal
• Quick Clean Lint Screen
• Drying Rack
• Spill-Saver Top
• Interior Dryer Light
• Dura Finish Top and Drum
• Leveling Legs
• Heavy Duty Suspension System
• 4 Exhaust Option
• Reverse-A-Door
• 100% Front Serviceable
• Model DSXH43EAWW - White on white
• Model DSXH43GAWW - White on white
