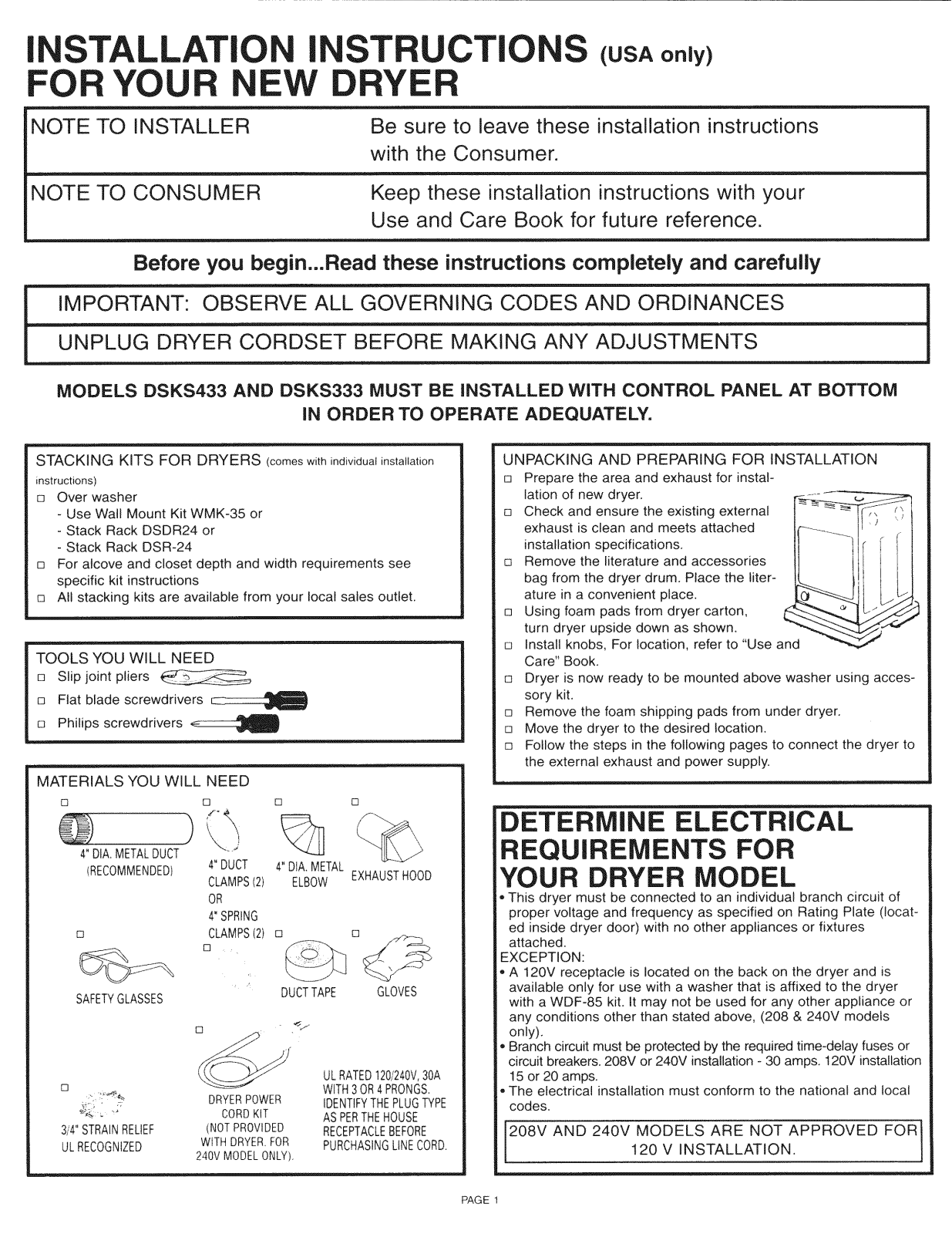

GE DSKP333EC0WH, DSKP333EC0WW, DSKS333EC0WH, DSKS333EC0WW, DSKS433EB0WH Installation Guide
...
iNSTALLATiON
! STR
(USA only)
FO YOUR N
NOTE TO INSTALLER
DRY
Be sure to leave these installation instructions
with the Consumer.
NOTE TO CONSUMER Keep these installation instructions with your
Use and Care Book for future reference.
Before you begin...Read these instructions completely and carefully
IMPORTANT: OBSERVE ALL GOVERNING CODES AND ORDINANCES
UNPLUG DRYER CORDSET BEFORE MAKING ANY ADJUSTMENTS
MODELS DSKS433 AND DSKS333 MUST BE INSTALLED WITH CONTROL PANEL AT BOTTOM
IN ORDER TO OPERATE ADEQUATELY.
STACKING KITS FOR DRYERS (comeswithindividual installation
instructions)
[] Over washer
- Use Wall Mount Kit WMK-35 or
- Stack Rack DSDR24 or
- Stack Rack DSR-24
[] For alcove and closet depth and width requirements see
specific kit instructions
[] All stacking kits are available from your local sales outlet.
TOOLS YOU WILL NEED
[] Slip joint pliers
[] Fiat blade screwdrivers
[] Phiiips screwdrivers
MATERIALS YOU WILL NEED
[] []
[]
>
4"DIA.METALDUCT
(RECOMMENDED)
[]
SAFETYGLASSES
[]
3/4"STRAINRELIEF
ULRECOGNIZED
4"DUCT 4"DIA.METAL
CLAMPS(2) ELBOW
OR
4"SPRING
CLAMPS(2) []
[]
DUCTTAPE
[] _/,.
DRYERPOWER
CORDKIT
(NOTPROVIDED
WITHDRYER.FOR
240VMODELONLY).
EXHAUSTHOOD
[]
GLOVES
ULRATED120/240V,30A
WITH3 OR4 PRONGS,
IDENTIFYTHEPLUGTYPE
AS PERTHEHOUSE
RECEPTACLEBEFORE
PURCHASINGLINECORD.
UNPACKING AND PREPARING FOR INSTALLATION
[] Prepare the area and exhaust for instal-
lation of new dryer.
[] Check and ensure the existing external
exhaust is clean and meets attached
installation specifications.
[] Remove the literature and accessories
bag from the dryer drum. Place the liter-
ature in a convenient place.
[] Using foam pads from dryer carton,
turn dryer upside down as shown.
[] install knobs, For location, refer to "Use and
Care" Book.
c] Dryer is now ready to be mounted above washer using acces-
sory kit.
[] Remove the foam shipping pads from under dryer.
[] Move the dryer to the desired location.
[] Follow the steps in the following pages to connect the dryer to
the external exhaust and power supply.
DETERMINE ELECTRICAL
REQUIREMENTS FOR
YOUR DRYER MODEL
This dryer must be connected to an individual branch circuit of
proper voltage and frequency as specified on Rating Plate (locat-
ed inside dryer door) with no other appliances or fixtures
attached.
EXCEPTION:
A 120V receptacle is located on the back on the dryer and is
available only for use with a washer that is affixed to the dryer
with a WDF-85 kit. it may not be used for any other appliance or
any conditions other than stated above, (208 & 240V models
only).
Branch circuit must be protected by the required time-delay fuses or
circuit breakers. 208V or 240V installation - 30 amps. 120V installation
15 or 20 amps.
The electrical installation must conform to the national and local
codes,
208V AND 240V MODELS ARE NOT APPROVED FOR 1
120 V INSTALLATION.
i
PAGE 1

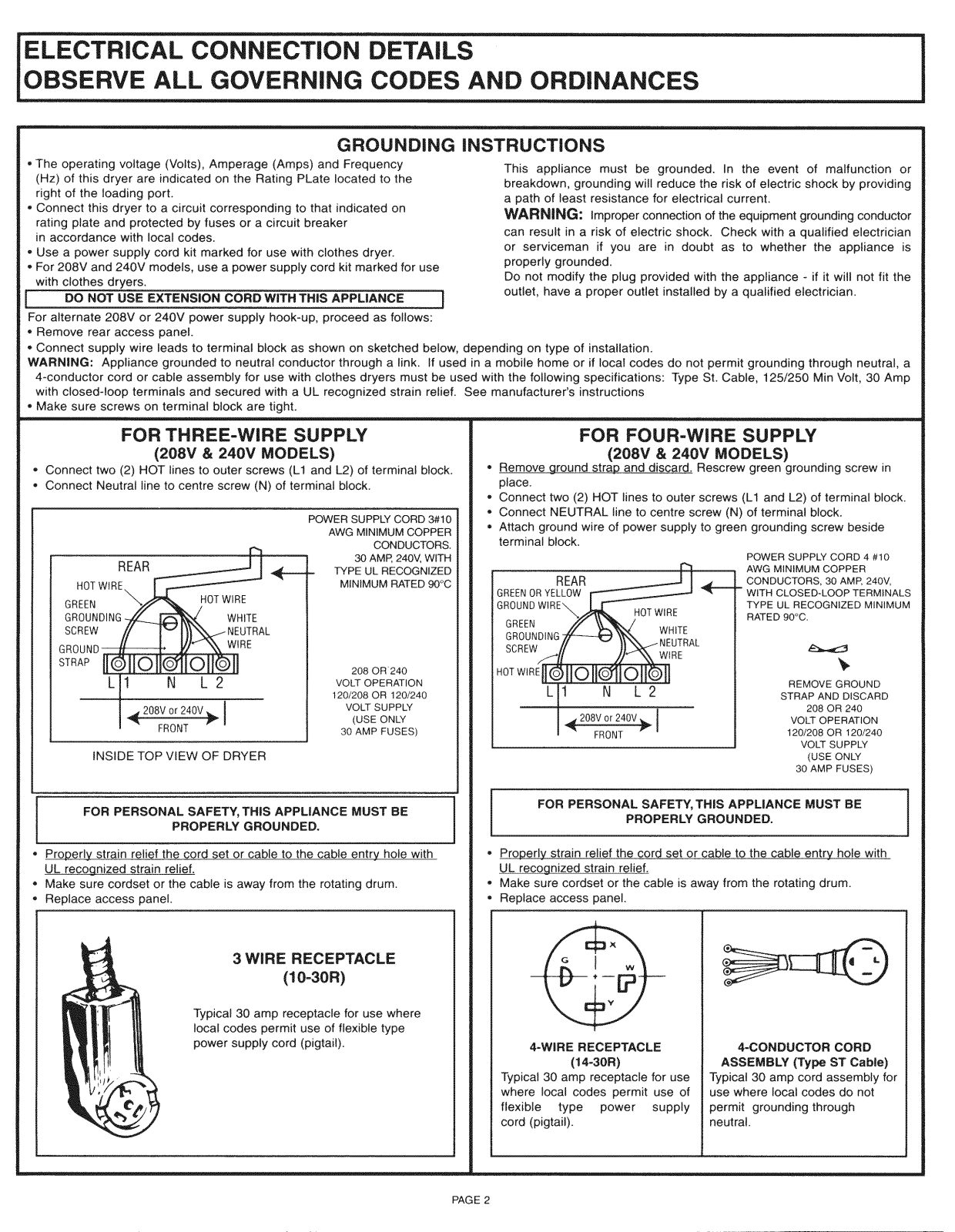

ELECTRICAL CONNECTION DETAILS
OBSERVE ALL GOVERNING CODES AND ORDINANCES
GROUNDING iNSTRUCTiONS
• The operating voltage (Volts), Amperage (Amps) and Frequency
(Hz) of this dryer are indicated on the Rating PLate located to the
right of the loading port.
, Connect this dryer to a circuit corresponding to that indicated on
rating plate and protected by fuses or a circuit breaker
in accordance with local codes.
- Use a power supply cord kit marked for use with clothes dryer.
, For 208V and 240V models, use a power supply cord kit marked for use
with clothes dryers.
I DO NOT USE EXTENSION CORD WiTH THIS APPLIANCE ]
For alternate 208V or 240V power supply hook-up, proceed as follows:
• Remove rear access panel.
, Connect supply wire leads to terminal block as shown on sketched below, depending on type of installation.
WARNING: Appliance grounded to neutral conductor through a link. if used in a mobile home or if local codes do not permit grounding through neutral, a
4-conductor cord or cable assembly for use with clothes dryers must be used with the following specifications: Type St. Cable, 125/250 Min Volt, 30 Amp
with closed-loop terminals and secured with a UL recognized strain relief. See manufacturer's instructions
• Make sure screws on terminal block are tight.
This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by providing
a path of least resistance for electrical current.
WARN|NG: Improper connection of the equipment grounding conductor
can result in a risk of electric shock. Check with a qualified electrician
or serviceman if you are in doubt as to whether the appliance is
properly grounded.
Do not modify the plug provided with the appliance - if it will not fit the
outlet, have a proper outlet installed by a qualified electrician.
FOR THREE-WIRE SUPPLY
(208V & 240V MODELS)
• Connect two (2) HOT lines to outer screws (L! and L2) of terminal block.
- Connect Neutral line to centre screw (N) of terminal block.
POWER SUPPLY CORD 3#10
AWG MINIMUM COPPER
CONDUCTORS.
30 AMP, 240V, WITH
HOTWIRE l
J.__
GREEN _'_._ /HOTWIRE
GROUNDING_"_ WHITE
- TYPE UL RECOGNIZED
MINIMUM RATED 90°C
SCREW// I"III'%_NEUTRAL
GR0UND_ RE
STRAP IL@ILQII O II@Jl
I<208VFor240V>[
INSIDE TOP VIEW OF DRYER
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
Pro_ strain relief the cord set or cable to the cable entry hole with
UL recognized strain relief.
• Make sure cordset or the cable is away from the rotating drum.
Replace access panel.
208 OR240
VOLT OPERATION
120/208 OR 120/240
VOLT SUPPLY
(USE ONLY
30 AMP FUSES)
FOR FOUR-WIRE SUPPLY
• Remove ground strap and discard. Rescrew green grounding screw in
place.
- Connect two (2) HOT lines to outer screws (L1 and L2) of terminal block.
• Connect NEUTRAL line to centre screw (N) of terminal block.
, Attach ground wire of power supply to green grounding screw beside
terminal block.
GREEN OR YELLOW
GREEN
GROUNDING
SCREW
REAR
L N L2
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
[
• Pro_y strain relief the cord set or cable_ to the cable entry hole with
UL recognized strain relief.
, Make sure cordset or the cable is away from the rotating drum.
, Replace access panel.
(208V & 240V MODELS)
HOTWERE
WHITE
WIRE
._208V or240V_,_I
FRONT
PROPERLY GROUNDED.
POWER SUPPLY CORD 4 #10
AWG MINIMUM COPPER
CONDUCTORS, 30 AMP, 240',./,
WITH CLOSED-LOOP TERMINALS
TYPE UL RECOGNIZED MINIMUM
RATED 90°C.
REMOVE GROUND
STRAP AND DISCARD
208 OR 240
VOLT OPERATION
120/208 OR 120/240
VOLT SUPPLY
(USE ONLY
30 AMP FUSES)
]
3 WIRE RECEPTACLE
(10-30R)
Typical 30 amp receptacle for use where
local codes permit use of flexible type
power supply cord (pigtail).
PAGE 2
4-WIRE RECEPTACLE
(14-30R)
Typical 30 amp receptacle for use
where local codes permit use of
flexible type power supply
cord (pigtail).
4-CONDUCTOR CORD
ASSEMBLY (Type ST Cable)
Typical 30 amp cord assembly for
use where local codes do not
permit grounding through
neutral.
