GE DS-242-POE User Manual

Security

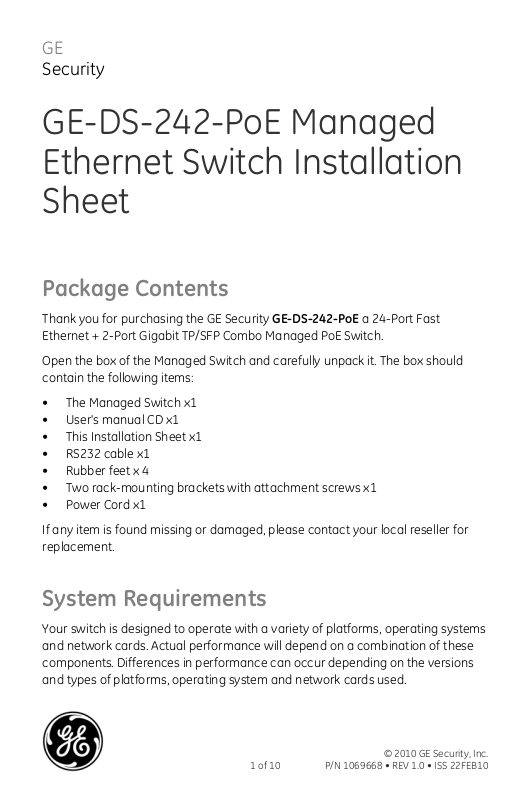

GE-DS-242-PoE Managed Ethernet Switch Installation Sheet

Package Contents

Thank you for purchasing the GE Security GE-DS-242-PoE a 24-Port Fast Ethernet + 2-Port Gigabit TP/SFP Combo Managed PoE Switch.

Open the box of the Managed Switch and carefully unpack it. The box should contain the following items:

• The Managed Switch x1

• User's manual CD x1

• This Installation Sheet x1

• RS232 cable x1

• Rubber feet x 4

• Two rack-mounting brackets with attachment screws x1

• Power Cord x1

If any item is found missing or damaged, please contact your local reseller for replacement.

System Requirements

Your switch is designed to operate with a variety of platforms, operating systems and network cards. Actual performance will depend on a combination of these components. Differences in performance can occur depending on the versions and types of platforms, operating system and network cards used.

1 of 10

P/N 1069668 • REV 1.0 • ISS 22FEB10

The minimum system requirements are:

• Clients running Windows 98/ME, NT4.0, 2000/XP, Vista, MAC OS9 or later, Linux, UNIX or other platform compatible with TCP/IP protocols.

• Workstation installed with Ethernet NIC (Network interface Card)

• Serial Port connection (Terminal)

• Above PC with COM Port (DB-9)

• Ethernet Port connection

• Network cables - Use standard network (UTP) cables with RJ45

connectors.

• Above PC installed with WEB Browser and JAVA runtime environment

Plug-in

Note: We recommend using Windows XP or Windows 7 with Internet Explorer 6.0

or above for access to the switch management setup.

Terminal Setup

There are three ways to access and setup your switch. They are:

• RS-232 console

• Telnet

• Web Browser

RS-232 console

To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to the serial (console) port of the GE-DS-242-PoE Managed Switch. The console port of the Managed Switch is DCE already, so that you can connect the console port directly through PC without the need of Null Modem.

2 of 10 P/N 1069668 • REV 1.0 • ISS 22FEB10

Figure 1: Terminal setup diagram

A terminal program is required to make the software connection to the GE-DS242-PoE Managed Switch. Windows' Hyper Terminal program is a good choice. The Hyper Terminal program can be accessed from the Start menu.

1. Click START, then Programs/Accessories and then Hyper Terminal.

2. When the following screen appears, make sure that the COM port is configured as:

• Baud : 57600

• Parity : None

• Data bits : 8

• Stop bits : 1

• Flow Control : None

Figure 2: COM1 properties window

P/N 1069668 • REV 1.0 • ISS 22FEB10 3 of 10

Logon to the Console

Once the terminal has connected to the device, power on the GE-DS-242-PoE Managed Switch, the terminal will display that it is running testing procedures.

Then, the following message asks for the login user name and password. The factory default password for the login screen is:

• Username: admin

• Password: admin

Figure 3: GE-DS-242-PoE Login screen

Note: For security reasons, please change and memorize the new password after

this first setup. Passwords must be entered in lowercase letters in the console interface.

Telnet Setup

1. Connect an RJ-45 cable from the PC to a Switch port on the Managed Switch.

4 of 10 P/N 1069668 • REV 1.0 • ISS 22FEB10

Figure 4: RJ-45 connection diagram

2. Enable the Hyper Terminal program. A terminal program is required to make the software connection to the Managed Switch. Windows' Hyper Terminal program is a good choice. Hyper Terminal can be accessed from the Start menu. Click START, then Programs, Accessories and then Hyper Terminal.

3. The following screen will appear. Input a new connection name. You should use something like the model name of your switch.

Figure 5: New Connection dialog window

P/N 1069668 • REV 1.0 • ISS 22FEB10 5 of 10

4. Change the Connect using drop-down menu to TCP/IP (Winsock) then input Host address. The Managed Switches default IP address is 192.168.0.100 and

the default telnet port number is 23, then press the OK button.

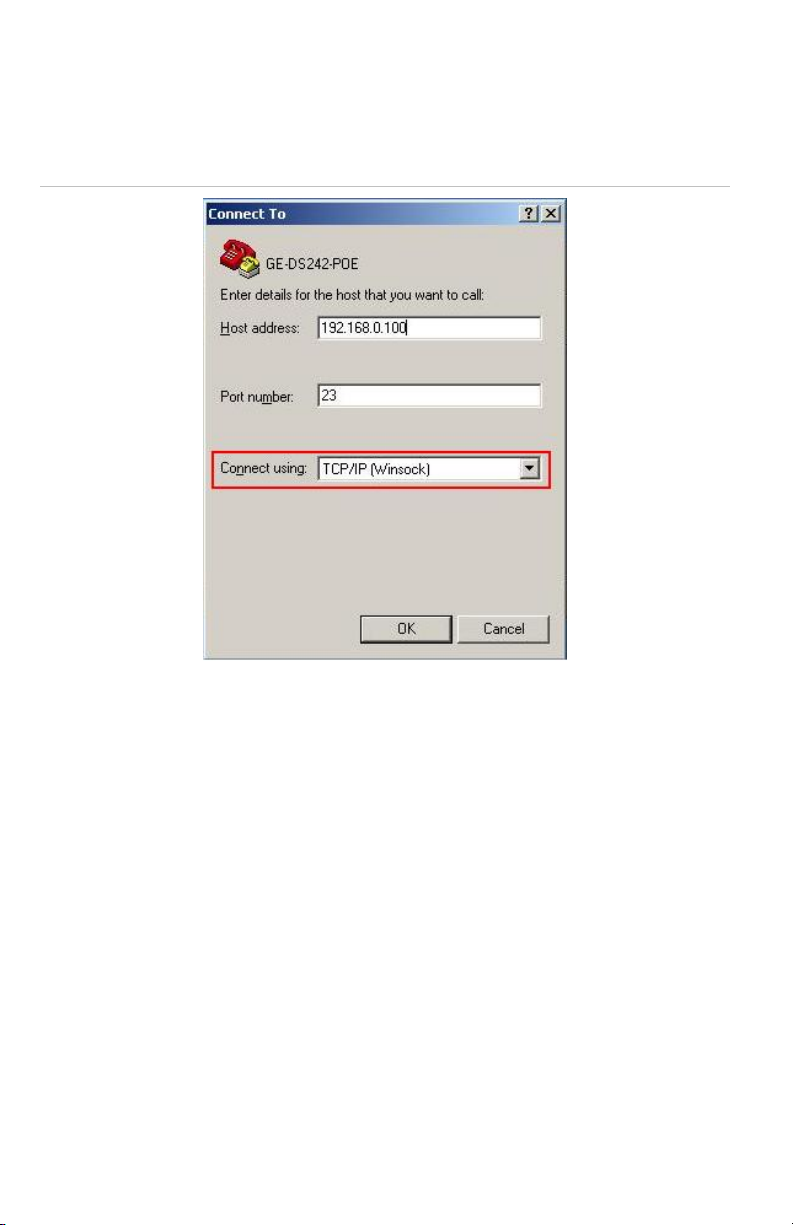

Figure 6: The Connect to dialog window

Log on to the Console

Make sure the device finished booting. Once the telnet has connected to the device, the hyper terminal will display the login request.

Then, the following message asks the login user name and password. The factory default password as following and the login screen as following appear.

User name: admin

Password: admin

6 of 10 P/N 1069668 • REV 1.0 • ISS 22FEB10

Figure 7: Login request window

Now you can configure the Switch by Telnet.

Web Browser Setup

Start Web Management

The following shows how to start up the Web Management of the GE-DS-242PoE Managed Switch. Please note that the Managed Switch is configured through an Ethernet connection, make sure the manager PC must be set on the same IP subnet address.

For example, the default IP address of the GE-DS-242-PoE Managed Switch is

192.168.0.100, then the manager PC should be set at 192.168.0.x (where x is a number between 1 and 254, except 100), and the default subnet mask is

255.255.255.0.

P/N 1069668 • REV 1.0 • ISS 22FEB10 7 of 10

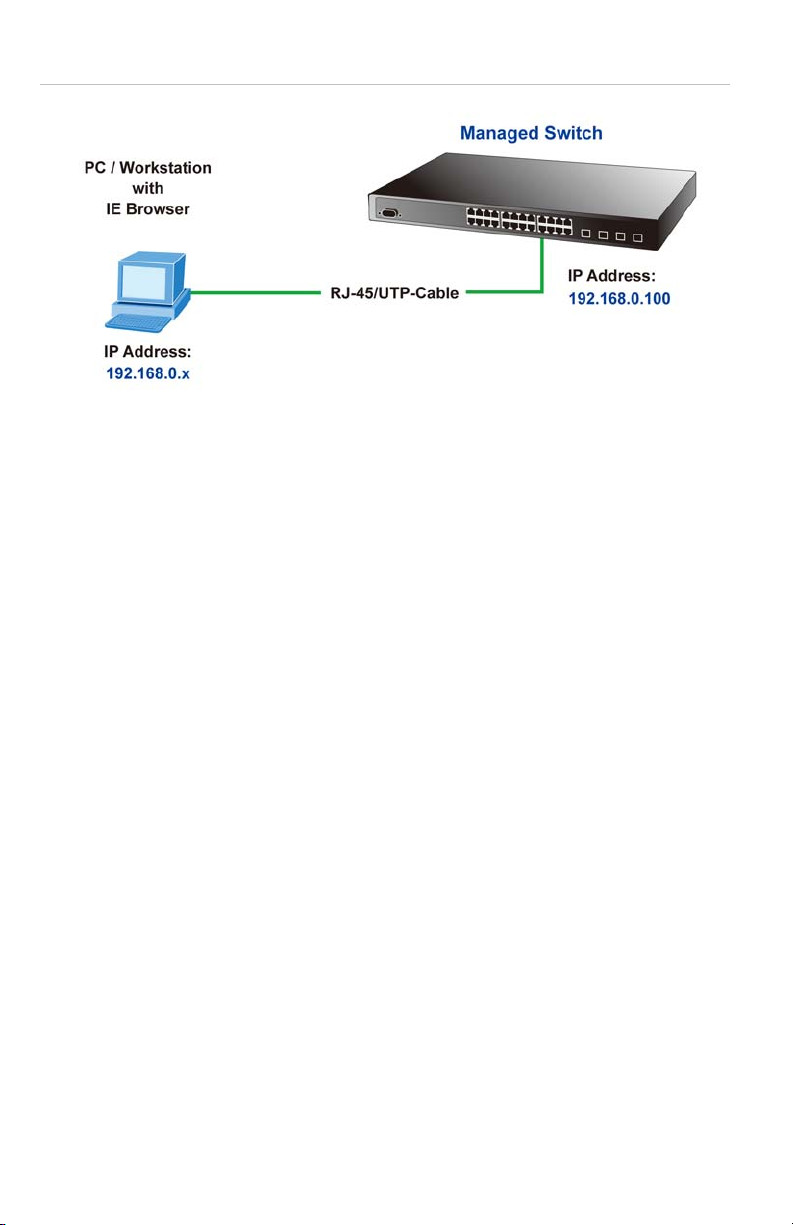

Figure 8: IP management diagram

1. Use Internet Explorer 6.0 or above Web browser, enter IP address http://192.168.0.100 (the factory-default IP address or that you have just changed in the console) to access the Web interface.

2. When the following dialog box appears, please enter the default password "admin" (or the password you have changed via console). The login screen in Figure 9 appears.

• Default IP Address: 192.168.0.100

• Default Username: admin

• Default Password: admin

8 of 10 P/N 1069668 • REV 1.0 • ISS 22FEB10

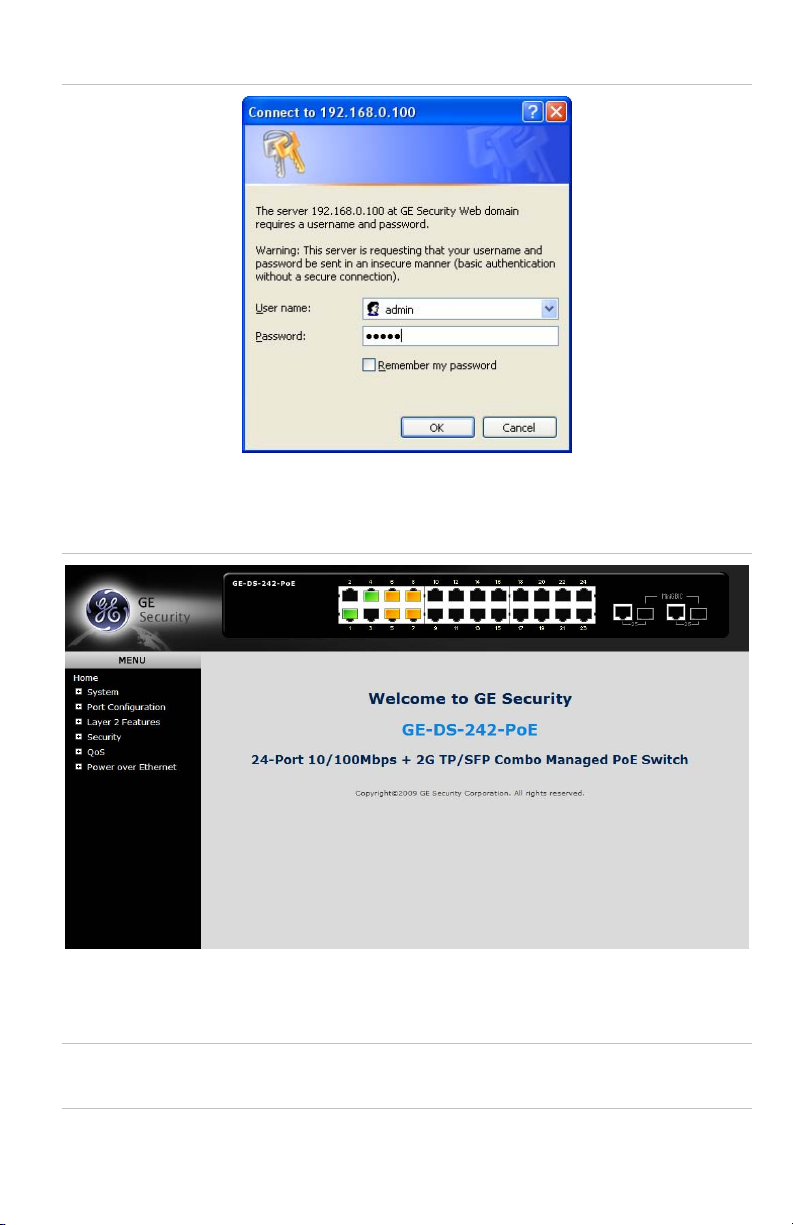

Figure 9: Login Screen

3. After entering the password, the main screen appears as Figure 10.

Figure 10: Main Screen of the GE-DS-242-PoE

4. Now, you can use the Web management interface to continue the Switch management, please refer to the user manual for more information.

Note: For security reasons, please change and memorize the new password after

this first setup.

P/N 1069668 • REV 1.0 • ISS 22FEB10 9 of 10

Resetting the IP Address

To reset the IP address to the default IP Address "192.168.0.100" or reset the login password to default value. Press the hardware reset button at the front panel about 10 seconds. After the device is rebooted, you can login the management WEB interface within the same subnet of 192.168.0.xx.

Figure 11: Reset button

Contact information

Thank you for purchase GE Security products. You can browse our online FAQ resource at the GE Security website first to check if it could solve you issue. If you need more support information, please contact GE Security support team.

888 GE Security (888.437.3287) Toll-free in the US, Puerto Rico, and Canada.

503.885.5700 outside of the toll-free area.

For contact information see our Web site: www.gesecurity.com.
