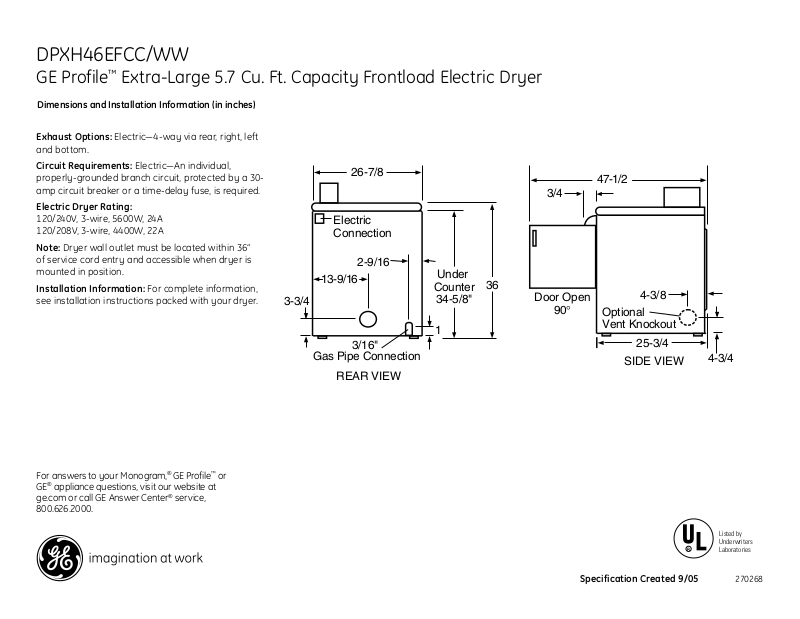

GE DPXH46EFCC, DPXH46EFWW Specification
DPXH46EFCC/WW
GE Profile™ Extra-Large 5.7 Cu. Ft. Capacity Frontload Electric Dryer
Dimensions and Installation Information (in inches)
Exhaust Options: Electric—4-way via rear, right, left and bottom.
Circuit Requirements: Electric—An individual, properly-grounded branch circuit, protected by a 30amp circuit breaker or a time-delay fuse, is required.
Electric Dryer Rating:
120/240V, 3-wire, 5600W, 24A 120/208V, 3-wire, 4400W, 22A
Note: Dryer wall outlet must be located within 36” of service cord entry and accessible when dryer is mounted in position.
Installation Information: For complete information, see installation instructions packed with your dryer.
26-7/8
|
Electric |
|
|
||
|
|
|
|||
|
Connection |
|
|
||
|
2-9/16 |
|
Under |
|
|
|
|
|
|||
|
13-9/16 |
|
|
36 |
|
|
|
|
|||
|
|
|
Counter |
||
|
|
|
|
||
3-3/4 |
|
|
|
34-5/8" |
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
3/16" |
|
|
|
|
|
Gas Pipe Connection |
|
|
||
|
REAR VIEW |
|
|
||
47-1/2 3/4
|
4-3/8 |
Door Open |
|
90° |
Optional |
|
Vent Knockout |
|
25-3/4 |
|
|
|
SIDE VIEW |
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
R
4-3/4
Listed by
Underwriters
Laboratories
Specification Created 9/05 |
270268 |
DPXH46EFCC/WW

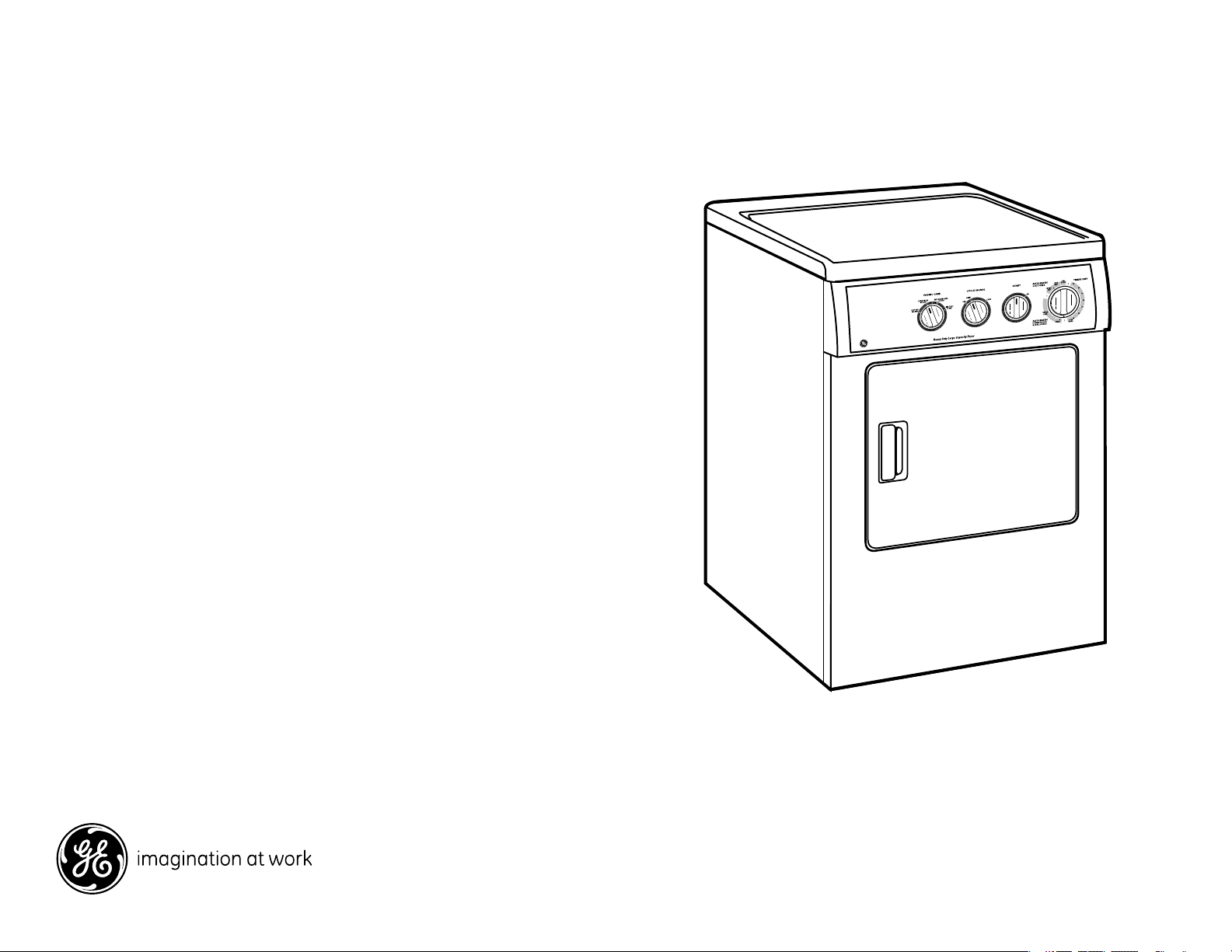

GE Profile™ Extra-Large 5.7 Cu. Ft. Capacity Frontload Electric Dryer
Dimensions and Installation Information (in inches)
Special Installation Requirements Undercounter Installation
Accessory mounting kits are required for undercounter installation. To order, call 1-800-848-7722.
Stacked Installation: Brackets for stacking dryer over washer are included with the washer.
Alcove or Closet Installation:If your dryer is approved for installation in an alcove or closet, it will be stated on a label on the dryer back. The dryer MUST be exhausted to the outdoors. Minimum clearances between dryer cabinet and adjacent walls or other surfaces are: 0" either side, 3" front and rear Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52". Closet doors must be louvered or otherwise ventilated and must contain a minimum of 60 sq. in. of open area equally distributed. If this closet contains both a washer and a dryer, doors must contain a minimum of 120 sq. in. of open area equally
distributed. The closet should be vented to the outdoors to prevent gas pocketing in case of a gas leak in the supply line. No other fuel-burning appliance shall be installed in the same closet with the dryer.
Bathroom or Bedroom Installation: The dryer must be exhausted to the outdoors. The installation must conform with the local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.
Minimum Clearances other than Alcove or Closet Installations:
Minimum clearances to combustible surfaces: 0" both sides, 3" rear
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
Free-Standing Installation
36"
25-3/4"
53-1/2"
Stacked Installation
70-5/8"
25-3/4"
26-3/4"
Raised/ Built-in Installation
|
|
|
Wide |
|
x3/4" |
||
High |
|
Sides |
|
3/4" |
|
|
|
|
|
All |
|
|
on |
|
|
Lip |
|
|
|
14''
29'' |
56''-60'' |
|
|
|
Max. |
Undercounter Installation
Countertop
Washer
Top Sheet
R
Dryer
Top Sheet
Listed by Underwriters Laboratories
Specification Created 9/05 |
270268 |
