GE DPXH46EACC, DPXH46EAWW Specification
TM
DPXH46EACC/WW—GE Extra-Large 5.7 Cu. Ft. Capacity Front-Load Dryer

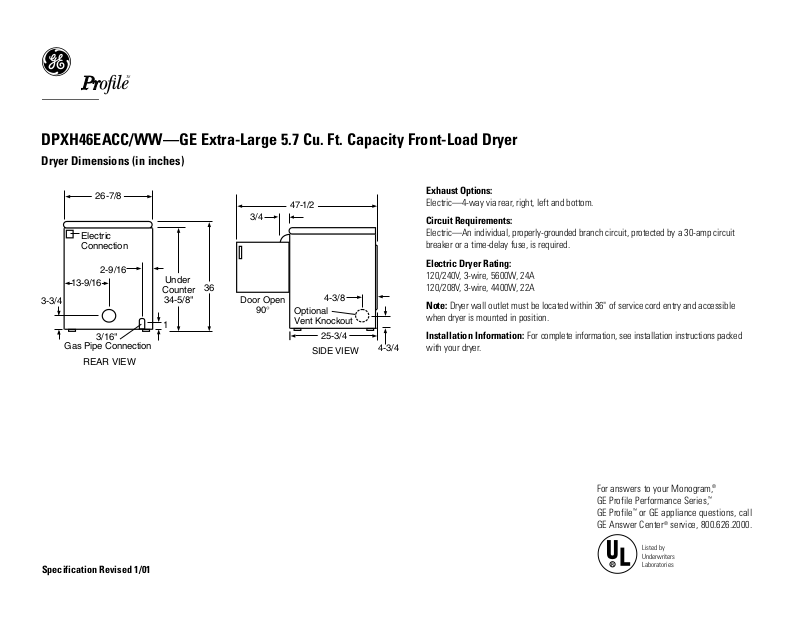

Dryer Dimensions (in inches)
26-7/8
47-1/2
3/4
Electric
Connection
|
2-9/16 |
Under |
|
|
|
|
13-9/16 |
36 |
|
|
|
|
Counter |
|
|
||
|
|
4-3/8 |
|
||
3-3/4 |
|
34-5/8" |
Door Open |
|
|
|
|
|
90° |
Optional |
|
|
|
1 |
|
Vent Knockout |
|
|
|
|
|
|
|
|
3/16" |
|
|
25-3/4 |
|
|
Gas Pipe Connection |
|
|
SIDE VIEW |
4-3/4 |
|
REAR VIEW |
|
|
|
|
Exhaust Options:
Electric—4-way via rear, right, left and bottom.
Circuit Requirements:
Electric—An individual, properly-grounded branch circuit, protected by a 30-amp circuit breaker or a time-delay fuse, is required.
Electric Dryer Rating:
120/240V, 3-wire, 5600W, 24A 120/208V, 3-wire, 4400W, 22A
Note: Dryer wall outlet must be located within 36" of service cord entry and accessible when dryer is mounted in position.
Installation Information: For complete information, see installation instructions packed with your dryer.
For answers to your Monogram,® GE Profile Performance Series,™
GE Profile™ or GE appliance questions, call GE Answer Center® service, 800.626.2000.
Specification Revised 1/01
Listed by Underwriters
R Laboratories
TM
DPXH46EACC/WW—GE Extra-Large 5.7 Cu. Ft. Capacity Front-Load Dryer
Free-Standing Installation |
Raised/Built-In Installation |
36" |
|
|
|
|
25-3/4" |
|
x3/4" |
||
53-1/2" |
|
|||
|
High |
|
Wide |
|
|
|
Sides |
||
|
3/4" |
|
|
|
|
|
|
All |
|
|
|
on |
|
|
|
|
Lip |
|
|
Stacked Installation |
14'' |
|
|
|
|
|
|
|
29''
56''-60'' Max.
Undercounter Installation
70-5/8"
Countertop
Washer
Top Sheet
Dryer
Top Sheet
Special Installation Requirements
Undercounter Installation
• Accessory mounting kits are required for undercounter installation. To order,
call 1-800-848-7722. Washer—Order Pub. No. 14-A037 Dryer—Order Pub. No. 14-A008
Stacked Installation
• Brackets for stacking dryer over washer are included with the dryer.
Alcove or Closet Installation
•If your dryer is approved for installation in an alcove or closet, it will be stated on a label on the dryer back.
•The dryer MUST be exhausted to the outdoors.
•Minimum clearances between dryer cabinet and adjacent walls or other surfaces are:
0" either side
3" front and rear
•Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52".
25-3/4"
26-3/4"
Specification Revised 1/01
•Closet doors must be louvered or otherwise ventilated and must contain a minimum of 60 sq. in. of open area
equally distributed. If this closet contains both a washer and a dryer, doors must contain a minimum of 120 sq. in. of open area equally distributed.
•The closet should be vented to the outdoors to prevent gas pocketing in case of a gas leak in the supply line.
•No other fuel-burning appliance shall be installed in the same closet with the dryer.
Bathroom or Bedroom Installation
•The dryer MUST be exhausted to the outdoors.
•The installation must conform with the local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.
Minimum Clearances other than Alcove or Closet Installations
• Minimum clearances to combustible surfaces:
0" both sides
3" rear
For more information on venting kits and accessories, please call 1-800-GE-CARES.
For answers to your Monogram,® GE Profile Performance Series,™
GE Profile™ or GE appliance questions, call GE Answer Center® service, 800.626.2000.
Listed by
Underwriters
R Laboratories
