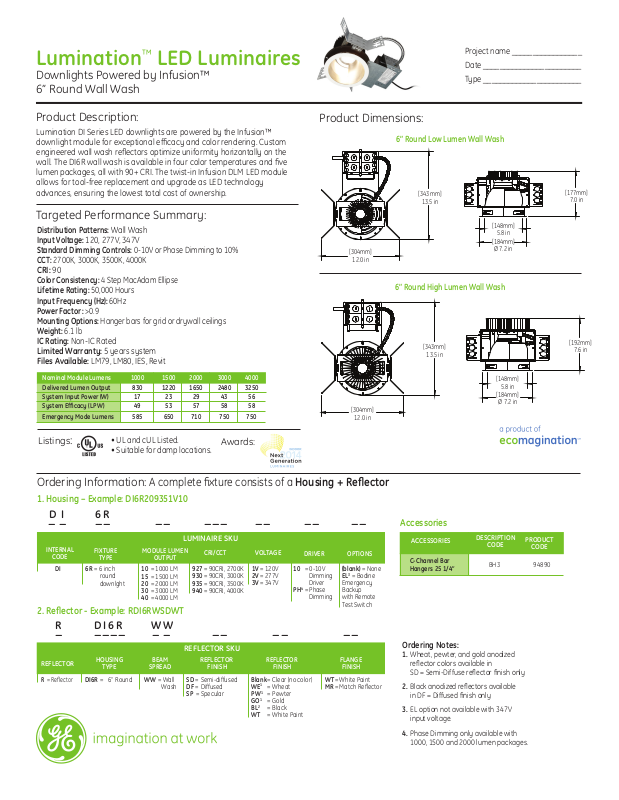

Lumination™ LED Luminaires
Downlights Powered by Infusion™
6” Round Wall Wash
Project name _________________
Date ________________________
Type ________________________
Product Description:
Lumination DI Series LED downlights are powered by the Infusion™
downlight module for exceptional efficacy and color rendering. Custom
engineered wall wash reflectors optimize uniformity horizontally on the
wall. The DI6R wall wash is available in four color temperatures and five
lumen packages, all with 90+ CRI. The twist-in Infusion DLM LED module
allows for tool-free replacement and upgrade as LED technology
advances, ensuring the lowest total cost of ownership.
Targeted Performance Summary:
Distribution Patterns:
Input Voltage:
Standard Dimming Controls: 0-10V or Phase Dimming to 10%
CCT: 2700K, 3000K, 3500K, 4000K
CRI: 90
Color Consistency: 4 Step MacAdam Ellipse
Lifetime Rating: 50,000 Hours
Input Frequency (Hz): 60Hz
Power Factor: >0.9
Mounting Options: Hanger bars for grid or drywall ceilings
Weight: 6.1 lb
IC Rating:
Non-IC Rated
Limited Warranty: 5 years system
Files Available: LM79, LM80, IES, Revit
Nominal Module Lumens 1000 1500 2000 3000 4000
Delivered Lumen Output 830 1220 1650 2480 3250
System Input Power (W) 17 23 29 43 56
System Efficacy (LPW) 49 53 57 58 58
Emergency Mode Lumens 585 650 710 750 750
Wall Wash
120, 277V, 347V
Product Dimensions:
6” Round Low Lumen Wall Wash
[304mm]
12.0 in
6” Round High Lumen Wall Wash
[304mm]
12.0 in
[343mm]
13.5 in
[343mm]
13.5 in
[148mm]
5.8 in
[184mm]
Ø 7.2 in
[148mm]
5.8 in
[184mm]
Ø 7.2 in
[177mm]
7.0 in
[192mm]
7.6 in
Listings
:
Ordering Information:
• UL and cUL Listed.
• Suitable for damp locations.
A complete fixture consists of a Housing + Reflector
Awards:
1. Housing – Example: DI6R209351V10
D I 6 R
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _
LUMINAIRE SKU
INTERNAL
CODE
DI
2. Reflector - Example: RDI6RWSDWT
R D I 6 R W W
_ _ _ _ _ _ _ _ _ _ _ _ _
REFLECTOR
R = Reflector
FIXTURE
TYPE
6R = 6 inch
round
downlght
HOUSING
TYPE
DI6R = 6” Round
MODULE LUMEN
OUTPUT
10 = 1000 LM
15 = 1500 LM
20 = 2000 LM
30 = 3000 LM
40 = 4000 LM
BEAM
SPREAD
W W = Wall
Wash
CRI/CCT
927 = 90CRI, 2700K
930 = 90CRI, 3000K
935 = 90CRI, 3500K
940 = 90CRI, 4000K
REFLECTOR SKU
REFLECTOR
FINISH
SD = Semi-diffused
DF = Diffused
SP = Specular
VOLTAGE
1V = 120V
2V = 277V
3V = 347V
REFLECTOR
FINISH
Blank = Clear (no color)
1
= Wheat
WE
PW1 = Pewter
GO1 = Gold
BL2 = Black
WT = White Paint
DRIVER
10 = 0-10V
Dimming
Driver
4
= Phase
PH
Dimming
OPTIONS
(blank) = None
3
= Bodine
EL
Emergency
Backup
with Remote
Test Switch
FLANGE
FINISH
WT = White Paint
MR = Match Reflector
Accessories
ACCESSORIES
REFLECTOR
C-Channel Bar
Hangers 25 1/4”
Ordering Notes:
1. Wheat, pewter, and gold anodized
reflector colors available in
SD = Semi-Diffuse reflector finish only
2. Black anodized reflectors available
in DF = Diffused finish only
3. EL option not available with 347V
input voltage.
4. Phase Dimming only available with
1000, 1500 and 2000 lumen packages.
DESCRIPTION
CODE
BH3
PRODUCT
CODE
94890

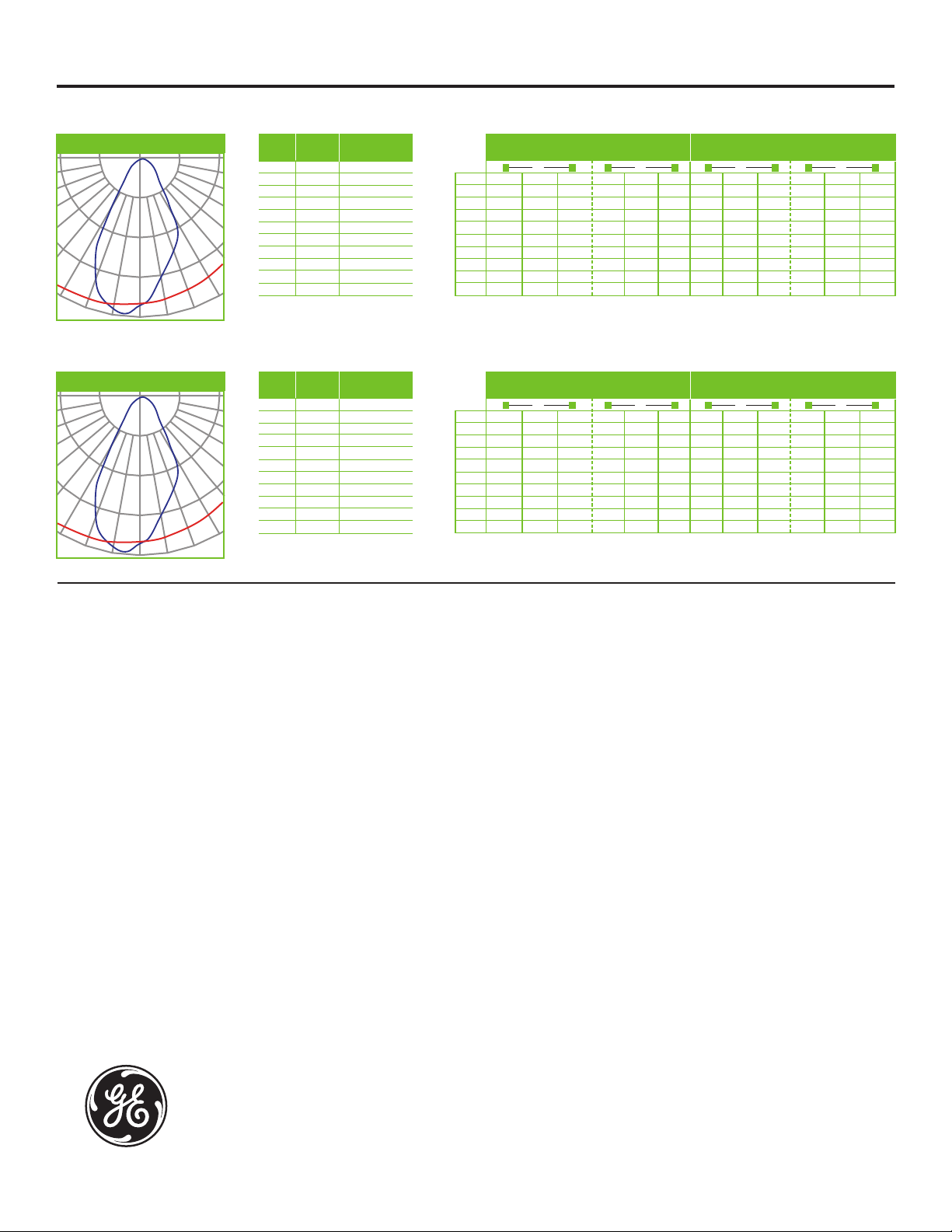

Photometric Data: Lumination
TM
DI6R Wall Wash Downlights
1000 Lumen LED Module
POLAR GRAPH
244
488
732
975
1500 Lumen LED Module
POLAR GRAPH
360
719
1079
1439
Candlepower Summary
Angle Candela Zone Lumens
0 621
5 652
10 647 57
20 546 149
30 232 175
40 30 90
50 5 40
60 4 25
70 2 10
80 0 1
90 0 -
Candlepower Summary
Angle Candela Zone Lumens
0 927
5 973
10 966 85
20 815 223
30 346 261
40 44 134
50 8 59
60 6 38
70 2 15
80 0 2
90 0 -
Multiple Unit Foot-Candles
2’ from wall 3’ from wall
1 18 18 18 13 12 13 5 5 5 4 4 4
2 24 24 24 17 16 17 10 10 10 8 8 8
3 22 22 22 16 16 16 11 11 11 9 9 9
4 19 20 19 14 14 14 11 11 11 9 8 9
5 15 16 15 12 12 12 10 11 10 8 8 8
6 12 13 12 10 10 10 9 10 9 7 8 7
7 10 10 10 8 8 8 8 9 8 7 7 7
8 8 8 8 6 6 6 7 8 7 6 7 6
9 7 7 7 6 6 6 7 7 7 6 6 6
10 6 6 6 5 5 5 6 6 6 5 5 5
2’ 3’ 3’ 4’
Multiple Unit Foot-Candles
2’ from wall 3’ from wall
1 26 27 26 19 17 19 7 7 7 6 5 6
2 35 36 35 25 24 25 15 15 15 12 11 12
3 32 33 32 24 23 24 17 17 17 13 13 13
4 28 29 28 21 21 21 16 16 16 13 13 13
5 23 24 23 17 18 17 15 16 15 12 12 12
6 18 19 18 14 14 14 14 14 14 11 12 11
7 14 15 14 11 12 11 13 13 13 10 10 10
8 11 12 11 10 10 10 11 11 11 9 9 9
9 10 10 10 8 8 8 10 10 10 8 8 8
10 9 9 9 8 8 8 9 9 9 8 8 8
Distance from ceiling in feet Distance from ceiling in feet
2’ 3’ 3’ 4’
2000 Lumen LED Module
POLAR GRAPH
488
975
1463
1951
Angle Candela Zone Lumens
0 927
5 973
10 966 85
20 815 223
30 346 261
40 44 134
50 8 59
60 6 38
70 2 15
80 0 2
90 0 -
Multiple Unit Foot-CandlesCandlepower Summary
2’ from wall 3’ from wall
1 36 36 36 26 24 26 10 9 10 8 7 8
2 47 48 47 34 33 34 20 20 20 16 16 16
3 43 45 43 33 31 33 23 23 23 18 18 18
4 38 40 38 28 29 28 22 22 22 18 17 18
5 31 32 31 23 24 23 21 21 21 17 17 17
6 24 26 24 19 19 19 19 20 19 15 16 15
7 20 21 20 16 16 16 17 18 17 14 14 14
8 16 17 16 13 13 13 15 16 15 13 13 13
9 13 14 13 11 12 11 13 14 13 11 12 11
10 12 12 12 10 11 10 12 13 12 10 11 10
Distance from ceiling in feet
2’ 3’ 3’ 4’
Photometric Data: Lumination
TM
DI6R Wall Wash Downlights
3000 Lumen LED Module
POLAR GRAPH
732
1463
2195
2926
4000 Lumen LED Module
POLAR GRAPH
957
1914
2871
3829
Candlepower Summary
Angle Candela Zone Lumens
0 927
5 973
10 966 85
20 815 223
30 346 261
40 44 134
50 8 59
60 6 38
70 2 15
80 0 2
90 0 -
Candlepower Summary
Angle Candela Zone Lumens
0 927
5 973
10 966 85
20 815 223
30 346 261
40 44 134
50 8 59
60 6 38
70 2 15
80 0 2
90 0 -
Multiple Unit Foot-Candles
2’ from wall 3’ from wall
1 54 54 54 40 36 40 14 14 14 12 11 12
2 72 72 72 51 49 51 30 31 30 24 23 24
3 65 67 65 48 47 48 34 35 34 27 27 27
4 58 60 58 42 43 42 32 33 32 27 26 27
5 47 49 47 53 36 35 31 32 31 25 26 25
6 37 38 37 29 29 29 29 30 29 23 24 23
7 29 31 29 24 24 24 26 26 26 21 22 21
8 24 24 24 20 20 20 23 23 23 19 19 19
9 20 21 20 17 18 17 20 21 20 17 17 17
10 18 19 18 15 16 15 18 19 18 16 16 16
Distance from ceiling in feet
2’ 3’ 3’ 4–’
Multiple Unit Foot-Candles
2’ from wall 3’ from wall
1 70 72 70 51 46 51 19 19 19 16 14 16
2 93 95 93 67 64 67 40 40 40 32 31 32
3 85 88 85 64 61 64 44 45 44 36 35 36
4 75 78 75 56 57 56 42 43 42 35 34 35
5 61 63 61 46 48 46 40 42 40 33 33 33
6 47 50 47 37 38 37 38 39 38 30 31 30
7 38 40 38 31 32 31 34 35 34 27 28 27
8 31 32 31 26 27 26 30 31 30 25 25 25
9 26 27 26 22 23 22 26 27 26 22 22 22
10 23 24 23 20 22 20 24 25 24 21 21 21
Distance from ceiling in feet
2’ 3’ 3’ 4’
Product Specifications:
Construction:
• 16 gauge galvanized steel housing
• 16 gauge reflectors resist dents during transporation and installation
• Custom engineered heat sinks for passive cooling at all lumen options
• Galvanized steel junction box with multiple knockouts
Installation:
• Universal mounting brackets with over 3” of vertical adjustment accommodate
several types of hanger bars
• Accommodates ceilings up to 1.5” thick
• Mount in T-bar grid or drywall ceilings
• LED module twists in at time of trim installation, preventing damage to module
during ceiling installation
Optical System:
• Custom engineered reflectors for precise beam distributions and 45° cutoff to light source
and source image
• Self-flanged design with white painted or reflector-matching trim
• Standard semi-diffuse finish for ideal combination of optical efficiency and low glare
Electrical System:
• Infusion DLM LED module for exceptional performance and tool-free upgradeability
• Standard 0-10V dimming, high efficiency drivers
• Thermal protection feature in module protects LEDs from overheating in abnormal conditions
For more information and access to all of our resources, including our
design tool visit: www.gelighting.com
www.gelighting.com
