GE DGE, FGE, LME, OGE, VSE Installation Guide

INSTRUCTIONS

Lighting Solutions

NUVATION

Electronically Ballasted Industrial Luminaires

With Electromechanical Sliding Optical Disconnect

Installation and Maintenance

VERSABEAM PROTECTED BY U.S. PATENT NUMBER 5,416,684

FGE DGE OGE LME VSE

GEH-5956B

™

READ THOROUGHLY BEFORE INSTALLING

SAVE THESE INSTRUCTIONS FOR FUTURE USE

WARNING

Risk of electric shock

• Turn power off before servicing

CAUTION

Risk of injury

• Wear safety glasses and gloves

during installation and servicing

CAUTION

Risk of burn

• Do not touch operating luminaire

GENERAL

This luminaire is designed for indoor applications only, and should be installed and maintained according to these instructions.

The Nuvation™ ballast is designed to operate 250W,300W, 320W, 350W and 400W pulse start and ceramic metal halide lamps with line voltages from 208-277 volts.

See nameplate for more information.

Any part damaged or broken during or after assembly or installation should be replaced.

These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation, operation or maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, the matter should be referred to GE Lighting Solutions.

NOTE: The maximum fixture ambient temperature rating is the LESSER of the ratings indicated on the ballast and optical assemblies.

NOTICE: There are no user serviceable parts inside this ballast housing and there should not be a need to access the inside of the ballast housing.

Minimum clearance of 3 feet must be maintained below luminaire.

If the luminaire you ordered has a polycarbonate/acrylic refractor, please pay particular attention to the following statement:

All -articles made from polycarbonates/acrylics, including polycarbonate/acrylic resin, will yellow with time. The rate of yellowing is determined by the specific material, any additives and coatings, as well as the optical temperature and exposure to Ultraviolet (UV) light.

This yellowing can reduce the light output and impact resistance of products made from polycarbonate/acrylic resin. In no case should the maximum lamp age, wattage rating, or ambient rating listed for the luminaire be exceeded. Contact factory for more information.

UNPACKING

This luminaire has been properly packed to avoid damage during transit. Inspect the luminaire to confirm there is no damage. Do not install a damaged luminaire or damaged luminaire components.

NOTE: The Nuvation luminaire is supplied with a Slide-On Through Wire Box which may be included in the carton ready to install.

INSTALLATION

Risk of fire

• Keep combustible materials away

from lens

• Use lamps specified on the “luminaire fitting” nameplate

• Maintain a minimum of 3 feet clearance below the luminaire

WARNING

WIRING BOX

THREADED BOSS

WIRE BOX SLIDE MOUNTING BRACKET

CAUTION

Unit will fall if not installed properly

• Follow installation instructions

• Attach ONLY by threaded Boss

• Do not use Knockout Holes for

mounting.

CONDUIT MOUNTING

1. Remove the Wire Box End Cover by removing the two (2) screws as shown in Figure 1.

CONDUIT (NOT SUPPLIED)

SET

THREADED BOSS

WIRING BOX

Figure 1

1.A. For Nuvation™ with Dimming Option, remove both wiring box doors (Figure 2) for electrical connections and box removal.

WIRING BOX END COVER

COVER SCREWS

Figure 3

3. Slide the Wiring Box onto the Mounting Bracket, which is preassembled on to the Upper Housing as shown in Figure 3.

NOTE: The Ballast Housing is not fully secure until the wire box End Covers are reattached!

4. Connect the supply wires from mains to the Black and White supply leads. Connect the Green Earth Ground Lead. Adhere to the requirements defined the WIRING section below.

5. Replace the Wire Box End Covers. Insert and securely retighten the End Cover Screws as shown in Figure 2.

The Ballast Housing is now secure.

FLEXIBLE MOUNTING

If flexible mounting accessories (hook or loop) are supplied separately, thread the shaft into hanger hub/locking nut assembly and follow the instructions above for conduit mounting.

CAUTION: If this instruction is not followed damage to the mounting parts can occur causing the fixture to fall. When using hook or loop fixture mounting, do not apply luminaire weight when the mating parts are as shown in Figure 4. Do not apply any twisting action to the hook and loop assembly. When properly installed the hook and loop assembly is as shown in Figure 5.

Figure 2

2. Thread the Wiring Box onto the conduit. Secure the conduit with the set screw provided. Ensure that the Wire Box cannot turn on the conduit once Set Screw has been tightened.

Figure 4 Figure 5

WET LOCATION OPTION

When installing in a wet location, it is important to properly install the Conduit with an appropriate water sealing material. The GE Lighting Systems wet location wiring box and a GE Lighting Systems wet location optical must be used.

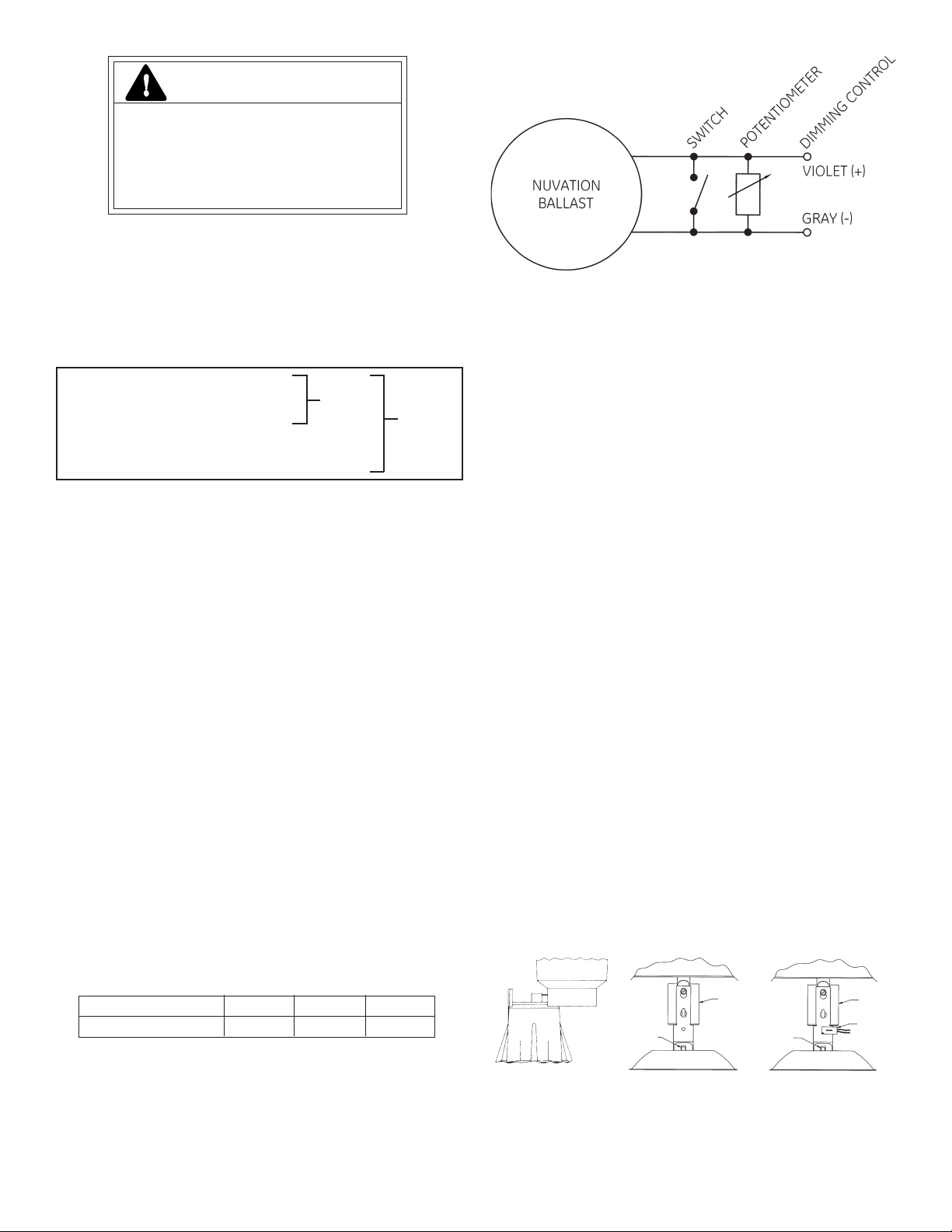

WIRING

Make all electrical connections in accordance with the -National Electrical Code and any applicable local code requirements. Verify that the supply voltage is correct by comparing it to the ballast’s “luminaire fitting” nameplate.
