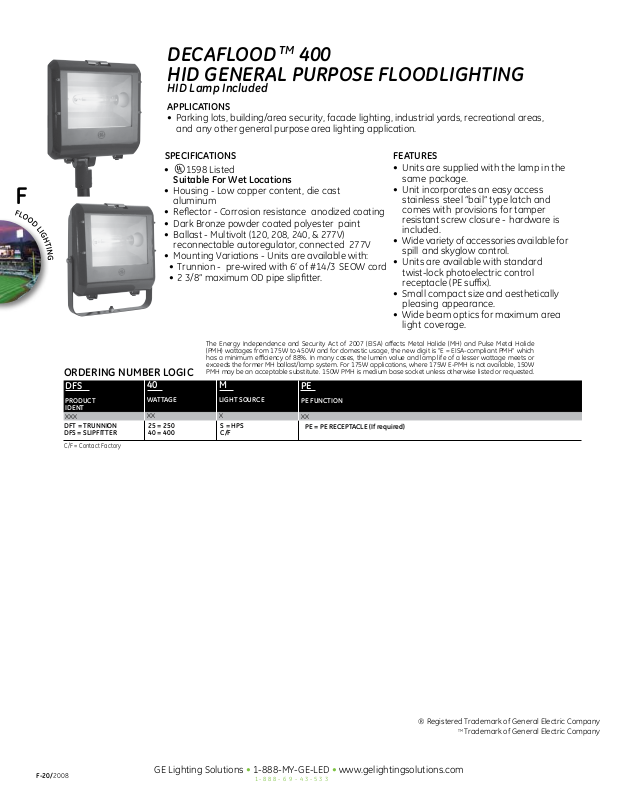

GE DFT, DFS Specification Sheet
DECAFLOOD
TM
400
HID GENERAL PURPOSE FLOODLIGHTING
HID Lamp Included
APPLICATIONS
• Parking lots, building/area security, facade lighting, industrial yards, recreational areas,
and any other general purpose area lighting application.
SPECIFICATIONS
• 1598 Listed
Suitable For Wet Locations
• Housing - Low copper content, die cast
aluminum
• Reector - Corrosion resistance anodized coating
• Dark Bronze powder coated polyester paint
• Ballast - Multivolt (120, 208, 240, & 277V)
reconnectable autoregulator, connected 277V
• Mounting Variations - Units are available with:
• Trunnion - pre-wired with 6’ of #14/3 SEOW cord
• 2 3/8” maximum OD pipe sliptter.
ORDERING NUMBER LOGIC
DFS
PRODUCT
IDENT
XXX
DFT = TRUNNION
DFS = SLIPFITTER
C/F = Contact Factory
40
WAT TAGE
XX
25 = 250
40 = 400
FEATURES
• Units are supplied with the lamp in the
same package.
• Unit incorporates an easy access
stainless steel “bail” type latch and
comes with provisions for tamper
resistant screw closure - hardware is
included.
• Wide variety of accessories available for
spill and skyglow control.
• Units are available with standard
twist-lock photoelectric control
receptacle (PE sux).
• Small compact size and aesthetically
pleasing appearance.
• Wide beam optics for maximum area
light coverage.
The Energy Independence and Security Act of 2007 (EISA) aects Metal Halide (MH) and Pulse Metal Halide
(PMH) wattages from 175W to 450W and for domestic usage, the new digit is “E = EISA-compliant PMH” which
has a minimum eciency of 88%. In many cases, the lumen value and lamp life of a lesser wattage meets or
exceeds the former MH ballast/lamp system. For 175W applications, where 175W E-PMH is not available, 150W
PMH may be an acceptable substitute. 150W PMH is medium base socket unless otherwise listed or requested.
M
LIGHT SOURCE
X
S = HPS
C/F
PE
PE FUNCTION
XX
PE = PE RECEPTACLE (If required)
F-20/2008
Registered Trademark of General Electric Company
GE Lighting Solutions • 1-888-MY-GE-LED • www.gelightingsolutions.com
1 - 8 8 8 - 6 9 - 4 3 - 5 3 3
TM
Trademark of General Electric Company
DECAFLOODTM 400 HID GENERAL
PURPOSE FLOODLIGHTING
FIXTURE DIMENSIONS
TRUNNION UNIT SUPPLIED WITH 6 FEET OF #14/3 SEOW CABLE
DATA
Approximate Net Weight 34 lbs 15.4 kgs
Eective Projected Area 2.2 sq ft max .2 sq M max
Suggested Mounting Height 20-60 ft 6-18 M
PHOTOMETRIC SELECTION TABLE
Wattage Light Source Photometric Curve Number
400 MH 35-452936
250 MH 35-452937
400 HPS 35-452938
250 HPS 35-452939
ACCESSORIES
Top and side visor TSVADKBZ-CFSX
Full visor FVADKBZ-CFSX
Wire Guard WG-CFSX
Barndoors BDADKBZ-CFSX
Lexan vandal shield LVS-CFSX
Cross arm mounting adapter CAA-001
GE Lighting Solutions • 1-888-MY-GE-LED • www.gelightingsolutions.com
1 - 8 8 8 - 6 9 - 4 3 - 5 3 3
2008/F-21
