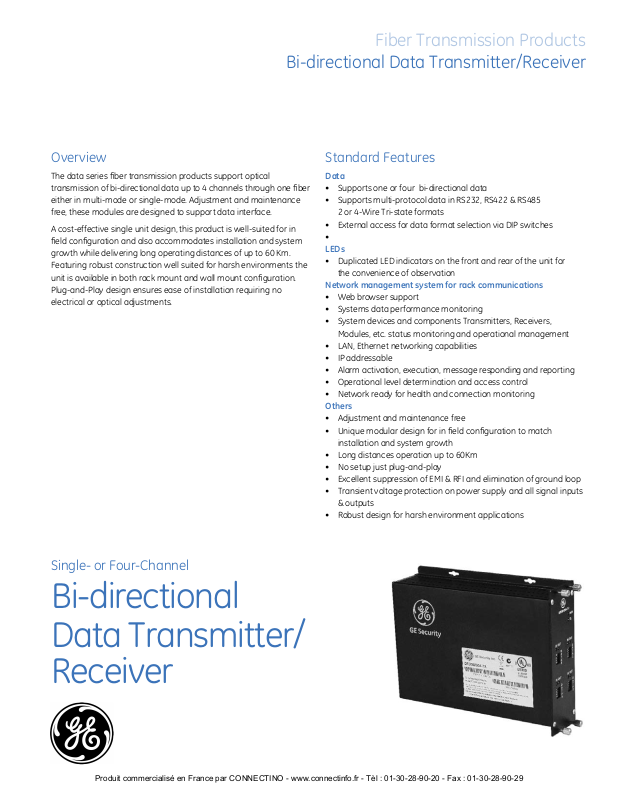

Page 1
Fiber Transmission Pr
Produit commercialisé en France par CONNECTINO - www.connectinfo.fr - Tèl : 01-30-28-90-20 - Fax : 01-30-28-90-29
oducts
Bi-directional Data Transmitter/Receiver
O
verview
T
he data series fiber transmission products support optical
transmission of bi-directional data up to 4 channels through one fiber
either in multi-mode or single-mode. Adjustment and maintenance
free, these modules are designed to support data interface.
A cost-effective single unit design, this product is well-suited for in
field configuration and also accommodates installation and system
growth while delivering long operating distances of up to 60 Km.
Featuring robust construction well suited for harsh environments the
unit is available in both rack mount and wall mount configuration.
Plug-and-Play design ensures ease of installation requiring no
electrical or optical adjustments.
S
tandard Features
Data
S
upports one or four bi-directional data•
Supports multi-protocol data in RS232, RS422 & RS485 •
2 or 4-Wire Tri-state formats
External access for data format selection via DIP switches•
•
LEDs
Duplicated LED indicators on the front and rear of the unit for •
the convenience of observation
Network management system for rack communications
Web browser support•
Systems data performance monitoring•
System devices and components Transmitters, Receivers, •
Modules, etc. status monitoring and operational management
LAN, Ethernet networking capabilities•
IP addressable•
Alarm activation, execution, message responding and reporting•
Operational level determination and access control •
Network ready for health and connection monitoring•
Others
Adjustment and maintenance free•
Unique modular design for in field configuration to match •
installation and system growth
Long distances operation up to 60Km •
No setup just plug-and-play•
Excellent suppression of EMI & RFI and elimination of ground loop•
Transient voltage protection on power supply and all signal inputs •
& outputs
Robust design for harsh environment applications•
Single- or Four-Channel
B
i-directional
Data Transmitter/
Receiver
Page 2
Specifications
Produit commercialisé en France par CONNECTINO - www.connectinfo.fr - Tèl : 01-30-28-90-20 - Fax : 01-30-28-90-29
Data
Data Dir
ection Bi-directional Duplex
Data Interface RS232, RS422, RS485 2 or 4-wire Tri-state
Selection Method DIP switch-selectable
Data Rate 0~115,200bps
Data Protocol Protocol transparency
Line Carrier Detection RS485 (2/4-wire) Tri-state output
Data Tx & Rx Status Green/Red LED lit
Input/ Output Connectors 7-pin screw terminals
Optical
Wavelength 1310 and 1550
Number of Fiber 1
Tx Output Power:
Single Mode (40Km) 1310nm & 1550nm -9dBm ± 3 dBm
Multi-Mode (4Km) 1310nm & 1550nm -7dBm ± 2 dBm
Optical Buget:
Multi-mode (62.5μm/125μm) 12dB
Single-mode (9μm/125μm)
Single-mode (9μm/125μm)
Long Haul
Transmission Distance:
Multi-Mode (Limited by Fiber Bandwidth) 4Km (DFVMMD101-T/R & DFVMMD102-T/R)
Single-Mode (Limited by Fiber Bandwidth) 40Km
Fiber Connector (Standard Supply) ST
18dB (wavelength in 1310nm)
14dB (wavelength in 1550nm)
25dB (w
avelength in 1310nm)
19dB (wavelength in 1550nm)
Mechanical
Dimensions or module HxWxD in mm
Shipping weight
Environmental
Operating Temp -40 C to +75 C
Storage Temp -40 C to +85 C
Relative Humidity 0 to 95% non-condensing
Power Requirement
Supply Voltage
Cord protection Poly Fuse (1A)
Current Consumption Max. 500mA
a)25.4 x 158.4 x 231.8 1-Slot
b) 50.8 x 158.4 x 231.8 2-Slot
a) 0.74kg 1-slot
b) 1.07kg 2-slot
12VDC
Standalone: Derived from an external adaptor via the 2-pin
connector at rear of the module.
Rack chassis: derived from the chassis PSU via the 30-pin
connector at rear of the module.
Page 3

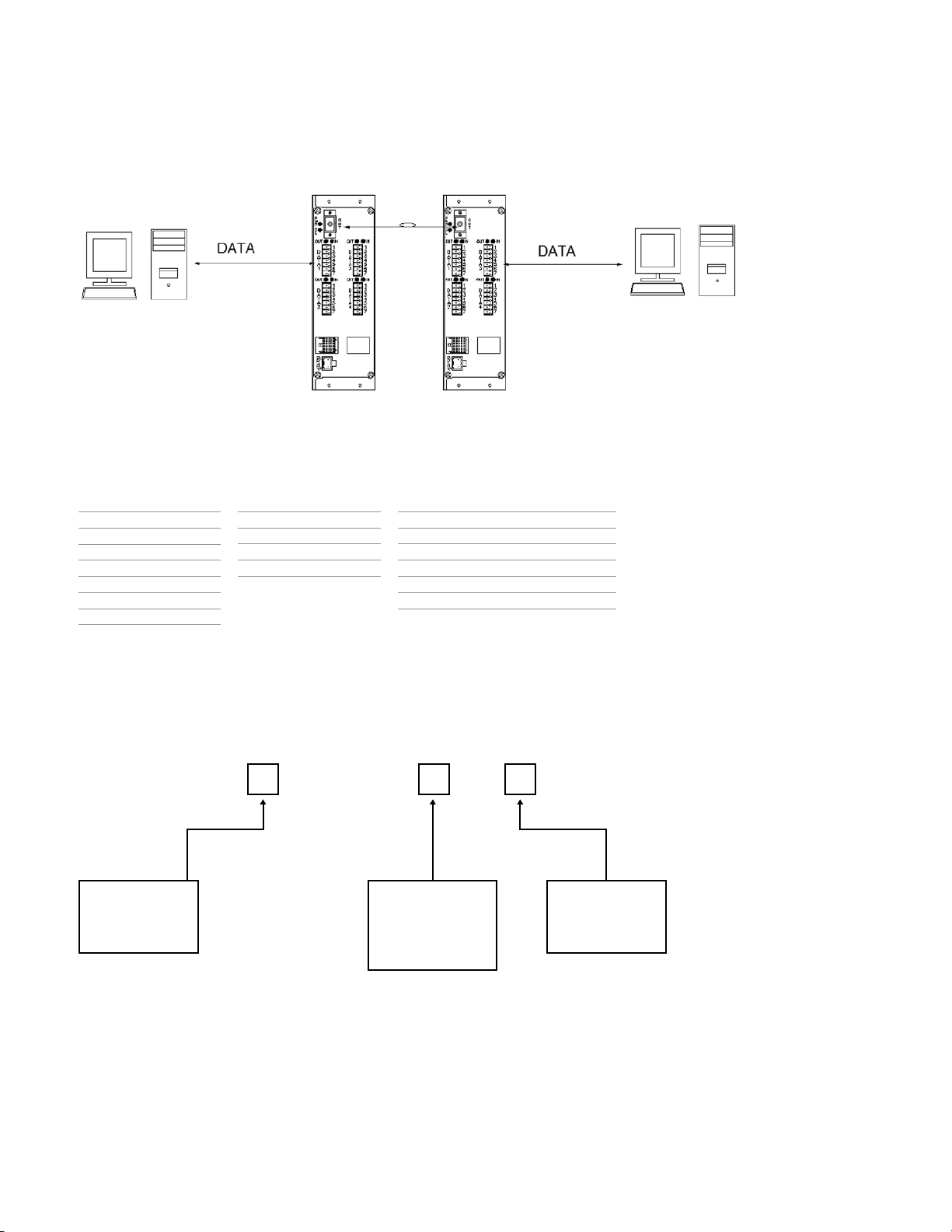

Application Diagram
Produit commercialisé en France par CONNECTINO - www.connectinfo.fr - Tèl : 01-30-28-90-20 - Fax : 01-30-28-90-29
Cable connection of DFDSM004-TX/RX
Model Number Key
DF 10 bit rack/module
F 8 bit rack/module
MF 8 bit module only
V Video
D Data
A Audio
CC Contact Closur
e
SM Single mode
MM Multimode
L Long distance
D Duplex
, DFDSML004-TX/RX and DFDMM004-TX/RX
Fir
st digit Number of video channels
Second digit Number of audio channels
Third digit Number of data channels
Forth digit Number of contact closures
T Transmitter
R Receiver
art Number Key
P
DFD M( L ) 00
Optical type
S Single Mode
M Multi Mode
—
Number of
Data Channels
1
4
Data type
TX Transmitter
RX Receiver
Page 4
Produit commercialisé en France par CONNECTINO - www.connectinfo.fr - Tèl : 01-30-28-90-20 - Fax : 01-30-28-90-29
Nor
th America
T 888-GE-SECURITY
888-437-3287
F 503-691-7566
Asia
T 852-2907-8108
F 852-2142-5063
Australia and New Zealand
T 613-9239-1200
F 613-9239-1299
Europe
T 32-2-719-98-47
32-2-719-98-46
F
Latin America
T 305-593-4301
F 305-593-4300
Specifications subject to
change without notice.
© 2010 General Electric Company
All Rights Reserved
Ordering Information
Fiber
ype
T
(I) Single-mode
(9/125μm)
(
Long Distance Transmission)
II) Single-mode (9/125μm For
(62.5/125μm)
(
III) Multi-mode
Part
Number
(i) 1DDFDSM001-TX 1-Ch. Bi-directional
DFDSM001-RX 1-Ch. Bi-directional
(ii) 4DDFDSM004-TX 4-Ch. Bi-directional
DFDSM004-RX 4-Ch. Bi-directional
(i) 1DDFDSML001-TX 1-Ch. Bi-directional
DFDSML001-RX 1-Ch. Bi-directional
(ii) 4D DFDSML004-TX 4-Ch. Bi-directional
DFDSML004-RX 4-Ch. Bi-directional
(i) 1DDFDMM001-TX 1-Ch. Bi-dir
DFDMM001-RX 1-Ch. Bi-directional
(ii) 4DDFDMM004-T 4-Ch. Bi-directional
DFDMM004-RX 4-Ch. Bi-directional
Description Opt. PWR. Budget dB Max.
1310nm
1550nm
Distance
(Km)
18 14 40 1
Data Transceiver
18 14 40 1
Data Transceiver
18 14 40 2
Data Transceiver
18 14 40 2
Data Transceiver
25 19 60 1
Data Transceiver
25 19 60 1
Data Transceiver
25 19 60 12
Data Transceiver
25 19 60 2
Data Transceiver
ectional
12 12 4 1
Data Transceiver
12 12 4 1
Data Transceiver
12 12 4 2
Data Transceiver
12 12 4 2
Data Transceiver
No.
of
slots
Accessories DFR
Options ST type connector is standard
Notes:
Transmission distance will suf
and the fibers within the network. Operating distance of multimode is limited by the characteristics of the fiber
bandwidth
. 19' Rack mount chassis purchased separately for housing modules
fer if additional losses are introduced by the optical connectors, fusions, splices
