POWER LEADER™
PMCS 6.8 for
CIMPLICITY
©
HMI
Interface Toolkit
User’s Guide
DEH-210
GE Power Management Control System 6.8
Notice
The information contained in this document is subject to change without notice. GE makes no warranty of any
kind with regard to this material, including, but not limited to, the implied warranties of merchantability and
fitness for a particular purpose. GE shall not be liable for errors contained herein or incidental consequential
damages in connection with the furnishing, performance, or use of this material.
This document con ta ins propri etary information wh ich is protected b y copyrigh t. A ll rights are reserved. No
part of this docu ment ma y be phot ocopie d or otherwise reproduc e d without c onsen t of GE.
Copyright ©2000 by GE. Published in a limited copyright sense, and all rights, including trade secrets, are
reserved.
Document Edition - First 04/98
Second 05/99
Third 08/99
Fourth 03/00
Fifth 10/00
The foll o wing are pr od u cts of Genera l Electric Company:
POWER LEADERTM Meter Power Quality Meter (PQM) GE Fanuc Series 90/30 PLC
POWER LEADER Modbus Monitor 239 Motor Protection Relay GE Fanuc Series 90/70 PLC
POWER LEADER Electronic Power
Meter
Spectra MicroVersaTrip 369 Motor Manag em ent Relay
Enhanced MicroVersaTrip-C SR469 Motor Management Relay
Enhanced MicroVersaTrip-D SR489 Generator Management Relay
MDP Overcurrent Relay 565 Feeder Management Relay
Spectra Electronic Control Module 735 Feeder Relay
Universal R elay devices SR74 5 Trans former Ma n agement Relay
269 Plus Motor Manag em ent Relay Motor Manager II (MMII)
SR750/SR760 Feeder Management Relay
CIMPLICITY HMI is a registered trademark of General Electric Company.
DFP 100 and DFP 200 Feeder Management Relay® and Multilin 269+ Motor Management Relay® are
registered trademarks of Multilin Inc., and Multilin SR489 Generator Management Relay™ and Multilin SR745
Transformer Management Relay™ are trademarks of Multilin Inc.
Electronic Power Meter 3710, Electronic Power Meter 3720, Electronic Power Meter 7300, Electronic Power
Meter 7500, Electronic Power Meter 7600 and Electronic Power Meter 7700 are products of Power
Measurement Li mited.
US Pat Nos 5,768,148; 5,764,155; 5,862,391
Contents
Introduction 1
Welcome..............................................................................................................................1
How should I use this manual?.............................................................................................. 2
Conventions .........................................................................................................................3
About the Interface Toolkit...................................................................................................3
Installation ........................................................................................................................... 4
Configuring and Using PMCS Wizards 5
About the Wizards ................................................................................................................5
Configuring a CIMPLICITY Project for PMCS.....................................................................6
PMCS PowerBuilder - Configuring Advanced Wizards.........................................................8
Using a PMCS Wizard........................................................................................................ 20
Small Faceplate Wizards.....................................................................................................23
Large Faceplate/Tabular Wizards........................................................................................26
One-Line Wizards..............................................................................................................33
Elevation Wizards..............................................................................................................40
Floor Plan Wizards.............................................................................................................41
Annunciator Panel Wizard..................................................................................................42
Manually Configuring Wizards without using PMCS Power Builder......................15
Manually Configuring the EPM 7700 Wizard........................................................17
Sample Application...............................................................................................21
Usage.................................................................................................................... 23
Small Faceplate Configuration ..............................................................................24
Usage.................................................................................................................... 26
Special Considerations..........................................................................................26
Configuration........................................................................................................27
Usage.................................................................................................................... 33
Configuration........................................................................................................34
Circuit Breaker One-Line Wizards ........................................................................ 39
Usage.................................................................................................................... 40
Configuration........................................................................................................40
Usage.................................................................................................................... 41
Configuration........................................................................................................41
Usage.................................................................................................................... 42
Configuration........................................................................................................46
Creating Floor Plans, Elevation Views, and One-Line Diagrams 49
Introduction........................................................................................................................49

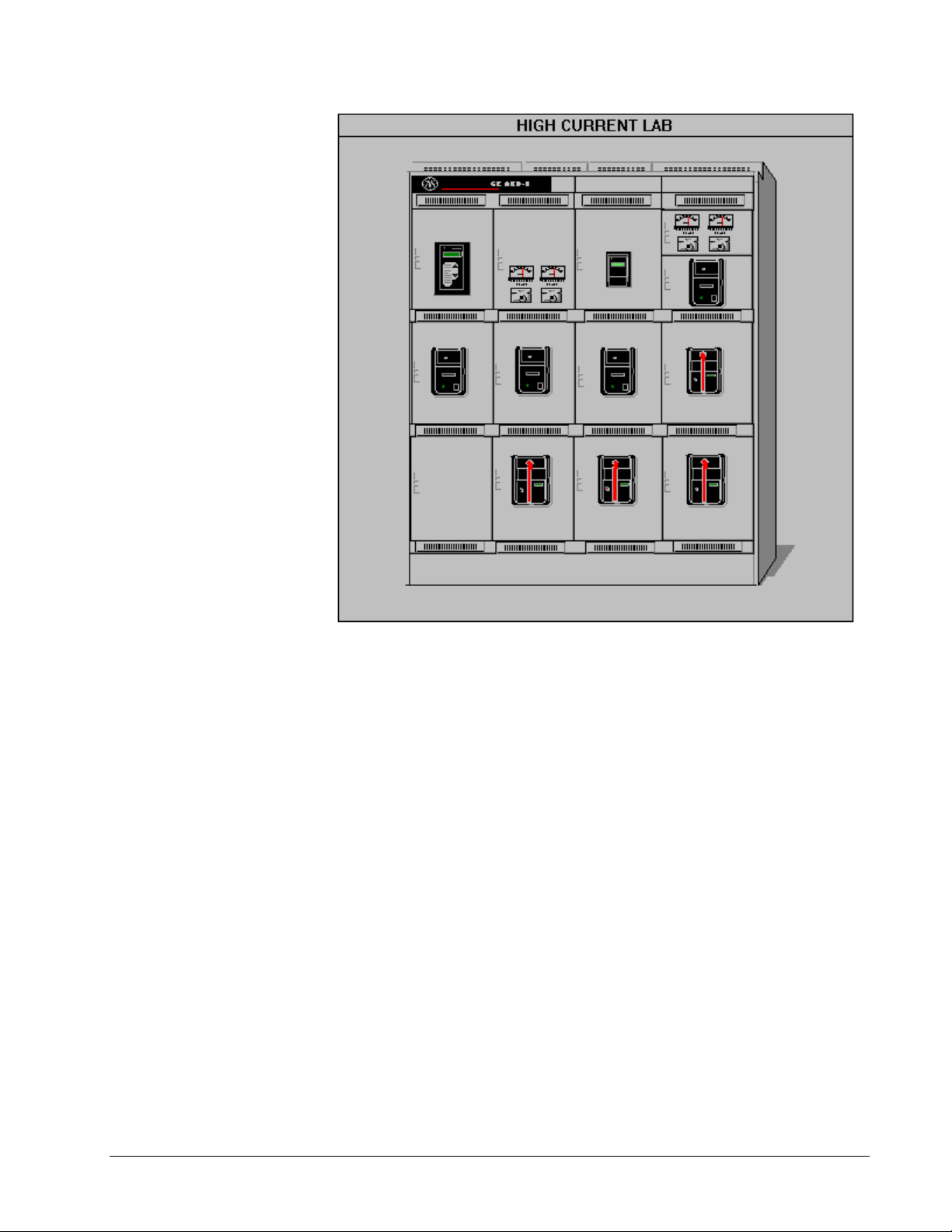

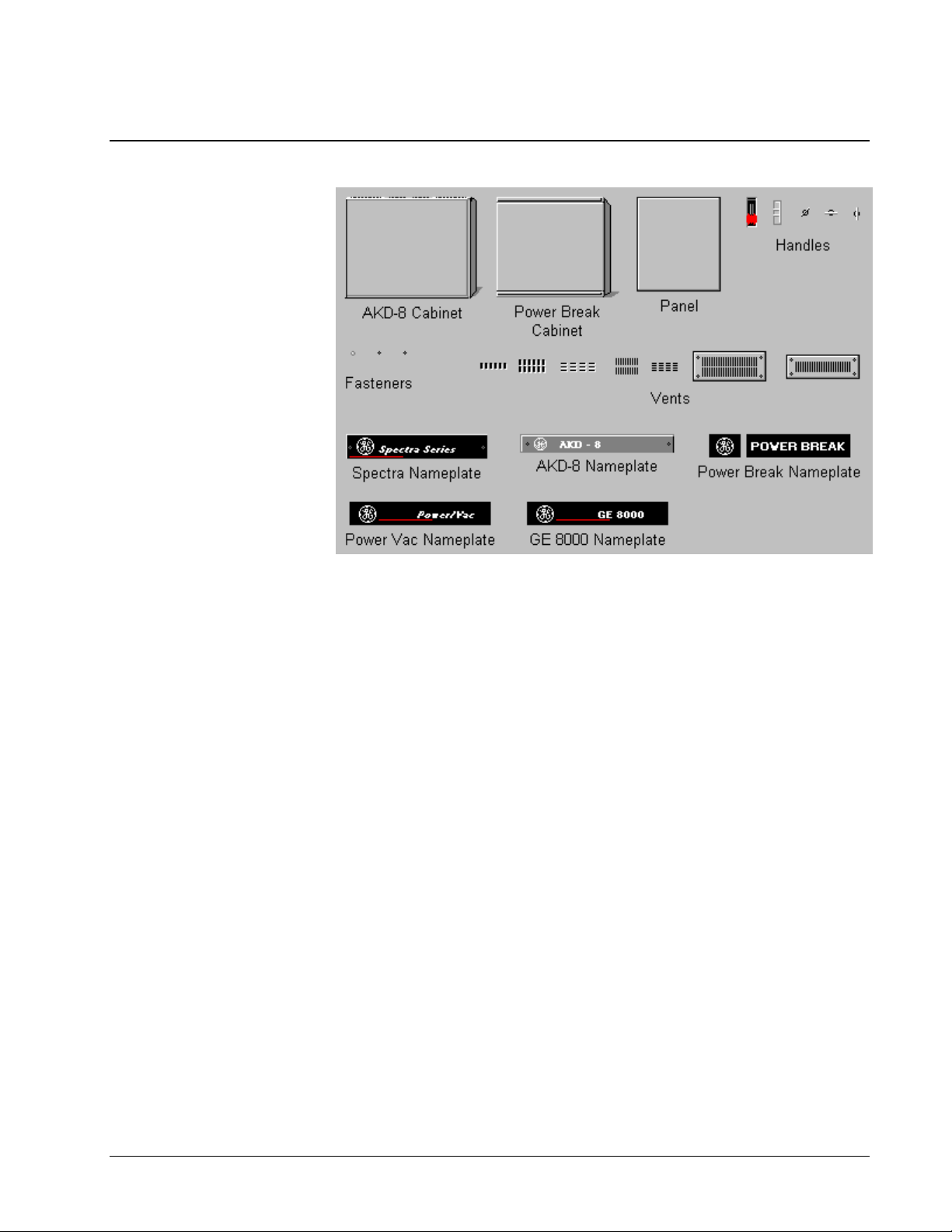

Elevation Views.................................................................................................................49
Floor Plans .........................................................................................................................51
Electrical One-Line Diagrams.............................................................................................52
PMCS Interface Toolkit Contents • i
Sample Application 59
Creating a bas ic interface....................................................................................................59
Features of GE Large Faceplate Wizards 63
About the Large Faceplate Wizards.....................................................................................63
POWER LEADER EPM.....................................................................................................64
Spectra MicroVersa Trip
Enhanced MicroVersaTrip PM-C Trip Unit......................................................................... 68
Enhanced MicroVersaTrip PM-D Trip Unit ........................................................................ 70
POWER LEADER™ Meter................................................................................................72
Spectra ECM......................................................................................................................74
MDP Digital Overcurr ent Relay..........................................................................................76
Power Quality Meter (PQM)...............................................................................................78
EPM 3710 Meter................................................................................................................80
EPM 3720 Meter................................................................................................................82
EPM 7300 Meter................................................................................................................84
EPM 7700 Meter................................................................................................................87
239 Motor Protection Relay................................................................................................89
269 Plus Motor Management Relay.....................................................................................91
SR469 Motor Management Relay .......................................................................................96
SR489 Generator Management Relay..................................................................................98
565 Feeder Management Relay.........................................................................................100
735 Feeder Relay ..............................................................................................................106
SR745 Transformer Management Relay ............................................................................107
SR750/SR760 Feeder Management Relay.........................................................................109
®
Trip U ni t .....................................................................................67
Features of Tabular Data Screen Wizards 113
Introduction......................................................................................................................113
Features of Tabular Data Screens......................................................................................113
Power Leader EPM...........................................................................................................115
Spectra MicroVersaTrip....................................................................................................116
Enhanced MicroVersaTrip-C Trip Unit .............................................................................117
Enhanced MicroVersaTrip-D Trip Unit.............................................................................118
POWER LEADER Meter................................................................................................. 119
Spectra ECM....................................................................................................................120
MDP Digital Overcurr ent Relay........................................................................................121
PQM (Power Quality Meter).............................................................................................122
Motor Manager II (MMII) ................................................................................................123
EPM 3710 Meter..............................................................................................................124
EPM 3720 Meter..............................................................................................................125
EPM 7300 Meter..............................................................................................................126
EPM 7500/7600 Meter...................................................................................................... 127
Metering Tab......................................................................................................127
Min/Max Tab......................................................................................................129
Power Quality Tab..............................................................................................130
Dema nd Tab.......................................................................................................13 1
Inputs Tab...........................................................................................................132
Setup 1 Tab.........................................................................................................133
Setup 2 Tab.........................................................................................................135
EPM 7700 Meter..............................................................................................................137
Metering Tab......................................................................................................137
Min/Max Tab......................................................................................................139
Power Quality Tab..............................................................................................140
ii • Contents PMCS Interface Toolkit
Dema nd Tab.......................................................................................................14 1
Inputs Tab...........................................................................................................142
Setup 1 Tab.........................................................................................................143
Setup 2 Tab.........................................................................................................145
Universal Relay................................................................................................................147
Metering Tab......................................................................................................147
Power Quality Tab..............................................................................................149
Prote ction Control T ab........................................................................................150
Power System Configuration Tab ........................................................................151
Transformer Tab.................................................................................................152
Elements Tab......................................................................................................153
Digital Counter Tab............................................................................................154
Virtual Inputs Tab............................................................................................... 155
Virtual Outputs Tab............................................................................................156
Contact Inputs Tab..............................................................................................157
Contact Output Tab.............................................................................................158
DCMA Tab.........................................................................................................159
Source Tabs........................................................................................................160
Dema nd Tab.......................................................................................................16 1
Line Tab.............................................................................................................162
Breaker Tab........................................................................................................163
Contact Output Current States Tab......................................................................164
Remote Temperature Detection Tab....................................................................165
Bus Tab..............................................................................................................166
239 Motor Protection Relay..............................................................................................167
269 Plus Motor Management Relay................................................................................... 168
369 Motor Management Relay..........................................................................................169
Metering Tab......................................................................................................169
Alarms Tab.........................................................................................................171
Trip Data Tab .....................................................................................................172
Trip Counter Tab................................................................................................173
Dema nd Tab.......................................................................................................17 4
Local RTD Tab...................................................................................................175
Remote RTD Tab................................................................................................176
Control Tab ........................................................................................................177
Setup Tab...........................................................................................................178
SR469 Motor Management Relay .....................................................................................179
SR489 Generator Management Relay................................................................................180
565 Feeder Management Relay.........................................................................................181
SR735 Feeder Relay.........................................................................................................183
SR745 Transformer Management Relay ............................................................................184
SR750/SR760 Feeder Management Relay.........................................................................185
DFP100 Relay..................................................................................................................187
DFP200 Relay..................................................................................................................189
Fanuc 90/30......................................................................................................................191
Fanuc 90/70......................................................................................................................191
Troubleshooting 193
EPM 3710/EPM 3720 – no data or incorrect data displayed ............................................... 193
EPM 3720 – KVAH import values incorrect .....................................................................193
Long update when changing setpoints ............................................................................... 193
PLEPM – Wrong Metering tab displayed..........................................................................194
PMCS Interface Toolkit Contents • iii
Appendix A: EPM 3720 Sliding Window Demand Keys 195
Downloading Sliding Demand Window Keys to the EPM 3720.........................................195
Appendix B: Automatic Waveform Capture and Waveform Retrieval on
EPM 3720 201
Using a setpoint to trigger waveform capture or record on the EPM 3720..........................201
Index 215
iv • Contents PMCS Interface Toolkit
Introduction
Welcome
The PMCS Interface Toolkit i s a POWER LEADER Power Manag em ent Contr ol
System (P M C S) tool that provides a cus tom toolki t to efficient ly create flexible,
accurate, and friendly user interfaces to your power management data. With the
PMCS Wizards (accurate graphical representations of power management devices
and other commonly encountered objects), you can create applications to provide a
customized interface that accurately represents physical, electrical, and geographical
plant layouts. The wizards can significantly cut new system development time,
providing results in less than an hour.
The PMCS Interface Toolkit allows you to create one-line diagrams, elevation views,
and fl oor plans that you ca n com bi ne with tabular data s cr eens and thr ee-dimensi on a l
device wizards to create a virtual representation of your facility and equipment. With
this graphical us er in terface, you a ctually see and control devices on the screen,
withou t having to mak e a trip ou t to the mete r o r tr ip unit.
The Toolkit, which consists of the CIMPLICITY
coupled with GE’s PMCS wizards, is easy to use, taking advantage of state-of-the-art
drag-and-drop technology. Wizards are provided for all the devices most commonly
used with the PMCS DDE Server. Creating a custom interface is as easy as selecting
wizards for the devices installed in a facility and placing them on the screen.
®
HMI development environment
Here’s what you’ll find in this guide:
• Chap ter 2 explains th e kinds of PMCS Wizards, th eir use and
configuration – Small Faceplate wizards, Large Faceplate wizards,
Tabular Data Screen wizards, One- Line wizards, Elevation wizards,
and Floor Plan wizards. Includes instructions on using the PMCS
Advanced Wizards, including Small Faceplates, Large Faceplates, and
Tabular Wizards.
• Chapter 3 illustrates the use of the GE wizards described in Chapter 2
to create animated displays of the facility floor plan, switchgear
elevations, and system one- line diagrams.
• Chapter 4 gives an example of application development, using the
wizards described in Chapters 2 and 3 to create an actual PMCS
application.
• Chapter 5 describes the functions available with each of the GE Large
Faceplate wizards. These wizards are accurate graphical
PMCS Interface Toolkit Introduction • 1
representations of power management devices, complete with working
controls that ar e linked to th e correspon ding devices in your facil ity.
• Chapter 6 describes the Tabular Data wizards. These wizards list the
data and setpoints of power management devices in a tabular format.
Simply point and click to select the appropriate tab of information to
display and view the related data.
The exam ples and refer ences in th is guide enabl e you to creat e cu stom inter fa ces for
your PMCS s yst em, and all ow you to access po wer manag ement data in th e wa y that
best suits you.
How should I use this manual?
How you use t his book depends on your l e vel of expertise with CI M PLICITY.
Consult the table below to determine where you should start.
If this describes you… Start here:
I’ve never seen this stuff before! What’s
CIMPLICITY HMI? What are
“Wizards”?
I’ve just op ened this package – where
do I go first?
I’m familiar with CIMPLICITY HMI
and I’d like to build a custom
application for some GE power
management devices.
The GE PMC S Wizards are already
installed on my system, I’m already
experienced with CIMPLICITY HMI ,
and I’m ready to start building custom
applications.
Just tell me about the wizards; I’m an
old pro an d ready t o go!
Refer to the document ation tha t cam e wi th your
CIMPLICITY HMI package. Start with the
introduction and tutorial sections, which will teach
you about CIMPLICITY HMI and how to use it to
create custom applications. When you understand
what wiz ards are and h ow to us e t hem, come back
here.
Go to Chapter 1, Introduction. Chapter 1 explains
what the Interface Toolkit is, what it’s good for, and
where to go after that.
Go to Chapter 1 for installation instructions, then to
Chapter 2 for descriptions of the wizards and how to
use them. Chapter 4 provides a demo of actual
application developme nt . This pack age contai ns
wizards for the power management devices
supported by GE’s PMCS software.
Turn to Chapter 2 for information on how to use the
GE PMCS Wizards, and Chapter 4 for a quick
example of application development. For detailed
descriptions of the Large Faceplate screens or the
Tabular Data screens, refer to Chapters 5 and 6
respectively.
Ski m throu gh Chap ters 2 and 3 for an overview of
what ’ s in the packag e, then Chapt er 4 for a qu ick
example of application development. Chapter 5
describes the GE Lar ge Faceplate screen s and
Chapter 6 the associated Tabular Data screens.
Conventions
You will find this book easy to use if you look for these si mple conven tions :
2 • Introduction PMCS Interface Toolkit
• Boldface type indicates the name of an item you need to select.
• Monospace type indicates an example or text that is displayed on the
screen.
• UPPERCASE type indicates a file name, command name, or acronym.
About the Interface Toolkit
The Interface Toolkit consists of the CIMPLICITY HMI development environment
and a special set of wizards developed for use with the power management devices
supported by PMCS 6.8.
PMCS Interface Toolkit Introduction • 3
Installation
To install the Interface Toolkit from the CD-ROM, refer to the instructions provided
in DEH-211, the PMCS Read This Book First . When install ing CI MPLICITY HMI
4.01, be sure to include the Advanced DDE Communications" option.
For PMCS View Nodes, be sure to install the appropriate PMCS software to support
CIMPLICITY wizard operation. A runtime view node installation provides files
needed to operate the wizards, th e wi z ard help fil es , and the Even tViewer and
Waveform client applications. Without these files, your screens will not function
corr ectly on the view node.
For WebView users, pl ease note th at the EventViewer and Waveform client
applications cannot be viewed, but all information displayed in the wizard is
available.
You can verify successful installation of the PMCS Wizards into CIMPLICITY HMI
by opening CimEdit, and clicking the Object Explorer button to display the symbols
library window. The PMCS Wizar ds should be li s ted in the dir ectory stru cture on the
left side of the Symbols window as shown below. If they are not, reinstall from the
PMCS CD-ROM. PMCS Advanced Wizar d s (device wizard s) are l ocat ed in the
PMCS Advanced Wizards directory; standard PMCS Wizards (such as Elevation and
Floor Plan wizards) are located in the PMCS Wizards directory.
4 • Introduction PMCS Interface Toolkit
Configuring and Using PMCS Wizards
About the Wizards
The wizards contained in the PMCS Interface Toolkit allow you to quickly build
accurate and friendly user interfaces with CIMPLICITY HMI. In addition to the
various wizards standard with CIMPLICITY HMI development systems, the User
Scr e e n Configur a tor pr ovides five types of powerful GE wiza rds:
• GE Small Faceplate Wizards
• GE Large Faceplate/Tabular Data Wizards
• GE One- Line Tool Wizards
• GE Elev ation Wiza rds
• GE Floor Plan Wizar d s
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 5
Configuring a CIMPLICITY Project for PMCS
Using the wizards is straightforward. The procedure outlined in this section describes
how to place and configure a PMCS wizard in CIMPLICITY HMI. Later sections
describe using/testing a wizard and go further into describing each kind of wizard.
1. From CIMPLICITY HMI, create a new project by clicking the New Project
button or selecting File: New Project. The New Project window appears:
2. Enter the Project Name and select a directory wh ere the project s hould be st ored
(usually in the cimplicity\hmi\projects\ ). Under Options, select
PMCS Power Builder. Finally, click the Create button to write the project file to
disk and open the Project Properties window:
6 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
3. In the Project Properties window (Options tab), select the Enable project
broadcast checkbox if you will be using CIMPLICITY HMI view nodes.
Make sure the Computer name field matches the name of the host machine.
Disregard the Startup Timeout field and the General tab. Select OK to
open the CIMPLICITY HMI Project Wizard:
4. In the CIMPLICITY Project Wizard step 1 of 3 window, choose Finish to
complete the project setup.
5. The CIMPLICITY W orkbench is displayed as shown be low:
Double-click PMCS Power Builder to begin adding devices, and refer to PMCS
PowerBuilder - Configuring Advanc ed Wizar ds in the following section for details
on placing a PMCS Advanced Wizard in a CIMPLICITY project.
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 7
PMCS PowerBuilder - Configuring Advanced Wizards
PMCS Power Builder is a powerful tool to drastical reduce development time,
enabling you to quickly and easily add many devices to a new CIMPLICITY project.
Besides enhancing your productivity as a developer, PMCS Power Builder also
allows you to create more efficient applications which use fewer system resources
and enjoy greater performance. This is due to PMCS Power Builder's integration
with the PMCS Advanced Wizards. These wizards employ tech nology and
configuration techniques that take advantage of the power of CIMPLICITY HMI
version 4.01. The PMCS Advanced Wizards use a two-step configuration process
where the device dat a points are configur ed separatel y from the graphi cal portion of
the wizards. This section explains the procedures for configuring and using these
new wizards.
Beginning at the CIMPLICITY Workbench, double-click the PMCS Power Builder
option to begin adding devices to this project.
The PMCS Power Builder tool appear s:
The command buttons displayed in the PMCS Power Builder window are:
8 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
Add Device – use this button to create a new device in your application. You can
also a d d a devi ce by double clicking an y empty line in the device information s ection
of the PowerBuilder screen, or right clicking and selecting "Add" from the drop
down menu.
Modify Selected – use this button to change the Description, Resource, an d
application information for an existing (selected) device. You can also modify a
device’s configuration by double-clicking a listed device, or by right-clicking an
exist ing device and selecting "Modify Sel ect ed" from the drop down men u. Device
Name an d Devi ce Type cann ot be m od ified once a device is cr eated. If you need to
chang e the device na me or device type, you must del ete the sel ected device and add
a new one.
Delete Selected – use this button to completely remove the selected device and its
points from the project. You also delete a device by right clicking and selecting
"Delete S elected" from the drop d own menu.
Refresh – use this button to refresh the display of devices in the PowerBuilder
display. You can also refresh the display by right clicking anywhere within the
device i nformation area and s electing "Refresh" from the drop down menu.
Help – use this button to access PMCS Power Builder help information.
Select the Add Device button to begin adding device points to this project. The
Device Configuration dialog appears, prompting you to select a device type to add:
Select the device type to add, and the Device Configuration dialog dynamically
expands to display the device-specific configuration parameters. For example, while
most devices require only five parameters (Type, Name, Description, Resource, and
the Server's Application name), some more complex device types require additional
parameters, such as selecting which Tabs will appear on the Tabular wizard screen at
runtime.
Most PMCS Advanced Wizards share a similar configuration dialog, as shown in the
first example below. However, as mentioned above, some more complex device
types such as the Universal Relay, Multilin 369, and EPM 7700, require some
addit ional confi g uration in formation, and these examples are sh own s ep arately.
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 9
field with ION_LINK.
Select a Device Type from the
pulldown menu and enter the device's
name in the Device Name field.
Enter a description (optional).
Select a Resource from the pulldown
menu.
Complete the Application Name
Complete the Node Name field
with the name of the computer
running the Comm Server
connected to this particular device.
Complete the Gateway Name field
with GE77GTWY. See the
following note for details.
Devi ce Conf iguration Di alog - mo st PMCS Advanced Wi zards
Device Configuration Dialog - EPM 7700
10 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
Choose the desired tabs to
display on the Wizard, and use
the right and left arrow buttons to
move the desired tabs from the
Available Tabs box to the
Selected Tabs box.
Complete the Application Name
field; typically GE32MODB, but
if UCA/MMS is selected, enter
AXS4MMS or name of MMS
Server.
Select the Model of UR which you
are configuring. This determines
the contents of the Available Tabs
list.
Devi ce Conf igurat ion Di alog - 369
Use the right and left arrow
buttons to move the highlighted
tabs between the Available and
Selected Tabs fields.
Devi ce Conf iguration Di alog - Uni versal Relay d evices
When you have completed the Device Configuration dialog for the selected device,
click OK to add the device to the list displayed in the PMCS Power Builder window.
In th e exa mp le below, an F6 0 mod el UR, an ML 369, and five Mi croVersaTrip
devices have been added.
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 11
When you are done adding devices, you can generate the scr een s for all devices i n
one step by choosing th e Generate Scr eens but t on. Th e PMCS Power Buil der tool
creates one tabular screen per device type and one small faceplate per individual
device, following the many-to-one ar ch itectur e of the PMCS Advanced Wizards .
Note: While PMCS Power Buil der can gen erat e scr eens for m ost of the PMCS
Advan ced wi zards, th er e are some exceptions. Th e Annunciator Panel and the
EPM7700 screens are not automatically drawn by PMCS Power Builder, but instead
must be created manually after the points are created by PMCS Power Builder.
Follow the manual configuration instructions provided elsewhere in this guide to
configure the Annunciator Panel and EPM7700 points.
When Power Bu ilder ha s finished gen er ating scr eens for the configured d evi ces , click
the Done button to finish. PowerBuilder has automatically updated the project
configu ration and started the project for you. You can now browse the d evices,
poin ts, and screens created for you by PowerBui lder in th e Workbench. I f you don’t
see some i tems, hit the F5 key to refresh the Work bench displa y.
12 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
For th e hi gh ly-flexibl e UR and 369 type devices, Pow er Build er creates a blank
"framework" wizard, with no pre-drawn tabs. In CimEdit the wizard will show no
tabs - the tabs will be dynamically redrawn based on the physical device being
accessed . For exam ple, if you use different models of th e Universal Rel ay in your
application, you might need to display a unique set of tabs for each type of relay.
With dynamic r e draw, you only need a single t abula r wizard in you r pr oje c t to show
any combination of tabs for any UR device. (The dynamic redraw feature can be
disa bl ed ; see Disabling Dynamic Redraw (369 and UR Tabular Wizards) for details.)
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 13
Device Configuration -
Special Considerations for EPM 7700 only
The EPM 7700 Device Configuration dialog box contains two extra fields, which
must be completed during configuration. The Node Name field r equires that you
enter the name of the computer running the Communicati ons Server tha t con nects to
this particular device. Depending on the configuration of the EPM 7700 network,
this can be ei ther the Primary node comp uter, or a computer setu p a s a "Fu ll Station "
Secondary node. Refer to DEH-40035, the GE 7700 Gateway Users Guide, and
GEH-6514, PM CS Read This Book First, for m ore inf ormation on network
configuration. The Node Name field is required because the EPM 7700 does not use
the sam e DD E server as the rest of the standard PMC S devi ces , and the wi zard must
be directed to the location of the correct Communications Server for proper
configuration of DDE topic names.
Also, the Application Name field must be completed as ION_LINK rather than
GE32MODB or GE32ENET for the EPM 7700 device. The ION LINK program is
installed during initial PMCS setup if the EPM 7700 software option is selected.
When configuring Wizards on Secondary nodes, the Application Name field entry
does not fol low the PM C S wi zard convention of “\\Rem ot eC om p uter\I ON _ LI N K ” .
EPM 7700 Secondary nodes run a local copy of the ION LINK server, thus the
application name for EPM 7700 Large Faceplate wizards is always “ION_LINK”
whether the wizar d is install ed on the Primary node or a Secondary node. The Nod e
Name entry determines if the wizard is on a Secondary node.
The Gateway Name field must be completed with GE77GTWY, the application
name of the GE 7700 Gateway Server program. When configuring the EPM 7700
Tabular wizard on a Secondary node, the Gateway Name does follow the PMCS
wizard convention of “\\RemoteComputer\GE77GTWY” in the Gateway Name field,
where ‘ Rem oteComput er’ is the name of the PC wher e the GE 7700 Gateway
application is running – the Primary Node. The previous figure shows a Tabular Data
Dialog box as it would appear when configuring a Tabular Data wizard on a
Second ary node. The Node Name field contain s th e na me of the Primary Node
computer, the Application Name field is ION_LINK (as it is for ALL EPM 7700
wizards on ANY node) and the Gateway Name field points to the GE 7700 Gateway
Server running on the Primary Node PC.
Refer to DEH-40035 for information on the Communications Server and 7700
Gateway Server.
14 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
Manually Configuring Wizards without using PMCS
Power Builder
This section explains the procedures for manually creating a device graphic wizard.
With on e ex cep tion (the EPM 7700 device type), the Advanced wi zards all share the
same configuration procedures.
NOTE: If you are configuring an EPM 7700 wizard, skip this section and go to
Manually Configuring the EPM 7700 on page 17, which details this wizard’s special
requirements.
To config u re the device g r aphics for a PMCS Advanced Wizard:
1. Open a new CimEdit screen.
2. Select a P MCS Advanced Wizard usin g th e O bject Explor er and drop it into the
ne w win dow.
3. Dropping a wizard in the CimEdit screen causes the Device Setup dialog box to
appear, as shown below.
4. Choose a default view for the wizard by selecting or deselecting the Tabular
View checkbox. If the Tabular View checkbox is s elected, the Tabular wi zard
will be displayed whenever this window is opened. If the Tabular View
checkbox is not selected, the Large Faceplate wizard is displayed by default.
5. To complete the Device N a me and Trend S cr een fields , click the ell ipsis butt on
to the right of each of these fields. This button displays a list of the devices
available in the project. (If no devices are available, stop and restart the project,
then continue; the devices should appear.) The Select Device dialog box is
shown in the following figure.
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 15
6. Select the appropriate device from the list and click OK.
7. After the wizard i s configured, save the win dow and close it.
8. Once you have configured an Advanced large faceplate/tabular graphic wizard,
you have t wo options. You can contin ue creatin g new wiz ard screens for each
physical device in the system, or you can use a single device wizard to view the
data of any physical device of that type using the new functionality provided by
the Advanced small faceplate wizards. See the Sample Application sec tion for
more information.
16 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
Manually Configuring the EPM 7700 Wizard
The EPM 7700 device type is more complex than the other PMCS Advanced
Wizards, and its wizard reflects this. Dropping the EPM 7700 wizard into a project
creates eight separate screens, each linked to the others. Another unique property of
the EPM 7700 wizard is that the wizard itself is disposable. It is used only for the
initial configuration, and should be deleted after configuration is completed. The
eight s cr eens created by the wizar d ar e left for run- time use. The procedure for
configuring an EPM 7700 wizard is explained below.
Important: Follow the procedure to configure an EPM 7700 carefully - the wizard's
configuration should not be altered after it has been dropped. Changing the wizard
once it has been dropped requires you to delete the screens and re-create the wizard
with the desired prop erties.
1. Open a new CimEdit screen, using the Screens>New command.
Tip: If you plan to implement a Trend Window, create it before configuring the
EPM 7700 wizard, so that it will be available when you configure the device
graphics portion of the wizard.
2. Select a n EPM 7700 wizard using th e O bject Explorer an d dr op it into the new
window. You may see a warning message about not being able to undo this
action - disregard th is message .
3. Dropping a wizard in the CimEdit screen causes the Wizard Setup dialog box to
appear, as shown below. Note that there is no Tabular View checkbox; because
each of the Tabular s creens is cr eated independently of one another and the
Large Faceplate screen is also an independent screen, you are free to navigate to
any desired view. The notion of a default view does not apply to the EPM 7700
wizard.
4. To complete the Device N a me and Trend S cr een fields , click the ell ipsis butt on
to the right of each of these fields, which displays a list of the devices available
in the project. (If n o devices are availabl e, stop and restart the pr oject , then
continue; the devices should appear.) The Select Device dialog box is shown
below.
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 17
5. Select t he appropriate EPM 770 0 devi ce from the list and cli ck OK.
6. Select a Trend Window using the trend window list available by clicking the
ellipsis to the right of the trend window text box.
7. When the wizard has completed its configuration, close the current window and
DO NOT save it – it is not a functional part of the wizard, and it cannot be used
to create graphics for additional devices. All of the functional wizard screens
were created and sa ved during the configuration process.
8. Stop an d r estart the project, th en hi t F 5 to r efresh the list of screens in the
project .
Repeat steps 1 – 8 to create additional EPM 7700 device screens as necessary for
your application.
Note: Refer to the Sample Application section when de s igning your project to
understand and take advantage of PMCS Advanced Wizard functions such as the
many-to-one relationships possible with Advanced Small Faceplate Wizards and
Large Faceplate/Tabular Wizards. The configuration techniques available may save
considerable development time and effort, especially with regard to the EPM 7700
device type.
The fig ure below shows the one of the eight Tabul ar screens r es u lting from the
correct configuration of the EPM 7700 wizard. You can verify that there are in fact
eight separate screens rather than multiple pages of a single screen by selecting
different tabs at the bottom of the tabular wizard. Observe the file name at the top of
the window - the file name will change to match the selected tab.
18 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
Selecting tabs here changes th e screen disp layed - note the file
Note the file name here - changes depending on the tab selected,
showing that each tab represents a separate screen file.
name at the top of the window changing to match the tab selected.
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 19
Using a PMCS Wizard
With th e wi zard confi g ured, you can t es t i t by launching the *.cim screen from
Windows Explorer or add it to a n exis t i ng proj e ct. Remembe r that the PM CS DDE
Server must be running before launching the wizard if it is to display real data.
Click the Large
Faceplate to open the
Tabular Data view.
Click the faceplate to
open th e Large
Faceplate view.
Click on the device’s display in the large faceplate wizard to open the Tabular data
screen wizard: Cl ick on the device icon in th e tabular wizard to return to the Large
Faceplate screen.
20 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
Sample Application
The scenario described in this section illustrates the integration and time-saving
benefi ts of the PMC S Advanced Wizards.
The Small Faceplate wizards are often used to create visually accurate
representations of physical equipment line-up. Each Small Faceplate has a one-to-
one relationship with not only the physical device, but also the Large
Faceplate/Tabular wizard for that device. Clicking the Small Faceplate wizard for a
particular device opens a unique Large Faceplate/Tabular wizard associated with the
same physical device. We'll call this a one-to-one relationship of Small Faceplate to
Large Faceplate/Tabular.
PMCS Adva nced Wizard s may be used in th e standard, one-to-one m an ner.
However, they also support many-to-one configuration. In this scenario, several
Small Faceplate wizards of the same device type may all refer to a single Large
Faceplate/Tabular wizard. When the user clicks a particular Small Faceplate wizard,
the unique device identity information associated with that wizard is passed to the
Large Faceplate/Tabular wizard, which displays the data for the requested device.
Thus, with a single Large Faceplate/Tabular wizard, all the devices of a given type
may be viewed. The user navigates from the overview to the elevation view, then
selects a small faceplate wizard to open the tabular screen. However, instead of
configuring many separate tabular screens, only one is required. Obviously, this
saves considerable configuration time, as well as saving substantial system memory
during runtime. The one drawback of the many-to-one configuration is that since the
Small Faceplates all share access to the same Large Faceplate/Tabular wizard, only
one device's data may be displayed at a time. To display a Large Faceplate/Tabular
screen for multi ple PMCS Advanced Wizar d s at on ce, they must be configur ed in the
one-to-one manner, sacrificing the configuration time and system memory savings.
In the following example, the application has an Intro screen, from which the user
can access either of two panel boards of equipment. Panel Board #1 is equipped with
three EPM 7300 devices, while Panel Board #2 is equipped with two EPM 7700
devices and a single EPM 7300 device. Each device has an individual Small
Faceplate Wizard, which provides access to the Large Faceplate/Tabular wizard.
With th is architecture, only one Large Fa cep late/Tabu lar wizar d mu st be configured
for ea ch d evi ce type. Each of the Small Fa cep late wizards has access t o the
appropriate Large Faceplate/Tabular wizard, and when a Small Faceplate wizard is
invoked, it passes its identity information to the Large Faceplate/Tabular wizard,
which displays the data corresponding to the device associated with the invoked
Small Faceplate wizard.
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 21
Intro
Screen
Panel
Boar
d #1
Panel
Boar
d #2
EPM 7300_1
Small Faceplate
EPM 7300_2
Small Faceplate
EPM 7300_3
Small Faceplate
EPM 7700_1
Small Faceplate
EPM 7700_2
Small Faceplate
EPM 7300_4
Small Faceplate
EPM 7300
Tabular/Large
Faceplate
EPM 7700
Me te ring
Screen
The details of configuring one-to-one or one-to-many are described in Small
Faceplate Configuration on page 24.
22 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
Small Faceplate Wizards
Usage
The Small Faceplate wizards are icon-sized graphics typically used to create accurate
elevation views and one-line diagrams. These wizards are provided with logic to
open another window, typically either a Large Faceplate/Tabular Data Screen
wizard. There are several directories of Small Faceplate wizards to choose from.
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 23
Small Faceplate Config uratio n
The Small Faceplate wizard for the PMCS Advanced Wizards offers additional
fun c tions beyond sim ply opening a designated wind ow. If you so c hoose , you may
configure a single Large Faceplate/Tabular wizard for each device type, regardless of
how many actual devices of that type are installed, and use multiple Small Faceplate
wizards to access data on each device. This feature operates by assigning an identity
to each Small Faceplate wizard, and passing this identity information to the Large
Faceplate/Tabular wizard when the Small Faceplate wizard is selected. The single
Large Faceplate/Tabular wizard opens, displaying the data for the selected device.
The many-to-one wizard configuration offers substantial configuration time savings
and mem ory saving s, esp ecially for the EPM 7700, where each Large
Faceplate/Tabular wizard actually consists of eight separate screens. A minor
drawback to this approach is that you may only display the Large Faceplate/Tabular
wizard for a single device at a time. To view data on a different Advanced Wizard
sharing this Larg e F aceplate/ Tabular screen, you must close th e Large
Faceplate/Tabular wizard and open it again through the desired device's Small
Faceplate wizard.
If you ch oos e to use this man y-t o-one technique, select the Advanced check box i n
the Wizard Configuration dialog, as shown in the following figure. If the Advanced
checkbox is not selected, the Small Faceplate wizard functions like any other Small
Faceplate wizard, simply opening the selected screen.
Selecting the OK button in the Screen To Open dialog box, with a device screen
selected and the Adva nced checkb ox s elected, d isplays th e Wizard Setu p dialog box
(shown below), prompting you to choose the identity of the device you wish to
associate with this Small Faceplate Wizard.
24 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
NOTE: If an advanced small faceplate wizard is configured to open a screen that
does not contain a gr aphics wizar d of the correct device t ype, a message similar to
the one below will appear and the screen will not be opened.
The displayed graphic resulted when an EPM7300 small faceplate was configured to
open a screen containing only an EPM 7700 device graphic wizard.
In th e Wizard setup di alog box, use the ellipsis buttons for the Device Name and
Trend Screen fiel d s to d isplay the s election dialogs for th ese items. Choose a Trend
Screen if desired, then use the Select a Device window (shown below) to associate
an individual device with the Small Faceplate wizard being configured. (The Device
ID, Resource and Description fields may be ignored; select the device from the list
box in the lower half of the window.)
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 25
Large Faceplate/Tabular Wizards
Usage
Large Faceplate/Tabular Data Screen wizards are three-dimensional representations
of device faceplates that can be used to display data from the device. These three-
dimensional wizards include extensive logic that provides an accurate reproduction
of the actual display and keys of the device. Large Faceplate wizards are typically
placed in overlay windows.
By clicking on the display of a Large Faceplate wizard, you can display a tabular
data s cr een portion of the wizard . Tabular Dat a Screen wizar ds contain or g an ized,
comprehensive, tabular layouts of device parameters including additional
configuration and remote control features. To make the Tabular Data Screen portion
of the wizard display by default, select the Tabular Datasheet checkbox in the
configuration window.
You can move and resize Tabular Data Screen wizards as desired.
Special Considerati o ns
The button controls on the 3-D representation emulate the controls of the actual
device. This may be useful for reducing software training time for personnel already
familiar with device operation.
Each Tabular Data Screen wizard contains buttons for activating the help file, trend
window, setup window (if applicable) Event Logger, Waveform Capture, and for
closing the window .
Depending on the device, there may be multiple file-tabs beneath the tabular data
section. These switch among various pages relating to data and setpoints.
The detailed features of each of the Tabular Data Screen wizards are described in the
section titled Features of Tabular Data Screen Wizards. The detailed features of
26 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
each of the Large Faceplate wizards are described in the section titled Features of
Large Faceplate Wizards.
Configuration
The PMC S A d vanced Wizard device types require s p ecial config uration for their
Large Faceplate/Tabular wizards. See the instructions provided in Configuring
PMCS Advanceds Wizards, earlier in this chapt er , and refer also to the Sample
Applica tion section, which provi d es an ex ample of Advanced Wizards in use.
A summary of the Large Faceplate/Tabular wizard configuration procedure is:
1. Config ure the Device P oi nts.
2. Stop an d r estart the project.
3. Config ure the Device G r aphics.
369 Motor Management Relay
The 369 wizard's Device Configuration dialog allows you to customize the
appearance of the wizard by selecting only those tabs that display data of interest to
you. For ex ample, if you a re not usin g optional Remot e RTD accessory units with
your 369 you can leave the RRTD tab de-selected. This results in fewer points in the
CIMPLICITY database, yielding better performance.
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 27
EPM 7700
The EPM 7700 Device Configuration dialog box is slightly different from the other
PMCS device types, containing two extra fi elds and req uiring min or di ff erences in
configuration. The Device Configuration dialog for the EPM 7700 is shown below,
followed by the special configuration requirements.
The Node Name field requires that you enter the name of the computer running the
Communications Server that connects to this particular device. Depending on the
configuration of the EPM 7700 network, this can be either the Primary node
comput er, or a comput er setup as a “Full Station ” S econdary node. Refer t o DE H-
40035, the GE 7700 Gateway Users Guide, and GEH -6514, PMCS Read This Book
First, for more information on network configuration. The Node Name fiel d is
requ ired because the EPM 7700 does not use th e same D DE s erver as the r es t of the
standard PMCS devices, and the wizard must be directed to the location of the
correct Communications Server for proper configuration of DDE topic names.
Also, the Application Name field must be completed as ION_LINK rather than
GE32MODB or GE32ENET for the EPM 7700 device. The ION LINK program is
installed during initial PMCS setup if the EPM 7700 software option is selected.
When configuring Wizards on Secondary nodes, the Application Name field entry
does not fol low the PM C S wi zard convention of “\\Rem ot eC om p uter\I ON _ LI N K ” .
EPM 7700 Secondary nodes run a local copy of the ION LINK server, thus the
application name for EPM 7700 Tabular Data Wizards is always “ION_LINK”
whether the wizar d is install ed on the Primary node or a Secondary node. The Nod e
Name entry determines if the wizard is on a Secondary node.
The Gateway Name field must be completed with GE77GTWY, the application
name of the GE 7700 Gateway Server program. When configuring the EPM 7700
Tabular wizard on a Secondary node, the Gateway Name does follow the PMCS
wizard convention of “\\RemoteComputer\GE77GTWY” in the Gateway Name field,
where ‘ Rem oteComput er’ is the name of the PC wher e the GE 7700 Gateway
application is running – the Primary Node. The following example shows a Device
Configuration Dialog box as it would appear when configuring a Tabular Data
wizard on a Secondary node. The Node Name field contains the name of the Primary
Node computer, the Application Name field is ION_LINK (as it is for ALL EPM
7700 wizards on ANY node) and the Gateway Name field points to the GE 7700
Gateway Server running on the Primary Node PC.
28 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
Refer to DEH-40035 for information on the Communications Server and 7700
Gateway Server.
Disabling Dynamic Redraw (369 and UR Tabular Wizards)
As described earlier, UR and 369 type devices are highly flexible, and are typically
redrawn on-the-fly by CIMPLICITY, rather than having a static set of tabs. For these
devices, Power Builder creates a blank "framework" wizard, with no pre-drawn tabs.
In CimEdit the wizard will show no tabs - the tabs will be dynamically redrawn
based on the physical device being accessed. For exam pl e, if you use different
models of the Universal Relay in your application, you might need to display a
unique set of tabs for each type of relay. Dynamic redraw permits you to use a single
tabular wizard to show any combination of tabs for any UR device.
If for some reason you do not want to have the screen redraw itself, simply
recon fi g ure the blan k fr amework wizard. In CimEd it, open the fr amework wiz ar d
screen for the UR or 36 9 devi ce. Righ t- click on the wizard grap h ic, and from the
contex tual menu di splayed, choose "Trig g er Smart Object," as shown in th e
followin g scr eenshot :
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 29
The W izar d S e tup dialog a ppears, pr ompting you to s elect a devi ce :
Click the Browse
button to browse a
list of configured
devices.
Click the Browse button (the ellipsis to the right of the Device Name field) to display
a list of the devices you' ve alrea dy configur ed :
30 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
Select a device from the displayed list an d cl ick OK, then cli ck O K a ga in to accept
the devi ce you've selected. Th e fol l owing message appears:
Choosing NO will ca u s e th e wi z ard to be redrawn once with the tabs specifi ed f or
the selected device. The wizard’s configuration is then fixed – it will function like a
conventional wizard, disp laying the configured tabs as soon as th e wi n d ow op ens,
without redrawing them. This way you can place one framework wizard into your
project for each distinct flavor of 369 or UR device type you intend to use. For
example, if you have two F60 UR devices, and a C30 UR device you could create
two different UR framework wizards. The two F60 UR's can share a wizard since
they display identical information. The C30 requires its own tabular wizard since its
tab panel displays will not match the F60s. Once the various unique tabular wizards
are created, modify the small faceplates created by Power Builder so that the small
faceplates point to the correct tabular wizard screen.
After generating the screens and updating the configuration, small faceplates can
then be t aken from the MainMenu. cim file and placed in other s creens such as
switchgear elevations. These Small Faceplates act as device-specific front ends or
links into the appropriate Tabular wizard screen. Each device you added with PMCS
Power Builder is represented by its own Small Faceplate, but each class of device
share a single Tabular wizard. In the sample application described earlier, five MVT
small faceplates are generated, but only a single MVT Tabular Wizard. When a
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 31
specific MVT small faceplate is selected at runtime, its identity information is passed
to the sh ared Tabular wizard, whi ch recognizes which device is bei ng selected and
displays the data for that individual device. This many-to-one sharing of Tabular
wizards provid e s a tremendous savi ngs of system resou rces and dra mati c a lly
increases perform ance. However, as has been discussed, the Universa l Relay an d 369
devices are highly flexible and may represent different models of physical devices,
so the Tabular Wizard must be dynamically redrawn based on the nature of the
selected device. This may result in momentary delays in the display of data as the
dy namic redra w oc curs.
You can still create individual device wizards independent of the many-to-one
archi tecture. Creating individual devi ce wizard s by dr opping a single wizard into a
project without the use of PMCS Power Builder allows you to avoid the dynamic
redraw case for UR and 369 device types, but requires additional system resources.
This tradeoff must be evaluated on a case-by-case basis depending on the nature of
the project being developed.
32 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
One-Line Wizards
Usage
You can us e one-lin e wiz ards to create animated one-line diagrams that r epresent an
electrical schematic of the devices monitored by the software. These wiz ar d s ar e
provided with logic to either open another window or display device status.
One-Line wizards are divided into five functional groups according to the type of
animation:
• Horizontal and Ver tical Met er wi zards display another window, such as
a 3-D faceplate.
• Transformer, Fuse, Ground Symbol, and M otor S ymbol wizards have a
discrete color-change animation indicating the On/Off state of the
device.
• Horizontal and Vertical Relay wizards also have discrete color-change
animation indicating the On/Off state of the device.
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 33
• Horizontal and Vertical Switch wizards have four discrete animations;
two are color changes indicating the On/Off state of the device and two
are used for a three-s tate displa y (Op en, Closed, and Error condition s ) .
• Circuit Breaker wizards have two discrete color-change animations for
On/Off status display and one analog animation for a five-state display
(Open, Closed, Out, Trip, and Error conditions).
Configuration
In d e velopme nt mode, drag the one-li ne icon from the symbols dialog to your
CimEdit screen. The wizard’s Control Properties dialog will open automatically.
The following s ub-sections describe t he cont rol properties dialog boxes f or th e
various types of one-line wizards. Complete the fields shown, then choose OK.
All one- line wizards have thr ee configuration item s in common:
• Line Width is a number that sets the pixel width of the lines in the
wizard.
• Size configuration consists of three radio buttons (Small, Medium,
and Large) that determ ine the overa ll size of the wi zard on the scr een.
• The browse buttons ("…") allow you to select an individual point for a
parti cular device from the Browsing Points window:
Use the snap-to-grid feature in CIMPLICITY to quickly align One-Line wizards.
34 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
Configuration of each of the five classes of One-Line wizards is described in the
Enter the name of the window to open
following section.
Meter One-Line Wizards
After placing a meter wizard in a window, double-click on it to display the dialog
box shown below. Configure the wizard by entering the appropriate information into
each of the boxes.
when the icon is clicked on during
runtime.
Select the line width and
size of the wizard.
Select the color of the meter
wizard.
Transformer, Fuse, Ground, and Motor One-Line
Wizards
After placing a Fuse, Ground, or Motor wizard in a window, double-click on it to
display the dialog box shown below. Configure the wizard by entering the
appr opr iate information into each of th e boxes.
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 35
Specify the colors of the lines when
Enter the name of the discrete tag that
determines the state of the line colors during
Specify the size of the
Click on the check
runtime.
the Bus Status is On and Off. The
wizard is displayed in the On Color
wizard to display, and the
line width.
when the Bus Status Tagname = 1,
Off Color when the Bus Status
Tagname = 0.
The dia log box for the Tr ansform er wizard has an extr a check box that specifies
either an air-cor e or iron-core tr ansformer , a s sh own bel o w.
box to specify an aircore transformer.
36 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
Horizontal and Vertical Relay One-Line Wizards
Enter the name of the discrete tag
Click the check box to
Enter the name of the discrete tag that determines
Specify the colors of the
Enter the name of the discrete tag
After placing a Horizontal or Vertical Relay wizard in a window, double-click on it
to display the dialog box shown belo w. Con figure the wizar d by entering the
appr opr iate information into each of th e boxes.
the color of the line to the left (or bottom) of the
that determines the color of the line
to the right (or top) of the relay
symbol during runtime.
relay symbol during runtime.
display a slash through the
contacts (normally closed
contact).
that determines the color of the
relay symbol during runtime.
wizard elements when the
contact status and
connection discrete tags are
On or Off.
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 37
Horizontal and Vertical Switch One-Line Wizards
Enter the name of the discrete tag that
Enter the names of the discrete
Specify the colors of the wizard elements when the
Enter the name of the discrete tag that
SwOpen SwClosed Color
After placing a Horizontal or Vertical Switch wizard in a window, double-click on it
to display the dialog box shown belo w. Con figure the wizar d by entering the
appr opr iate information into each of th e boxes.
determines the color of the line to the left (or
determines the color of the line to the right
(or top) of the switch symbol during
runtime.
bottom) of the switch symbol during runtime.
tags that determine the state of the
switch during runtime.
connection and switch discrete tags are On and Off
and when there is an Error condition. The switch
symbol color is determined by the following logic:
0 0 error
0 1 on
1 0 off
1 1 error
38 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
Circuit Breaker One-Line Wizards
Enter text to display next to the breaker graphic
Enter the name of the discrete tag that determines
Enter the name of the discrete tag that
Specify the colors of the wizard
Enter the name of the analog tag
After placing a Horizontal or Vertical Circuit Breaker wizard in a window, doublecli c k on it to disp l ay the dialog box shown belo w. Con figure the wizard by ente ring
the appropriate information into each of the boxes.
determines the color of the line to the left (or
bottom) of the breaker symbol during runtime.
during runtime (optional).
the color of the line to the right (or top) of the breaker
symbol during runtime.
that determines the color of the
circuit breaker symbol, the state of
the breaker, and the status text
displayed next to the breaker icon
during runtime.
elements and status text for the
breaker states during runtime. See
the table below for default status/
color mappings.
The breaker status values and the associated default colors are listed in the table
below. Error status indicates that the breaker status inputs create an indeterminate
state for the breaker.
Breaker Status Value T ext Default Color
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 39
Open 1 OPN Green
Closed 3 CLD Red
Drawn Out 5 OUT Green
Tripped 7 TRP Yellow
Error 9 ERR Flashing Red
Breaker status val ues & displa y colors .
Elevation Wizards
Usage
Elevation wizards are graphical elements that represent switchgear components
useful for creating 3-D elevation views. These wizards are not associated with any
logic or animati on , bu t are provided to create m ore vi s u ally accurate screens and
representations of equipment. Device icon wizards are typically placed on the
Elevation wizards to show the breakers, trip units, and meters and provide navigation
to device 3-D wizards, tabular displays, or arbitrary windows.
Configuration
After placing an Elevation wizard in an open window, it may be moved or resized,
but no other configuration is possible. Elevation wizards are not provided with logic
for opening another window.
40 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
Floor Plan Wizards
Usage
Floor Plan wizar d s are graphical element s that are useful for creating accurat e
representations of a facility layout. You can use a floor layout as an overview display
of an entire plant, with animated areas for navigation to various switchgear elevation
views or one-line diagrams. You can paste miniature elevation views as bitmap
objects onto the floor layout, sized to fit, and then animate them as push buttons to
display elevation views or one-line diagrams (see Chapter 3).
Configuration
After placing a Floor Plan wizard in an open window, it may be moved or resized,
but no other configuration is possible. Floor Plan wizards are not provided with logic
for opening another window.
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 41
Annunciator Panel Wizard
Usage
The Annunciator Panel wizard provides an industrial-style annunciator display panel,
consisting of a bank of 48 indicator lights which change colors and blink to indicate
various device conditions. For instance, a circuit breaker could be associated with an
annunciator pan el wizard to display grey wh en closed and change to red if it trips.
This wizard requires the PMCS Event Logger software to be installed and properly
configu red before it can be used, beca u s e i t operat es b y monitoring special DD E tags
which ch ange state ba sed on alarms or events recorded by th e Event Logger.
The panel consists of an array of 48 buttons (six columns by eight rows), each of
which may be labeled with up to three lines of text, and each of which is associated
with a particular device (topic) at the PMCS DDE Server.
The annunciator panel wizard provides buttons for acknowledging alarms, resetting
acknowledged alarms, and for viewing an alarm summary via the PMCS Event
Logger.
Annunciator Panel Theory of Operation
The Annunciator Panel wizard provides a screen full of indicator tiles, each relating
to a particular device, event, or group of events. These tiles are displayed in different
colors to indicate different alarm conditions. The Annunciator Panel wizard monitors
selected DDE items in the Event Logger and responds to changes of state in these
items by changing the colors of individual indicator tiles. For example, you might
configu re a relay trip event to have a tile in the Annunciator Panel wizard. The
wizard monitors a DDE tag at the Event Logger corresponding to the trip status of
the rel ay and displays a grey indicator if th e relay is operating proper ly, and a red
indicator if the relay has tripped.
42 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
From the Event Logger’s perspective, there are two parts to configuring the
Annunciator Panel. First, each DDE Item that will be displayed on the Annunciator
Panel wizard must be added (using the Add Items dialog). For the example we’re
discussing, we’ll assume you’ve created a DDE Item named Trip1. Each DDE item
will connect to an individual tile in the Annunciator Panel wizard.
The second part consists of defining events which will turn individual DDE items
ON or OFF. Each DDE item (or Annunciator Panel tile) can be turned on or off by
any number of device events you define. Th e events are logi cally ORed toget her to
determine ON or OFF condi tions; i.e., if any of the events occurs, the DDE item is
ON; if none of the events have occurred, the DDE item remains OFF.
We’ll continue the relay exam p le we began above. For example, you might
configu re the Trip1 DDE Item to be ON i f any of the followi ng event s occurs: th e
relay is tripped, or the relay reports an error condition, or the relay senses an
overvoltage condition. The Annunciator Panel wizard displays a grey indicator tile
for the relay for as long as the DDE item remains in the OFF condition. If the
Annunciator Panel wizard sees the DDE Item change from OFF to ON, it reacts by
changing the indicator tile from grey to red. The Event Logger Annunciator Panel
logic will also change the state of a DDE Item in response to actions performed at
the Annunciator Panel Wizard. The user can both acknowledge and reset individual
Annunciator DDE Items. The following diagram shows the relationship of the
Annunciator Panel wizard, the Event Logger, and the PMCS DDE Server.
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 43
44 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
Annunciator Panel Wizard
Relay 1
(green)
Relay 2
(green)
Relay 3
(green)
PMCS
DDE Serv
er
Annunciator Panel Wizard monitors DDE Items at Event Logger
Event Logger
tracks eve
nts
reported by
PMCS
DDE
Server
Annunciator Panel Wizard
Relay 1
(red )
Relay 2
(green)
Relay 3
(green)
Event Logger
PMCS
DDE Serv
er
Annunciator Panel Wizard monitors DDE Items at Event Logger
Event Logger
tracks eve
nts
reported by
PMCS
DDE
Server
Event Logger
DDE Item Name: Trip1
Status:
OFF
Configured Events
Received
Relay Tripped?
NO
Error Condition?
NO
Overvoltage Condition?
NO
Relay 1
Relay 2
Relay 3
Relay 1
Relay 2
Relay 3
DDE Item Name: Trip1
Status:
ON
Configured Events
Received
Relay Tripped?
YESError Condition?
NO
Overvoltage Condition?
NO
In the upper illustration, the Event Logger watches for any of the three events
configured to cause a change of state to the Trip 1 DDE Item. None of these three
events have occurr ed , so the sta t u s of the Tri p 1 DDE Item is at OFF. The
Annunciator Panel wizard is monitoring the configured DDE Items at the Event
Logger, but all DDE Items are “OFF” so the Annunci ator Pa n el displays green
indicator tiles.
In the lower illustration, the Event Logger has recorded a “Trip” event for the unit in
question, and changed the state of the Trip 1 DDE Item to “ON”. The Annunciator
Panel wizard sees this change, and responds b y ch anging the color of the ann unciator
panel tile for Relay 1 to red.
Each "Alarm indicator" as defined by the Event Logger will appear to CIMPLICITY
as a DDE Integer item which can have the following values/states:
State Tag
Value
Normal (no alarm) 10 - 19 Solid Gray
Alarm Active - Unacknowledged 20 - 29 Red Blinking
Alarm Active - Acknowledged 30 - 39 Solid Red
Alarm Reset - Unacknowledged
(alarm occurred but later went off before being
acknowledged)
Alarm Disable d
(Eve nt Logger has dis abled this alarm indicator)
40 - 49 Solid Yellow
0 Dark Gray
Default
Color
Each panel button displays one of five different colors, based on the states defined
above. A fill color animation link controlled by an indirect integer tag is used to
change colors. The fill color link is set as follows:
<= 9: Dark Grey
10 -> 19: Grey
20-> 29: Grey (will also have a flashing Red animation link)
30 -> 39: Red
>= 40: Yellow
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 45
Confi guration
Note: Prior to configuring an Annunciator Panel Wizard, you should have completed
configuration of the Annunciator Panel Items at the PMCS Event Logger. Refer to
GEH-6512, PMCS Event Logger Users Guide, for details.
Using PMCS Power Builder, add an Annunciator Panel device to your CIMPLICITY
project by selecting Annunciator Panel in the Device Configuration dialog. The
Device Configuration dialog box expands to display additional options specific to the
Annunciator Panel:
Complete the Device Name, Description, and Application Name fields as desired,
then configure the indicators of the Annuciator Panel with the desired text display.
Clicking on any of the 48 indicators at the bottom of the Device Configuration dialog
displays the Annunciator Panel Configuration dialog box:
46 • Configuring and Using PMCS Wizards PMCS Interface Toolkit
Enter up to three lines of text that you wish to display on the selected Annunciator
Panel indicator. Complete the Event Item field with the DDE Event code that
triggers this indicator. Finally, select Done to close this dialog box.
As each annunciator panel button is labeled, the Annunciator Panel Dialog reflects
these cha nges by showing th e Row/Colu mn coordinates of th e labeled buttons. F or
example, R1C1 indicates that the indicator button in Row 1, Column 1 has been
configured.
After con figur i ng each of the i ndicator panes, c hoose OK i n th e De vice
Configuration dialog box. When you close this dialog box, CIMPLICITY
automatically creates virtual points for each panel button. These tags are named
xxx_R1C1 through xxx_R8C6, where xxx is the name assigned to the wizard (for
example, Panel1), and R1C1 indicates the row and column position on the
annunciator panel.
You may now drop the Annunciator Panel wizard itself into a new screen in your
project. Dropping the Annunciator Panel wizard displays the following configuration
dialog box:
In th e Ann unciator Panel Name fiel d, select the device name you enter ed in the
Device Configuration window.
In the Individual Cell Color Values panel, assign colors to each of the annunciator
indicator conditions by clicking in each radio button (Disabled, Alarm Off, Alarm
On, et c) an d ch oosi ng the desired color for each from the color pull d own menu.
Selecting the Alarm On radio button enables the Flashing checkbox. You may select
this checkbox to make the indicator flash during an Alarm On condition.
When you have configured the Col ors for the sel ected Annunciator Panel, choose
OK to final ize th e W izard be ing droppe d into your project.
At run-time, CIMPLICITY will receive DD E data fr om the Event Logger which will
control the color s of all indicat ors that have be en configured proper ly.
PMCS Interface Toolkit Configuring and Using PMCS Wizards • 47
Creating Floor Plans, Elevation Views, and One-Line Diagrams
Introduction
This section illustrates how to use the GE wizards described earlier to create
animated displays of the facility floor plan, switchgear elevations, and system oneline diagrams. These examples are typical, but are not intended to display the limits
of creative system design.
Elevation Views
Elevation views of switchgear and switchboards are typically created first, because
miniature bitmaps of the elevations can be conveniently placed in floor plans as
navigation items.
To build an elevation view, place GE Elevation and Small Faceplate wizards into the
window, as follows:
1. Place the appropriate cabinet.
2. Place panels onto the cabinet.
3. Add namep lates, lo u vers, handles, and fas tene rs to create the desired le vel of
detail.
4. Place GE Small Facep late wizards representing the com p onents in stalled in the
equipment on top of the elevation wizards, as shown in the figure on the
following page.
5. Config ure each of the Small Facep late wizard s to open a window con taining an
appropriate Large Faceplate or Tabular Data Screen for the device.
PMCS Interface Toolkit Creating Floor Plans, Elevation Views, and One-Line Diagrams • 49
6. You can add additional navigation buttons (using standard CIMPLICITY
controls) to open windows containing one-line views or other information.
7. If the switchgear shown in the elevation view is fed from or feeds another
lineup, you can add buttons to navigate to elevation views representing those
lineups.
50 • Creating Floor Plans, Elevation Views, and One-Line Diagrams PMCS Interface Toolkit
Floor Plans
A floor plan should be a recognizable overhead representation of a facility. These
windows are built using the GE Floor Plan wizards. They can be made as detailed or
as simple as desired. The example below shows an overview of a facility, showing
all of the areas cont aining equi p ment.
You can link each of these areas in the main window to a more detailed window by
adding a labele d navigation button (using standard CIMPLICITY controls ) that is
configured to show that window. In this way, you can provide paths to move up and
down through a complete floor plan hierarchy.
Floor plans may be as detailed as you desire and may include miniature bitmaps of
equipment elevations. The procedure for creating a miniature bitmap in a floor plan
view is as follows:
1. In the floor plan window, use the toolbox to create a bitmap object with the
desired size of the miniature switchgear.
2. Switch to the desired elevation window, and select and copy the elevation view.
3. Swit c h back to the floor plan window.
4. In the floor plan window, use the Paste Bitmap command to insert the elevation
view into the bitmap object.
5. Double-click on the miniature elevation bitmap to configure a link to the full-
sized elevation view window.
6. You can add additional buttons, using standard CIMPLICITY controls, to
navigate to windows containing one-line views of the switchgear or other
information.
PMCS Interface Toolkit Creating Floor Plans, Elevation Views, and One-Line Diagrams • 51
Electrical One-Line Diagrams
One-line diagra ms are built by pl acing and linking circu it elements using th e On eLine wizards, then creating scripts to provide animation for those wizards whose
status can be determined or controlled, such as breakers and switches.
A one-line diagram is drawn by placing GE One-Line wizards into a window. All
animated One-Line wizards ha ve at least on e di s crete tag t o i n di cate the status of the
bus feed to the device, while oth ers may have tag s for in and out conn ections an d for
device status. If you do not require animation, link the wizard’s discrete tags to a
constant tag with a value of tr u e.
After configuring Horizontal or Vertical Bus wizards, several objects can be selected
and grouped together.
When a one-line diagram is too large to comfortably fit into a single window, place
navig a tion buttons with links to other wind ows near each bu s line that continues t o
another screen. This allows intuitive navigation up and down a distribution system
hierarchy.
To accurately animate your one-line diagram once all the graphics are in place,
condition scripts must be written with the logic for the distribution system. See the
CIMPLICITY documentation for details of the scripting language. The following
example shows a simple double-ended substation with a tie breaker and the scripting
that animates it.
An example of the scripting for th is one-line diagram is shown in the following
pages:
52 • Creating Floor Plans, Elevation Views, and One-Line Diagrams PMCS Interface Toolkit
Sub Main()
Dim Brkr1S As New Point
Dim Brkr2S As New Point
Dim Brkr3S As New Point
Dim Brkr4S As New Point
Dim Brkr5S As New Point
Dim Brkr6S As New Point
Brkr1S.id = "BRKR1_S"
Brkr2S.id = "BRKR2_S"
Brkr3S.id = "BRKR3_S"
Brkr4S.id = "BRKR4_S"
Brkr5S.id = "BRKR5_S"
Brkr6S.id = "BRKR6_S"
Brkr1S.get
Brkr2S.get
Brkr3S.get
Brkr4S.get
Brkr5S.get
Brkr6S.get
Dim brk1 As Boolean
Dim brk2 As Boolean
Dim brk3 As Boolean
Dim brk4 As Boolean
Dim brk5 As Boolean
Dim brk6 As Boolean
brk1 = false
brk2 = false
brk3 = false
brk4 = false
brk5 = false
brk6 = false
If (Brkr1S.value = 3) Then
PMCS Interface Toolkit Creating Floor Plans, Elevation Views, and One-Line Diagrams • 53
brk1 = true
End If
If (Brkr2S.value = 3) Then
brk2 = true
End If
If (Brkr3S.value = 3) Then
brk3 = true
End If
If (Brkr4S.value = 3) Then
brk4 = true
End If
If (Brkr5S.value = 3) Then
brk5 = true
End If
If (Brkr6S.value = 3) Then
brk6 = true
End If
Dim Bus1 As New Point
Dim Bus2 As New Point
Dim Bus3 As New Point
Dim Bus4 As New Point
Dim Bus5 As New Point
Dim Bus6 As New Point
Dim Bus7 As New Point
Bus1.id = "BUS1"
Bus2.id = "BUS2"
Bus3.id = "BUS3"
Bus4.id = "BUS4"
Bus5.id = "BUS5"
Bus6.id = "BUS6"
Bus7.id = "BUS7"
Bus1.Get
Bus2.Get
Bus3.Get
Bus4.Get
Bus5.Get
54 • Creating Floor Plans, Elevation Views, and One-Line Diagrams PMCS Interface Toolkit
Bus6.Get
Bus7.Get
Dim Change3 As Boolean
Dim Change4 As Boolean
Dim Change5 As Boolean
Dim Change6 As Boolean
Dim Change7 As Boolean
If ((Bus1.value) And (brk1)) Then
Bus3.value = 1
Change3 = 1
ElseIf (Not Change3) Then
Bus3.value = 0
End If
If ((Bus2.value) And (brk2)) Then
Bus5.value = 1
Change5 = 1
ElseIf (Not Change5) Then
Bus5.value = 0
End If
If ((Bus3.value) And (brk3)) Then
Bus4.value = 1
Change4 = 1
ElseIf (Not Change4) Then
Bus4.value = 0
End If
If ((Bus4.value) And (brk4)) Then
Bus5.value = 1
Change5 = 1
ElseIf (Not Change5) Then
Bus5.value = 0
End If
If ((Bus3.value) And (brk5)) Then
Bus6.value = 1
PMCS Interface Toolkit Creating Floor Plans, Elevation Views, and One-Line Diagrams • 55
Change6 = 1
ElseIf (Not Change6) Then
Bus6.value = 0
End If
If ((Bus5.value) And (brk6)) Then
Bus7.value = 1
Change7 = 1
ElseIf (Not Change7) Then
Bus7.value = 0
End If
If ((Bus7.value) And (brk6)) Then
Bus5.value = 1
Change5 = 1
ElseIf (Not Change5) Then
Bus5.value = 0
End If
If ((Bus6.value) And (brk5)) Then
Bus3.value = 1
Change3 = 1
ElseIf (Not Change3) Then
Bus3.value = 0
End If
If ((Bus5.value) And (brk4)) Then
Bus4.value = 1
Change4 = 1
ElseIf (Not Change4) Then
Bus4.value = 0
End If
If ((Bus4.value) And (brk3)) Then
Bus3.value = 1
Change3 = 1
ElseIf (Not Change3) Then
Bus3.value = 0
56 • Creating Floor Plans, Elevation Views, and One-Line Diagrams PMCS Interface Toolkit
End If
Bus3.Set
Bus4.Set
Bus5.Set
Bus6.Set
Bus7.Set
End Sub
PMCS Interface Toolkit Creating Floor Plans, Elevation Views, and One-Line Diagrams • 57
(This page left blank intentionally.)
58 • Creating Floor Plans, Elevation Views, and One-Line Diagrams PMCS Interface Toolkit
Sample Application
Intro
Screen
Panelboard
Elevation View
PQM
Small Faceplate
Trip U n it 1
Small Faceplate
Trip U n it 2
Small Faceplate
Trip U n it 3
Small Faceplate
Trip U n it 4
Small Faceplate
PQM
Faceplate
PQM
Tabular
Trip U n it
Faceplate
Trip U n it
Tabular
Creating a basic interface
We’ve lea rned about the various p arts and pieces of the Int er face Toolkit; now let’s
put it to work.
Suppose we have a very basic power management system installed at our corporate
home office. The system consists of four trip units and a PQM (Power Quality
Meter). We’d like to set up a computer in the front office to provide a front end to
this system, allowing us to monitor all these devices at one station without having to
walk back to the indivi dual devices on th e plant fl oor.
We plan the application on paper first so that we know how many screens to create
and what each screen will look like. This will help us save time when in
development by pr ovid ing a star ting point and a map of what we’re trying to create.
This ‘storyboard’ for our applic ation looks something like th is:
As shown above, for this basic application, we’ll need four screens — an
introdu c tion s c reen, a shot of the panelboard showin g all fi ve of our power
management devices, and then a large faceplate/tabular screen for each type of
device, one for the PQM, and another for the trip units. We’ll link the Large
Faceplate/Tabular screen for each unit to the Small Faceplate wizard shown on the
Panel board screen, and, from the Large Facep late, we can click on the d evi ce’ s
display to jump to the Tabular data screen for that device. To make it easier to
PMCS Interface Toolkit Sample Application • 59
navigate the screens, we’ll create extra buttons on the bottom of the Faceplate and
Tabular screens that will jump back to the Panelboard screen.
With our plan in hand, and after completing the installation procedures described in
Chapter 1, we’re ready to begin development.
Launch CIMPLICITY and create a new project file as described in Chapter 2. Use
the PMC S P ower Builder to create 5 new devi ces in your project:
PQM Device type = MLPQM
Trip1 Device type = EMVTC
Trip2 Device type = EMVTC
Trip3 Device type = EMVTC
Trip4 Device type = EMVTC
Click the “Generat e S creens” button and let PowerBuild er create the device screen s .
When Power Bu ilder is finished your project con tains thr ee windows:
MainMenu.cim – contains all the small faceplates for the project
wzEMVTC-D.cim – Trip Unit Faceplate/Tabular wizard
wzMLPQM.cim – PQM Faceplate/Tabular wizard
Rename the "MainMenu.cim" screen "Panelboard". Add a new window called "Main
Screen", and use the CIMPLICITY tools to sketch a floorplan of the facility, as
shown below:
In th e Manufacturing Floor area, create a button labeled " C lick here to begin…," and
give it an animation link to the screen named Panelboard.
Open the Panelboard screen. Use the PMCS Elevation wizards to add a mock-up of
the panelboard, then move the existing Small Faceplate wizards to populate the
panelboard with our PQM meter and th e four trip uni t s. The Pan elboard screen
should look like t his:
60 • Sample Application PM CS Interface Toolkit
We’ll include a note about the panelboard’s location, describing where to find the
real panel, and also a note of instruction: "Click a device to see the large faceplate
screen."
Now we’ll configure some navigation buttons to enable the user to return to the
previous window. Select the "wzMLPQM.cim" window, then use CIMPLICITY’s
tools to create two new buttons, "HOME" and "Go back to Panel." Modify the button
properties to tie these buttons to the Main Screen and Panelboard windows,
respectively. The screen should look similar to the following:
Add simil a r navigation buttons t o the "wz EMVTC -D.cim " window, and you’r e
done. We’ve just developed a PMCS application using the GE CIMPLICITY HMI
PowerBuilder and Wizards.
Note: If the you prefer to use screen names other than the default provided by PMCS
PowerBuilder, simply open the screen in CimEdit and save it under a different name.
PMCS Interface Toolkit Sample Application • 61
For our sample project, you could save the default "wzMLPQM.cim" screen as
"PQM". Then open the Panelboard screen and reconfigure the PQM small faceplate
to open the new "PQM" screen instead of the "wzMLPQM" screen. Finally, delete
the "wzMLPQM" screen from the project. You can modify any of the PMCS
PowerBuilder generated screens as your application requires.
62 • Sample Application PM CS Interface Toolkit
Features of GE Large Faceplate Wizards
About the Large Faceplate Wizards
This chapter contains descriptions of the functions available with each of the GE
Large Faceplate wizards. While a majority of the most popular data available at each
device have been made available in the Wizards, some functions available with the
actual devices are not provided in the Large Faceplate representations, such as the
following:
• Test Mode or Simulation Mode on some devices is not fully supported
• Details on status/alarm/trips other than the information displayed by the
front LEDs and a brief text message (see Tabular Data Screens for
detailed status/alarm/trip information)
• Any flashing status messages which may be produced by a device
• Some actual values are not displayed on the Large Faceplate Wizard,
but ca n be found on T abular Data Scree n Wizards
Users should be aware that not all values displayed by the GE Large Faceplate
Wizards are automatically updated. Also, some rapidly changing values, especially
those requiring calculation, cannot be displayed as rapidly on the wizard as on the
actual device’s screen.
For a more detailed description of the functions of a device, see the user’s guide for
that d evice.
PMCS Interface Toolkit Features of GE Large Faceplate Wizards • 63
POWER LEADER EPM
The large faceplate representation of the POWER LEADER EPM provides the
following animated functions:
Click on... Funct ion
Display Window Clicking on the display area opens the tabular data window
specified during wizard configuration and sets the view to
the Normal Metering page.
GE Logo
SELECT/ENTER
Button
SCROLL Buttons
Table 1. PLEPM Faceplate animated functions.
Clicking the GE logo opens the tabular data window
specified during wizard configuration and sets the view to
the S etup page.
Toggles the display between the normal and alternate lists
of metering parameters.
Loop through all metered parameters for the current mode,
displaying two values at a time. The down arrow scrolls
down through t h e para me ter list, with the new valu e
appearing on the lower line of the display. The up arrow
scrolls u p through the parameter list with th e new valu e
app earin g on the display’s upper line. Dependi ng on
whether the E PM has bee n configur ed as a Del ta or Wye
device, certain paramet ers display either line-to-line or
line-to-neutral values.
The electrical p ar ameters and status in formation displayed by the EPM are list ed in
the fo llowing table s for bo th the no r mal and alternate scrolls. No te that the display ed
64 • Features of GE Large Faceplate Wizards PMCS Interface Toolkit
parameters differ depending on whether the EPM is configured as Wye or Delta.
Please note that the Normal Scroll Delta and Alternate Scroll Delta list s contain
several paramet ers marked with an asteri s k ; these param eters were in cluded in th e
wizard for programming reasons, but are not valid for Delta configurations and
should not be used.
Normal Scroll, Wye Normal Scroll, Del t a
Current, RMS Phase A Current, Phase A
Current, RMS Phase B Current, Phase B
Current, RMS Phase C Current, Phase C
Current, RMS Neutral Current, RMS Neutral *
Voltage, RMS Phase A–N Voltage, RMS Phase A–N *
Voltage, RMS Phase B–N Voltage, RMS Phase B–N *
Voltage, RMS Phase C–N Voltage, RMS Phase C–N *
Voltage, RMS Phase A–B Voltage, RMS Phase A–B
Voltage, RMS Phase B–C Voltage, RMS Phase B–C
Voltage, RMS Phase C–A Voltage, RMS Phase C–A
Watts, Phase A Watts, Phase A–B
Watts, Phase B Watts, Phase B–C
Watts, Phas e C Watts, Total
Watts, Total Watts, Demand
Watts, Demand Watts, Peak Demand
Watts, Peak D emand Vars, Phase A–B
Vars, Phase A Vars, Phase B–C
Vars, Phase B Va rs, Tota l
Vars, Phase C Volt-amperes, Phase A–B
Vars, Total Volt-amperes, Phase B–C
Volt-amperes, Phase A Volt-amperes, Total
Volt-amperes, Phase B Power Factor, Total
Volt-amperes, Phase C Watthours, Total
Volt-amperes, Total Varhours, Total Lag (+)
Power Factor, Total Varhours, Total Lead (–)
Watthours, Total Volt-ampere-hours, Total
Varhours, Total Lag (+) Frequency, in hertz
Varhours, Total Lead (–)
Volt-ampere-hours, Total
Frequency, in hertz
PMCS Interface Toolkit Features of GE Large Faceplate Wizards • 65
Alternate Scroll, Wye Alternate Scroll, Delta
Curr ent, Ph ase A Demand Current, Phase A Dem and
Curr ent, Ph ase A Peak De ma nd Curr ent, Ph ase A Peak De ma nd
Curr ent, Ph ase B Deman d Current, Phas e B De m and *
Curr ent, Ph ase B Peak Demand Curr ent, Ph ase B Peak Demand *
Curr ent, Ph ase C Deman d Current, Phas e C De m and
Curr ent, Ph ase C Peak Demand Curr ent, Ph ase C Peak Demand
Watts Demand at Peak VA Demand Watts Demand at Peak VA Demand
Vars, Demand Lag (+) Vars, Demand Lag (+)
Vars, Demand Lead (–) Vars, Demand Lead (–)
Vars, Peak Demand Lag (+) Vars, Peak Demand Lag (+)
Vars, Peak Demand Lead (–) Vars, Peak Demand Lead (–)
Volt-amperes, De mand Volt -a mp e res, De mand
Volt-amperes, Peak Demand Volt-amperes, Peak Demand
Q-hours, Total Q-hours, Total
Power Factor, Phase A Power Factor, Phase A–B
Power Factor, Phase B Power Factor, Phase B–C
Power Factor, Phase C Power Factor, Average Since Reset
Power Factor, Average Since Reset Power Factor, Demand Average
Power Factor, Demand Average Power Factor at Peak VA Demand
Power Factor at Peak VA Deman d Number of Demand Resets
Number of Deman d Rese ts Time Left in Demand Subint er val
Time Left in D emand Subinterval Nu m ber of Pow er Out ages
Numb er of Power Outa ges P otential Transformer Ratio
Potential Transformer Ratio Current Transformer Ratio
Curren t Transformer Rati o
66 • Features of GE Large Faceplate Wizards PMCS Interface Toolkit
Spectra MicroVersaTrip® Trip Unit
The large faceplate representation of the Spectra MicroVersaTrip® trip unit provides
the foll o wing anim ated functi ons:
Click on... Function
Display
Window
FUNCTION
Button
ENTER Button Opens the tabular data window specified during wizard
VALUE Button Changes phases i n approp riate mod es, dependi ng on
SELECT
Button
Opens the tabular data window specified during wizard
configuration and sets the view to the Normal Monitoring
page.
Opens the tabular data window specified during wizard
configuration and sets the view to the Setup page.
configuration and sets the view to the Setup page.
whether the device has been configured as Wye or Delta
Phase is indicated by letters in the upper right of the
display; press VALUE to display a different phase.
Rota tes among six different modes, as shown in the lowe r
left of the display, with units in the lower right.
Table 2. Spectra MVT Faceplate animated functions.
The metering modes available with the SELECT button are as follows:
Mode Description
AMPS Current, with no label in the units area of the display. Phase shifting in both
Delta and Wye configurations.
VOLTS
ENGY Energy, displayed in kWh; no phase shifting.
PWR Real power indicated by non-blinking units symbol (kW). Apparent power
FREQ Frequency, displayed in Hz. Phase shifting in both Delta and Wye
PMCS Interface Toolkit Features of GE Large Faceplate Wizards • 67
Voltage, displayed as line-to-line (V
for Wye. Phase shifting in both configurations.
indicated by blinking units symbol. Phase shifting in Wye configuration.
configurations.
) for Delta and line-to-neutral (VL-N)
L-L
Enhanced MicroVersaTrip PM-C Trip Unit
The large faceplate representation of the Enhanced MicroVersaTrip-C trip unit
provides the following animated functions:
Click on ... Function
Display
Window
FUNCTION
Button
ENTER Button
BATTERY
Button
VALUE Button
SELECT
Button
Opens the tabular data window specified during wizard
configuration and sets the view to the Monitoring page.
Opens the tabular data window specified during wizard
configuration and sets the view to the Setup page.
Opens the tabular data window specified during wizard
configuration and sets the view to the Setup page.
Opens the tabular data window specified during wizard
configuration and sets the view to the Setup page.
Changes ph ases in appropriate modes, dependi ng on
whether the device has been configured as Wye or Delta,
Phase is indicated by numbers in the upper right of the
display; press VALUE to display a different phase.
Rotates among eight different modes, as shown in the lower
left of the display, with units in the lower right.
Table 3. EMVT-C Faceplate animated functions.
68 • Features of GE Large Faceplate Wizards PMCS Interface Toolkit
The EMVT-C’s metering modes available with the SELECT button are as follows:
Mode Description
AMPS
VOLTS
kWh Energy; no phase shifting.
kW Real power; no phase shifting.
kVA Apparent power; no phase shifting.
Demand
FREQ
Current, with no label in the units area of the display. Phase shifting
in both Delta and Wye configurations.
Voltage, displayed as line-to-line (Ph-Ph) for D e lta and l ine-t oneutral (Ph-N) for Wye. Phases shown as 01, 02, or 03 for Wye and
01 02 , 0 1 03, or 02 03 for Delta.
Power demand, displayed with steady kW symbol. Peak power
demand, displayed with blinking kW symbol. No phase shifting.
Frequency, displayed in Hz. Phase shifting in both Delta and Wye
configurations.
PMCS Interface Toolkit Features of GE Large Faceplate Wizards • 69
Enhanced MicroVersaTrip PM-D Trip Unit
The large faceplate representation of the Enhanced MicroVersaTrip-D trip unit
provides the following animated functions:
Feature Function
Display
Window
FUNCTION
Button
ENTER Button
BATTERY
Button
VALUE Button
SELECT
Button
Opens the tabular data window specified during wizard
configuration and sets the view to the Monitoring page.
Opens the tabular data window specified during wizard
configuration and sets the view to the Setup page.
Opens the tabular data window specified during wizard
configuration and sets the view to the Setup page.
Opens the tabular data window specified during wizard
configuration and sets the view to the Setup page.
Changes ph ases in appropriate modes, dependi ng on whether
the d evice has been configured as Wye or Delta Ph ase is
indicated by numbers in the upper right of the display; press
VALUE to display a different phase.
Rotates among eight different modes, as shown in the lower
left of the display, with units in the lower right.
Table 4. EMVT-D Faceplate animated functions.
70 • Features of GE Large Faceplate Wizards PMCS Interface Toolkit
The metering modes available with the SELECT button are as follows:
Mode Description
AMPS Current, with no label in the units area of the display. Phase
shifting in both Delta and Wye configurations.
VOLTS Voltage, displayed as line-to-line (Ph-Ph) for D e lta and l ine-t o-
neutral (Ph-N) for Wye. Phases shown as 01, 02, or 03 for Wye
and 01 02, 01 03, or 02 03 for delta.
kWh Energy; no phase shifting.
kW Real power; no phase shifting.
kVA Apparent power; no phase shifting.
Demand
FREQ Frequency, displayed in Hz. Phase shifting in both Delta and
Power demand, displayed with steady kW symbol. Peak power
demand, displayed with blinking kW symbol. No phase shifting.
Wye configurations.
PMCS Interface Toolkit Features of GE Large Faceplate Wizards • 71
POWER LEADER™ Meter
The large faceplate representation of the POWER LEADER Meter provides the
following animated functions:
Feature Function
Display Window Opens the tabular data window specified during wizard
configuration and sets the view to the Monitoring page.
GE Logo Opens the tabular data window specified during wizard
configuration and sets the view to the Setup page.
RESET/ENTER
Button
PHASE Button Rotates among phase readings for appropriate modes, indicated
SCROLL UP
and SCROLL
DOWN Buttons
Opens the tabular data window specified during wizard
configuration and sets the view to the Setup page.
by the phase LEDs below the display window.
Loop through display modes either down or up the list of
parameters. Fourteen modes available with a Delta-configured
device; one additional with Wye.
Table 5. PL Meter Faceplate animated functions.
72 • Features of GE Large Faceplate Wizards PMCS Interface Toolkit
The parameters available with the SCROLL buttons are listed below:
Mode Description
RMS Current Units in Amps; phase shifting among A, B, and C.
RMS Voltage L-N
RMS Voltage L-L Units in Volts; phase shifting among AB, BC, and CA.
Watts Units in kW; phase shifting among A, B, C, and total.
Vars Units in kVARs; phase shifting among A, B, C, and total.
Volt-Amps Units in kVA; phase shifting among A, B, C, and total.
Power Factor No units; no phase shifting.
Watt-Hours Units in kWH; no phase shifting.
VAR-Hours Units in kVARH; no phase shifting.
Current Demand Units in A; phase shifting among A, B, and C.
Peak Current Units in A; phase shifting among A, B, and C.
Watt Demand Units in kW; no phase shifting.
Peak Watt Demand Units in kW; no phase shifting.
Frequency Units in Hz; no phase shifting.
Harm Distortion
Units in Volts; available only in Wye configuration, with phase shifting
among A, B, and C.
Val ue area of display is blank; degree of harmonic distor tion is shown as
negligible, mild, moderate, or severe.
PMCS Interface Toolkit Features of GE Large Faceplate Wizards • 73
Spectra ECM
Feature Function
Display Window Opens the tabular data window specified during wizard
CONTRAST
Buttons
Refresh Button Updates the display to the most current readings.
SCROLL
Buttons
SELECT/EXIT
Button
The large faceplate representation of the Spectra ECM provides the following
animated functions:
configuration and sets the view to the Monitoring page.
Open the tabular data window specified during wizard
configuration and sets the view to the Setup page.
Loop through all selections for each of the valid modes
accessed by the SELECT/EXIT button.
Displays the top-line message “Press SELECT for”. Press
one of the SCROLL buttons to rotate among the four
modes. Press SELECT/EXIT to display the first value of
the current mode and the SCROLL buttons for all other
values available in that mode. Press again to redisplay the
“Press SELECT for” prompt for mode selection.
Table 6. Spectra ECM Facepl ate anim ated functions.
The modes and the parameters available in each mode are as follows:
74 • Features of GE Large Faceplate Wizards PMCS Interface Toolkit
Mode Parameters an d Units
STATUS
SETPOINTS FLA Setting, amps
METERING Phase A Current, amps
LAST TRIP INFO Last Trip Cause
Motor Status
ECM Status
Trip Status
Rating Plug, amps
Phase Unbalance, disabled/enabled
Ground Fault, disabled/enabled
Commnet Address
Phase B Current, amps
Phase C Current, amps
Average Curre n t , amps
Phase Unbalance, percent
Ground Current, amps
Motor Load, percent
Phase A @ Trip, amps
Phase B @ Trip, amps
Phase C @ Trip, amps
Unbalance @ Tr ip, perc ent
Ground Current @ Trip, amps
PMCS Interface Toolkit Features of GE Large Faceplate Wizards • 75
MDP Digital Overcurrent Relay
The large faceplate representation of the MDP Digital Overcurrent Relay provides
the foll o wing anim ated functi ons:
Feature Function
Meter Display Opens the tabular data window specified during wizard
configuration and sets the view to the Monitoring page.
Informational
Display
LEDs and
Toggles
RESET
LEVER Button
Opens the tabular data window specified during wizard
configuration and sets the view to the Monitoring page.
Display only animation showing the current meter status and
settings.
Rotates the display through ten parameters. Press to display
values, repeat to advance through all the parameters.
Table 7. MDP Faceplate animated functions.
The parameters displayed by the RESET LEVER button are shown in the fol lowing
table. The first column lists the contents of the meter display, then the informational
display.
76 • Features of GE Large Faceplate Wizards PMCS Interface Toolkit
Meter Display Informational Di spl ay
F0 Breaker Status xxxxxx (Open or Closed)
F1 Phase A Current xxxx Amps
F2 Phase B Current xxxx Amps
F3 Phase C Current xxxx Amps
F4 Ground Current xxxx Amps
F5 Phase A Trip Current xxxx Amps
F6 Phase B Trip Current xxxx Amps
F7 Phase C Trip Current xxxx Amps
F8 Ground Trip Current
F9 Trip Time xxxx Sec
If a CT rati o has not be e n set , t he first pre s s of th e
RESET LEVER
button dis plays
“CT Ratio Not Entered” in the informational window. Click on one of the display
windows to switch to the tabular data screen and enter a valid CT ratio, then return to
the MDP window.
PMCS Interface Toolkit Features of GE Large Faceplate Wizards • 77
Power Quality Meter (PQM)
The PQM's large faceplate wizard provides the following animated functions:
Feature Function
Meter Display Opens the tabular data window specified during wizard
configuration and sets the view to the Metering tab.
Setpoint button Opens the tabular data window specified during wizard
configuration and sets the view to the Setpoints tab.
Reset button Opens the tabular data window specified during wizard
configuration and sets the view to the Metering tab, which offers a
button to issue a RESET command to the device.
Actual button
Message
Up/Down buttons
Message
Right/Left
buttons
Panel Display
Lights
Pressing the ACTUAL button rotates through the three Main
Actu al Valu e pages on the device: A1 Met ering, A2 Status, and A3
Product Info. If the ACTUAL button is pressed while the display
shows a subgroup or a line, the display will jump back to the Page
header.
Scrolls forward/backward through the subgroups for the currently
selected page.
Scrolls through individual lines for each subgroup within a page.
For most lines, an actual value and units from the device are
displayed.
Display animation that shows the status of the PQM relay.
Table 8. PQM Faceplate animated functions.
NOTE: The PQM Large Faceplate Wizard cannot display values greater than 2 to
the 31st power. Therefore, n um bers greater than 231 (unscaled) for Energy and
Apparent Energy may appear negative. The values affected are kWh, kvarh, kVAh,
Energy Cost and kVA. The Tabular Data Screen wizard show the correct values.
78 • Features of GE Large Faceplate Wizards PMCS Interface Toolkit
The W izar d displ ays th e followi ng Subgrou ps and L i nes shown in Chapter 5, Actu a l
Values, of the PQM Instru ction Manual, revision 1.20.
Page 1:
Current
METERING
Voltage
Power Power Factor values are not
continuously updated.
Frequency
Page 2:
STATUS
A static message is displayed based
on GENERAL_STATUS bit 0,
indicating whether or not an alarm
condition exists.
Page 4:
Software Versions Values are not continuously updated
PRODUCT
INFORMATION
Model Information Values are not continuously updated
The subgroups listed below are displayed by the device but are not implemented in
the 3- D wi zard.
Page
Current Min/Max values are not displayed
1:METERING
Voltage Min/Max values are not displayed
Power KVA val ues and all Min/Max values
are not displayed
Energy
Demand
Frequency Mi n/Max values are not displayed
Pulse Counter
Analog Input
Page 2: STATUS Alarms
Switches
Clock
Programmable
Message
Page 3: POWER
Power Quality Values
ANALYSIS
Total Harmonic
Distortion
Data Logger
Event Recorder
PMCS Interface Toolkit Features of GE Large Faceplate Wizards • 79
EPM 3710 Meter
Feature Function
Display
Window
MIN/MAX
Buttons
PHASE
Button
FUNCTION
Button
The large faceplate representation of the EPM 3710 provides the following animated
functions:
Opens the tabular data window specified during wizard
configuration and sets the view to the Monitoring page.
Open the tabular data window specified during wizard
configuration and set the view to the Setup page.
Rotates the left side of the display through eight sets of
instantaneous values, as describe d in the tabl e be low.
Rotates the right side of the display through 13
accumulated values.
Table 9. EPM 3710 Faceplate animated functions.
The parameters displayed by the PHASE button are listed in the following table.
Display Indication Parameters
A Phase A current and line-to-neutral voltage
B Phase B current and line-to-neutral voltage
C Phase C current and line-to-neutral voltage
* Aver age cur r ent and line-to-neutral vol tage
A, Phase A current and A-B line-to-line voltage
B, Phase B cur r ent and B- C l ine-t o-line voltage
C, Phase C current and C-A line-to-line voltage
*, Average current line-to-line voltage
The parameters displayed by the FUNCTION button are listed in the following table.
If any of the import or export values are zero, th ey are not displ ayed and th e next
nonzero value i s shown. When any of these parameters are displa yed, th e AMPS
portion of the display window is used to allow display of the complete value.
80 • Features of GE Large Faceplate Wizards PMCS Interface Toolkit
Display Indication Parameter
kW Total real power
kVA Total apparent power
kQ Total reactive power
PFLG or PFLD Power factor; la gging or leading
Hz Frequency
kWD Kilowa tt tota l d emand
A or kVA Current average demand or apparent power demand
VX RMS auxiliary voltage
I4 RMS neutral current
kWH-F Import energy
kWH-R Export energy
kVARH-F Import reactive energy
kVARH-R Export reactive energy
PMCS Interface Toolkit Features of GE Large Faceplate Wizards • 81
EPM 3720 Meter
The large faceplate representation of the EPM 3720 meter provides the following
animated functions:
Feature Function
Display Window Opens the tabular data window specified during wizard
configuration and sets the view to the Monitoring page.
GROUP Buttons Opens the tabular data window specified during wizard
configuration and sets the view to the Setup page.
PHASE Button
FUNCTION
Button
Rotates the left side of the display through eight sets of
instantaneous values, as describe d in the tabl e be low. May
also affect the POWER FUNCTIONS porti on of the
display, depend ing on the FUNCTION select ion.
Rotates the right side of the display through 24
accumulated values, in conjunction with the PHASE
button.
Table 10. EPM 3720 Faceplate animated functions.
The parameters displayed by the PHASE button are listed in the following table.
Display Indication Parameters
A Phase A current and line-to-neutral voltage
B Phase B current and line-to-neutral voltage
C Phase C current and line-to-neutral voltage
* Average cu rrent and line-to-n eutral voltage
A, Phase A current and A-B line-to-line voltage
82 • Features of GE Large Faceplate Wizards PMCS Interface Toolkit
Display Indication Parameters
B, Phase B current and B-C li ne-to-line voltage
C, Phase C current and C-A line-to-line voltage
*, Average current line-to-line voltage
The parameters displayed by the
When any of the imp ort, exp ort , or net par a meters are displayed, the AMPS portion
of the display window is used to allow display of the complete value.
Display Indication Parameter
kW
kVR
kVA
PFLG or PFLD
I4 RMS neutral current
Hz Frequency
VX RMS auxiliary voltage
kWH IM Import energy
kWH EX Export energy
kVARH IM Import reactive energy
kVARH EX Export reactive energy
kVAH NET Net reactive energy
Real power for phase A, B, or C as set by PHASE button, or
total real power if PHASE is set to * or *,.
Reactive power for phase A, B, or C as set by PHASE button, or
total reactive power if PHASE is set to * or *,.
Apparent power for phase A, B, or C as set by PHASE button,
or total apparent power if PHASE is set to * or *,.
Power fact or, lagging or leading, for phase !A, B , or C as se t by
PHASE button, or total power factor if PHASE is set to * or *,.
FUNCTION
button are listed in the following table.
PMCS Interface Toolkit Features of GE Large Faceplate Wizards • 83
EPM 7300 Meter
Feature F unctio n
LCD display
window
Function Buttons Opens the tabular data window specified during wizard
UP and DOWN
arrow keys
The large faceplate representation of the EPM 7300 meter provides the following
animated functions:
Opens the tabular data window specified during wizard
configuration and sets the view to the Metering page.
configuration and sets the view to the Metering page.
Rota te among 16 page s of actual values, metering, an d
fixed value inform ation.
Table 11. EPM 7300 Faceplate animated functions.
The parameters displayed by the UP and DOWN buttons are listed in the following
table.
84 • Features of GE Large Faceplate Wizards PMCS Interface Toolkit
Page Text Displayed Description
1 Vln A Units in Volts
Vln B Units in Volts.
Vln C Units in Volts.
Vln Avg. Units in Volts.
2 Vll ab Units in Volts.
Vll bc Units in Volts.
Vll ca Units in Volts.
Vll avg Units in Volts.
3 Ia Units in Amps
Ib Units in Amps
Ic Units in Amps.
Iavg Units in Amps
4 V unbal ance % deviation from Vln or Vll avg for the phase having the
greatest unbalance
I unbalance % deviation from I avg for the phase having the greatest
current unbalance
Line Frequency Fundamental Frequency of Phase A voltage.
Phase Reversal Boolean register indicating if there is a phase reversal.
When the voltage phases do not rotate in the sequence
specified by the phase order setup, this register is ON.
5 kW a Real Power for phase a
kW b Real Power for phase b
kW c Real Power for phase c
kW total Total Real Power
6 kVAR a Reactive power for phase a
kVAR b Reactive power for phase b
kVAR c Reactive power for phase c
kVAR total Total Reactive power
7 kVA a Apparent Power for phase A
kVA b Apparent Power for phase B
kVA c Apparent Power for phase C
kVA total Total Apparent Power
8 PF si gned a Signed Power Factor Phase A
PF signed b Signed Power Factor Phase B
PF signed c Signed Power Factor Phase C
PF sign Total Signed Power Factor Total
9 kW SD Real Power Sliding Demand
kW PD Real Power Predicted Demand
kVAR SD Reactive Power Sliding Demand
kVAR PD Reactive Power Predicted Demand
10 kVA SD Apparent Power Sliding Demand
kVA PD Apparent Power Predicted Demand
Vln avg MAX Maximum Average Voltage
I avg MAX Maximum Average Current
11 kW MAX Maximum Real Power
kVAR MAX Maximum Reactive Power
PMCS Interface Toolkit Features of GE Large Faceplate Wizards • 85
kVA MAX Maximum Apparent Power
Frequency MAX Maxim um Frequency
12 Vln avg MIN Minimum Average Voltage
I avg MIN Minimum Average Current
Frequency MIN Minimum Frequency
13 kWh Import Forward Real Energy
kWh Export Reverse Real Energy
kWh Total Tot al Real Energy
kWh Net Net Real Energy
14 kVARh Import Forward Reactive Energy
kVARh Export Reverse Reacti ve Energy
kVARh Total Total Reactive Energy
kVARh Net Net Reactive energy
15 kVAh Total Apparent Energy
V1 Total HD Harmonic Distortion, V1
V2 Total HD Harmonic Distortion, V2
V3 Total HD Harmonic Distortion, V3
16 I1 Total HD Harmonic Distortion, I1
I2 Total HD Harmonic Distortion, I2
I3 Total HD Harmonic Distortion, I3
86 • Features of GE Large Faceplate Wizards PMCS Interface Toolkit
EPM 7700 Meter
The large faceplate representation of the EPM 7700 meter provides the following
animated functions:
Feature F unctio n
LCD display
window
ESC Opens the displays the main menu on the faceplate as
Blank Buttons Pressing the keys adjacent to the LCD Display window
Table 12. EPM 7700 Faceplate animated functions.
Opens the tabular data window specified during wizard
configuration and sets the view to the Metering page.
shown above .
displays the selected screen. For instance, selecting the
Total Power button displays the Total Power screen of
data.
The parameters displayed by the various data screen buttons are listed in the
following table.
PMCS Interface Toolkit Features of GE Large Faceplate Wizards • 87
Screen Selected Description
Vll bc; Vll ca; Vll avg: n/a when Voltage Mode is SINGLE
1 - Total Power
• KW Total
• KVAR Total
• KVA Total
• PF Signed Total
2 - Three-Phase Measurements
• Vln a; Vln b: n/a when Voltage Mode is DELTA
• Vln c: n/a when Voltage Mode is DELTA or SINGLE
• Vln Avg: n/a when Voltage Mode is DELTA
• Vll ab
•
• Ia, Ib, I4, Iavg
• Ic: n/a when Voltage Mode is SINGLE
• V unbal
• I unbal
• Line Frequency
3 - Per-Phase Power
• KW a; KW b: n/a when Voltage Mode is DELTA
• KW c: n/a when Voltage Mode is DELTA or SINGLE
• KW Total
• KVAR a; KVAR b: n/a when Voltage Mode is DELTA
• KVAR c: n/a when Voltage Mode is DELTA or SINGLE
• KVAR Total
• KVA a; KVA b: n/a when Voltage Mode is DELTA
• KVA c: n/a when Voltage Mode is DELTA or SINGLE
• KVA Total
• PF Signed a; PF Signed b: n/a when Voltage Mode is
DELTA
• PF Signed c: n/a when Voltage Mode is DELTA or
SINGLE
4 - Energy
• KW h Import; KWh Export; KWh Total; KWh Net
• KVARh Import; KVARh Export; KVARh Total; KVARh
Net
• KVAh Total
• KW Total Min; KVAR Total Min; KVA Total Min
• KW Total Max; KVAR Total Max; KVA Total Max
5 - Symmetrical Components
• I ZeroSeqMag; I PosSeqMag; I NegSeqMag
• V ZeroSeqMag; V PosSeqMag; V NegSeqMag
• I ZeroSeqPhs; I PosSeqPhs; I NegSeqPhs
• V ZeroSeqPhs; V PosSeqPhs; V NegSeqPhs
**NOTE: If the Sliding Demand Reset is initiated, or a SWD setup register is
changed, SWD values are “N/A” in the meter until the number of sub-intervals
specified in the #sub intervals setup register have expired. The 3-D faceplate and
Tabular wizard will display 0 for these values during this state.
88 • Features of GE Large Faceplate Wizards PMCS Interface Toolkit
239 Motor Protection Relay
The large faceplate representation of the 239 provides the following animated
functions:
Feature Function
Display Window Opens the tabular data window specified during wizard
configuration and sets the view to the Metering page.
SETPOINTS
Button
RESET Button Opens the tabular data window specified during wizard
ACTUAL Button Rotates through the three Main Actual Value pages available: A1
MESSAGE
UP/DOWN
Buttons
MESSAGE
RIGHT/LEFT
Buttons
Panel Display
Lights
Opens the tabular data window specified during wizard
configuration and sets the view to the Setup page.
configuration and sets the view to the Metering page, which offers a
RESET button to issue a r eset comma n d to the device.
Status, A2 Metering, and A3 Product Info. If the display was in a
subgroup or line when ACTUAL was pressed, the display will
jump back to the page header.
Scrolls forward or backward through the subgroup titles of the
current Act ual Val ue page.
Scrolls through the individual lines of each subgroup within the
current page, showing actual values and units.
Display animation that shows the status of the 239 relay.
Table 13. 239 Faceplate animated functions.
PMCS Interface Toolkit Features of GE Large Faceplate Wizards • 89
The W izar d displ ays th e followi ng Subgrou ps and L i nes shown in Chapter 5, Actu a l
Values, of the 239 Instruction Manual, revision 2.10.
Page 1: STATUS General Static messages display general Alarm and
Motor Status
Page 2: METERING Current
Motor Capacity
Temperature
Page 3: PRODUCT
Software Versions Values are not continuously updated
INFORMATION
Model Information Values are not continuously updated
The subgroups listed below are displayed by the device but are not implemented in
the 3- D wi zard.
Page 1: STATUS General Individual Alarm conditions are not
displayed by the Wizard.
Last Trip Data
Switch Status
Programmable Message
90 • Features of GE Large Faceplate Wizards PMCS Interface Toolkit
269 Plus Motor Management Relay
The large faceplate representation of the 269 Plus provides the following animated
functions:
Feature Function
Display Window Opens the tabular data window specified during wizard
configuration and sets the view to the Monitoring page.
SET POINTS
Button
RESET Button Opens the tabular data window specified during wizard
CLEAR Button Opens the tabular data window specified during wizard
VALUE Buttons Open the tabular data window specified during wizard
HELP Button Displays a Windows help screen for PMCS.
ACTUAL
VALUES Button
REFRESH
Button
PMCS Interface Toolkit Features of GE Large Faceplate Wizards • 91
Opens the tabular data window specified during wizard
configuration and sets the view to the Setup page.
configuration and sets the view to the Setup page.
configuration and sets the view to the Setup page.
configuration and set the view to the Setup page.
Brings the meter to an initial setting point and displays ACTUAL
VALUES HAS SEVEN PAGES OF DATA.
Updates th e display to the curre nt me te r reading.
Feature Function
STORE Button
PAGE Bu ttons Rotate among seven pa ges of parameter data. Press one of the
LINE Buttons Rotate among parameters within a page. Certain configurations
Panel Display
Lights
Resets the meter at two special points in the display of values.
Pre s s STORE to toggle t he resp onse on the bottom line.
arrow keys to display PAGE #: ACTUAL VALUES on the top
line, a description on the bottom, and reset to the first parameter
value. The seven pages are listed in the following tables.
or meter val u es ma y pre ve n t di splay of all paramet er s within a
page. T he parameters in e ach pag e are liste d in the ta ble below.
Display animation that shows the status of the 269 Plus relay. If a
trip or alarm has occurred, auxiliary relay 1 or 2 is active. If the
meter fails its self-test, the dark red square to the left of the label
appears bright red.
Table 14. 269+ Faceplate animated functions.
The foll o wing table lists the pages that can be acces sed with the
the par ameters ava ilable in ea ch pa g e that can be accessed with the
Page Valu e Text Displ ayed Description
1
2
3
1 4 UNBALANCE RATIO (In/Ip)
5 GROUND FAULT CURRENT
6 ST/HR TIMERS (MIN)
7 TIME BETWEEN STARTS
8 END OF PAGE ONE
1 PAGE 2: ACTUAL VALUES
2 HOTTEST STATOR RTD
3-12 RTD TEMPERATURE
2 13 MAX STATOR SINCE LAST
14-17 MAXIMUM RTD #x TEMP SINCE
18 CLE AR LAST ACCESS DATA?
19 END OF PAGE TWO
PAGE 1: ACTUAL VALUES
PHASE CURRENT DATA
I1=xxx I2=xxx
I3=xxx (AMPS)---
I(3 Ph avg.)=xxx AMPS
Max Stator RTD=xxx C
U/B=xx PERCENT
G/F=x x x.0 AMP S
xx xx xx xx xx
TIMER = xxx MIN
ACTUAL VALUES
RTD TEMPERATURE DATA
RTD #xx = xxx
RTD # xx = xxx
ACCESS: RTD #x = xxx DEGREES C
LAST ACCESS: xxx DEGREES C
NO
ACTUAL VALUES
Page header
Phase cu rrent in amps; --- or RU N ba sed on
motor st at us
Average phase current
Hottest stator temperature
Uni t s = *.1 if G/F CT
ratio = 2000:1
Starts per hour
Page f ooter
Page header
Displays temperatures of RTDs #1-10
Displays #7-10 max
Press STORE to clear; message changes to
YES
Page f ooter
buttons, with
PAGE
LINE
buttons.
92 • Features of GE Large Faceplate Wizards PMCS Interface Toolkit
Page Valu e Text Displ ayed Description
1
2 ESTIMATED TIME TO
3 3 MOTOR LOAD AS A PERCENT
4 THERMAL CAPACITY
5 END OF PAGE THREE:
1 PAGE 4: ACTUAL VALUES
2 RUNNING HOURS SINCE LAST
3 MEGAWATTHOURS SINCE LAST
4 # OF STARTS SINCE LAST
5 # OF TRIPS SINCE LAST
6 # O/L TRIPS SINCE LAST
7 # RAPID TRIPS SINCE LAST
8 # U/B TRIPS SINCE LAST
4 9 # G/F TRIPS SINCE LAST
10 # RTD TRIPS SINCE LAST
11 # S/C TRIPS SINCE LAST
12 # START TRIPS SINCE LAST
13 # U/V TRIPS SINCE LAST
14 # O/V TRIPS SINCE LAST
15 # PF TRIPS SINCE LAST
16
17
4 18 END OF PAGE FOUR:
1 PAGE 5: ACTUAL VALUES
PAGE 3: ACTUAL VALUES
MOTOR CAPACITY DATA
TRIP = xxx SECONDS
FULL LOAD = xxx PERCENT
USED = xxx PERCENT
ACTUAL VALUES
STATISTICAL DATA
COMMISSIONING xxx HOURS
COMMISSIONING xxx MWHR
COMMISSIONING xxx
COMMISSIONING xxx
COMMISSIONING xxx
COMMISSIONING xxx
COMMISSIONING xxx
COMMISSIONING xxx
COMMISSIONING xxx
COMMISSIONING xxx
COMMISSIONING xxx
COMMISSIONING xxx
COMMISSIONING xxx
COMMISSIONING xxx
VOLTAGE PHASE REVERSALS
SINCE COMMISSIONING xxx
START NEW COMMISSIONING
NO
ACTUAL VALUES
PRE-TRIP DATA
Page header
Page f ooter
Page header
Displayed only if MTM unit is installed in 269
Overload trip s
Unbalance trip s
Ground-fault trips
Short-circ u it trips
Undervoltage tr ips
Overvoltage trips
Power-failure trips
Press STORE to start; message changes to
YES
Page f ooter
Page header
PMCS Interface Toolkit Features of GE Large Faceplate Wizards • 93
Page Valu e Text Displ ayed Description
2
3 PRE-TRIP AVERAGE MOTOR
4 PRE-TRIP U/B RATIO
5 PRE-TRIP G/F CURRENT
5 6 PRE-TRIP MAX STATOR RTD
7 PRE-TRIP AVERAGE VOLTAGE
8 PRE-TRIP KWATTS
9 PRE-TRIP KVARS
10 PRE-TRIP POWER FACTOR
11 PRE-TR IP FREQUENCY
12 END OF P AGE FIVE
1 PAGE 6: ACTUAL VALUES
2 LEARNED Istart (AVG OF 4
3 LEARNED Istart (last one)
4 LEARNED K FACTOR
6 5 LEARNED RUNNING COOL
6 LEARNED STOPPED COOL
7 LEARNED ACCEL TIME
8 LEARNED Start Capacity
9 END OF PAGE SIX
1
2
3 3 PHASE KWATTS
CAUSE OF LAST TRIP
message
CURRENT = xxx AMPS
(lI/Ip) xxx PERCENT
G/F=xxx.0 AMPS
RTD #XX = xxx C
VOLTS = xxx
KW = xxx
KVAR = xxx
PF = xxx
HZ = xxx
ACTUAL VALUES
LEARNED PARAMETERS
STARTS)=xxx AMPS
=xxx AMPS
K = xxx AMPS
TIME-xxx MIN
TIME = xxx MIN
ACCEL TIME = xxx SEC
Required = xxx PERCENT
ACTUAL VALUES
PAGE 7: ACTUAL VALUES
METERING DATA
Vab = xxx Vbc = xxx
Vac = xxx (VOLTS)
or
MTM METER MODULE
NOT INSTALLED
KW = xxx
Message is a brief explanation of trip cause
Unbalance
Uni t s = *.1 if G/F CT
ratio = 2000:1
Displayed only if MTM unit is installed in 269
Displayed only if MTM unit is installed in 269
Displayed only if MTM unit is installed in 269
Displayed only if MTM unit is installed in 269
Displayed only if MTM unit is installed in 269
Page f ooter
Page header
Page f ooter
Page header
Displa yed onl y if MTM un it is on lin e
Displa yed onl y if MTM un it is on lin e
94 • Features of GE Large Faceplate Wizards PMCS Interface Toolkit
Loading...
