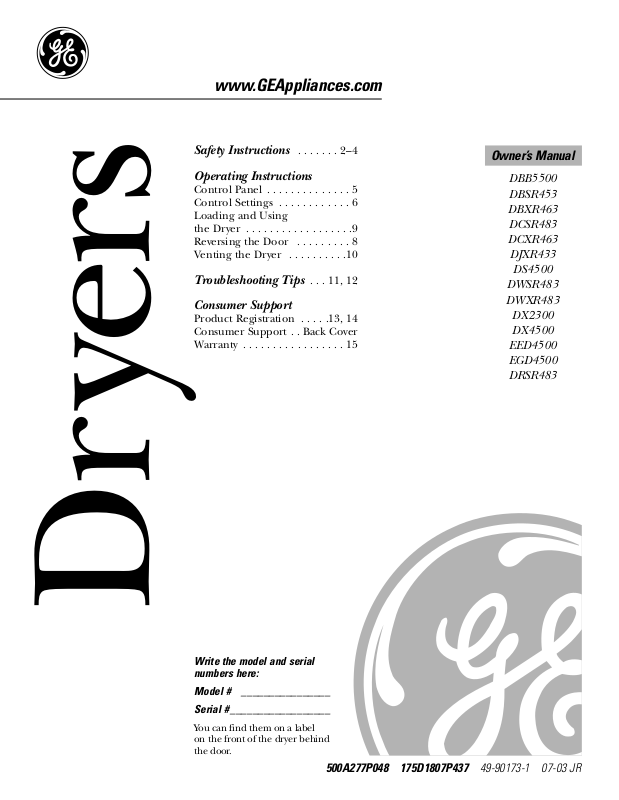

DBB5500
DBSR453
DBXR463
DCSR483
DCXR463
DJXR433
DS4500
DWSR483
DWXR483
DX2300
DX4500
EED4500
EGD4500
DRSR483
Owner’s Manual
Dryers
500A277P048 175D1807P437 49-90173-1 07-03 JR
Safety Instructions . . . . . . . 2–4
Operating Instructions
Control Panel . . . . . . . . . . . . . . 5
Control Settings . . . . . . . . . . . . 6
Loading and Using
the Dryer . . . . . . . . . . . . . . . . . .9
Reversing the Door . . . . . . . . . 8
Venting the Dryer . . . . . . . . . .10
Troubleshooting Tips . . . 11, 12
Consumer Support
Product Registration . . . . .13, 14
Consumer Support . . Back Cover
Warranty . . . . . . . . . . . . . . . . . 15
www.GEAppliances.com
Write the model and serial
numbers here:
Model # ________________
Serial # __________________
You can find them on a label
on the front of the dryer behind
the door.
■ Properly ground dryer to conform with all
governing codes and ordinances. Follow details
in Installation Instructions.
■ Install or store where it will not be exposed to
temperatures below freezing or exposed to the
weather.
■ Connect to a properly rated, protected and sized
power supply circuit to avoid electrical overload.
■ Remove all sharp packing items and dispose of
all shipping materials properly.
Exhaust/Ducting
Gas dryers MUST be exhausted to the outside.
Use only rigid metal 4″ diameter ductwork
inside the dryer cabinet. Use only rigid metal
or flexible metal 4″ diameter ductwork for
exhausting to the outside. USE OF PLASTIC OR
OTHER COMBUSTIBLE DUCTWORK CAN CAUSE
A FIRE. PUNCTURED DUCTWORK CAN CAUSE A
FIRE IF IT COLLAPSES OR BECOMES OTHERWISE
RESTRICTED IN USE OR DURING INSTALLATION.
For complete details, follow the Installation
Instructions.
2
1
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire
or explosion, electric shock, or to prevent property damage, personal injury, or death.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light a match, or cigarette, or
turn on any gas or electrical appliance.
Do not touch any electrical switch;
do not use any phone in your building.
Clear the room, building or area of all
occupants.
Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions carefully.
If you cannot reach your gas supplier,
call the fire department.
5
4
3
2
1
California Safe Drinking Water and Toxic Enforcement Act
This act requires the governor of California to publish a list of substances known to the state to cause
cancer, birth defects or other reproductive harm and requires businesses to warn customers of potential
exposure to such substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide,
formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.
Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be
minimized further by properly venting the dryer to the outdoors.
PROPER INSTALLATION
This dryer must be properly installed and located in accordance with the Installation Instructions
before it is used. If you did not receive an Installation Instructions sheet, you can receive one by
visiting GEAppliances.com, or by calling 800.GE.CARES (800.432.2737).
■ Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
■ Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
2
Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
3
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
WARNING!
YOUR LAUNDRY AREA
■ Keep the area underneath and around your
appliances free of combustible materials,
(lint, paper, rags, etc.), gasoline, chemicals and
other flammable vapors and liquids.
■ Keep the floor around your appliances clean
and dry to reduce the possibility of slipping.
■ Close supervision is necessary if this appliance is
used by or near children. Do not allow children
to play on, with, or inside this or any other
appliance.
■ Keep all laundry aids (such as detergents,
bleaches, etc.) out of the reach of children,
preferably in a locked cabinet. Observe all
warnings on container labels to avoid injury.
■ Never climb on or stand on the dryer top.
WHEN USING YOUR DRYER
■ Never reach into the dryer while the drum is
moving. Before loading, unloading or adding
clothes, wait until the drum has completely
stopped.
■ Clean the lint filter before each load to prevent
lint accumulation inside the dryer or in the
room. DO NOT OPERATE THE DRYER WITHOUT
THE LINT FILTER IN PLACE.
■ Do not wash or dry articles that have been
cleaned in, washed in, soaked in, or spotted
with combustible or explosive substances (such as
wax, oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.) which may ignite or
explode. Do not add these substances to the
wash water. Do not use or place these substances
around your washer or dryer during operation.
■ Do not place items exposed to cooking oils in
your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could
cause a clothes load to catch fire.
■ Any article on which you have used a cleaning
solvent or that contains flammable materials
(such as cleaning cloths, mops, towels used in
beauty salons, restaurants, or barber shops, etc.)
must not be placed in or near the dryer until
solvents or flammable materials have been
removed. There are many highly flammable
items used in homes such as acetone, denatured
alcohol, gasoline, kerosene, some household
cleaners, some spot removers, turpentines,
waxes, wax removers and products containing
petroleum distillates.
■ The laundry process can reduce the flame
retardancy of fabrics. To avoid such a result,
carefully follow the garment manufacturer’s
care instructions.
■ Do not dry articles containing rubber, plastic,
or similar materials such as padded bras, tennis
shoes, galoshes, bath mats, rugs, bibs, baby pants,
plastic bags, pillows, etc. that may melt or burn.
Some rubber materials, when heated, can under
certain circumstances produce fire by
spontaneous combustion.
■ Do not store plastic, paper or clothing that may
burn or melt on top of the dryer during
operation.
■ Garments labeled Dry Away from Heat or Do Not
Tumble Dry (such as life jackets containing Kapok)
must not be put in your dryer.
■ Do not dry fiberglass articles in your dryer.
Skin irritation could result from the remaining
particles that may be picked up by clothing
during subsequent dryer uses.
■ To minimize the possibility of electric shock,
unplug this appliance from the power supply
or disconnect the dryer at the household
distribution panel by removing the fuse or
switching off the circuit breaker before
attempting any maintenance or cleaning
(except the removal and cleaning of the lint
filter). NOTE: Turning the Cycle Selector knob
to an off position or pressing PAUSE does NOT
disconnect the appliance from the power supply.
www.GEAppliances.com
WHEN NOT USING YOUR DRYER
■ Grasp the plug firmly when disconnecting this
appliance to avoid damage to the cord while
pulling. Place the cord away from traffic areas
so it will not be stepped on, tripped over or
subjected to damage.
■ Do not attempt to repair or replace any part of
this appliance or attempt any servicing unless
specifically recommended in this Owner’s Manual
or in published user-repair instructions that you
understand and have the skills to carry out.
■ Before discarding a dryer, or removing it from
service, remove the dryer door to prevent
children from hiding inside.
■ Do not tamper with controls.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
4
WARNING!
WHEN USING YOUR DRYER (cont.)
■ Never attempt to operate this appliance if it is
damaged, malfunctioning, partially disassembled,
or has missing or broken parts, including a
damaged cord or plug.
■ The interior of the machine and the exhaust
duct connection inside the dryer should be
cleaned at least once a year by a qualified
technician. See the Loading and Using the Dryer
section.
■ If yours is a gas dryer, it is equipped with an
automatic electric ignition and does not have
a pilot light. DO NOT ATTEMPT TO LIGHT WITH
A MATCH. Burns may result from having your
hand in the vicinity of the burner when the
automatic ignition turns on.
■ You may wish to soften your laundered fabrics
or reduce the static electricity in them, by using
a dryer-applied fabric softener or an anti-static
conditioner. We recommend you use either a
fabric softener in the wash cycle, according to
the manufacturer’s instructions for those
products, or try a dryer-added product for
which the manufacturer gives written assurance
on the package that their product can be safely
used in your dryer. Service or performance
problems caused by use of these products are
the responsibility of the manufacturers of those
products and are not covered under the warranty
to this appliance.
Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
NOTE: Drying times will vary according to the type of heat used (Electric, Natural or LP gas), size of load,
types of fabrics, wetness of clothes and condition of exhaust ducts.
5
You can locate your model number on the label on the front of the dryer behind the door.
Throughout this manual, features and
appearance may vary from your model.
Models DS4500, DBSR453, DBXR463 and DCXR463
Model DX2300
3
Model DX4500
Models DCSR483, DJXR433, DRSR483, DWSR483, DWXR483 and DBB5500
Models EED4500 and EGD4500
Optional features
(on some models)
About the dryer control panel.
www.GEAppliances.com
Optional features
(on some models)
2
3 21
23 1
23 1
23 1
IMPORTANT: Clean the lint filter each time you use the dryer.
Fabric Care/Temperature
COTTONS For regular to heavy cottons.
REG. HEAT
EASY CARE For synthetics, blends, delicates and items labeled permanent press.
MED. HEAT
DELICATES On some models. For delicates, synthetics and items labeled tumble dry low.
LOW HEAT
FLUFF For fluffing items without heat. Use the TIMED DRY cycle.
NO HEAT
Automatic cycles automatically determine fabric dryness. Select LESS DRY if you want your clothes
slightly damp at the end of the drying cycle. Select MORE DRY if you want them to feel drier. Timed
cycles run for a selected time.
Drying Cycles
COTTONS For cottons and most linens. For most loads select OPTIMUM DRY (on some models) or select the
Preferred Regular Setting marked with an *.
EASY CARE/ For wrinkle-free, permanent press and delicate items, and knits.
PERMANENT
PRESS
TIMED DRY Set the Cycle Selector at the desired drying time.
DAMP DRY For leaving items partially damp.
DEWRINKLE For removing wrinkles from items that are clean and dry or that are very lightly damp.
QUICK FLUFF For freshening or fluffing up already dry clothing, fabrics, linens, and pillows. Use with FLUFF NO HEAT.
Provides 10 minutes of no heat tumbling.
Start
— Close the dryer door. Select START. Opening the door during operation will stop the dryer.
To restart the dryer, close the door and select START to complete the cycle.
1
2
3
6
Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
About the control settings.
Color Logic (on some models)
Select the correct FABRIC CARE setting.
Match the particular color below the words
with the same color on the Cycle Dial.
Example: Drying a load of clothing labeled
permanent press.
Choose the
FABRIC CARE setting
-—for
this load it would be the EASY CARE
MED. HEAT (which is a particular color).
Turn the Cycle Dial to the area that has
the same color as the
FABRIC CARE
setting you have chosen—for this load it
would be the
EASY CARE AUTOMATIC.
2
1
Stainless Steel Drum (on some models)
The stainless steel used to make the
dryer drum provides the highest reliability
available in a GE dryer. If the dryer drum
should be scratched or dented during
normal use, the drum will not rust or
corrode. These surface blemishes will
not affect the function or durability of
the drum.
7
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Wrinkle Care Option (on some models)
Use this option to minimize the wrinkles
in clothes. It provides approximately
15 minutes of no-heat tumbling after
the clothes are dry.
This option can only be used with the
COTTONS and EASY CARE cycles.
If you are using the CYCLE SIGNAL knob
and you select the WRINKLE CARE option,
a signal will sound at the end of the drying
time and several times during the WRINKLE
CARE cycle. This will remind you that it is
time to remove the clothes.
If WRINKLE CARE is not on, the dryer will
stop once the timer reaches the WRINKLE
CARE mark on the cycle dial.
Cycle Signal Option (on some models)
This signal will sound just before the end
of the cycle to remind you to remove the
clothes. On some models the signal sound
level cannot be adjusted.
If you selected the WRINKLE CARE option
the signal will sound at the end of the
drying time and will sound several times
during the WRINKLE CARE cycle. This will
remind you that it is time to remove the
clothes.
NOTE:
■ Remove garments promptly at the sound
of the signal. Place clothes on hangers so
wrinkles won’t set in.
■ Use the Cycle Signal especially when
drying fabrics like polyester knits and
permanent press. These fabrics should
be removed so wrinkles won’t set in.
Drum Lamp (on some models)
Before replacing the light bulb, be sure to
unplug the dryer power cord or disconnect
the dryer at the household distribution
panel by removing the fuse or switching
off the circuit breaker. Reach above dryer
opening from inside the drum. Remove the
bulb and replace with the same size bulb.
Drying Rack (on some models)
A handy drying rack may be used for drying
delicate items such as washable sweaters.
Hook the rack over the lint filter so the rack
extends into the dryer drum.
NOTE:
■ The drying rack must be used with the
TIMED CYCLE.
■ Do not use this drying rack when there
are other clothes in the dryer.
Automatic Cycle Signal (on some models)
At the end of each cycle there is
approximately 15 minutes of no-heat
tumbling after the laundry is dry.
A reminder signal will sound periodically
during this time to remind you to remove
the laundry.
About the dryer features.
www.GEAppliances.com
Reversing the Door
Tools needed:
■ Standard #2 ■ Tape-tipped
■ Phillips screwdriver ■ putty knife
Open the door and remove the filler plugs opposite the hinges. With the door
completely open, remove the bottom screw from each hinge on the dryer face.
Insert these screws about half way into the TOP holes, for each hinge, on the opposite
side (where you removed the filler plugs). Apply firm pressure to get the screw started
in new holes.
Loosen top screw from each hinge on the dryer face half way. With one hand holding
the top of the door and the other hand holding the bottom, remove the door from
the dryer by lifting it UP and OUT.
Rotate the door 180°. Insert it on the opposite side of the opening by moving the door
IN and DOWN until the top hinge and the bottom hinge are resting on the top screws
inserted in step 1.
Remove the remaining screws from the side of the opening from which the door
was removed. With these screws secure each hinge at the bottom. Tighten the
two top screws of each hinge. Reinsert the plastic plugs on the side from which the
door was removed.
4
3
2
1
Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
About reversing the door.
8
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Sorting and Loading Hints
As a general rule, if clothes are sorted properly for
the washer, they are sorted properly for the dryer.
Do not add fabric softener sheets once the load has
become warm. They may cause fabric softener stains.
Bounce®Fabric Conditioner Dryer Sheets have been
approved for use in all GE Dryers when used in
accordance with the manufacturer’s instructions.
Do not overload. This wastes energy and causes wrinkling.
Do not dry the following items: fiberglass items, woolens,
rubber-coated items, plastics, items with plastic trim and
foam-filled items.
Fabric Care Labels
The Exterior: Wipe or dust any spills or washing
compounds with a damp cloth. Dryer control
panel and finishes may be damaged by some
laundry pretreatment soil and stain remover
products. Apply these products away from the dryer.
The fabric may then be washed and dried normally.
Damage to your dryer caused by these products is
not covered by your warranty.
The Lint Filter: Clean the lint filter before each
use. Moisten your fingers and reach into the filter
opening. Run your fingers
across the filter. Have a
qualified
technician vacuum the lint from the dryer
once a year.
Stainless Steel: To clean stainless steel surfaces,
use a damp cloth with a mild, non-abrasive
cleaner suitable for stainless steel surfaces.
Remove the cleaner residue, and then dry
with a clean cloth.
The Exhaust Duct: Inspect and clean the exhaust
ducting at least once a year to prevent clogging.
A partially clogged exhaust can lengthen the
drying time.
Follow these steps:
Turn off electrical supply by disconnecting the
plug from the wall socket.
Disconnect the duct from the dryer.
Vacuum the duct with the hose attachment and
reconnect the duct.
The Exhaust Hood: Check from the outside that the
flaps of the hood move freely when operating. Make
sure that there is not wildlife (birds, insects, etc.)
nesting inside the duct or hood.
3
2
1
Care and Cleaning of the Dryer
Machine
wash
cycle
Normal
Permanent Press/
wrinkle resistant
Gentle/
delicate
Hand wash
Do not wash Do not wring
Water
temperature
Hot
(50°C/120°F)
Warm
(40°C/105°F)
Cold/cool
(30°C/85°F)
Tumble
dry
Dry
Normal
Permanent Press/
wrinkle resistant
Gentle/
delicate
Do not tumble dry
Do not dry
(used with
do not wash)
Heat
setting
High
Medium
Low
No heat/air
Special
instructions
Line dry/
hang to dry
Drip dry
Dry flat
In the shade
Bleach
symbols
Any bleach
(when needed)
Only non-chlorine bleach
(when needed)
Do not bleach
Below are fabric care label “symbols” that affect the clothing you will be laundering.
WASH LABELS
DRY LABELS
BLEACH LABELS
9
Loading and using the dryer.
Always follow the fabric manufacturer’s care label when laundering. www.GEAppliances.com
For the best drying performance the dryer needs to be properly vented. The dryer will use more energy
and run longer if it is not vented to the below specifications. Carefully follow the details on Exhausting in the
Installation Instructions.
■ Use only rigid metal 4″ diameter ductwork inside the
dryer cabinet. Use only rigid metal or flexible metal 4″
diameter ductwork for exhausting to the outside.
■ Do not use plastic or other combustible ductwork.
■ Use the shortest length possible.
■ Do not crush or collapse.
■ Avoid resting the duct on sharp objects.
■ Venting must conform to local building codes.
Venting the Dryer
Correct
Venting
Incorrect
Venting
10
Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
Loading and using the dryer.
Always follow the fabric manufacturer’s care label when laundering.
11
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Problem Possible Causes What To Do
Dryer doesn’t start Dryer is unplugged • Make sure the dryer plug is pushed completely into
the outlet.
Fuse is blown/circuit breaker • Check the house fuse/circuit breaker box and replace
is tripped fuse or reset breaker. NOTE: Most electric dryers use
2 fuses/breakers.
Dryer doesn’t heat Fuse is blown/circuit breaker is • Check the house fuse/circuit breaker box and replace
tripped, the dryer may tumble both fuses or reset both breakers. Your dryer may tumble
but not heat if only one fuse is blown or one breaker tripped.
Gas service is off • Make sure gas shutoff at dryer and main shutoff are
fully open.
Dryer shakes or Some shaking/noise is normal. • Move dryer to an even floor space, or adjust leveling legs
makes noise Dryer may be sitting unevenly as necessary until even.
Greasy spots on clothes Improper use of fabric softener • Follow directions on fabric softener package.
Drying dirty items with • Use your dryer to dry only clean items. Dirty items can
clean ones stain clean items and the dryer.
Clothes were not • Sometimes stains which cannot be seen when the
completely clean clothes are wet appear after drying. Use proper washing
procedures before drying.
Lint on clothes Lint filter is full • Clean lint screen before each load.
Improper sorting • Sort lint producers (like chenille) from lint collectors
(like corduroy).
Static electricity can attract lint • See suggestions in this section under STATIC.
Overloading • Separate large loads into smaller ones.
Paper, tissue, etc. left in pockets • Empty all pockets before laundering clothes.
Static occurs No fabric softener was used • Try a fabric softener.
• Bounce®Fabric Conditioner Dryer Sheets have been
approved for use in all GE Dryers when used in
accordance with the manufacturer’s instructions.
Overdrying • Try a fabric softener.
• Adjust setting to LESS DRY or DAMP DRY.
Synthetics, permanent press • Try a fabric softener.
and blends can cause static
Inconsistent Type of heat • Automatic drying times will vary according to the type
drying times of heat used (electric, natural or LP gas), size of load,
types of fabrics, wetness of clothes and condition of
exhaust ducts.
Troubleshooting Tips
Save time and money! Review the charts on the following pages, or
visit www.GEAppliances.com. You may not need to call for service.
Before you call for service…
www.GEAppliances.com
Problem Possible Causes What To Do
Clothes take too long Improper sorting • Separate heavy items from lightweight items (generally,
to dry a well-sorted washer load is a well-sorted dryer load).
Large loads of heavy fabrics • Large, heavy fabrics contain more moisture and take
(like beach towels) longer to dry. Separate large, heavy fabrics into smaller
loads to speed drying time.
Controls improperly set •Match control settings to the load you are drying.
Lint filter is full • Clean lint filter before every load.
Improper or obstructed •Check installation instructions for proper
ducting ducting/venting.
• Make sure ducting is clean, free of kinks and
unobstructed.
• Check to see if outside wall damper operates easily.
• Check the Installation Instructions to make sure the
dryer venting is correct.
Blown fuses or tripped • Replace fuses or reset circuit breakers. Since most dryers
circuit breaker use 2 fuses/breakers, make sure both are operating.
Overloading/combining loads • Do not put more than one washer load in the dryer
at a time.
Underloading • If you are drying only one or two items, add a few items
to ensure proper tumbling.
Clothes are wrinkled Overdrying • Select a shorter drying time.
• Remove items while they still hold a slight amount of
moisture. Select a LESS DRY or DAMP DRY setting.
Letting items sit in dryer •Remove items when cycle ends and fold or hang
after cycle ends immediately.
Overloading • Separate large loads into smaller ones.
Clothes shrink Some fabrics will naturally shrink • To avoid shrinkage, follow garment care labels exactly.
when washed. Others can be
safely washed, but will shrink
• Some items may be pressed back into shape after drying.
in the dryer
• If you are concerned about shrinkage in a particular
item, do not machine wash or tumble dry it.
Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips
12
Before you call for service…
Troubleshooting Tips
General Electric Company
Warranty Registration Department
P.O. Box 32150
Louisville, KY 40232-2150
GE Service Protection Plus
™
GE, a name recognized worldwide for quality and dependability, offers you
Service Protection Plus
™
—comprehensive protection on all your appliances—
No Matter What Brand!
Benefits Include:
• Backed by GE
• All brands covered
• Unlimited service calls
• All parts and labor costs included
• No out-of-pocket expenses
• No hidden deductibles
• One 800 number to call
You will be completely satisfied with our service protection or you may request your money back
on the remaining value of your contract. No questions asked. It’s that simple.
Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand!
Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker
coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable
household products are protected against expensive repairs.
Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224
for more information.
*All brands covered, up to 20 years old, in the continental U.S.
We’ll Cover Any Appliance.
Anywhere. Anytime.*
Please place in envelope and mail to:
✁
Cut here
13
14
Consumer Product Ownership Registration
I
m
p
o
r
t
a
n
t
M
a
i
l
T
o
d
a
y
!
GE Appliances
GE Consumer Products
General Electric Company
Louisville, Kentucky
www.GEAppliances.com
First
Name
Mr. ■■ Ms. ■■ Mrs. ■■ Miss ■■
Street
Address
City
State
Date Placed
In Use
Month
Day
Year
Zip
Code
Apt. #
Last
Name
Phone
Number
_
_
Consumer Product Ownership Registration
Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us.
We are proud to have you as a customer!
Follow these three steps to protect your new appliance investment:
Important: If you did not get a registration card with your
product, detach and return the form below to
ensure that your product is registered, or register
online at www.GEAppliances.com.
1
23
Model Number Serial Number
✁
Cut here
Complete and mail
your Consumer
Product Ownership
Registration today.
Have the peace of
mind of knowing we
can contact you in
the unlikely event of
a safety modification.
After mailing the
registration below,
store this document
in a safe place. It
contains information
you will need should
you require service.
Our service number is
800.GE.CARES
(800.432.2737).
Read your Owner’s
Manual carefully.
It will help you
operate your new
appliance properly.
Model Number Serial Number
E-mail Address*
* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important
communications from GE Appliances (GEA).
■■ Check here if you do not want to receive communications from GEA’s carefully selected partners.
FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR
WARRANTY RIGHTS.
For information about GEA’s privacy and data usage policy, go to www.GEAppliances.com and click
on “Privacy Policy” or call 800.626.2224.
What GE Will Not Cover:
For The Period Of: GE Will Replace:
One Year Any part of the dryer which fails due to a defect in materials or workmanship. During this
From the date of the full one-year warranty, GE will also provide, free of charge, all labor and related service costs to
original purchase replace the defective part.
15
■ Service trips to your home to teach you how to
use the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused,
or used for other than the intended purpose or
used commercially.
■ Replacement of the light bulb.
■ Replacement of house fuses or resetting of circuit
breakers.
■ Damage to the product caused by accident, fire, floods
or acts of God.
■ Incidental or consequential damage caused by possible
defects with this appliance.
■ Damage caused after delivery.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care
®
technician. To schedule service,
on-line, 24 hours a day, visit us at www.GEAppliances.com, or
call 800.GE.CARES (800.432.2737).
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
GE Dryer Warranty.
Printed in Canada
GE Appliances Website www.GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,
order parts, catalogs, or even schedule service on-line. You can also “Ask Our Team of Experts™”
your questions, and so much more...
Schedule Service www.GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at
your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal
business hours.
Real Life Design Studio www.GEAppliances.com
GE supports the Universal Design concept—products, services and environments that can be used by
people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and
mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen
design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call
800.TDD.GEAC (800.833.4322).
Extended Warranties www.GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty
is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours.
GE Consumer Home Services will still be there after your warranty expires.
Parts and Accessories www.GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their
homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or
by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally
should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause
unsafe operation.
Contact Us www.GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
Register Your Appliance www.GEAppliances.com
Register your new appliance on-line—at your convenience! Timely product registration will allow for
enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the pre-printed registration card included in the packing material.
Consumer Support.
Loading...
