DBVH520GJ

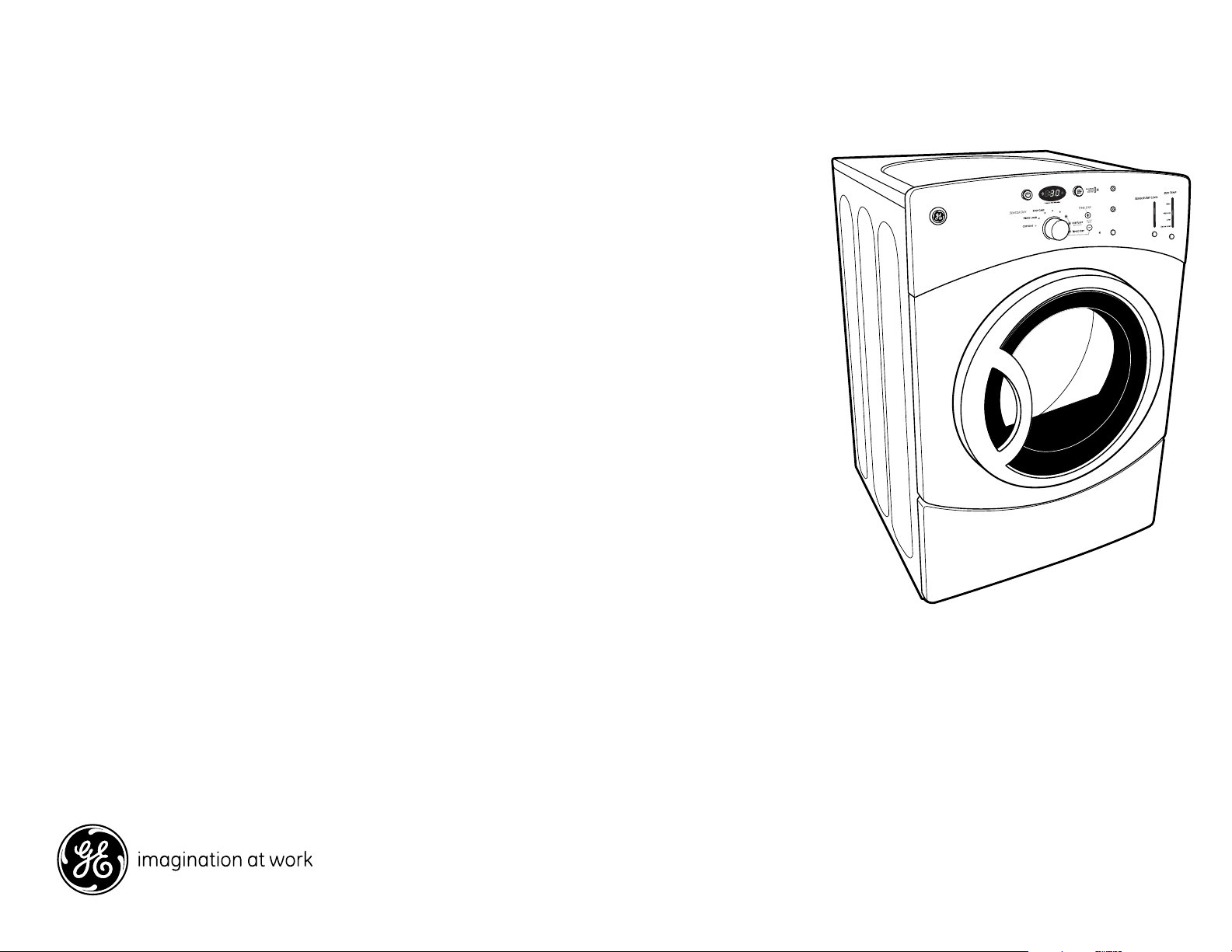

GE® 7.0 Cu. Ft. Super Capacity Frontload Gas Dryer
Dimensions and Installation Information (in inches)
Gas Dryer Rating
120V
Exhaust Options: 3-way via rear, left, and bottom.
Circuit Requirements: An individual, properly grounded
branch circuit, protected by a 30-amp circuit breaker or
a time-delay fuse, is required.
Note: Dryer wall outlet must be located within 36”
of service cord entry and accessible when dryer is
mounted in position.
Installation Information: For complete information, see
installation instructions packed with your dryer.
60Hz, 6A
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Specification Revised 1/08
Listed by
Underwriters
Laboratories
360461
80-1/8
27
13
28-3/4
DBVH520GJ
GE® 7.0 Cu. Ft. Super Capacity Frontload Gas Dryer
Special Installation Requirements:
Stacked Installation:
• Brackets for stacking dryer over washer are not included with the washer.
Order part no. WE25X10018.
Alcove or Closet Installation:
• If your dryer is approved for installation in an alcove or closet, it will be
stated on a label on the dryer back.
• The dryer MUST be exhausted to the outside.
• Minimum clearances between dryer cabinet and adjacent walls or other
surfaces are: 0" either side, 3" front and rear
• Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52".
• Closet doors must be louvered or otherwise ventilated and must contain a
minimum of 60 sq. in. of open area equally distributed. If this closet contains
both a washer and a dryer, doors must contain a minimum of 120 sq. in. of
open area equally distributed.
• No other fuel-burning appliance shall be installed in the same closet with
a gas dryer.
Bathroom or Bedroom Installation:
• The dryer MUST be exhausted to the outdoors.
• The installation must conform with the local codes, or in the absence of
local codes, with the National Fuel Gas Code, ANSI Z223.
Minimum Clearance other than Alcove or Closet Installations:
• Minimum clearances to combustible surfaces 0" both sides, 3" rear.
For more information on venting kits and accessories,
please call 1-800-GE-CARES.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Stacked Dimensions (in inches)
Pedestal Dimensions (in inches)
SBSD137HWW - white
This optional 13" pedestal raises
the door opening and height of
the washer or dryer. Feet on 13"
pedestal allow it to adjust to
13-3/8" height.
Specification Revised 1/08
Listed by
Underwriters
Laboratories
360461
A
B
2-1/2
4
GE Dryer Vent
DBVH520GJ
GE® 7.0 Cu. Ft. Super Capacity Frontload Gas Dryer
Dryer Exhausting Information – Metal Duct Only
For complete information, see installation instructions packed with your dryer.
Ducting Materials: For best performance, this dryer should be vented with 4” diameter all
rigid metal exhaust duct. If “all rigid metal” duct cannot be used, then “flexible all metal”
venting can be used, but it will reduce the maximum recommended duct length.
Exhaust Length Calculation:
1. Determine the number of 90° turns needed for your installation. If you exhaust to the
side or bottom of dryer, add one turn.
2. The maximum length of 4’ rigid (aluminum or galvanized) duct which can be tolerated is
shown in the table. The maximum length for flexible ducts are less than for rigid duct.
A turn of 45° or less may be ignored. Two 45° turns within the duct length should be
treated as a 90° elbow.
A turn over 45° should be treated as a 90° elbow.
Exhausting the dryer to the outside is strongly recommended to prevent large amounts
of moisture and lint from being blown into the room. Gas dryers or any dryer located in a
closet must be exhausted to the outside.
Caution: For personal safety do not terminate exhaust into a chimney, under any enclosed
house floor (crawl space), or into an attic, since the accumulated lint could create a fire
hazard or moisture could cause damage. Never terminate the exhaust into a common duct
or plenum with a kitchen exhaust, since the combination of lint and grease could create a
fire hazard.
Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird
nesting, etc. The wall cap must also be located at least 12" above the ground or any other
obstruction with the opening pointed Down.
Other terminations, such as louvered wall boxes, are acceptable provided they are
equivalent to a 4" opening dampered wall cap.
For more information on venting kits and accessories, please call 1-800-GE-CARES.
Front Loading
Dryers
Number
of
90°
Turns
0
1
2
3
Best Performance
Maximum Length
of 4" Dia.
Rigid Metal Duct
Exhaust Hood Type Exhaust Hood Type
B
A
4" Opening
90 ft.
60 ft.
45 ft.
35 ft.
2-1/2"
OpeningA4" Opening
60 ft.
45 ft.
35 ft.
25 ft.
Maximum Length
of 4" Dia.
Flexible Metal Duct
2-1/2"
Opening
55 ft.
40 ft.
30 ft.
20 ft.
45 ft.
30 ft.
20 ft.
15 ft.
B
Listed by
Underwriters
Specification Revised 1/08
Laboratories
360461
DA
M
P
DR
YI
N
G C
O
O
L
D
O
WN
C
L
E
A
N
L
I
N
T
F
I
L
T
E
R
D
EL
A
Y
D
E
LI
C
A
T
E
S
S
PE
E
D
D
R
Y
D
E
W
R
IN
K
L
E
D
E
L
A
Y
S
T
A
R
T
E
X
TE
N
D
T
U
M
B
L
E
M
O
R
E
D
R
Y
D
R
Y
L
E
S
S
D
RY
D
A
M
P
S
IG
NA
L
DBVH520GJ
GE® 7.0 Cu. Ft. Super Capacity Frontload Gas Dryer
Features and Benefits
• 7.0 Cu. Ft. Super Capacity - Handles large-size items and family-size loads
• Sensor Dry Plus
better longer
• Rotary Electronic Controls with Cycle Countdown Display and LED
Indicators - Simplify the cycle selection and provide accurate cycle times
• Interior Dryer Light - Lets you see everything inside for easy loading
and unloading
• Quiet-By-Design™ - Engineered for quiet operation
• Adjustable End-of-Cycle Signal - Alerts you when cycle is done, saving
time between loads
• Multiple Dry Cycles - Deliver optimal drying results
• Delay Start - Lets you do the laundry on your terms
™
- Continually monitors moisture levels to help clothes look
• Four Heat Selections - Provide the right temperature for the right
drying results
• DuraDrum™ - Provides long-lasting dependability and durability
• Delicate Cycle with Extra-Low Heat Setting - Maintains an average
fabric temperature of 125 degrees F to protect fine handwashables
• Speed Dry - Delivers ready-to-go results in minutes
• Model DBVH520GJWW – White on white
Specification Revised 1/08
360461
