GE DBLR333EE Specification
GE Appliances
36
25-1/2
42
54-1/2
Side View
27
Rear View
36
42
27
2
5-1/2
2-1/2
25-1/2*
Side View
Rear View
4-3/4
25-3/4
23-1/2
11-3/4
*24-1/2" from the edge of the side panel to the front.
25-1/2" from the front edge of endcaps.
R
B
2-1/2
A
4
GE Dryer Vent

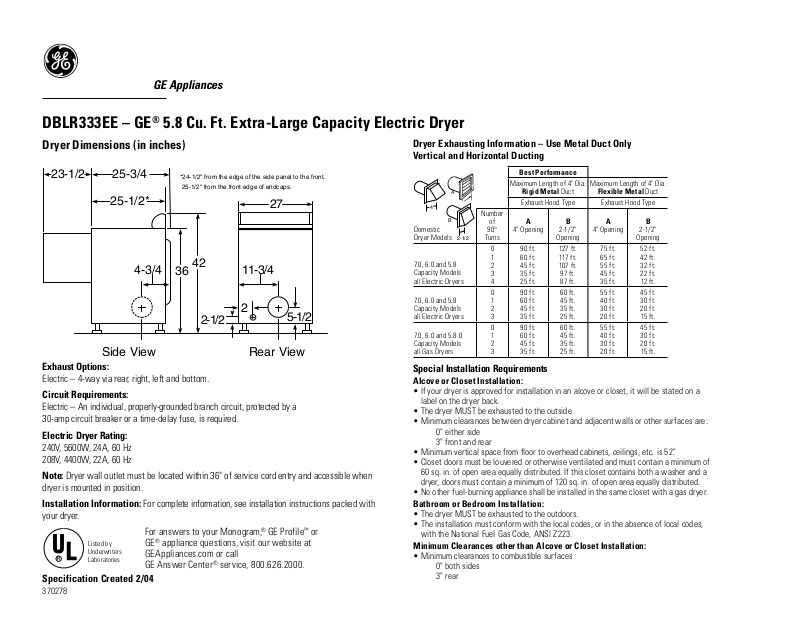

DBLR333EE – GE® 5.8 Cu. Ft. Extra-Large Capacity Electric Dryer
Dryer Dimensions (in inches)
Exhaust Options:
Electric – 4-way via rear, right, left and bottom.
Circuit Requirements:
Electric – An individual, properly-grounded branch circuit, protected by a
30-amp circuit breaker or a time-delay fuse, is required.
Electric Dryer Rating:
240V, 5600W, 24A, 60 Hz
208V, 4400W, 22A, 60 Hz
Note: Dryer wall outlet must be located within 36" of service cord entry and accessible when
dryer is mounted in position.
Installation Information:
For complete information, see installation instructions packed with
your dryer.
Listed by
Underwriters
Laboratories
Specification Created 2/04
370278
For answers to your Monogram,® GE Profile™ or
®
appliance questions, visit our website at
GE
GEAppliances.com or call
GE Answer Center
®
service, 800.626.2000.
Dryer Exhausting Information – Use Metal Duct Only
Vertical and Horizontal Ducting
Best Performance
A
Domestic
Dryer Models
7.0, 6.0 and 5.8
Capacity Models
all Electric Dryers
7.0, 6.0 and 5.8
Capacity Models
all Electric Dryers
7.0, 6.0 and 5.8.0
Capacity Models
all Gas Dr yers
Maximum Length of 4" Dia.
Rigid Metal Duct
Exhaust Hood Type Exhaust Hood Type
Number
of
90°
Turns
0
1
2
3
4
0
1
2
3
0
1
2
3
A
4" OpeningB2-1/2"
90 ft.
60 ft.
45 ft.
35 ft.
25 ft.
90 ft.
60 ft.
45 ft.
35 ft.
90 ft.
60 ft.
45 ft.
35 ft.
Opening
127 ft.
117 ft.
107 ft.
Maximum Length of 4" Dia.
Flexible Metal Duct
4" OpeningB2-1/2"
75 ft.
65 ft.
97 ft.
87 ft.
60 ft.
45 ft.
35 ft.
25 ft.
60 ft.
45 ft.
35 ft.
25 ft.
55 ft.
45 ft.
35 ft.
55 ft.
40 ft.
30 ft.
20 ft.
55 ft.
40 ft.
30 ft.
20 ft.
A
Opening
52 ft.
42 ft.
32 ft.
22 ft.
12 ft.
45 ft.
30 ft.
20 ft.
15 ft.
45 ft.
30 ft.
20 ft.
15 ft.
Special Installation Requirements
Alcove or Closet Installation:
• If your dryer is approved for installation in an alcove or closet, it will be stated on a
label on the dryer back.
• The dr yer MUST be exhausted to the outside.
• Minimum clearances between dryer cabinet and adjacent walls or other surfaces are:
0" either side
3" front and rear
• Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52
".
• Closet doors must be louvered or otherwise ventilated and must contain a minimum of
60 sq. in. of open area equally distributed. If this closet contains both a washer and a
dryer, doors must contain a minimum of 120 sq. in. of open area equally distributed.
• No other fuel-burning appliance shall be installed in the same closet with a gas dryer.
Bathroom or Bedroom Installation :
• The dr yer MUST be exhausted to the outdoors.
• The installation must conform with the local codes, or in the absence of local codes,
with the National Fuel Gas Code, ANSI Z223.
Minimum Clearances other than Alcove or Closet Installation:
• Minimum clearances to combustible surfaces
0" both sides
3" rear
GE Appliances
DBLR333EE/GE.EPS
TEMPERATURE
3
H
eat Settings
START
COTTONS
AUTO
MATI
C
MORE D
RY
MORE DRY
LESS DRY
C
O
O
L
D
O
W
N
OPT
IMU
M
DRY
LESS DRY
M
I
N
20
30
40
50
60
70
80
EASY CA
R
E
TIMED D
R
Y
P
u
sh
t
o
S
ta
rt
R
E
G
U
LA
R
M
E
D
IU
M
FLU
F
F
N
O
H
E
A
T
A
U
T
O
M
A
T
IC
3
C
l
o
t
h
e
s
C
a
r
e
C
y
c
l
e
s
-
E
x
t
r
a
L
a
r
g
e
C
a
p
a
c
i
t
y
10
DBLR333EE – GE® 5.8 Cu. Ft. Extra-Large Capacity Electric Dryer
Features and Benefits
• Auto Dry – Uses thermostats to monitor air temperature and reduce fabric ware
• DuraDrum™ – Provides long-lasting dependability and durability
• Three heat selections – Offer a choice of drying temperatures for better fabric care
• Three dry cycles – Simple options for reliable drying performance
• Reverse-A-Door – Offers added installation flexibility
• Upfront Lint Filter – Easy to reach and clean
• Model DBLR333EEWW – White on white
• Model DBLR333EECC – Bisque on bisque
Specification Created 2/04
