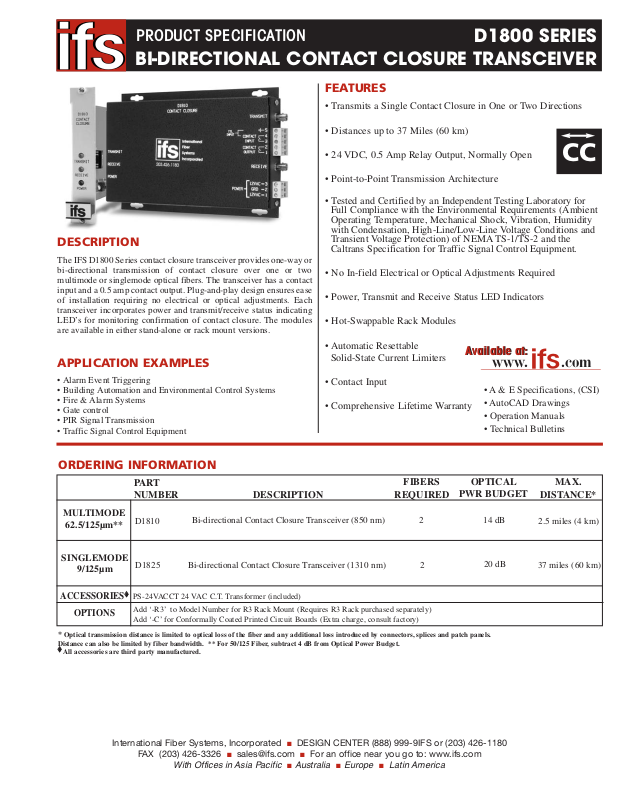

D1800 SERIES
BI-DIRECTIONAL CONTACT CLOSURE TRANSCEIVER
FEATURES
Transmits a Single Contact Closure in One or Two Directions
•
• Distances up to 37 Miles (60 km)
DESCRIPTION
The IFS D1800 Series contact closure transceiver provides one-way or
bi-directional transmission of contact closure over one or two
multimode or singlemode optical fibers. The transceiver has a contact
input and a 0.5 amp contact output. Plug-and-play design ensures ease
of installation requiring no electrical or optical adjustments. Each
transceiver incorporates power and transmit/receive status indicating
LED’s for monitoring confirmation of contact closure. The modules
are available in either stand-alone or rack mount versions.
APPLICATION EXAMPLES
• Alarm Event Triggering
• Building Automation and Environmental Control Systems
• Fire & Alarm Systems
• Gate control
• PIR Signal Transmission
• Traffic Signal Control Equipment
• 24 VDC, 0.5 Amp Relay Output, Normally Open
CC
• Point-to-Point Transmission Architecture
• Tested and Certified by an Independent Testing Laboratory for
Full Compliance with the Environmental Requirements (Ambient
Operating Temperature, Mechanical Shock, Vibration, Humidity
with Condensation, High-Line/Low-Line Voltage Conditions and
Transient Voltage Protection) of NEMA TS-1/TS-2 and the
Caltrans Specification for Traffic Signal Control Equipment.
• No In-field Electrical or Optical Adjustments Required
• Power, Transmit and Receive Status LED Indicators
• Hot-Swappable Rack Modules
• Automatic Resettable
Solid-State Current Limiters
• Contact Input
• Comprehensive Lifetime Warranty
• A & E Specifications, (CSI)
• AutoCAD Drawings
• Operation Manuals
• Technical Bulletins
ORDERING INFORMATION
MULTIMODE
62.5/125µm**
SINGLEMODE
ACCESSORIES
OPTIONS
* Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
Distance can also be limited by fiber bandwidth. ** For 50/125 Fiber, subtract 4 dB from Optical Power Budget.
♦
All accessories ar
9/125µm
PART
NUMBER
D1810
D1825
♦
PS-24VACCT 24 VAC C.T. Transformer (included)
Add ‘-R3’
Add ‘-C’ for Conformally Coated Printed Circuit Boards (Extra charge, consult factory)
e third par
