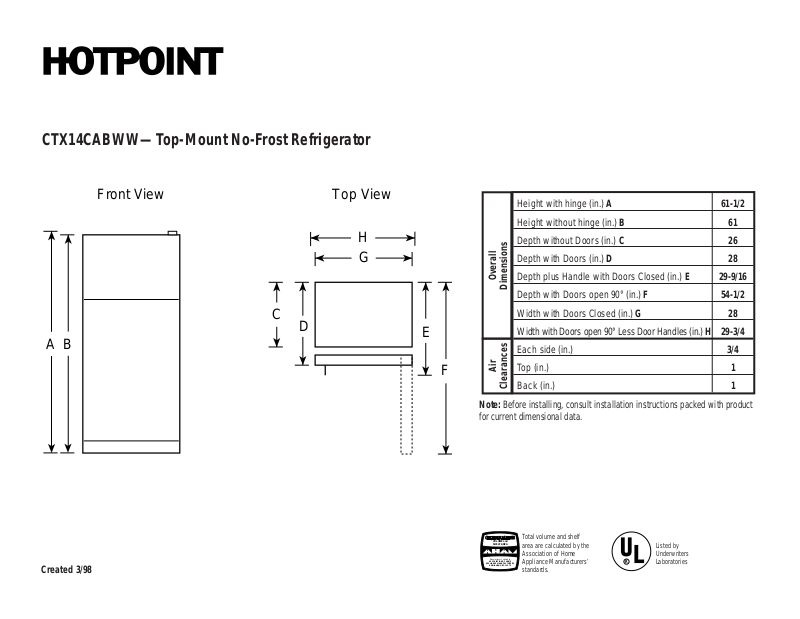

CTX14CABWW—Top-Mount No-Frost Refrigerator
Front View |
Top View |
H
G
C
D |
E |
|
A B
F
|
|
|
Height with hinge (in.) A |
61-1/2 |
|
|
|
Height without hinge (in.) B |
61 |
|
<![if ! IE]> <![endif]>Dimensions |
|
Depth without Doors (in.) C |
26 |
<![if ! IE]> <![endif]>Overall |
|
Depth with Doors (in.) D |
28 |
|
|
Depth plus Handle with Doors Closed (in.) E |
29-9/16 |
||
|
|
Depth with Doors open 90° (in.) F |
54-1/2 |
|
|
|
|
||
|
|
|
Width with Doors Closed (in.) G |
28 |
|
|
|
Width with Doors open 90° Less Door Handles (in.) H |
29-3/4 |
|
<![if ! IE]> <![endif]>Clearances |
|
Each side (in.) |
3/4 |
<![if ! IE]> <![endif]>Air |
|
Top (in.) |
1 |
|
|
|
Back (in.) |
1 |
Note: Before installing, consult installation instructions packed with product for current dimensional data.
Created 3/98
VOLUME and
SHELF AREA
Manufacturer Certified to
ASSOCIATION OF HOME APPLIANCE MANUFACTURERS ANSI/AHAN HRF-1-1979
Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.
R
Listed by Underwriters Laboratories
CTX14CABWW—Top-Mount No-Frost Refrigerator
Features and Benefits
• 14.4 cu ft Capacity (Fresh Food 10.58 cu ft / Freezer 3.86 cu ft)
• 2 Classic White Fruit/Vegetable Crispers
• 2 Adjustable Full-Width Wire Everwhite Fresh Food Cabinet Shelves
• 2 Fresh Food Door Shelves with Tall Bottle Storage
• Dairy Compartment
• 2 Freezer Door Shelves
• Equipped for Optional Automatic Icemaker
• 2 Ice 'N Easy Trays with Ice Tray Shelf
• Color-Matched Door Handles
• Model CTX14CABWW–White on white
• Model CTX14CABAA–Almond on almond
