GE CTX14CABAA Dimensions

Created 3/98
CTX14CABAA—Top-Mount No-Frost Refrigerator
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and SHELF AREA
R
Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.
Listed by Underwriters Laboratories
Note: Before installing, consult installation instructions packed with product for current dimensional data.

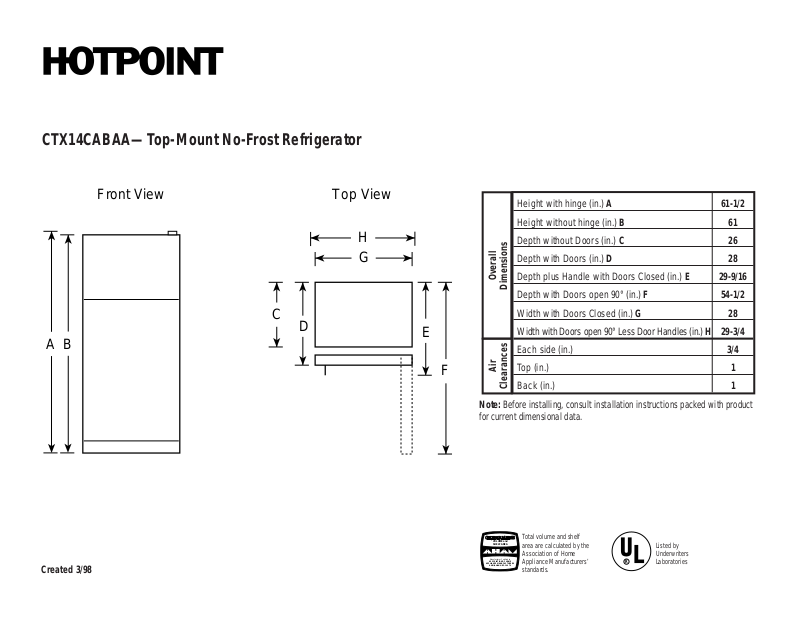

Front View Top View
A
G
E
C
F
B
D
H
Height with hinge (in.) A 61-1/2 Height without hinge (in.) B61 Depth without Doors (in.) C26 Depth with Doors (in.) D28 Depth plus Handle with Doors Closed (in.) E 29-9/16 Depth with Doors open 90° (in.) F 54-1/2 Width with Doors Closed (in.) G28 Width with Doors open 90°Less Door Handles (in.) H 29-3/4 Each side (in.) 3/4 Top (in.) 1 Back (in.) 1
Overall
Dimensions
Air
Clearances
Created 3/98
CTX14CABAA—Top-Mount No-Frost Refrigerator
Features and Benefits
•14.4 cu ft Capacity (Fresh Food 10.58 cu ft / Freezer 3.86 cu ft)
•2 Classic White Fruit/Vegetable Crispers
•2 Adjustable Full-Width Wire Everwhite Fresh Food Cabinet Shelves
•2 Fresh Food Door Shelves with Tall Bottle Storage
•Dairy Compartment
•2 Freezer Door Shelves
•Equipped for Optional Automatic Icemaker
•2 Ice 'N Easy Trays with Ice Tray Shelf
•Color-Matched Door Handles
•Model CTX14CABWW–White on white
•Model CTX14CABAA–Almond on almond
