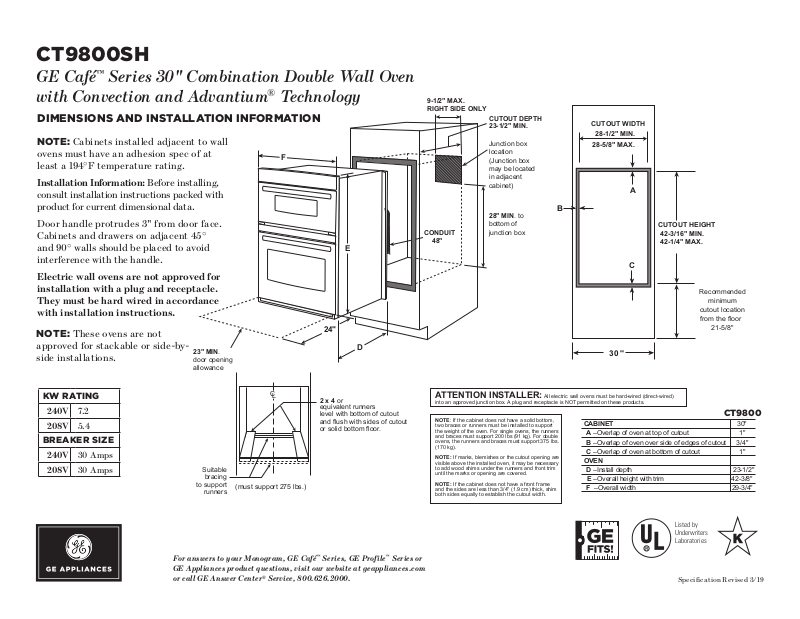

CT9800SH
GE Café™ Series 30" Combination Double Wall Oven with Convection and Advantium® Technology
DIMENSIONS AND INSTALLATION INFORMATION
NOTE: Cabinets installed adjacent to wall ovens must have an adhesion spec of at least a 194°F temperature rating.
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
Door handle protrudes 3" from door face. Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle.
Electric wall ovens are not approved for installation with a plug and receptacle. They must be hard wired in accordance with installation instructions.
NOTE: These ovens are not |
|
approved for stackable or side-by- |
23" MIN. |
side installations. |
door opening |
|
allowance |
F
E
24"
D
9-1/2" MAX. |
|
|
RIGHT SIDE ONLY |
|
|
|
CUTOUT DEPTH |
CUTOUT WIDTH |
|
23-1/2" MIN. |
|
|
|
28-1/2" MIN. |
|
Junction box |
28-5/8" MAX. |
|
location |
|
|
(Junction box |
|
|
may be located |
|
|
in adjacent |
|
|
cabinet) |
A |
|
|
|
|
28" MIN. to |
B |
|
|
|
|
bottom of |
CUTOUT HEIGHT |
CONDUIT |
junction box |
42-3/16" MIN. |
48" |
|
42-1/4" MAX. |
|
|
C |
Recommended minimum cutout location from the floor 21-5/8"
30 ''
KW RATING
240V 7.2
208V 5.4
BREAKER SIZE
240V 30 Amps
208V 30 Amps
C |
L |
Suitable bracing
to support (must support 275 lbs.) runners
2 x 4 or equivalent runners
level with bottom of cutout and flush with sides of cutout or solid bottom floor.
|
|
|
|
CT9800 |
||
ATTENTION INSTALLER: All electric wall ovens must be hard-wired (direct-wired) |
|
|||||
|
PT9800 |
|||||
into an approved junction box. A plug and receptacle is NOT permitted on these products. |
|
|||||
|
|
|
|
PT7800 |
||
|
|
|
|
|||
|
|
|
CT9800J 3800 |
|||
NOTE: If the cabinet does not have a solid bottom, |
|
|
||||
two braces or runners must be installed to support |
|
CABINET |
|
30" |
|
|
the weight of the oven. For single ovens, the runners |
|
A –Overlap of oven at top of cutout |
|
1" |
|
|
and braces must support 200 lbs (91 kg). For double |
|
|
|
|||
ovens, the runners and braces must support 375 lbs. |
|
B –Overlap of oven over side of edges of cutout |
|
3/4" |
|
|
(170 kg). |
|
|
|
|
|
|
C –Overlap of oven at bottom of cutout |
|
1" |
|
|||
NOTE: If marks, blemishes or the cutout opening are |
|
|
|
|||
|
OVEN |
|
|
|
||
visible above the installed oven, it may be necessary |
|
|
|
|
||
to add wood shims under the runners and front trim |
|
D –Install depth |
|
23-1/2" |
|
|
until the marks or opening are covered. |
|
|
|
|
|
|
E –Overall height with trim |
|
42-3/8" |
|
|||
NOTE: If the cabinet does not have a front frame |
|
|
|
|||
|
F –Overall width |
|
29-3/4" |
|
||
and the sides are less than 3/4" (1.9 cm) thick, shim |
|
|
|
|||
both sides equally to establish the cutout width. |
|
|
|
|
|
|
|
|
|
|
|
|
|
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 3/19
CT9800SH
GE Café™ Series 30" Combination Double Wall Oven with Convection and Advantium® Technology
FEATURES AND BENEFITS
GE Fits! Guarantee – GE wall ovens are guaranteed for an exact fit to make replacement easy
Speedcook oven 120V (upper oven) – Enjoy oven-quality results twoto fourtimes faster than a conventional oven
True European Convection (lower oven) – Achieve delicious results from a third heating element and fan combination
Multiple cooking functions – Expand your cooking versatility with an all in one oven Halogen heat (upper oven) – Skip the preheating with nearly instantaneous halogen heat
Oven 175 preprogrammed menu selections (upper oven) – Preprogrammed selections make meals easy Self-clean with Steam Clean option (lower oven) – Clean your oven the way you want
Self-clean, heavy-duty roller rack (lower oven) – Easily access items with a rack that glides smoothly Glass touch controls – Set temperatures quickly and clean with little effort
Ten-pass bake element (lower oven) – Even baking is assured with heat that covers more surface area Eight-pass broil element (lower oven) – Get full broil coverage and even browning from edge to edge Model CT9800SHSS – Stainless steel
GUARANTEED FIT
Replacing a similar wall oven from GE or another brand? GE wall ovens are guaranteed for an exact fit to make replacement easy
Visit geappliances.com for more info
