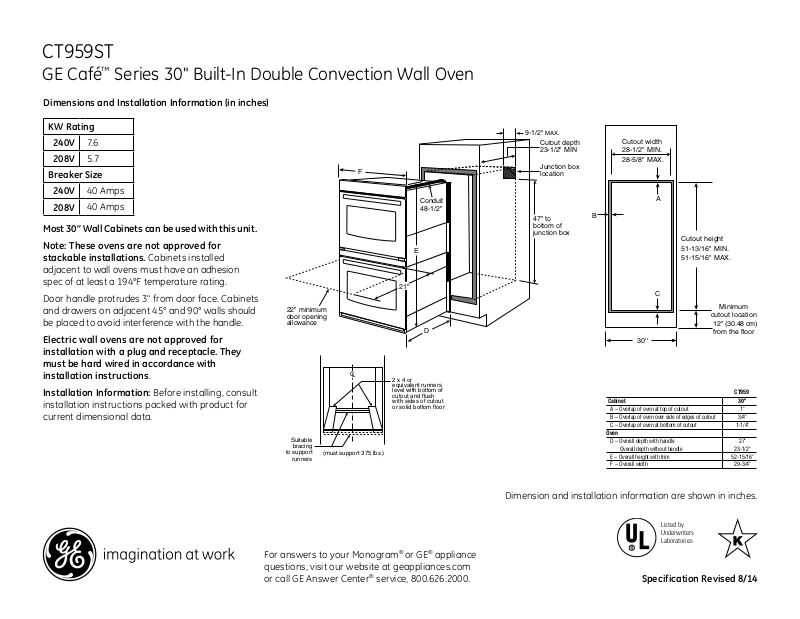

CT959ST
GE Café™ Series 30" Built-In Double Convection Wall Oven
Dimensions and Installation Information (in inches)
KW Rating
240V 7.6
208V 5.7
Breaker Size
240V 40 Amps
208V 40 Amps
Most 30” Wall Cabinets can be used with this unit.
Note: These ovens are not approved for stackable installations. Cabinets installed adjacent to wall ovens must have an adhesion spec of at least a 194°F temperature rating.
Door handle protrudes 3" from door face. Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle.
Electric wall ovens are not approved for installation with a plug and receptacle. They must be hard wired in accordance with installation instructions.
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
9-1/2" MAX.
Cutout depth 23-1/2" MIN
F |
Junction box |
|
location |
||
|
Conduit 48-1/2"
47" to bottom of junction box
E
21"
22" minimum door opening allowance
D
C |
L |
Suitable bracing
to support (must support 375 lbs.) runners
2 x 4 or equivalent runners
level with bottom of cutout and flush with sides of cutout or solid bottom floor
Cutout width |
28-1/2" MIN. |
28-5/8" MAX. |
A |
B |
C |
30'' |
Cutout height 51-13/16" MIN. 51-15/16" MAX.
Minimum cutout location 12" (30.48 cm) from the floor
|
|
CT959 |
|
|
|
|
Cabinet |
30" |
|
A – Overlap of oven at top of cutout |
1" |
|
B – Overlap of oven over side of edges of cutout |
3/4" |
|
C – Overlap of oven at bottom of cutout |
1-1/4" |
|
Oven |
|
|
D – Overall depth with handle |
27" |
|
Overall depth without handle |
23-1/2" |
|
E – Overall height with trim |
52-15/16" |
|
F – Overall width |
29-3/4" |
Dimension and installation information are shown in inches.
Listed by
Underwriters
Laboratories
For answers to your Monogram® or GE® appliance |
|
questions, visit our website at geappliances.com |
Specification Revised 8/14 |
or call GE Answer Center® service, 800.626.2000. |
CT959ST
GE Café™ Series 30" Built-In Double Convection Wall Oven
Features and Benefits
•Glass touch controls - Smooth controls are easy to use and add a sophisticated style to the kitchen
•True European Convection with Precise Air (both ovens) - A reversing fan circulates heat and air for evenly browned and baked foods
•Convection Bake - This setting is optimal for baking casseroles or lasagnas, yeast breads, pies and pizzas with no need to turn the pan
•Convection Roast - Optimal for larger cuts of meat, this setting rotates the heat around all sides, sealing in the juices, producing rotisserie results at up to 25% faster than a conventional oven
•Heavy-duty roller racks - Racks provide easy access to items inside the oven by simplifying loading and unloading
•Black gloss oven interior - Black oven interior adds a stylish touch to any kitchen
•Model CT959STSS – Stainless steel
Specification Revised 8/14
