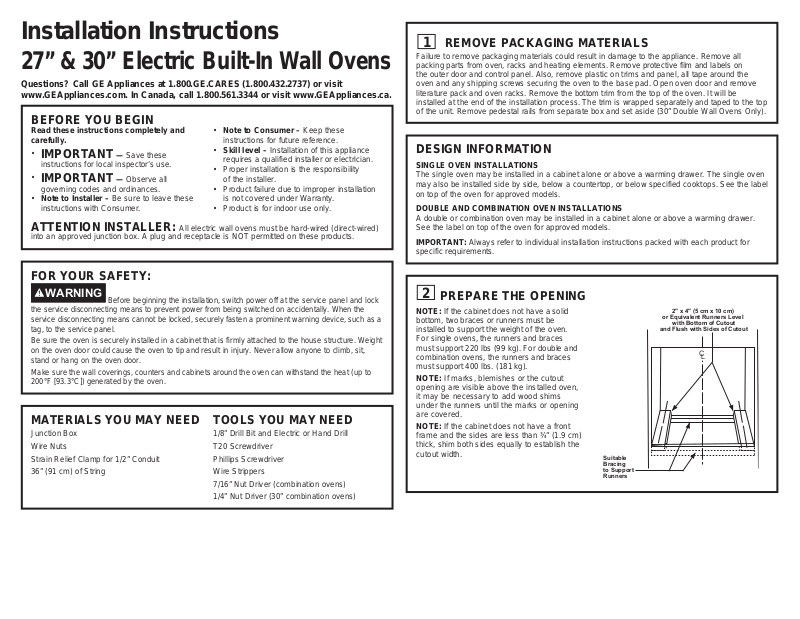

Installation Instructions
27” & 30” Electric Built-In Wall Ovens
Questions? Call GE Appliances at 1.800.GE.CARES (1.800.432.2737) or visit www.GEAppliances.com. In Canada, call 1.800.561.3344 or visit www.GEAppliances.ca.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT — Save these instructions for local inspector’s use.
• IMPORTANT — Observe all governing codes and ordinances.
•Note to Installer – Be sure to leave these instructions with Consumer.
•Note to Consumer – Keep these instructions for future reference.
•Skill level – Installation of this appliance requires a qualified installer or electrician.
•Proper installation is the responsibility of the installer.
•Product failure due to improper installation is not covered under Warranty.
•Product is for indoor use only.
ATTENTION INSTALLER: All electric wall ovens must be hard-wired (direct-wired) into an approved junction box. A plug and receptacle is NOT permitted on these products.
FOR YOUR SAFETY:
WARNING Before beginning the installation, switch power off at the service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
Be sure the oven is securely installed in a cabinet that is firmly attached to the house structure. Weight on the oven door could cause the oven to tip and result in injury. Never allow anyone to climb, sit, stand or hang on the oven door.
Make sure the wall coverings, counters and cabinets around the oven can withstand the heat (up to
200°F [93.3°C]) generated by the oven.
MATERIALS YOU MAY NEED |
TOOLS YOU MAY NEED |
Junction Box |
1/8” Drill Bit and Electric or Hand Drill |
Wire Nuts |
T20 Screwdriver |
Strain Relief Clamp for 1/2” Conduit |
Phillips Screwdriver |
36” (91 cm) of String |
Wire Strippers |
|
7/16” Nut Driver (combination ovens) |
|
1/4” Nut Driver (30” combination ovens) |
|
|
1 REMOVE PACKAGING MATERIALS
Failure to remove packaging materials could result in damage to the appliance. Remove all packing parts from oven, racks and heating elements. Remove protective film and labels on the outer door and control panel. Also, remove plastic on trims and panel, all tape around the oven and any shipping screws securing the oven to the base pad. Open oven door and remove literature pack and oven racks. Remove the bottom trim from the top of the oven. It will be
installed at the end of the installation process. The trim is wrapped separately and taped to the top of the unit. Remove pedestal rails from separate box and set aside (30” Double Wall Ovens Only).
DESIGN INFORMATION
SINGLE OVEN INSTALLATIONS
The single oven may be installed in a cabinet alone or above a warming drawer. The single oven may also be installed side by side, below a countertop, or below specified cooktops. See the label on top of the oven for approved models.
DOUBLE AND COMBINATION OVEN INSTALLATIONS
A double or combination oven may be installed in a cabinet alone or above a warming drawer. See the label on top of the oven for approved models.
IMPORTANT: Always refer to individual installation instructions packed with each product for specific requirements.
2 PREPARE THE OPENING
NOTE: If the cabinet does not have a solid bottom, two braces or runners must be installed to support the weight of the oven. For single ovens, the runners and braces must support 220 lbs (99 kg). For double and combination ovens, the runners and braces must support 400 lbs. (181 kg).
NOTE: If marks, blemishes or the cutout opening are visible above the installed oven, it may be necessary to add wood shims under the runners until the marks or opening are covered.
NOTE: If the cabinet does not have a front frame and the sides are less than ¾” (1.9 cm) thick, shim both sides equally to establish the cutout width.

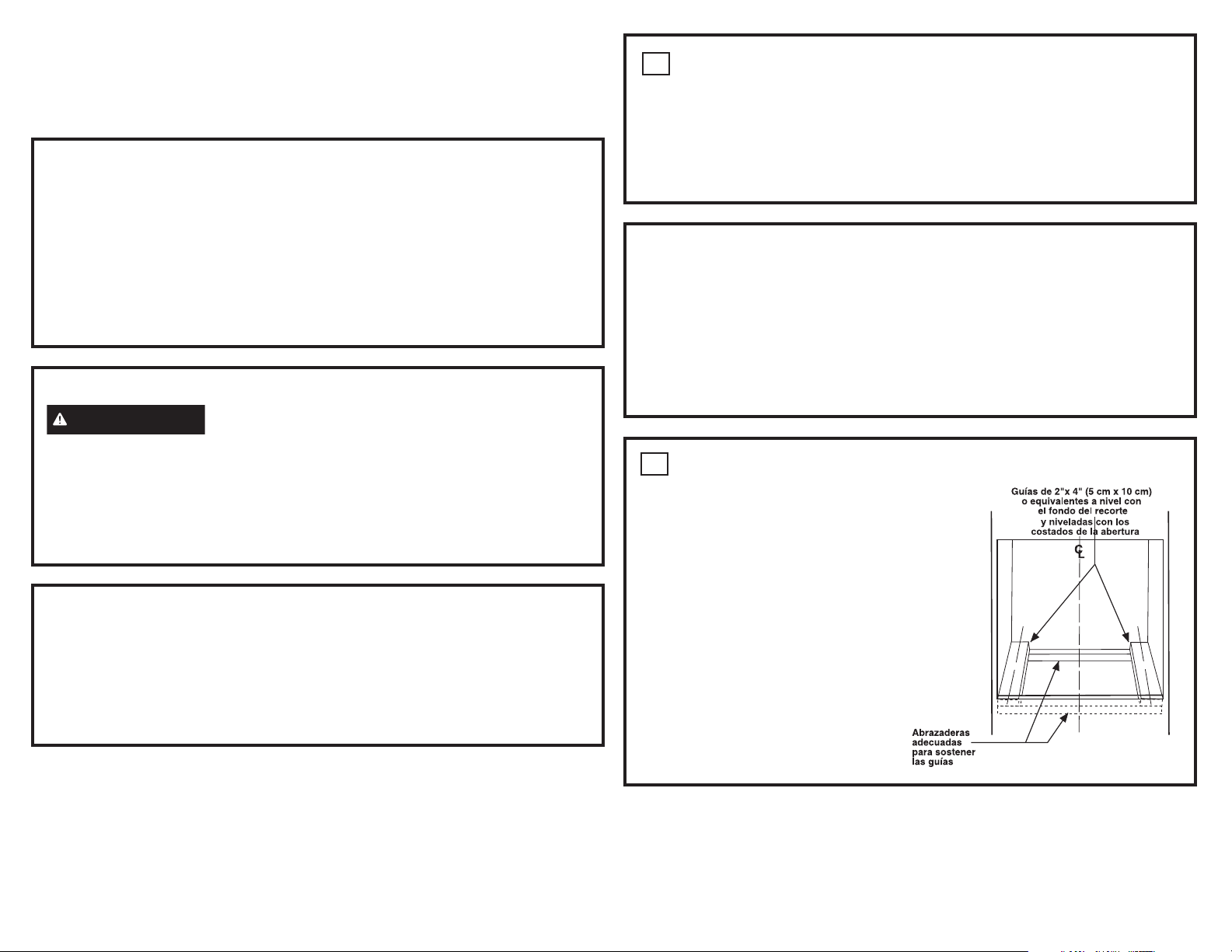

Suitable
Bracing to Support Runners
2" x 4" (5 cm x 10 cm) or Equivalent Runners Level
with Bottom of Cutout and Flush with Sides of Cutout
C |
L |

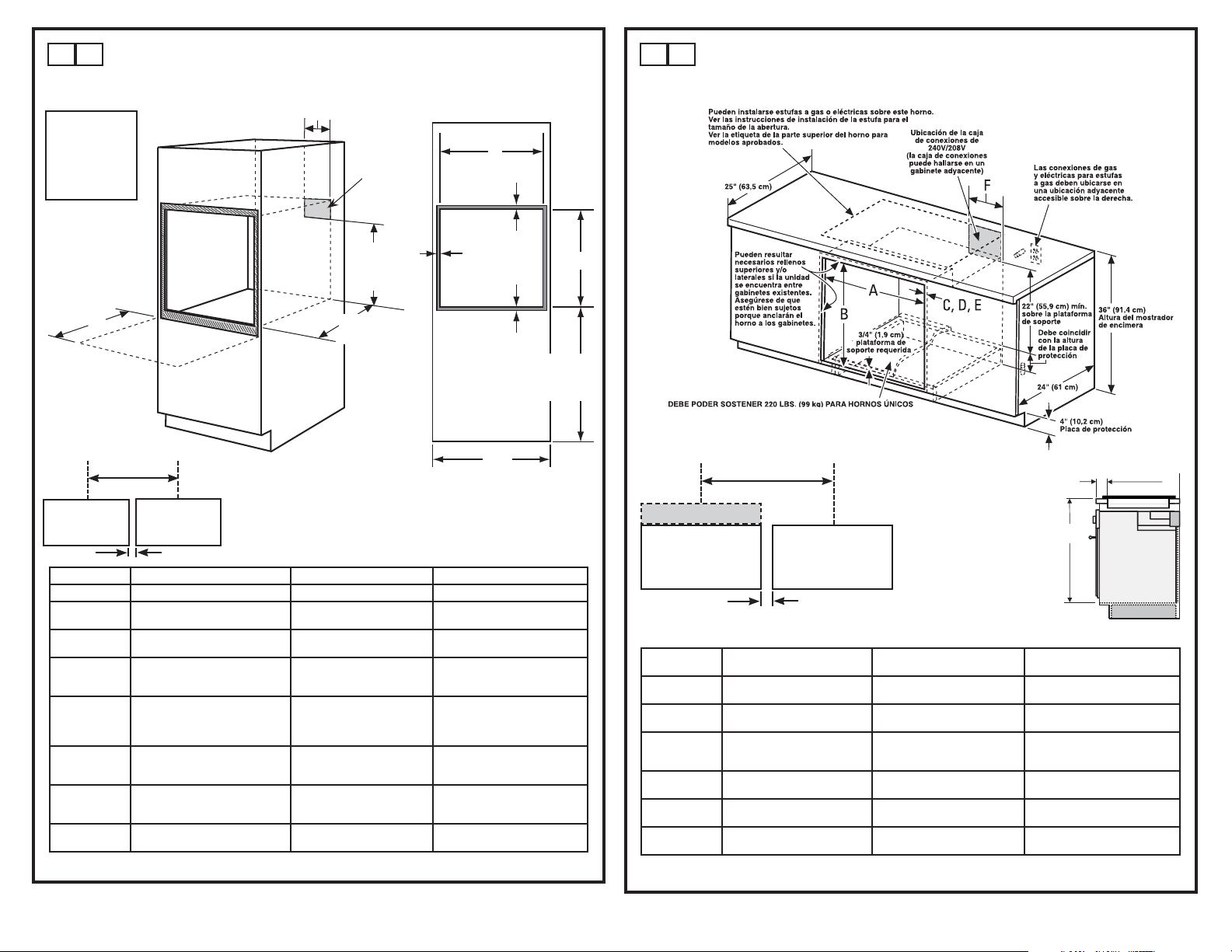

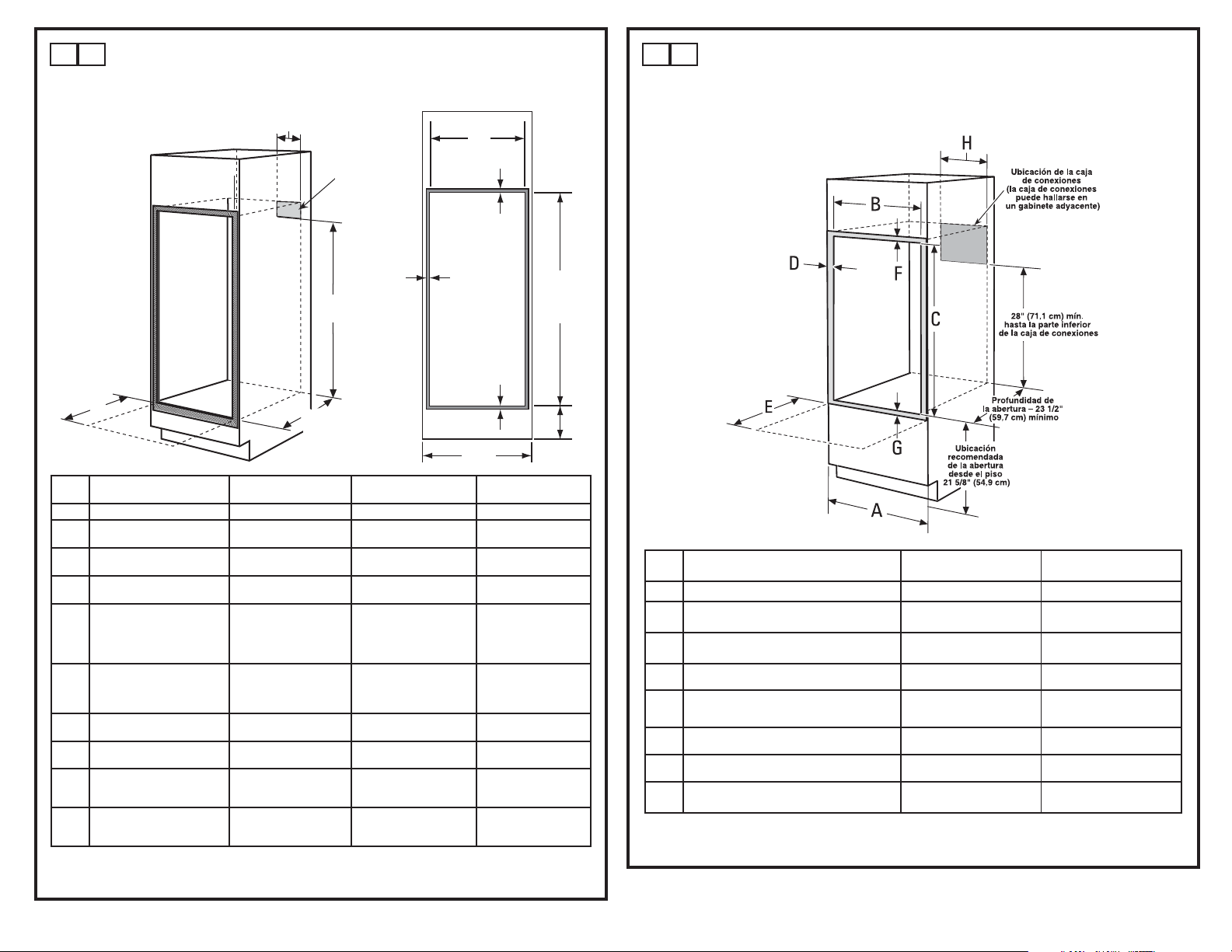

2 A CUTOUT FOR SINGLE OVENS IN WALL CABINET
NOTE: If the cabinet does not have a front frame and the sides are less than ¾” (1.9 cm) thick, shim both sides equally to establish the cutout width.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
H |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
These ovens |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
are not |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
approved for |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Junction |
|
|
|
|
|
|
|
|
|
|
|
|
B |
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Box |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
installations that |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Location |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
stack one single |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(junction |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
wall oven above |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
box may |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
be located |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||
|
|
another single |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
in adjacent |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
wall oven. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
cabinet) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
F |
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
Opening |
|
|
|
|
|
|
|
|
|
D |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
Between Inside |
|
|
|
|
|
|
22” (55.9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
Walls Must be |
|
|
|
|
|
|
cm) Min. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
at Least 28-1/2” |
|
|
|
|
|
|
to Bottom |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
G |
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
(72.4 cm) Wide |
|
|
|
|
|
|
of Junction |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Box |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
E |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cutout Depth |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
23-1/2” |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(59.7 cm) Min. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Recommended |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NOTE: Allow |
|
|
|
|
|
|
|
|
|
|
|
|
Cutout Location |
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1/4” (0.64 cm) |
|
|
|
|
|
|
|
|
|
|
|
|
from Floor |
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
32-1/2” (82.6 cm) |
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
clearances from |
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
side edges of |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
oven door. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
Side-by-Side Installations |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||
|
|
Install two ovens in separate cutouts. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
|
|
Center Line |
|
|
Center Line |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
|
|
|
|
|
|
||||||||||||||||||||
|
|
|
30.5” (77.5 cm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
|
|
|
30” models |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
27” (68.58 cm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
27” models |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
Cutout – |
|
|
Cutout – |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
observe all |
|
|
observe all |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
dimensions and |
|
|
dimensions and |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
requirements. |
|
|
requirements. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
2” (5.1 cm) Min. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||
|
|
Dimension |
|
Dimension Description |
27” Single Oven |
|
|
|
|
|
|
|
30” Single Oven |
|
|
|
|
|||||||||||||||||||||||||||||||||
|
|
A |
|
|
|
|
|
|
Cabinet Width |
27” (68.6 cm) |
|
|
|
|
|
|
|
|
|
30” (76.2 cm) |
|
|
|
|
||||||||||||||||||||||||||
|
|
B |
|
|
|
|
|
|
Cutout Width |
25” (63.5 cm) min. |
|
|
|
|
|
|
|
281»2” (72.4 cm) min. |
|
|
|
|
||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
251» |
” (64.1 cm) max. |
|
285» |
” (72.7 cm) max. |
|
|
|
|
|||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C |
|
|
|
|
|
|
Cutout Height |
275»8” (70.2 cm) min. |
|
|
|
271»4” (69.2 cm) min. |
|
|
|
|
||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
281» |
” (71.4 cm) max. |
|
275» |
16 |
” (69.4 cm) max. |
|
|
|
|
||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
D |
|
|
|
Clearance from cutout - |
|
1” (2.5 cm) |
|
|
|
|
|
|
|
|
|
11»16” (1.75 cm) |
|
|
|
|
||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
side edges* |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
E |
|
|
|
|
Clearance to Adjacent |
23” (50.8 cm) min. |
|
|
|
|
|
|
|
23” (53.3 cm) min. |
|
|
|
|
||||||||||||||||||||||||||||||
|
|
|
|
|
|
Corners, Drawers, Walls, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
etc., When Door Is Open |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
F |
|
|
|
Clearance from cutout - |
1” (2.5 cm) min. |
|
|
|
|
|
|
|
|
1” (2.5 cm) min. |
|
|
|
|
||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
top* |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(11»4” (3.2 cm) for PT9050, |
|
||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ZET1S and ZET1P) |
|
|
|
|
||||||||||||||
|
|
G |
|
|
|
Clearance from cutout - |
1” (2.5 cm) min. |
|
|
|
|
|
|
|
|
|
11»4” (3.2 cm) |
|
|
|
|
|||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
bottom* |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
H |
|
|
|
|
Junction Box Location |
83»4” (22.2 cm) max. |
|
|
|
91»2” (24.1 cm) max. |
|
|
|
|
||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
right side only |
|
|
|
|
|
|
|
|
|
right side only |
|
|
|
|
* Refers to minimum clearance required for wall oven installation and does not reflect actual product dimensions.
2 B CUTOUT FOR SINGLE OVENS – UNDER COUNTER
NOTE: These ovens are only approved to be installed under the specific models as labeled on the unit.
Side-by-Side Installations
Install two ovens in separate cutouts.
Center Line |
|
|
|
Center Line |
IMPORTANT: Maintain |
|||||
|
30.5” (77.5 cm) 30” models |
a minimum distance |
||||||||
|
27” (68.58 cm) 27” models |
|
of 31-1/4” from the |
|||||||
|
top surface of the |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
Cooktop |
|
|
|
|
|
|
countertop to the |
|||
|
|
|
|
|
|
|
|
|
|
wall oven platform to |
Cutout – observe |
|
Cutout – observe |
ensure that the cooktop |
|||||||
all dimensions and |
|
all dimensions and |
and wall oven do not |
|||||||
requirements. |
|
requirements. |
interfere with each other |
|||||||
|
|
|
|
|
|
|
|
|
|
(see picture). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2” (5.1 cm) Min. |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
NOTE: One cooktop may be centered over either oven in the side-by-side installation.
2-1/2” min. (6.4cm) |
Cooktop |
31-1/4” min. |
(79.4 cm) |
Wall Oven |
SIDE VIEW
Dimension |
Dimension Description |
27” Single Oven |
30” Single Oven |
|||||
A |
Cabinet Width |
25” (63.5 cm) min. |
281»2” (72.4 cm) min. |
|||||
|
|
251» |
” (64.1 cm) max. |
285» |
” (72.7 cm) max. |
|||
|
|
4 |
|
|
8 |
|
|
|
B |
Cutout Height |
275»8” (70.2 cm) min. |
271»4” (69.2 cm) min. |
|||||
|
|
281» |
” (71.4 cm) max. |
275» |
16 |
” (69.4 cm) max. |
||
|
|
8 |
|
|
|
|
||
C |
Clearance from cutout - top* |
|
1” (2.5 cm) |
|
|
|
1” (2.5 cm) |
|
|
|
|
|
(11» |
” (3.2 cm) for |
|||
|
|
|
|
|
|
|
4 |
PT9050 |
|
|
|
|
|
|
|
|
|
|
|
|
|
ZET1S and ZET1P) |
||||
D |
Clearance from cutout - bottom* |
|
1” (2.5 cm) |
|
11»4” (3.2 cm) |
|||
E |
Clearance from cutout - side edges* |
|
1” (2.5 cm) |
|
11»16” (1.75 cm) |
|||
F |
Junction Box Location |
83»4” (22.2 cm) max. |
91»2” (24.1 cm) max. |
|||||
|
|
right side only |
|
right side only |
* Refers to minimum clearance required for wall oven installation and does not reflect actual product dimensions.
Continue to Section 4.
2 C CUTOUT FOR DOUBLE OVENS (2 THERMAL OVENS)
NOTE: If the cabinet does not have a front frame and the sides are less than ¾” (1.9 cm) thick, shim both sides equally to establish the cutout width.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
H |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
B |
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
Junction |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
Box |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Location |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(junction |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
box may |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
be located |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
in adjacent |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
cabinet) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
F |
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
D |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C |
||
|
|
|
J |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
G |
E |
Cutout Depth |
K |
|
23-1/2” |
|
|
(59.7 cm) Min. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Dim. |
Description |
|
27” Double Oven |
30” Double Oven with |
|
30” Double Oven |
||||||||||||||
|
|
|
Pedestal |
|
without Pedestal |
|||||||||||||||
A |
Cabinet Width |
|
|
|
27” (68.6 cm) |
|
30” (76.2 cm) |
|
|
30” (76.2 cm) |
||||||||||
B |
Cutout Width |
|
25” (63.5 cm) min. |
281»2” (72.4 cm) min. |
281»2” (72.4 cm) min. |
|||||||||||||||
|
|
|
251» |
|
” (64.1 cm) max. |
285» |
” (72.7 cm) max. |
285» |
” (72.7 cm) max. |
|||||||||||
|
|
|
|
|
4 |
|
|
8 |
|
|
|
|
|
8 |
|
|
|
|||
C |
Cutout Height |
4911»16” (126.2 cm) min. |
5113»16” (131.6 cm) min. |
|
50 ¼” (127.64cm) |
|||||||||||||||
|
|
|
501» |
8 |
” (127.3 cm) max. |
5115» |
16 |
” (131.9 cm) max. |
|
|
|
|
|
|
||||||
D |
Clearance from |
|
|
|
|
1” (2.5 cm) |
|
11»16” (1.75 cm) |
|
|
11»16” (1.75 cm) |
|||||||||
|
cutout - side |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
edges* |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
E |
Clearance to |
|
23” (50.8 cm) min. |
23” (53.3 cm) min. |
|
23” (53.3 cm) min. |
||||||||||||||
|
Adjacent Corners, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Drawers, Walls, etc., |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
When Door Is Open |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
F |
Clearance from |
|
1” (2.5 cm) min. |
1” (2.5 cm) min. |
|
|
1” (2.5 cm) min. |
|||||||||||||
|
cutout - top* |
|
|
|
|
|
(11»4” (3.2 cm) for |
|
(11»4” (3.2 cm) for |
|||||||||||
|
|
|
|
|
|
|
|
PT9550, ZET2S and |
PT9550, ZET2S and |
|||||||||||
|
|
|
|
|
|
|
|
|
|
ZET2P) |
|
|
|
ZET2P) |
||||||
G |
Clearance from |
|
1” (2.5 cm) min. |
|
11»4” (3.2 cm) |
|
|
11»4” (3.2 cm) |
||||||||||||
|
cutout - bottom* |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
H |
Junction Box |
|
83»4” (22.2 cm) max. |
91»2” (24.1 cm) max. |
91»2” (24.1 cm) max. |
|||||||||||||||
|
Location |
|
|
right side only |
|
right side only |
|
|
right side only |
|||||||||||
J |
Height to Bottom |
|
|
44” (111.8 cm) |
|
47” (119.4 cm) |
|
|
47” (119.4 cm) |
|||||||||||
|
of Junction Box |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
K |
Recommended |
|
131»4” (33.7 cm) |
|
12” (30.5 cm) |
|
|
12” (30.5 cm) |
||||||||||||
|
Cutout Location |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
from Floor |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* Refers to minimum clearance required for wall oven installation and does not reflect actual product dimensions.
Continue to Section 3.
2 D CUTOUT FOR COMBINATION OVENS (WITH UPPER MICROWAVE OVEN)
NOTE: If the cabinet does not have a front frame and the sides are less than ¾” (1.9 cm) thick, shim both sides equally to establish the cutout width.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Dim. |
Description |
|
|
|
|
27” Oven |
|
|
|
|
30” Oven |
|||
|
|
|
with Microwave |
|
|
with Microwave |
||||||||
A |
Cabinet Width |
|
|
|
27” (68.6 cm) |
|
|
30” (76.2 cm) |
||||||
B |
Cutout Width |
|
|
25” (63.5 cm) min. |
|
|
281»2” (72.4 cm) min. |
|||||||
|
|
251» |
” (64.1 cm) max. |
285» |
” (72.7 cm) max. |
|||||||||
|
|
4 |
|
|
8 |
|
|
|
|
|||||
C |
Cutout Height |
|
|
411» ” (104.5 cm) min. |
|
|
423»16” (107.2 cm) min. |
|||||||
|
|
|
|
411»48” (104.8 cm) max. |
|
|
421»4” (107.3 cm) max. |
|||||||
D |
Clearance from cutout - |
|
|
|
|
1” (2.5 cm) |
11» |
16 |
” (1.75 cm) |
|||||
|
side edges* |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
E |
Clearance to Adjacent Corners, |
|
|
23” (58.4 cm) min. |
|
|
23” (58.4 cm) |
|||||||
|
Drawers, Walls, etc., When Door |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Is Open |
|
|
|
|
|
|
|
|
|
|
|
|
|
F |
Clearance from cutout - top* |
|
|
|
1” (2.5 cm) min. |
|
|
1” (2.5 cm) min. |
||||||
G |
Clearance from cutout - |
|
|
|
1” (2.5 cm) min. |
11» |
|
” (3.2 cm) |
||||||
|
bottom* |
|
|
|
|
|
|
|
|
|
|
4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
H |
Junction Box Location |
|
|
83»4” (22.2 cm) max. |
|
|
91»2” (24.1 cm) max. |
|||||||
|
|
|
|
|
right side only |
|
|
right side only |
* Refers to minimum clearance required for wall oven installation and does not reflect actual product dimensions.
Continue to Section 2E.
31-11109 05-17 GEA
2 E SECURING UPPER MICROWAVE/ADVANTIUM OVEN TO CABINET
For double oven with microwave or Advantium upper ovens. Secure a wooden cleat to side of cabinet so that the upper oven can be secured to the cleat with provided screws
27” Cabinet requirements
•No shims (or cleats) required when cabinet is in minimum width condition.
•If cabinet is at maximum width condition, add wood shims to bring cabinet to minimum condition.
30” Cabinet requirements
•No shims (or cleats) required when cabinet is in minimum width condition.
•If cabinet is at maximum width condition, fix the wood cleats as shown in illustration.
|
1.5” |
6.375” |
3.0” |
|
|
|
Wood Cleats |
27.5” |
|
Cleat locations on 30” cabinet with maximum cutout condition

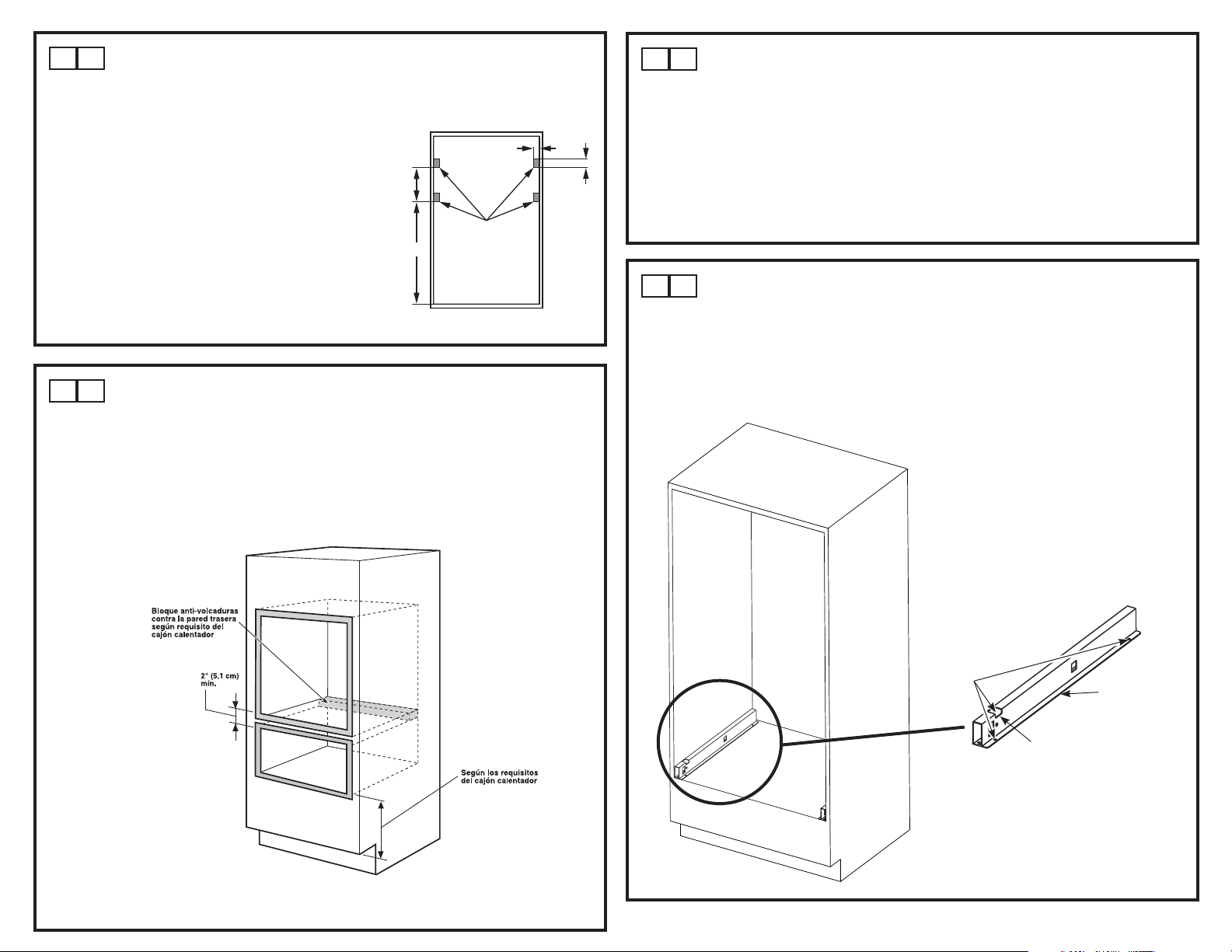

2 F CUTOUT FOR INSTALLATION OVER A WARMING DRAWER
NOTE: Install the oven only with specific models listed on the label located on top of the oven.
NOTE: Additional clearances between cutouts may be required. Check to be sure the oven supports above the Warming Drawer location do not obstruct the required interior depth and height.
When installing a Warming Drawer below a single, double, or combination oven, a separate 120V, 60 HZ, properly grounded receptacle must be installed. Refer to installation instructions packed with the Warming Drawer for specific installation requirements.
Anti-Tip Block Against
Rear Wall Per Warming
Drawer Requirement
2" (5.1 cm) Min.
Per Warming
Drawer
Requirement
Continue to Section 3 for Double Wall Oven with Pedestal. Otherwise, continue to Section 4.
3 A DETERMINING WHEN TO USE THE PEDESTAL (30” DOUBLE OVENS ONLY)
WHEN TO USE THE PEDESTAL
When replacing an older GE Appliances 30” double wall oven with a new GE Appliances model. Cutout height = 51-13/16” to 51-15/16”. This is our traditional cutout height.
WHEN NOT TO USE THE PEDESTAL
When replacing a 30” double wall oven from another manufacturer (ie. Whirlpool) with a new GE Appliances 30” double wall oven. Cutout height = 50-1/4”. You will need to verify that the existing cutout matches the 50-1/4” dimension.
If the new GE Appliances 30” double wall oven is being installed into new construction (ie. not a replacement), then the recommended installation is to use the Pedestal.
3 B PEDESTAL RAIL INSTALLATION
(30” DOUBLE OVENS ONLY)
A.Position the pedestal rails with the top cutout toward the front of the opening and the flanges on the bottom, pointing toward the center. Locate each rail on the floor or cabinet runner, slightly inward from the side of the cabinet. Make sure the front of each rail is not protruding beyond the front of the cabinet opening.
B.Drill pilot holes and attach rails to runner or bottom of cabinet with provided hardware.
Attachment
screws
Flanges toward center of cutout
Top cutout toward front

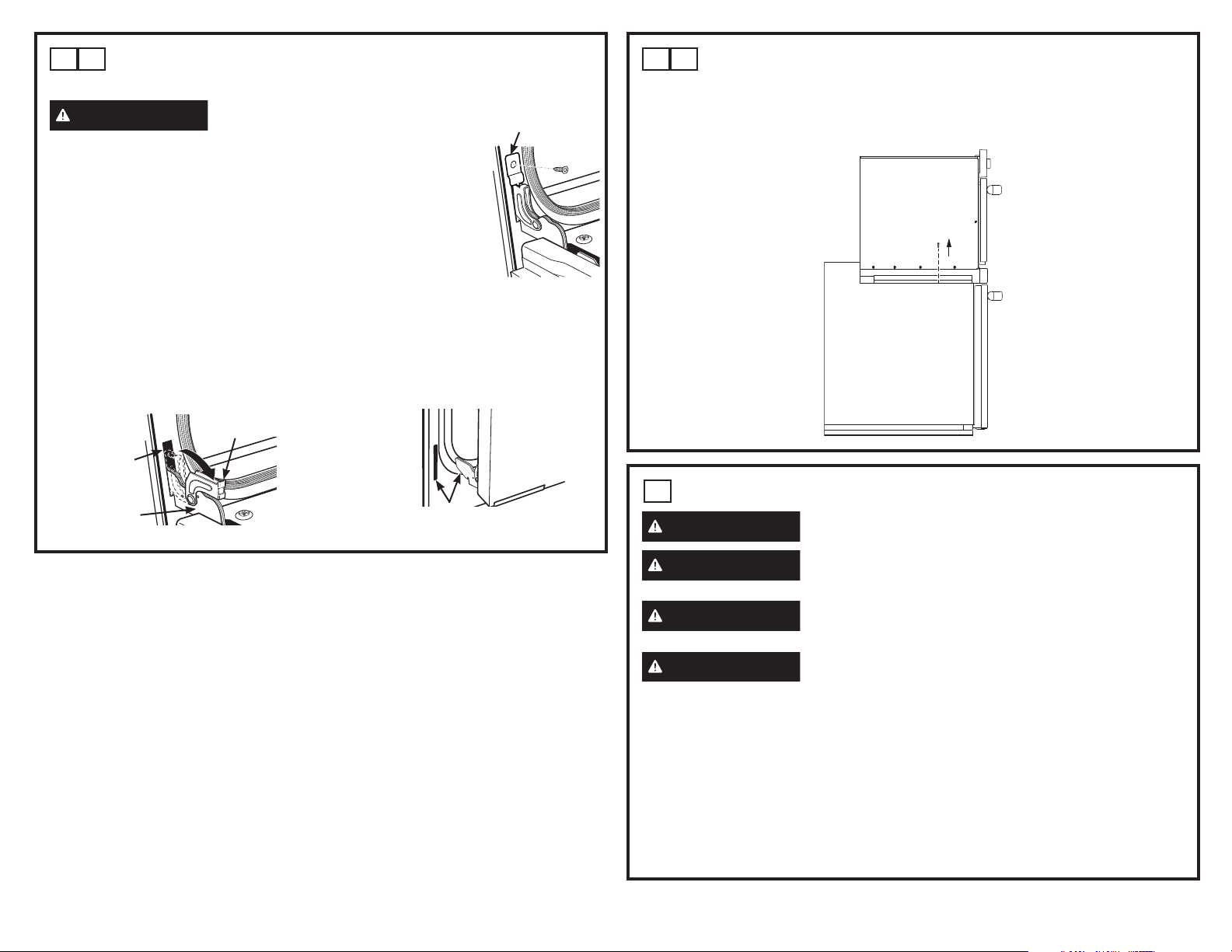

4 A DOOR REMOVAL (RECOMMENDED FOR THERMAL OVENS)
WARNING |
The door for the microwave oven on a combination oven |
Hinge Bracket |
|
||
should never be removed, unless by a certified technician. |
|
NOTE: Door removal is not a requirement for installation of the product but is an added convenience.

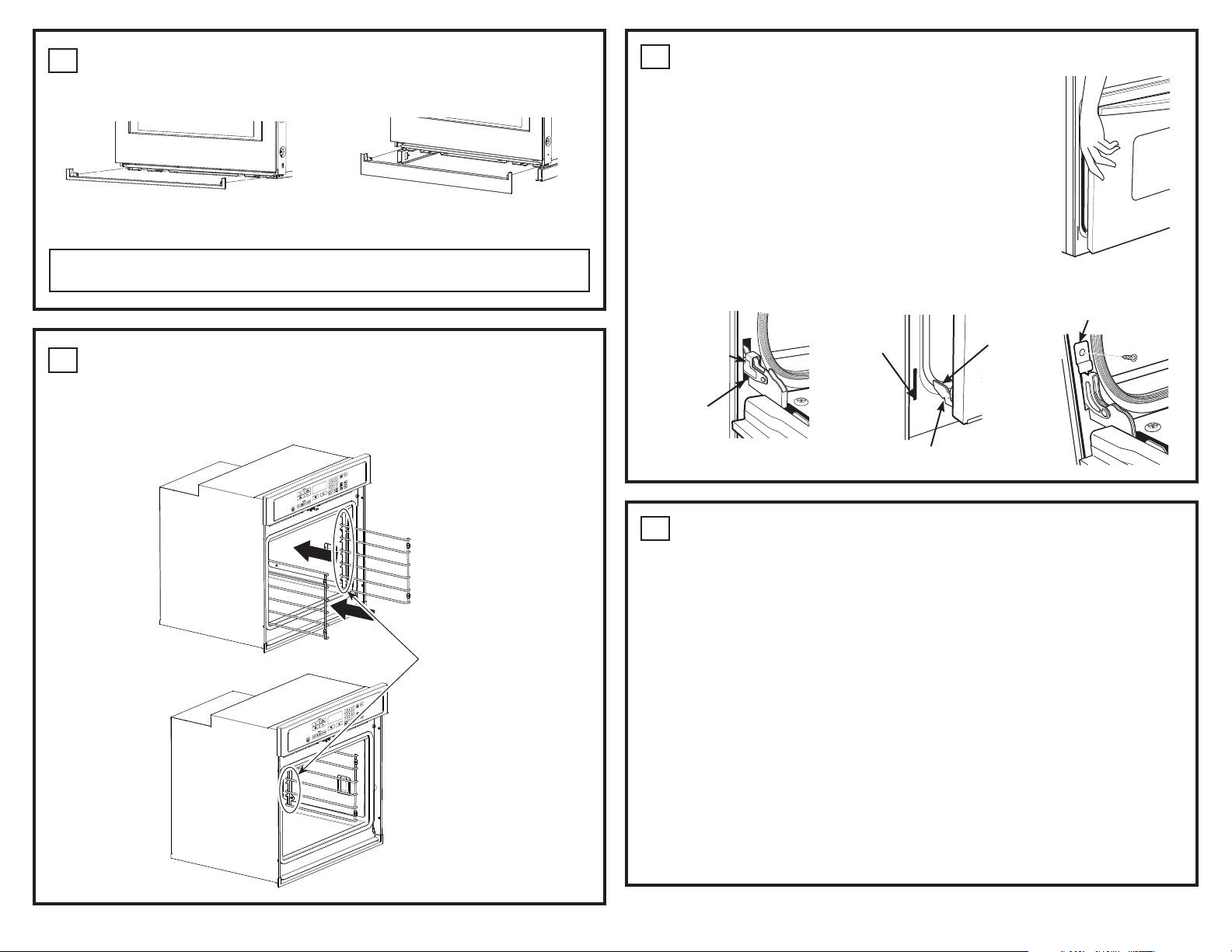

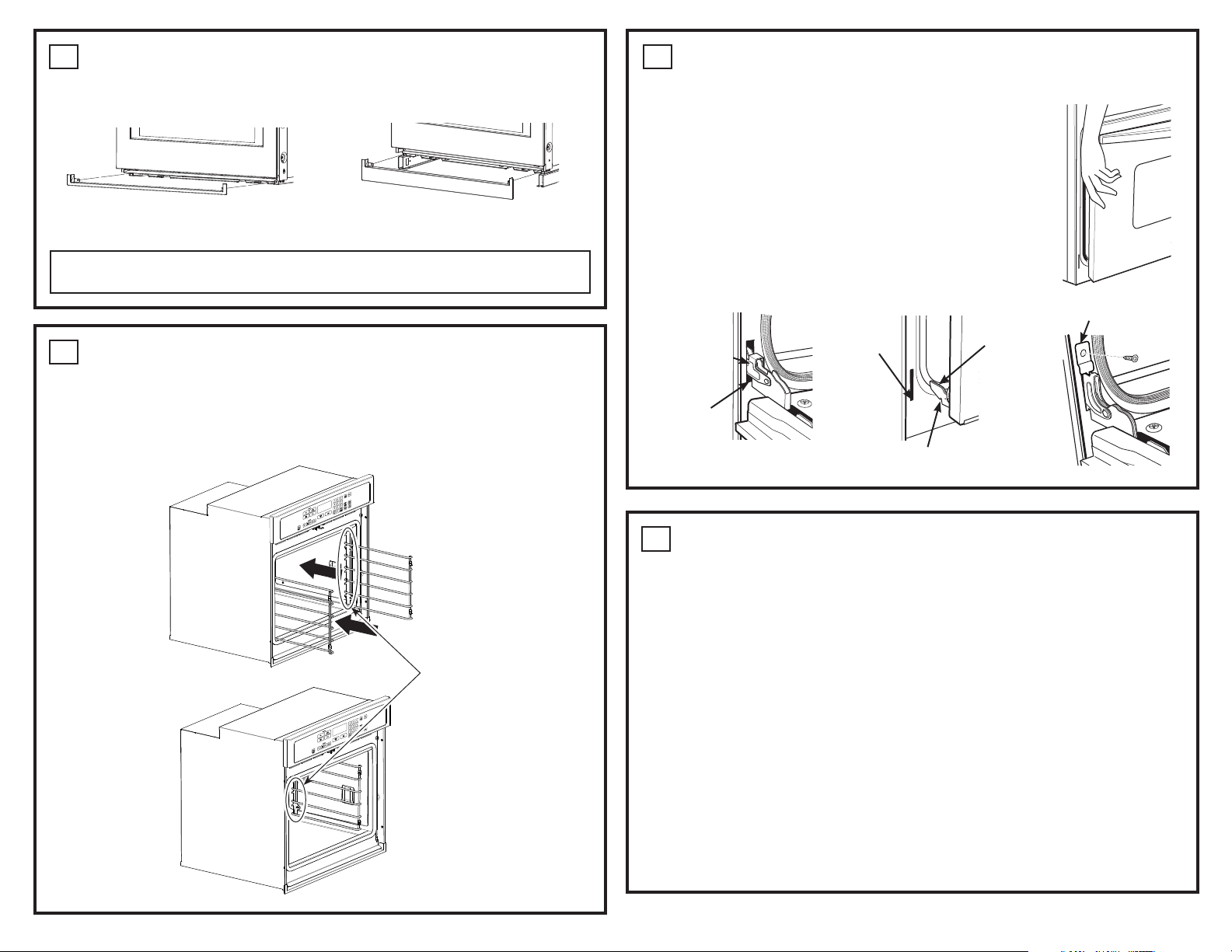

To remove the door:
A. Open the oven door as far as it will go.
B. Remove hinge bracket from front frame and set aside. The hinge bracket must be replaced for proper door functionality when door is reinstalled.
C. Push both hinge locks down toward the door frame to the unlocked position. This may require a flat-blade screwdriver. DO NOT LIFT THE
DOOR BY THE HANDLE!
D.Place hands on both sides of the door and close the oven door to
the removal position (approximately 1”–2” [2.5 cm–5.1 cm] from the closed position).
E.Lift the door up and out until the hinge arms clear the slots. NOTE: The oven door is very heavy. Be sure you have a firm grip before lifting the oven door off the hinges. Use caution once the door is removed. Do not lay the door on its handle. This could cause dents or
Hinge Unlocked Position scratches.
Hinge Slot
Hinge Arm |
Hinge Clears Slot |
4 B SHIPPING SCREWS REMOVAL
(FOR 30” COMBINATION OVEN UPPER OVEN ONLY)
Shipping screws must be removed as shown in illustration. You will need a 1/4” Nut Driver.
Remove Shipping
Screws From
Both Sides
5 ELECTRICAL REQUIREMENTS
WARNING This appliance must be properly grounded.
WARNING To prevent fire or shock, do not use an extension cord with this appliance.
WARNING To prevent shock, remove house fuse or open circuit breaker before beginning installation.
WARNING Improper connection of aluminum house wiring to copper leads can result in an electrical hazard or fire. Use only connectors designed for joining copper to aluminum and follow the manufacturer’s recommended procedure closely.
We recommend you have the electrical wiring and hookup of your appliance connected by a qualified electrician. After installation, have the electrician show you how to disconnect power from the appliance.
You must use a single-phase, 120/208 VAC or 120/240 VAC, 60 Hertz electrical system. If you connect to aluminum wiring, properly installed connectors approved for use with aluminum wiring must be used.
Effective January 1, 1996, the National Electrical Code requires that new construction (not existing) utilize a four-conductor connection to an electric oven. When installing an electric oven in new construction, a mobile home, recreational vehicle or an area where local codes prohibit grounding through the neutral conductor, refer to the section on four-conductor branch circuit connections.
Check with your local utilities for electrical codes which apply in your area. Failure to wire your oven according to governing codes could result in a hazardous condition. If there are no local codes, your oven must be wired and fused to meet the National Electrical Code, NFPA No. 70 – latest edition, available from the National Fire Protection Association.
