GE CDT765SSF Specification
CDT765SSF
GE Cafe™ Series Stainless Steel Interior Dishwasher with Hidden Controls

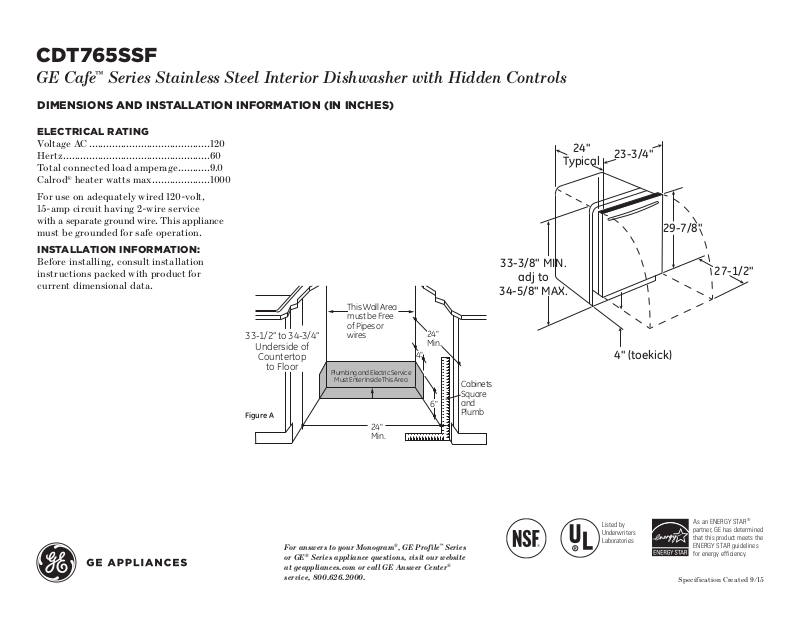

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
ELECTRICAL RATING
Voltage AC ..........................................120
Hertz ...................................................60
Total connected load amperage ...........9.0
Calrod® heater watts max ....................1000
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
INSTALLATION I N FORMATI O N :
Before installing, consult installation
instructions packed with product for
current dimensional data.
33-1/2” to 34-3/4”
Underside of
Countertop
to Floor
Figure A
+
34-1/2" 1/4"
Underside of
Countertop
to Floor
This Wall Area
must be Free
of Pipes or
wires
Plumbing and Electric Service
Must Enter Inside This Area
24"
Min.
24"
Min.
4"
Cabinets
Square
6"
and
Plumb
33-3/8" MIN.
adj to
34-5/8" MAX.
24"
Typical
23-3/4"
29-7/8"
27-1/2"
4" (toekick)
For answers to your Monogram®, GE Profile™ Series
or GE® Series appliance questions, visit our website
at geappliances.com or call GE Answer Center®
service, 800.626.2000.
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
Specification Created 9/15
CDT765SSF
CDT765SSF
GE Cafe™ Series Stainless Steel Interior Dishwasher with Hidden Controls
GE Cafe™ Series Stainless Steel Interior Dishwasher with Hidden Controls
FEATURES AND BENEFITS
Full stainless steel interior – Enjoy an attractive appearance and long-lasting durability
GE's most advanced wash system with 102 cleaning jets – Achieve the ultimate clean from
an industry-leading number of jets that deliver complete washing coverage to every corner
of the dishwasher
Reversing Quad Blade Wash Arm – Dishes come out impressively clean thanks to
this revolutionary lower wash arm, with 25 spray jets reversing direction to hit items
from every angle
Bottle Wash Jets – Hard-to-reach areas inside tall items get completely clean with
four dedicated jets integrated into the upper rack that shower water deep inside for
the ultimate clean
Side Jets – Cascading water fills the dishwasher while hydrating soils
Full-Extension, Smooth-Glide, Adjustable Third Rack – Functions as a utensil drawer
for cleaning of an entire flatware collection, along with carving knives, soup ladles,
tongs and other cooking/serving tools
40 dBA with status light on door – A dishwasher this quiet has a status light to let
you know it is running
Model CDT765SSFSS – Stainless steel
Specification Created 9/15
