3 Scope

This user manual covers the following variants of the CAS-GPS node product range. All PROD1116 products are electrically
equivalent with differences residing in available connection methods to suit the various installations of the product.

PROD1116-τν(X)

The two-digit suffix of the part number define the product type (τ) and V2V operating frequency (ν) with a third optional
character to specify an extended operating temperature range ((X)).

3.1 CAS-GPS Node type variants

The CAS-GPS Node family of products are available in the following types. The Type variant is specified by the first suffix
character of the part number.

PROD1116-τν

Product Type

Available Interfaces

PROD1116-Eν

Light Vehicle Expandable Node

2 x RS232 ports, 2 x Digital Inputs

PROD1116-Lν

Light Vehicle Node

1 x RS232 port, 2 x Digital Inputs

PROD1116-Pν

Type P Node

2 x Digital Inputs, 1 x Digital Output

PROD1116-Sν

Type S Node

1 x CAN Bus port, 1 x RS485 port

3.2 CAS-GPS Node V2V variants

The CAS-GPS Node family of products are available in geographic specific Vehicle to Vehicle (V2V) configurations for
compliance with localized radio regulations. The V2V variant is specified by the second suffix character of the part
number.

PROD1116-τν

V2V Frequency

Radio Power

Available Markets

PROD1116-τ1

869.525 MHz

100mW

South Africa, Mozambique, Ghana, Europe

PROD1116-τ2

920.000 MHz

100mW

USA, Canada, Australia, PNG, South America

PROD1116-τ4

866.000 MHz

100mW

India

PROD1116-τ5

864.500 MHz

25mW

Russia

PROD1116-τ7

924.000 MHz

100mW

Indonesia

3.3 CAS-GPS NODE TEMPERATURE VARIANTS

The CAS-GPS Node family of products are available in the following operating temperature ranges. The Temperature
variant is specified by the optional third suffix character of the part number.

PROD1116-τν(X)

Charging

Temperature Range

Discharging

Temperature Range

Recommended Operating

Temperature Range

PROD1116-τν

-0°C to +50°C

-10°C to +60°C

-10°C to +60°C

PROD1116-τν(X)

-30°C to +70°C

-40°C to +70°C

-40°C to +70°C

CAS-GPS Node II User

Manual

CAS-GPS Node II User Manual (DOCU0142) Rev A Page 6 of 20

3.4 Abbreviations

Abbreviation

Meaning

IVU

In Vehicle Unit

GPS

Global Positioning System

CAS

Collision Avoidance System

PAN

Personal Area Network

Wi-Fi

Wireless Communication Medium

GSM

Global System for Mobile Communications

OEM

Original Equipment Manufacture

TOF

Time Of Flight Distance Measurement Radio

V2V

Vehicle to Vehicle Radio Telemetry

RF

Radio Frequency

PDA

Personnel Digital Assistant also referred to as the Display

3

3.5 Definitions

Term

Definition

“system”

Refers to the assembled and installed operational elements which together perform
the desired functionality.

“system components”

Refers to the individual single elements which when assembled together at the
point of installation form the “system”. Each of these elements has a unique part
number.

4 Transport

All possible precautions are taken to protect the equipment against damage or losses during shipment, however before
accepting delivery, check all items against the packing list or Bill of Lading. If there are shortages or evidence of
physical damage, notify GE Digital Mining Technology immediately.

Notify GE Digital Mining Technology within 7 days (maximum) in case of shortages or discrepancies, according to the
packing list. This action will help ensure a speedy resolution to any perceived problems. Keep a record of all claims and
correspondence. Photographs are recommended.

Where practicable do not remove protective covers prior to installation unless there are indications of damage. Boxes
opened for inspection and inventory should be carefully repacked to ensure protection of the contents or else the
parts should be packaged and stored in a safe place. Examine all packing boxes, wrappings and covers for items
attached to them, especially if the wrappings are to be discarded.

The CAS-GPS NODE products contain lithium batteries with no more than 5Ah of capacity as well as several radio

transmitting components. It is mandatory that these products be fully discharged or placed into ‘transit mode’ before

shipping via air freight.

CAS-GPS Node II User

Manual

CAS-GPS Node II User Manual (DOCU0142) Rev A Page 7 of 20

5 Storage

Where the equipment is not to be installed immediately, proper storage is important to ensure protection of equipment
and validity of warranty.

All equipment should be stored indoors, protected from the elements in a cool dry area. If storing on the ground,
ensure that the storage area is not an area where water will collect.

The recommended temperature while in storage is -200C to 600C

6 Unpacking of Equipment

When unpacking the equipment:

• Check for damage during transit.

• Confirm that all the components required are present.

If the set of components received is incomplete or damaged contact GE in a timely
way to minimize delays.

7 Installation

Installation should be in accordance with the vehicle manufacturers instructions, national regulations and the
installation procedures defined by GE Digital Mining Technology. The installations must only be performed by
authorized and qualified installers.

8 Test & Commission

At installation time, the system must be checked against the installation test procedure (ITP) to verify the system is
correctly installed and functioning as required. After passing its final installation test, the system is then ready for
use after which inbuilt self- diagnostic testing combined with daily user monitoring ensures that any faults can be
acted upon.

Take care when unpacking the equipment to avoid damage.

CAS-GPS Node II User

Manual

CAS-GPS Node II User Manual (DOCU0142) Rev A Page 8 of 20

9 The CAS GPS Node Product Family

9.1 Principle of System Operation

The CAS-GPS Intelligent multi-purpose NODE is the front-end transponder for enabling situational awareness of fleet
vehicles, infrastructure and personnel The NODES form an integral component of the CAS -GPS system when paired
with one of the CAS-GPS host devices such as the light vehicle display or the heavy vehicle rugged IVU running the
CAS-GPS user interface software.

Nodes will be required to operate in several modes during its daily operation. As a key component of the CAS system,
it will remain powered in all modes of operation unless powered down by the system display/cont roller. All nodes
have an internal battery & provided that the battery is within acceptable temperature limits will continue to operate in
a low power mode after isolation from vehicle supply. The node’s internal battery will continue to be charged until the
system detects that the supply voltage has dropped below the pre-determined threshold and then stop. This will
prevent the vehicle’s battery from being depleted below the vehicle’s ability to re-start its engine.

The CAS-GPS Nodes are comprised of a high-performance GPS receiver, Vehicle to Vehicle (V2V) radio transceiver, high
accuracy Ranging RF transceiver for distance measurements (ToF), CAN bus, RS-232 and RS-485 wired
communication ports, Digital Inputs (2) and Digital Output (1), Personal Area Network wireless technology and internal
rechargeable battery backup that is available within the following configurations:

9.2 Node Variants

9.2.1 PROD1116-Sν(X) – Type S Node

The Type S Node is suitable for a fixed installation in light or heavy vehicles and machinery. The Type S Node can act as
your primary fleet monitoring radio in light vehicles and enables automatic real-time functional health monitoring of a
primary system on any vehicle type without the requirement for a remote Test Station or operator interaction. The Type S
Node communicates with the CAS-GPS user interface via a dedicated CAN bus connection and can be powered from a 12
or 24Vdc automotive supply.

Refer DOCU0145, CAS-GPS Light Vehicle HT Installation Manual for full installation Instructions

CAS-GPS Node II User

Manual

CAS-GPS Node II User Manual (DOCU0142) Rev A Page 9 of 20

9.2.2 PROD1116-Lν(X) - Light Vehicle Node

The Light Vehicle Node is suitable for a fixed installation on light vehicle types. The Light Vehicle Node can act as your
primary fleet monitoring radio in light vehicles where self-test functions are not required. As a secondary Node this product
enables automatic real-time functional health monitoring of a PROD1116-Eν NODE without the requirement for a remote
Test Station or operator interaction. The Light Vehicle Node communicates with the CAS-GPS user interface via a dedicated
wired serial data connection or Personnel Area Network wireless connection and can be powered from a 12 or 24Vdc
automotive supply. This model accepts 2 digital inputs for ignition and reverse used for power management and
directional orientation on your CAS-GPS user interface software.

9.2.3 PROD1116-Ev(X) – Light Vehicle Expandable Node

The Light Vehicle Expandable Node is suitable for a fixed installation on light vehicle types. The Light Vehicle Expandable
Node acts as your primary fleet monitoring radio in light vehicles and is suitable for connecting a secondary Node
(PROD1116-Lν) on its output port. The Light Vehicle Expandable Node communicates with the CAS-GPS user interface and
secondary Nodes via dedicated serial data connections and can be powered from a 12 or 24Vdc automotive supply. This
model accepts 2 digital inputs for ignition and reverse used for power management and directional orientation on your
CAS-GPS user interface software.

Refer DOCU0146, CAS-GPS Light Vehicle MT Installation Manual for full installation instructions

CAS-GPS Node II User

Manual

CAS-GPS Node II User Manual (DOCU0142) Rev A Page 10 of 20

9.2.4 PROD1116-Pν(X) – Type P Node

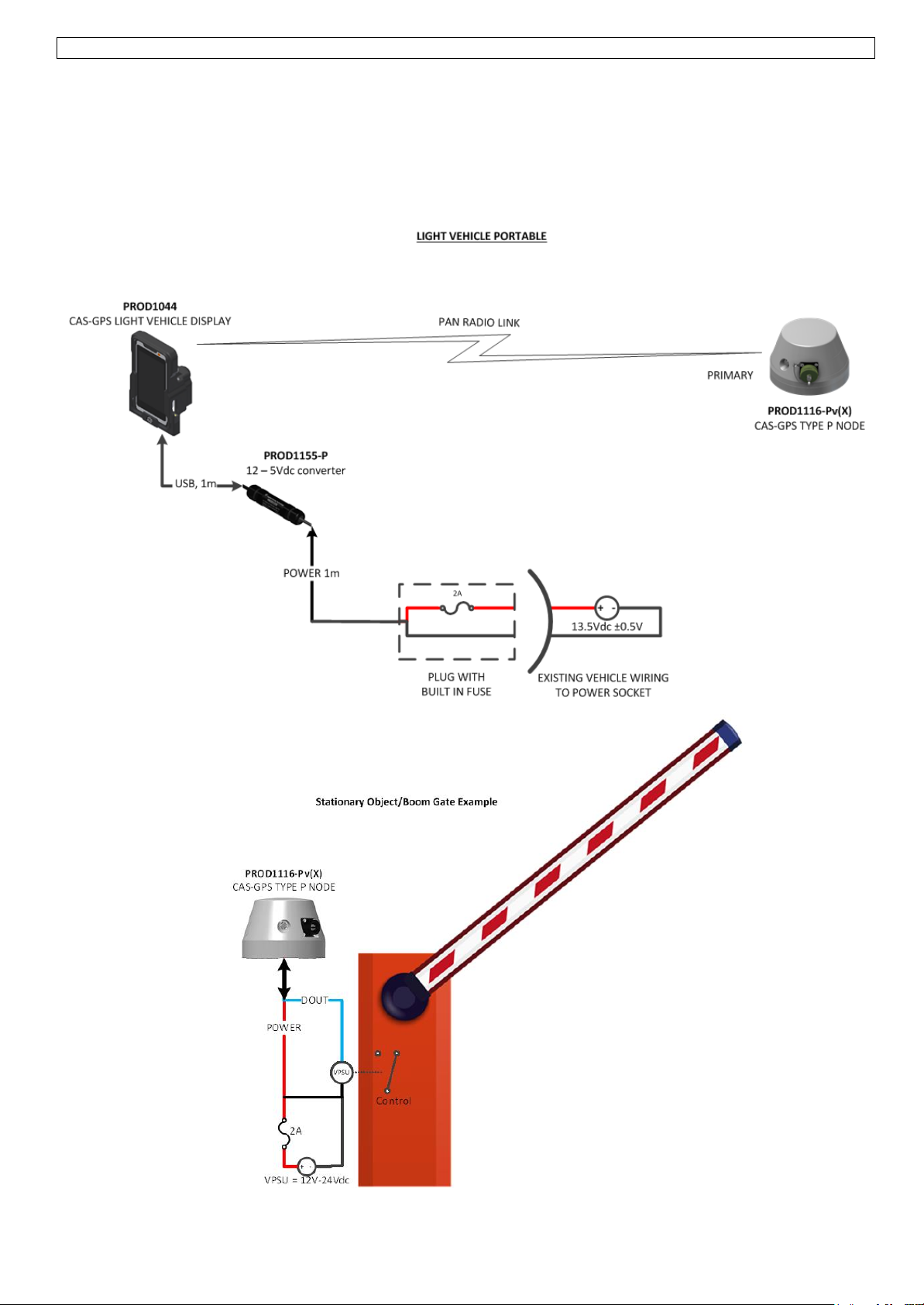

The Versatile Type P Node contains a magnetic base which communicates with the CAS-GPS User Interface via wireless
Personal Area Network connection. The unit is battery powered for mobile use or can be wired to a 12V-24Vdc power
supply for fixed position installations. For mobile use in Light Vehicle mobile installations, this unit can be deployed on a
daily basis with a fully charged battery. For Fixed position use, this unit can provide a digital output for triggering devices
based on fleet proximity such as lights or entry gates.

Refer DOCU0149, CAS-GPS Stationary Object/Boom Gate Installation Manual for full installation instructions

CAS-GPS Node II User

Manual

CAS-GPS Node II User Manual (DOCU0142) Rev A Page 11 of 20

9.3 CAS-GPS Node operation

9.3.1 On System Start-up

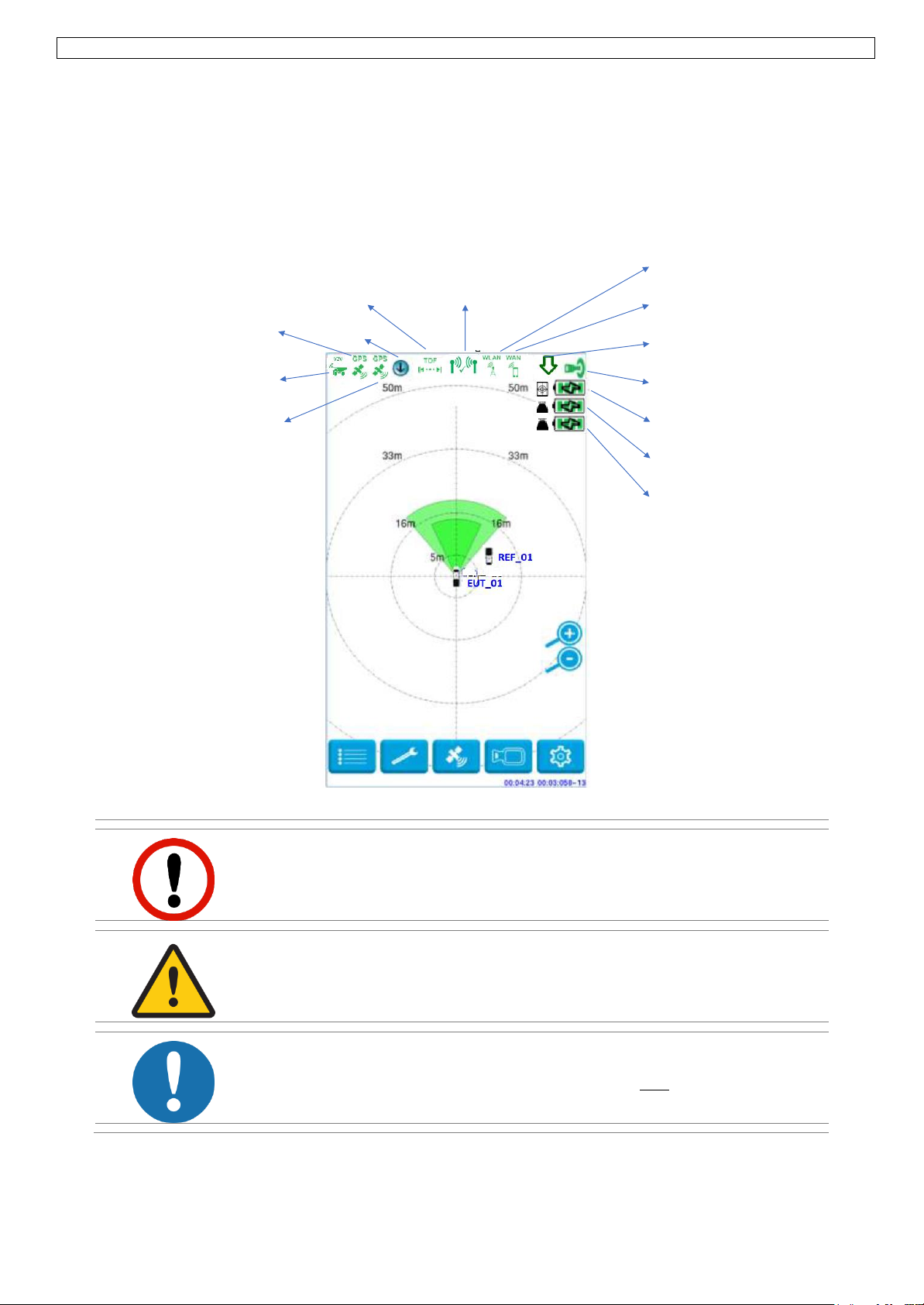

Immediately after starting the system and before putting it into service, perform a quick check of the CAS-GPS user
interface status ICONs. Check that none of the icons are Red indicating a fault condition, if so your CAS-GPS system
is not functioning correctly and its operation and your visibility within the fleet cannot be assured!

Stationary Objects without a permanent display should have functions regularly checked on a temporarily paired CAS­GPS user interface display as detailed in the installation manual for the stationary object.

Display
Battery Charge Status

Primary NODE
Battery Charge Status

Secondary NODE

Battery Charge Status

Primary NODE + Display

Link Status

Ignition Input Status

Primary + Secondary NODE
ToF Link & Self-Test Status

Primary NODE
GPS Status

Primary + Secondary NODE
V2V Link & Self-Test Status

Secondary NODE

GPS Status

Display

GSM/WCDMA Status

Display
Wi-Fi Status

Reverse Input Status

North

If any of the CAS Icons are red the system may not be operating correctly and the
fault must be reported for action to the fleet manager.

Depending on your system configuration at startup, the GPS will assume you are
facing 'North' until a heading has been established by forward movement.
Heading may be determined without forward movement when self -test
functionality is installed.

If a nearby vehicle’s beams are overlapping your vehicles beam an audible
alarm will be sounded within the CAS-GPS application. Only when your vehicle is
stationary may you silence the alarm by touching anywhere on the screen.

CAS-GPS Node II User

Manual

CAS-GPS Node II User Manual (DOCU0142) Rev A Page 12 of 20

9.3.2 Vehicle in Motion

When your vehicle is moving, you can operate using your normal safe operating procedures. The Display will sound an
alarm to gain your attention if there is another vehicle that is getting too close. A quick glance at the display will show
the location, type, ID, heading and speed of other vehicles.

9.3.3 Positional Tracking

The system uses the latest precision point GPS technology which gives accurate location-based tracking.

9.4 Node Status Indicator Lamp

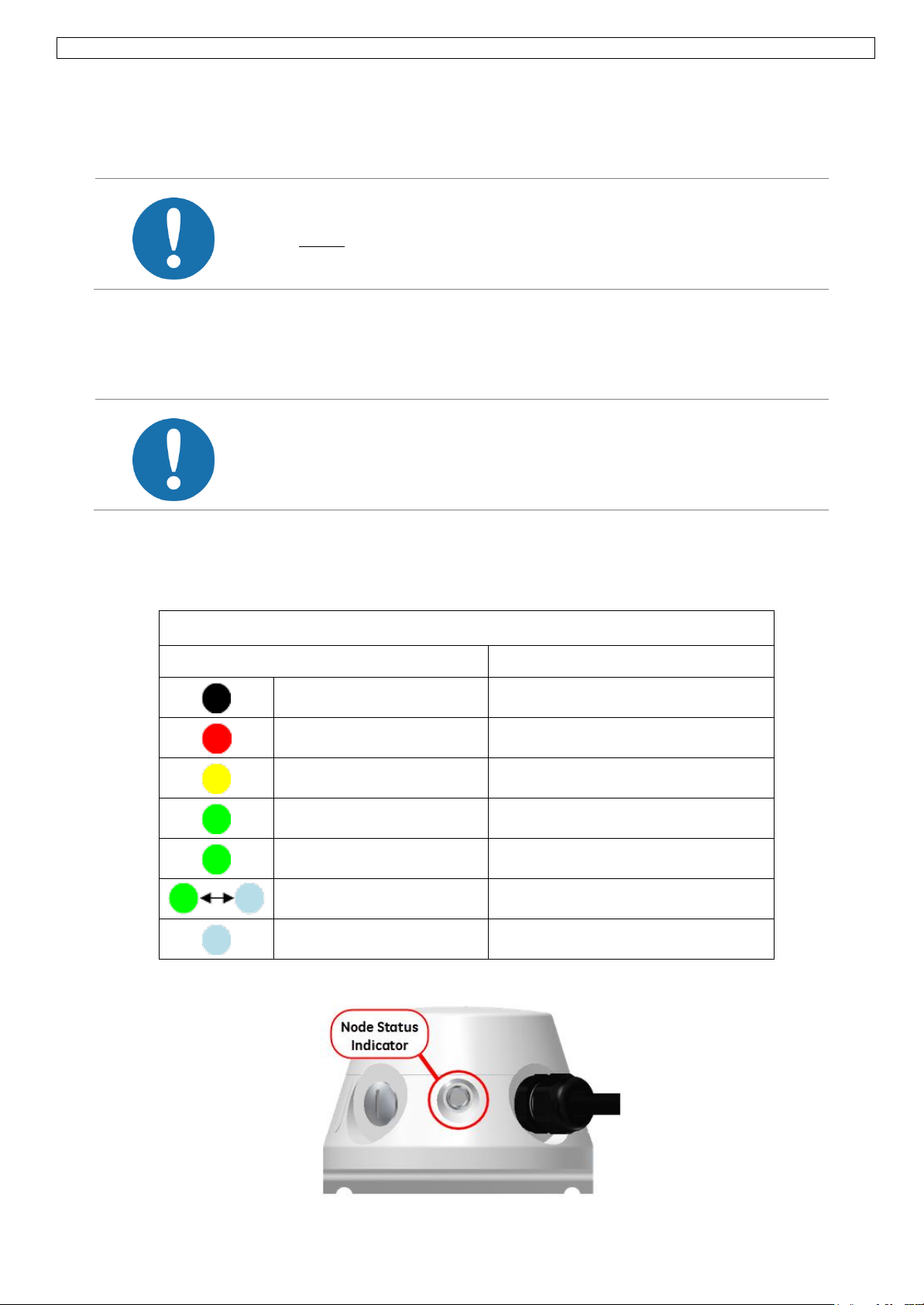

All Node variants will report their status via the multi-function lamp:

Node status indicator

Indication

Node Status

Off

Off Red

Failed battery

Amber

Battery out of service temp range

Green

On, no battery

Green

On, not charging

Alternating Green/Cyan*

On, charging

Cyan

On, fully charged

*In this mode the lamp will cycle between the two colours at approximately 1Hz

You cannot silence the alarm whilst your vehicle is in motion.

For the GPS to work accurately the Node must have clear line of sight to the sky.
Obstructions such as machine structure, work roof or deep pit may affect the
accuracy or operation of the GPS.

CAS-GPS Node II User

Manual

CAS-GPS Node II User Manual (DOCU0142) Rev A Page 13 of 20

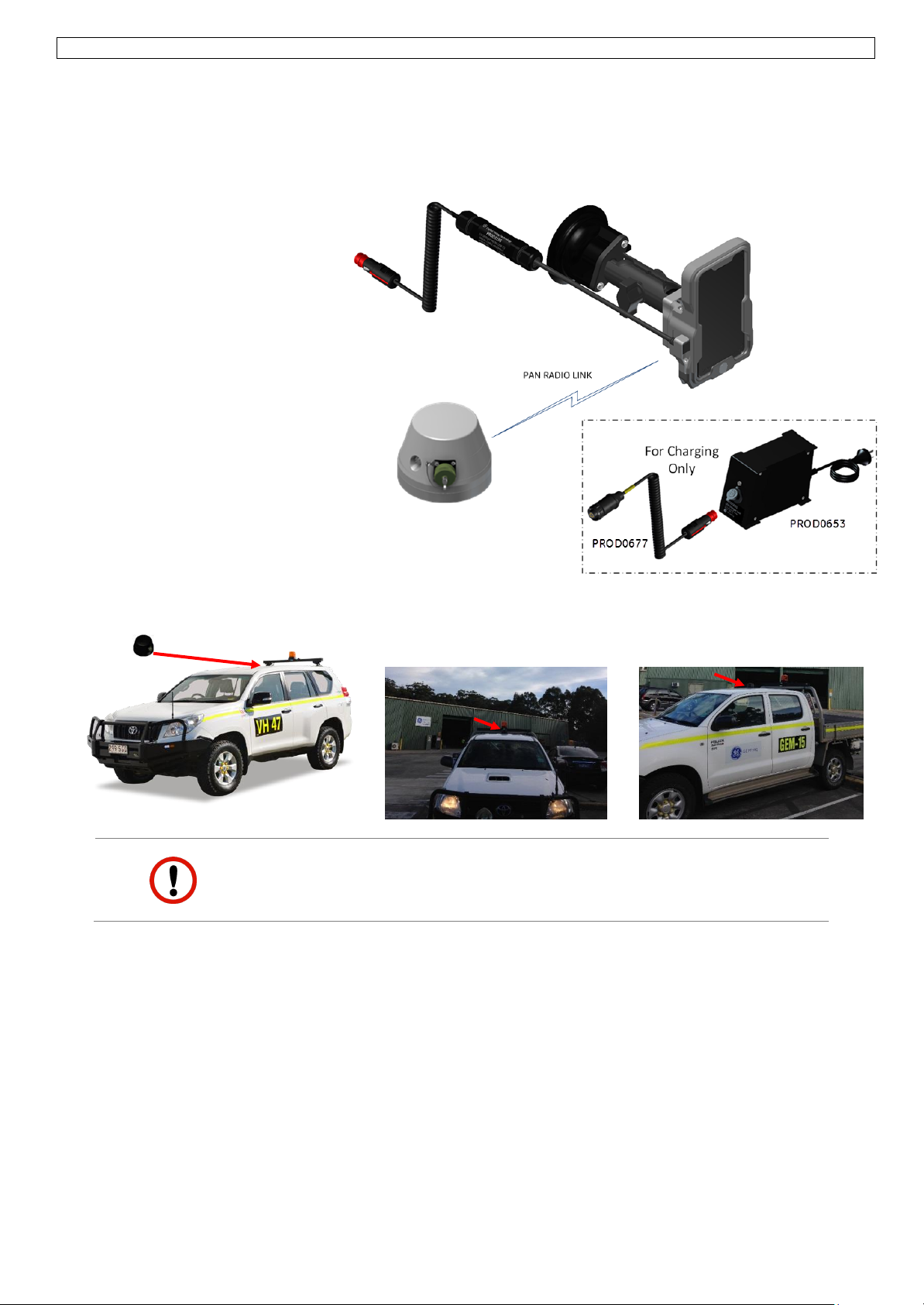

9.5 Type P Node Installation

The Type P Node is attached to the vehicle using a magnetic base. The Node must be installed on the vehicle such that:-

• It has a flat smooth and clear surface to fix to

• It does not protrude from the vehicle

or in a position where it may be
damaged

• It does not obstruct the driver’s view

• It has a clear line of sight to the sky

• It is a minimum of 200mm away

from any other communication
antenna

• Magnets should be kept clean from

dust for maximum effect.

• It is mounted in a position so that all

3 magnets are positively attached to
a ferromagnetic vehicle surface

• This node is mounted no less than

200mm from vehicle occupants to
limit maximum permissible
exposure to electromagnetic
radiation generated by the radio
components

• Ensure that the dust-cap with chain is secured to the connector on the Roof Unit.

WARNING

The PROD1116-P variant is often attached to the vehicle by magnets & as such is subject to

dislodgement when mis-treated. The following recommendations should be observed:

• Recommended maximum speed of 80 km / h

• Portable System is intended for Light Vehicles only on a mine site and not intended for use on public

roads at high speed

• Portable System is designed for short-term operation (e.g. 1 shift) with daily recharging and not

intended for permanent use

• Avoid harsh braking whilst in use to minimize the chance of the node becoming dislodged in a

dangerous manner.

For the GPS to work accurately the Node must have clear line of sight to the sky.
Obstructions such as machine structure, work roof or deep pit may affect the
accuracy or operation of the GPS.

CAS-GPS Node II User

Manual

CAS-GPS Node II User Manual (DOCU0142) Rev A Page 14 of 20

9.6 System Charging Warnings

Only use charge cables provided.

Charging can be plugged into a normal vehicle 12V accessory power outlet.
Charging can be carried out during operation.
Do not pass charging cable through vehicle doors or windows.

Do not use damaged power cords or plugs.
Do not bend or damage the power cord.
Do not touch the power cord with wet hands, or disconnect the charger by pulling
the cord.
Do not Short-Circuit the Charger or the Battery.
Do not drop or cause impact to the charger or battery.
Do not charge the battery with chargers that are not approved by the manufacturer.

Incompatible batteries and chargers can cause serious injuries or damage to your
device.

Do not handle a damaged or leaking lithium Ion battery.
Handle and dispose of batteries and chargers with care.
Never crush or puncture the battery. Avoid exposing the battery to high external
pressure, which can lead to an internal short circuit and overheating.

The CAS-GPS Nodes contain no user serviceable parts.
Batteries should be replaced every 1 to 2 years by a suitably qualified and trained
technician.
Only replace batteries with OEM supplied parts.

Never dispose of batteries or devices in a fire.
Follow all local regulations when disposing of used batteries or devices.
Never place batteries or devices on or in heating devices, such as microwave ovens,
stoves, radiators, or in an engine bay.

Avoid exposing your device and batteries to very cold or very hot temperatures.
Extreme temperatures can cause the deformation of the device and reduce the
charging capacity and life of your device and batteries.

CAS-GPS Node II User

Manual

CAS-GPS Node II User Manual (DOCU0142) Rev A Page 15 of 20

10 Service, Maintenance & Disposal

10.1 Equipment Service

10.1.1 Display Unit

•

Clean screen surface with a clean dry soft cloth - Do not use solvents or cleaners on the screen surface!

•

Check for physical damage to screen surface.

•

Check the cable is securely connected to the di sp la y.

•

Check the mounting bracket is secure – finger tighten only if loose.

10.1.2 System

•

Check visually that all Nodes are in good condition and the cables (where applicable) are securely connected.

•

Check visually that no cables are loose or damaged.

•

Verify that the system is working correctly prior to starting the vehicle and during operations.

10.1.3 Scheduled System Servicing

It is recommended that the system undergo preventative scheduled maintenance and inspections. These should be
carried out by trained and authorized personnel every 6 months or 1500hrs (whichever occurs first).

10.2 Equipment Maintenance

If the system is not functioning as expected and a fault cannot be resolved, please contact your nearest authorized
representative.

10.3 Decommissioning

•

Removal of the system should only be performed if authorized by the owner of the vehicle.

•

Removal should be performed by a qualified person.

•

All system components and wiring should be removed.

•

All vehicle wiring should be restored back to original condition.

•

Dispose or store removed system in accordance with this manual.

10.4 Disposal

The electronic equipment discussed in this manual must not be treated as general waste. By ensuring that this product
is disposed of correctly, you will be helping to prevent potentially negative consequences for the environment and
human health which could otherwise be caused by incorrect waste handling of this product.

The system should be disposed of in accordance with local regulations.

It is essential that no attempt be made to repair the equipment (other than
replacement of system components). Opening equipment enclosures should
never be attempted and will void any warranty and could compromise the safe
operation of the system. Replacing System Components will require the system
to be re-configured as per the associated installation manual to suit your
system setup.

The system contains a Lithium Ion Battery and should be disposed of in
accordance with local regulations.

CAS-GPS Node II User

Manual

CAS-GPS Node II User Manual (DOCU0142) Rev A Page 16 of 20

11 Authorized Representatives

Brazil

Sub Sahara Africa

GE Transportes Ferroviários S.A

Avenida General David Sarnoff, n 4600
Cidade Industrial
Contagem, MG 32210-110
Brazil
P: [phone]
F: [phone]

www.getransportation.com/mining

Probe Integrated Mining Technologies (PTY) Ltd

245 Albert Amon Road
Meadowdale
Germiston 1614
P: [phone]
F: [phone]

www.probebattery.co.za

Indonesia

Canada

PT Intecs Teknikatama Industri
Jl. Ciputat Raya No. 18D Kebayoran Lama Selatan
Jakarta 12240 .
P: [phone]
F: [phone]

www.intecs.co.id

General Electric Canada

2300 Meadowvale Blvd,
Mississauga, ON, L5N 5P9
P: [phone]
P: [phone]

www.getransportation.com/mining

North America

Australia

General Electric Company, Mining

2901 East Lake Road, Erie,
Pennsylvania, 16531, US
P: [phone]
F: [phone]

www.getransportation.com/mining

GE Industrea Mining Technology

3 Co-Wyn Close, Fountaindale,
NSW, 2258, Australia
P: [phone]
F: [phone]

www.getransportation.com/mining

Mexico

COMERCIALIZADORA MINERA DEL NORTE, S.A. DE C.V.

Ave. H. Colegio Militar No. 2000-B
Col. Las Fuentes
Piedras Negras, Coahuila
México. C.P. 26010.
P: [phone] / [phone]
F: [phone]

www.cominsa.com.mx

India

GE India Industrial Private Ltd.

A-18, First Floor
Okhla Industrial Area Phase II
New Delhi – 110020, India
P: [phone]
F: [phone]

www.getransportation.com/mining

Ghana

General Electric International Inc

Stanbic Heights 3rd Floor
Intersection of Liberation Road & North Liberation Link
Airport City, Accra, Ghana
P: [phone]
F: [phone]

www.getransportation.com/mining

CAS-GPS Node II User

Manual

CAS-GPS Node II User Manual (DOCU0142) Rev A Page 17 of 20

12 Warranty Terms

Equipment and Parts:
15 months from delivery, or 12 months from when system is placed in service (whichever occurs first). Modifications to this

product without written consent from the manufacturer or its designated authorised representatives will void all warranty
obligations.

CAS-GPS Node II User

Manual

CAS-GPS Node II User Manual (DOCU0142) Rev A Page 18 of 20

13 Regulatory Information

Warning: Modifications to this product without written consent from the manufacturer or its designated authorised
representatives could void the user’s authority to operate the equipment

13.1 Declaration of Conformity with FCC rules for electromagnetic compatibility

We, GE Digital Mining Technology, of 3 Co-Wyn Close, Fountaindale, NSW, 2258, Australia
declare under our sole responsibility the products:

MAKE: CAS-GPS NODE
FCC ID: YIY-PROD11162
MODELS: PROD1116-L2
PROD1116-E2
PROD1116-S2
PROD1116-P2
PROD1116-L2(X)
PROD1116-E2(X)
PROD1116-S2(X)
PROD1116-P2(X)
PROD1151
PROD1044
PROD1155
PROD1150

to which this declaration relates:
Complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.

13.1.1 FCC Interference Statement for Class B devices.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

13.1.2 Federal Communication Commission (FCC) - Radiation Exposure Statement

To comply with FCC RF exposure limits for general population / uncontrolled exposure, the antennas used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co­located or operating in conjunction with any other antenna or transmitter.

CAS-GPS Node II User

Manual

CAS-GPS Node II User Manual (DOCU0142) Rev A Page 19 of 20

13.2 Industry Canada Compliant

This Class B digital apparatus complies with Canadian ICES-003. Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.

13.2.1 Concerning Radio Transmitters

This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:

(1) This device may not cause interference; and
(2) This device must accept any interference, including that may cause undesired operation of the device.

13.2.2 Industry Canada - Radiation Exposure Statement

To comply with Industry Canada RF exposure limits for general population / uncontrolled exposure, the antennas used for
this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co­located or operating in conjunction with any other antenna or transmitter.

13.2.3 Industrie Canada – Déclaration sur l’exposition aux radiations

Afin de respecter les limites d’exposition pour l’ensemble de la population/l’exposition non contrôlée de la FCC/IC RF, les
antennes utilisées pour cet émetteur doivent être installées de manière à offrir une distance de séparation minimum de
20 cm les personnes et ne doivent pas être utilisées en conjonction avec d’autres antennes ou émetteurs.

13.2.4 Conforme aux normes d’INDUSTRIE CANADA

Cet appareil numérique de classe B est conforme à la norme canadienne ICES-003. Les changements ou les modifications
non approuvés expressément par la partie responsable de la conformité pourraient annuler l’autorisation de l’utilisateur de
faire fonctionner l’équipement.

13.2.5 Au sujet des émetteurs radio

Ce dispositif est conforme à la partie 15 des règles de la Federal Communications Commission (FCC) des États‐Unis et

d'Industrie Canada (IC) exempts de licence RSS norme(s).
Son fonctionnement est assujetti aux deux conditions suivantes:

(1) Ce dispositive ne doit pas provoquer de brouillage préjudiciable, et
(2) il doit accepter tout brouillage reçu, y compris le brouillage pouvant entraîner un mauvais

fonctionnement.

13.3 Australian Radio Communications Equipment - Radiation Exposure Statement

The equipment complies with the Radiocommunications (Electromagnetic Radiation – Human Exposure) Standard 2014 for
General Public Exposure, Non-Aware User, for a Compliance Level 2 Radiocommunications Equipment, when the minimum
safety distance of 20cm is adhered to, and shall bear the RCM.

13.4 ANATEL Resolution 506 Statement

This equipment operates on a secondary basis and, consequently, must accept harmful interference, including from
stations of the same kind, and may not cause harmful interference to systems operating on a primary basis.

Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo
de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário.

CAS-GPS Node II User

Manual

CAS-GPS Node II User Manual (DOCU0142) Rev A Page 20 of 20

13.5 Life Support Policy

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. GE Digital Mining Technology customers using or selling
these products for use in such applications do so at their own risk and agree to fully indemnify GE Digital Mining
Technology from any and all damages resulting from such improper use or sale.

13.6 Electromagnetic Interference / Compatibility

Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or
otherwise configured for electromagnetic compatibility.

To avoid electromagnetic interference and/or compatibility conflicts, do not use this device in any facility where posted
notices instruct you to do so. In aircraft, use of any radio frequency devices must be in accordance with applicable
regulations. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy.

With medical devices, maintain a minimum separation of 15 cm (6 inches) between pacemakers and wireless devices and
some wireless radios may interfere with some hearing aids. If other personal medical devices are being used in the vicinity
of wireless devices, ensure that the device has been adequately shielded from RF energy. In a domestic environment this
product may cause radio interference in which case the user may be required to take adequate measures.

13.7 Potentially Explosive Atmospheres

Turn off your electronic device before entering an area with potentially explosive atmosphere. It is rare, but
your electronic device could generate sparks. Sparks in such areas could cause an explosion or fire
resulting in bodily injury or even death.

Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include
fuelling areas, such as petrol station, below deck on boats, fuel or chemical transfer or storage facilities,

and areas where the air contains chemicals or particles, such as grain, dust, or metal powders.

CAUTION! Electrostatic Sensitive Device. Pre-caution should be used when handling the device in order to
prevent permanent damage.
