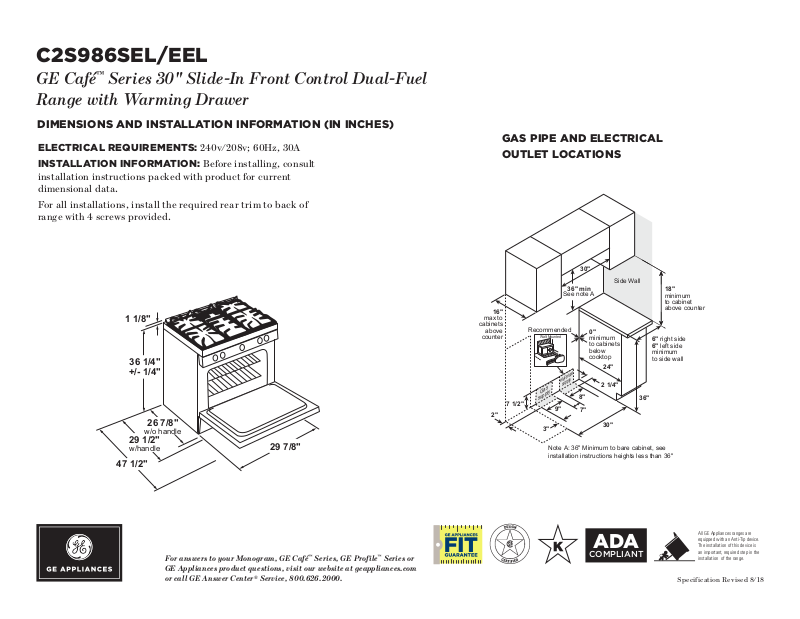

GE C2S986SELSS Specification Sheet
C2S986SEL/EEL
ADA
1 1/8"
36 1/4"
+/- 1/4"
GAS PIPE AND ELECTRICAL OUTLET LOCATIONS
GE Café™ Series 30" Slide-In Front Control Dual-Fuel
Range with Warming Drawer
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
ELECTRICAL REQUIREMENTS: 240v/208v; 60Hz, 30A
INSTALLATION I N FORMATI O N : Before installing, consult
installation instructions packed with product for current
dimensional data.
For all installations, install the required rear trim to back of
range with 4 screws provided.
1 1/8"
36 1/4"
+/- 1/4"
29 1/2"
w/handle
47 1/2"
26 7/8"
w/o handle
29 7/8"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
30"
36" min
See note A
16"
max to
cabinets
above
counter
2"
7 1/2"
Recommended
Wall-Mounted
Gas
supply
9"
3"
Note A: 36" Minimum to bare cabinet, see
installation instructions heights less than 36"
electrical
supply
0"
minimum
to cabinets
below
cooktop
8"
7"
24"
2 1/4"
30"
Side Wall
6" right side
6" left side
minimum
to side wall
36"
18"
minimum
to cabinet
above counter
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
COMPLIANT
All GE Appliances ranges are
equipped with an Anti-Tip device.
The installation of this device is
an important, required step in the
installation of the range.
Speci fication Revised 8/18
C2S986SEL/EEL
GE Café™ Series 30" Slide-In Front Control Dual-Fuel
Range with Warming Drawer
FEATURES AND BENEFITS
Edge-to-edge six burner cooktop – A full range of burner options give you everything
you need to cook like a pro
Cast iron integrated griddle – From grilled cheese to pancakes to quesadillas, do it
all right on the cooktop
21,000 BTU Tri-ring burner – Versatile burner creates intense heat perfect for
searing, frying and sautéing
Wi-fi Connect – Wirelessly control oven functions from your smartphone
Chef Connect – Three options with a single touch. For instant convenience, choose
when to automatically sync clocks and the range elements with the microwave's
surface light and vent
Self-clean, heavy-duty roller rack – Easily access items with racks that glide smoothly
True European Convection with Precise Air – Accurate heat circulation ensures
evenly baked foods
Temperature Probe – Internal probe allows monitoring of roasts and meats to assure
they are thoroughly and accurately cooked without opening the oven door
Self-clean with Steam Clean option – Clean your oven the way you want
Model C2S986SELSS – Stainless steel
Model C2S986EELDS – Black slate
GUARANTEED FIT
Replace your old 30" free-standing range with a new 30" slide-in
model. GE slide-in ranges are guaranteed for an exact fit to make
replacement easy
Visit geappliances.com for more info
Speci fication Revised 8/18
