GE BUILT-IN WALL OVENS Catalog

We bring good things to life.

GE PROFILE™AND GE®BUILT-IN WALL OVENS

Versatile ovens that complement every cooking style, every kitchen.

B

Built-In Electric Wall Ovens

2

Versatile design.

When it comes to kitchen design,

location is everything. This is especially

true of cooking appliances.

Thanks to the sleek integrated styling,

finding a niche for GE wall ovens is

simple. These ovens let you do what

you never thought possible — enhance

your kitchen’s capabilities without

sacrificing space.

Our built-in wall ovens are available

in 30" and 27" dimensions. If you

have a large family or love to entertain,

consider a built-in double oven.

Color choices include stainless steel,

black, white and bisque.

Versatile performance.

Now you have everything you need to

get cooking. Ample cooking capacity,

with up to seven rack positions, lets you

prepare multiple dishes for an entire

meal. Exclusive TrueTemp™

technology delivers a remarkably high

degree of accuracy. The SmartLogic

electronic controls monitor and

maintain oven temperature, delivering

delicious, consistent results every time.

GE Profile™and GE®wall ovens perform beautifully in any kitchen.

Not all features available on all models.

JTP56SD Double Oven

3

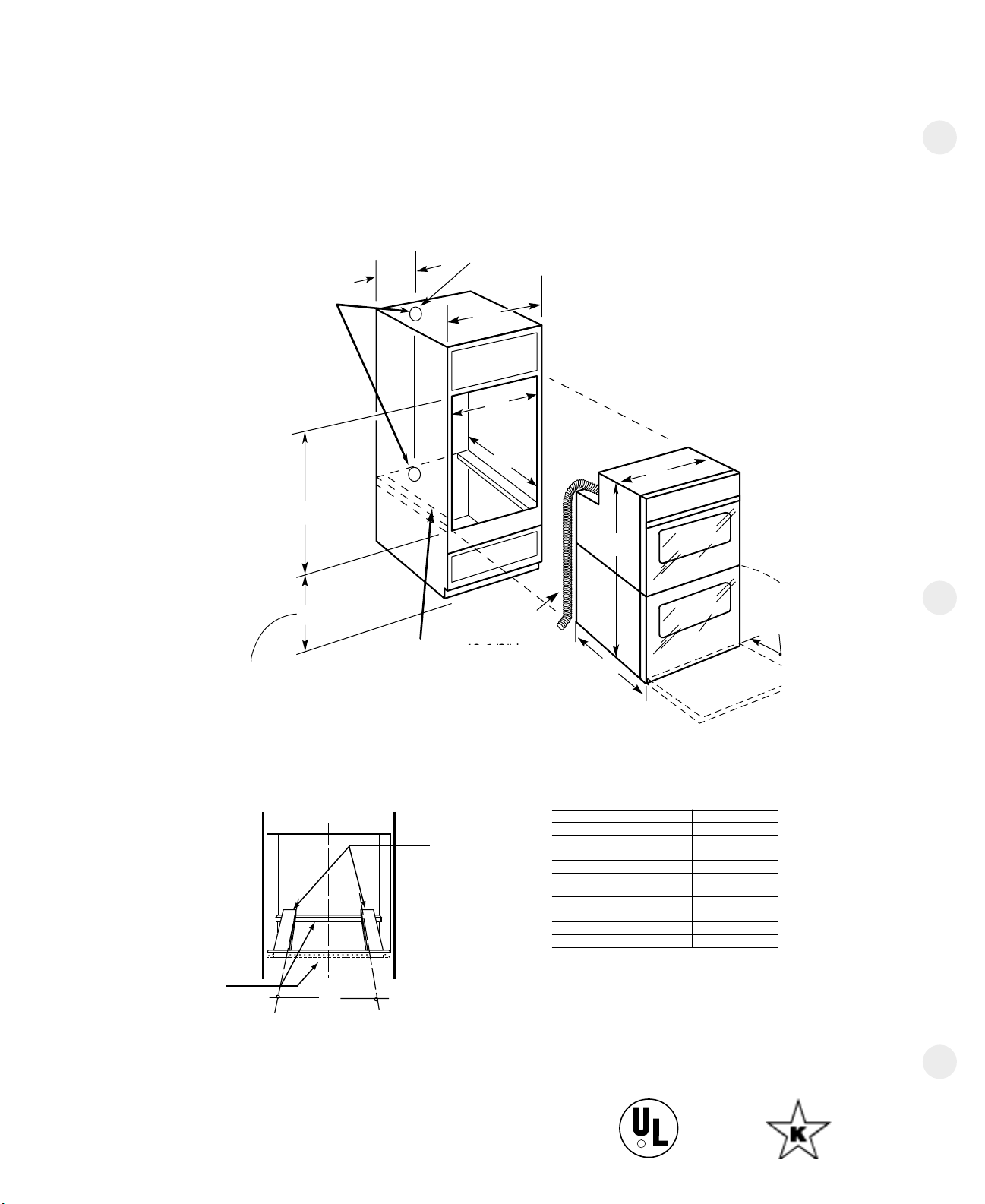

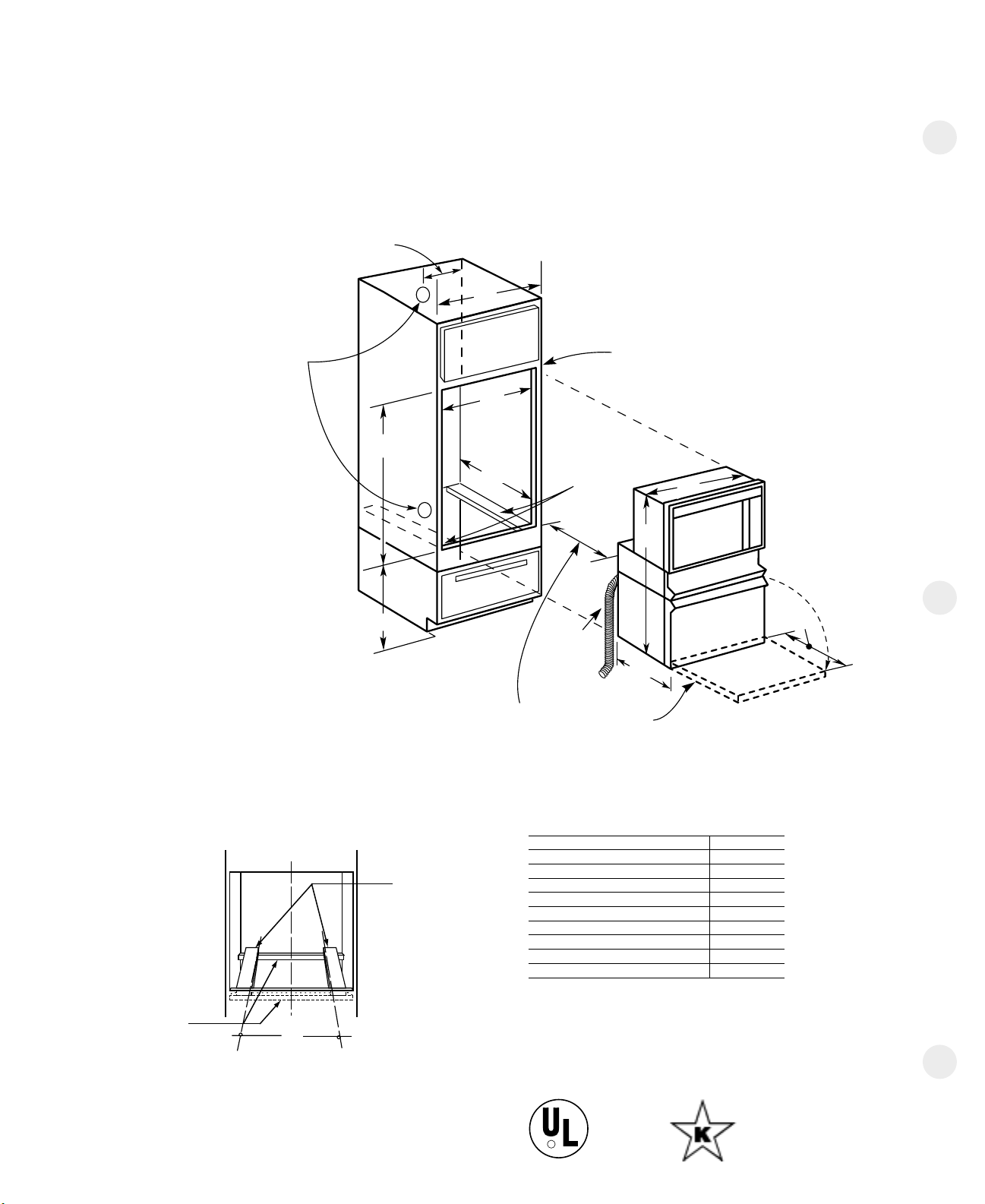

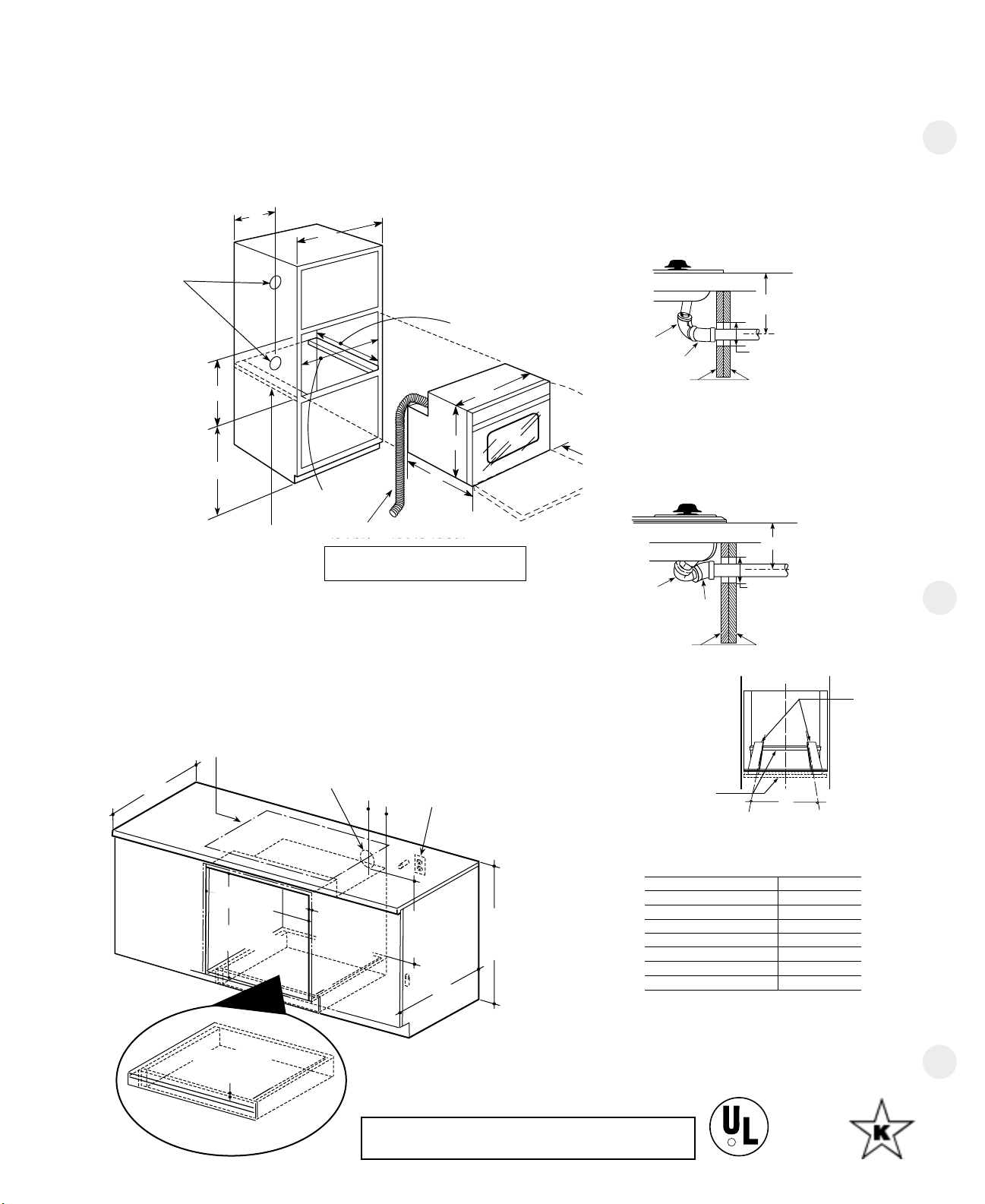

GE wall ovens present a number of exciting installation possibilities.

GE Profile and GE wall ovens go wherever they’re needed: under a counter, in a wall or in a cabinet. These ovens

fit into common cutouts, making it easy to upgrade or replace an older model. And the flush appearance makes

the most of your kitchen space.

T/C

4

Largest capacity

GE wall ovens now feature the largest* capacity wall ovens in

America. Great for holiday meals and dinner parties, you have

greater flexibility to cook more food at once!

Seven-rack positions

Seven-rack positions let you take full advantage of more oven

capacity. With the ability to cook more foods at the same time,

coordinating meals is even easier.

Convection capability gives you more ways to cook great food!

29455

True European convection

GE Profile models deliver “true European convection” cooking

by means of a third dual-loop heating element located in the

back wall. A fan evenly circulates air throughout the oven cavity.

This process delivers uniform, savory results. Convection cooking

also saves time and allows you to cook at lower temperatures.

Convection capability

GE Profile™ wall ovens provide excellent convection heat

capability. Roasts are beautifully browned, yet tender and

juicy inside. Cookies are baked to golden perfection. And

meats are broiled to your liking.

Conventional
Baking

Conventional Broil
(variable temp)

Convection
Bake

Convection
Roast

B

Built-In Electric Wall Ovens

*Among leading manufacturers’ brands, except models JTP56 and JTP18.
Not all features available on all models.

The largest*capacity wall ovens in America!

Conventional
Baking

Conventional Broil
(variable temp)

Convection
Bake

Convection
Roast

5

The maximum in cooking performance and versatility.

Upfront halogen lighting

No more opening the oven to check on your food. With

a powerful halogen light, strategically placed in the front

of the oven, viewing your cooking is clear and easy.

Proofing option

The ideal feature for proofing dough. A dedicated

low-temperature setting provides the ideal environment

needed when baking breads and other baked goods.

Eight-pass/Six-pass bake element

With eight or six turns of the powerful heating element,

heat is distributed more evenly providing complete coverage

throughout the oven cavity.

Heavy-duty racks

The durable construction of the heavy-duty racks provides

additional support for large cooking needs, such as that

Thanksgiving turkey!

See products available on pages 6-18.

6

B

Built-In Double Ovens: 30" Electric

These models include • The largest

*

capacity wall ovens in America! • Flush appearance installation • Fits most 30" cabinets • TrueTemp

™

System • SmartSet Electronic Controls • Certified Sabbath mode • Control lock capability • Exclusive Big ClearView™windows • Variable broil

Note: bold = feature upgrade from previous model

*Among leading manufacturers’ brands, except models JTP56 and JTP18.
Not all features available on all models.

Convection Self-Clean Upper/Self-Clean Lower

Convection Self-Clean Upper/Self-Clean Lower

GE Profile

™

30" Built-In Double Oven

JTP56SD Stainless steel

• CleanDesign oven interior • Integrated designer-style

handles

• Upfront halogen interior oven lights

Convection Upper Oven

• Extra-large 4.2 cu. ft. self-cleaning oven with Delay Clean
option •

Convection Bake • Convection Roast • Roasting

rack • Proofing option • Three heavy-duty oven racks

• Exclusive seven embossed rack positions • Automatic meat
thermometer • Eight-pass bake element

Thermal Lower Oven

• Extra-large 4.4 cu. ft. self-cleaning oven with Delay
Clean option • Two heavy-duty oven racks • Six embossed
rack positions

GE Profile

30" Built-In Double Oven

JTP56WD White on white

• Frameless glass oven doors

JTP56CD Bisque (not shown)
JTP56BD Black on black (not shown)

7

30" Electric Double Wall Ovens

Not all features available on all models.

Self-Clean (both ovens)

Self-Clean Upper/Standard Lower

GE

®

30" Built-In Double Oven

JTP45WD White on white

• Two extra-large 4.4 cu. ft. self-cleaning ovens with
Delay Clean option

• Sure Grip designer-style handles

• Frameless glass oven doors • Two oven racks (each
oven) • Six embossed rack positions

JTP45SD Stainless steel (not shown)
JTP45CD Bisque (not shown)
JTP45BD Black on black (not shown)

GE

30" Built-In Double Oven

JTP27BD Black on black

• Sure Grip designer-style handles • Frameless
glass oven doors • Two oven racks (each oven)

• Six embossed rack positions

Upper Oven

• Extra-large 4.4 cu. ft. self-cleaning oven with
Delay Clean option • SmartSet Electronic Controls

Lower Oven

• Extra-large 4.4 cu. ft. standard clean oven

• Rotary controls

JTP27WD White on white (not shown)

JTP56 JTP45 JTP27

Features

Upper Convection/Self-Clean Self-Clean Self-Clean

Oven interior Lower Thermal/Self-Clean Self-Clean Standard
Variable broil/Six-pass broil element ●●●
SmartSet Controls ●●Upper

Convection Bake/Roast Upper

Embossed rack positions 7 Upper/6 Lower 6 Upper/Lower 6 Upper/Lower

Appearance

Color appearance* SS / WW / CC / BB SS / WW / CC / BB WW / BB
Big ClearView™windows ●●●

Designer-style handles Integrated Sure Grip Sure Grip

Dimensions

Oven cabinet width required (in.) 30 30 30
Overall dimensions (WxHxD in inches) 29-3/4 x 52-7/8 x 23-1/2
Overall oven Upper 24 x 16-1/4 x 18-1/4 24 x 17-1/2 x 18-1/4

interior dimensions
(WxHxD in inches) Lower

24 x 17-1/2 x 18-1/4

Power/Ratings

Convection wattage 2500
Broiler/bake wattage 3600/2700 3600/3410 3600/3410

*SS = Stainless Steel, WW = White on white, CC = Bisque, BB = Black on black.

Convection

GE GE Profile

Double Wall Ovens

8

*Among leading manufacturers’ brands, except models JTP56 and JTP18.

Not all features available on all models.

B

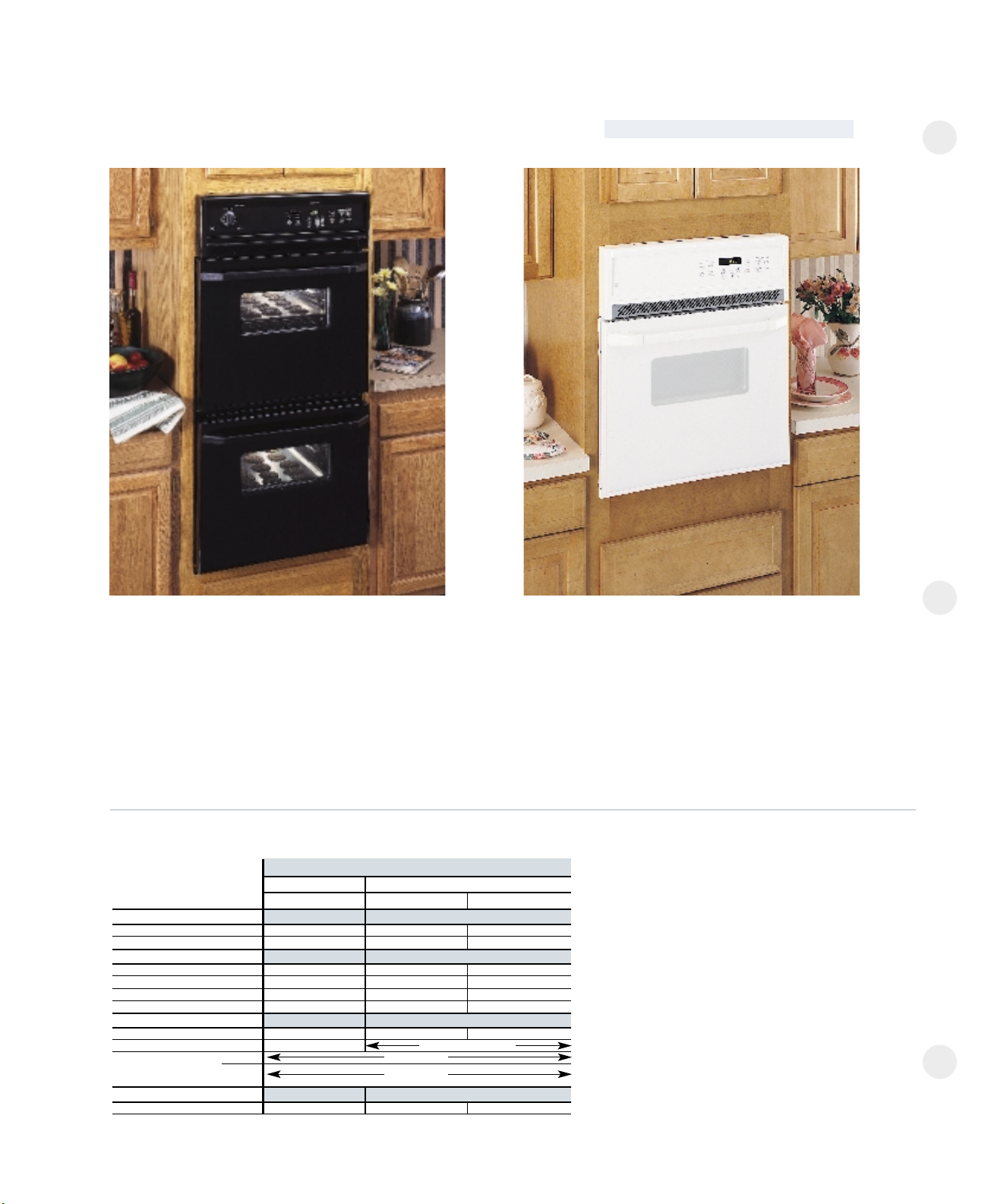

Built-In Double Ovens: 27" Electric

These models include • The largest* capacity wall oven in America! • Flush appearance installation • Fits most 27" cabinets

• TrueTemp

™

System • Certified Sabbath mode • Control lock capability • Exclusive Big ClearView™windows • Variable broil

Note: bold = feature upgrade from previous model

Convection Self-Clean Upper/Self-Clean Lower

Convection Self-Clean Upper/Self-Clean Lower

GE Profile

™

27" Built-In Double Oven

JKP56SD Stainless steel

• CleanDesign oven interior • SmartSet Electronic Controls

• Integrated designer-style handles • Upfront halogen interior

oven lights

Convection Upper Oven

• Extra-large 3.9 cu. ft. self-cleaning oven with Delay Clean
option

• Convection Bake • Convection Roast • Roasting

rack • Proofing Option • Three heavy-duty oven racks

• Four

embossed rack positions

• Six-pass bake element • Automatic

meat thermometer

Thermal Lower Oven

• Extra-large 3.9 cu. ft. self-cleaning oven with Delay
Clean option • Four embossed rack positions • Two
heavy-duty oven racks

GE Profile

27" Built-In Double Oven

JKP56BD Black on black

• Frameless glass oven doors

JKP56WD White on white (not shown)
JKP56CD Bisque (not shown)

28802

GE Profile

GE

9

Not all features available on all models.

Self-Clean (both ovens) Self-Clean Upper/Standard Lower

GE

®

27" Built-In Double Oven

JKP45WD White on white

• Two extra-large 3.9 cu. ft. self-cleaning ovens with
Delay Clean option • SmartSet Electronic Controls

• Sure Grip designer-style handles • Frameless glass
oven doors • Two oven racks (each oven)

JKP45CD Bisque (not shown)
JKP45BD Black on black (not shown)

GE

27" Built-In Double Oven

JKP27WD White on white

• Sure Grip designer-style handles • Frameless glass oven doors

• Two oven racks (each oven)

Upper Oven

• Extra-large 3.9 cu. ft. self-cleaning oven with Delay Clean option

• SmartSet Electronic Controls

Lower Oven

• Extra-large 3.9 cu. ft. standard clean oven • Rotary control

JKP27BD Black on black (not shown)

Oven Features JKP56 JKP45 JKP27
Features

Upper Oven Convection/Self-Clean Self-Clean Self-Clean
Oven interior Lower Oven Thermal/Self-Clean Self-Clean Standard
Convection Bake/Roast Upper
SmartSet Controls ●●Upper
Variable Broil ●●●

Appearance

Color appearance* SS / WW / CC / BB WW / CC / BB WW / BB
Big ClearView™windows ●●●

Designer-style handles Integrated Sure Grip Sure Grip

Dimensions

Oven cabinet width required (in inches) 27 27 27
Overall dimensions (WxHxD inches) 26-5/8 x 51 x 23-5/8
Overall oven interior

dimensions Upper

21-1/2 x 17 x 18-1/4

(WxHxD in inches) Lower 21-1/2 x 17 x 18-1/4

Power/Ratings

Convection wattage 2500

3400/2650

Broiler/bake wattage 3400/2640 3400/2650 3400/2000

*SS = Stainless steel, WW = White on white, CC = Bisque, BB = Black on black.

27" Electric Double Wall Ovens

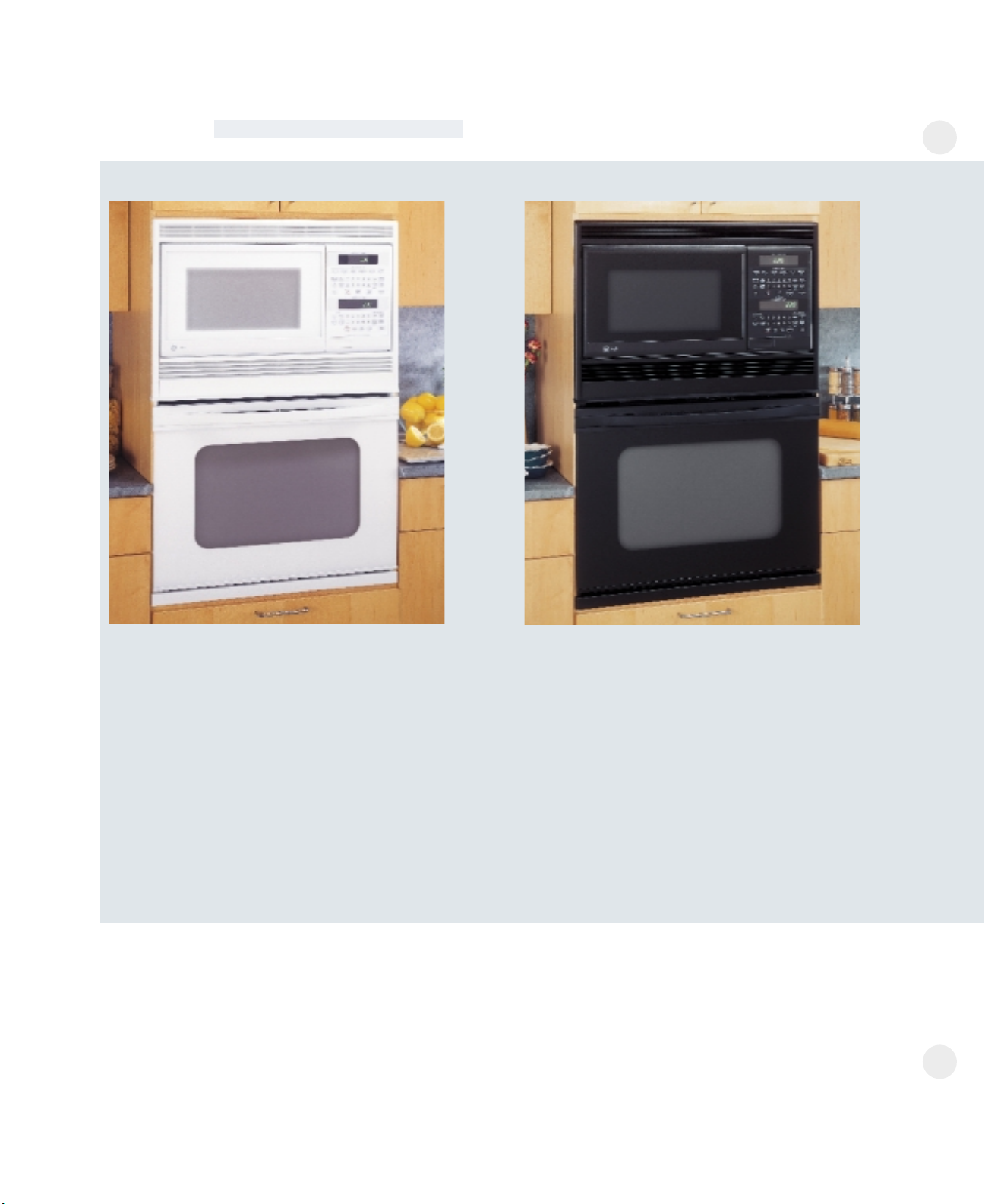

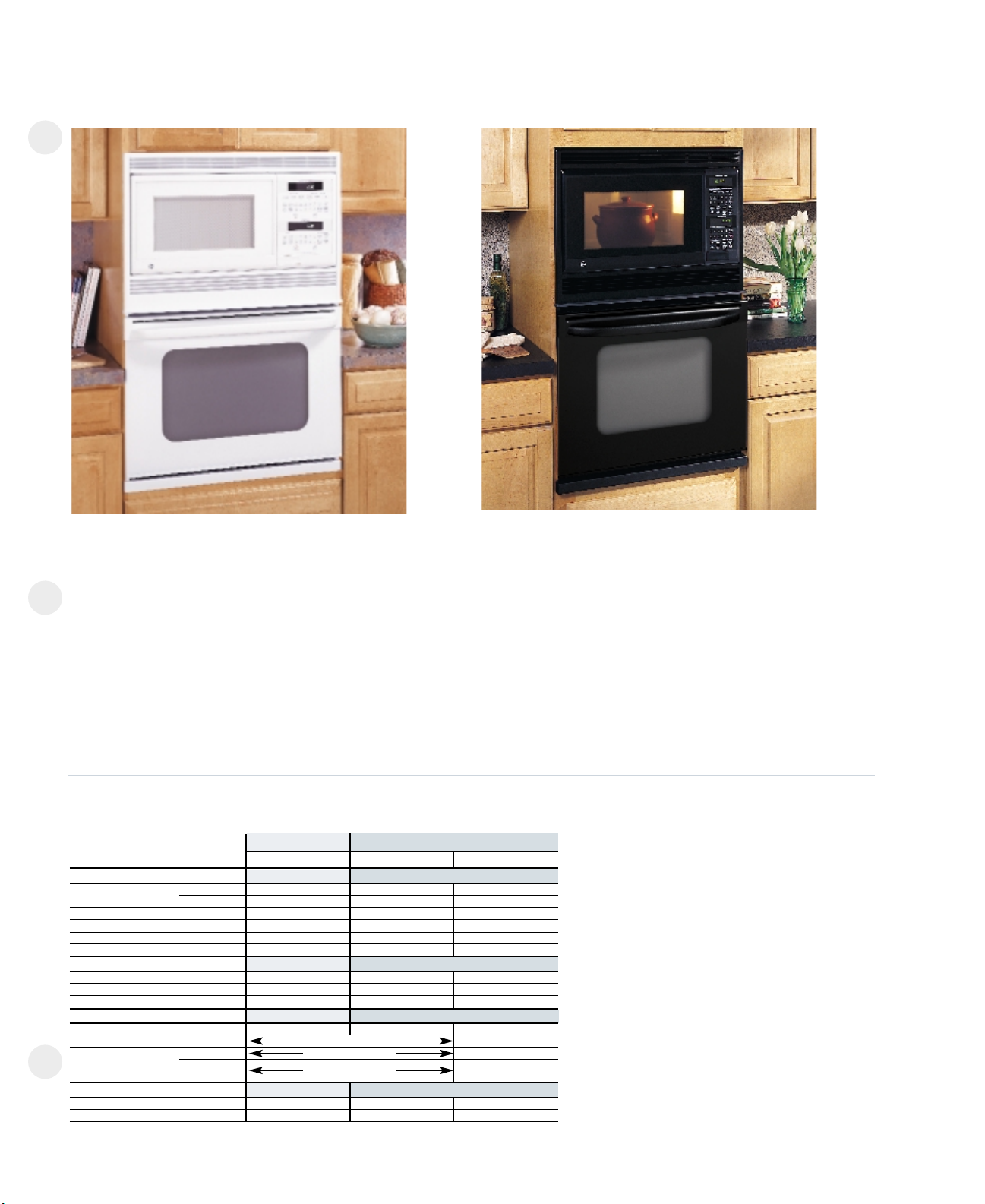

Microwave Upper/Convection Self-Clean Lower

Microwave Upper/Convection Self-Clean Lower

GE Profile

™

30" Built-In Double Oven

JTP95WD White on white

• Fits most 30" cabinets

Microwave Upper Oven

• 1.6 cu. ft. cavity • Sensor Cooking Controls for Auto Cook and
Reheat • Auto Defrost • Turntable • 1000 watts

Convection Lower Oven

• Extra-large 4.4 cu. ft. self-cleaning oven with Delay Clean option

• CleanDesign oven interior • Integrated designer-style handle

• Exclusive Big ClearView™window • Convection Bake • Convection
Roast • Roasting rack • Three heavy-duty oven racks • Exclusive
seven embossed rack positions • Automatic meat thermometer

• Eight-pass power bake • Upfront halogen interior lights

GE Profile

30" Built-In Double Oven

JTP95BD Black on black

28802

10

Not all features available on all models.

B

Built-In Microwave Double Ovens: 30" and 27" Electric

These models include • Flush appearance installation • Frameless glass oven doors • SmartSet Electronic Controls • Control lock capability

• Variable broil

Note: bold = feature upgrade from previous model

11

Not all features available on all models.

Microwave Upper/Self-Clean Lower Microwave Upper/Self-Clean Lower

JTP95 JTP85 JKP85

Features

Upper Microwave Microwave Microwave
Oven interior Lower Convection Self-Clean Self-Clean
Variable broil/Six-pass broil element Lower Lower Lower
SmartSet Controls ●●Lower
Convection Bake/Roast Lower
Embossed rack positions 7 Lower 6 Lower 4 Lower

Appearance

Color appearance* WW / BB WW / BB WW / BB
Big ClearView™windows Lower Lower Lower
Designer-style handles Integrated Sure Grip Sure Grip

Dimensions

Oven cabinet width required (in.) 30 30 27
Overall dimensions (WxHxD in inches) 29-3/4 x 43-1/2 x 23-1/2 26-5/8 x 42-1/2 x 23-5/8
Overall oven Upper 16-1/4 x 9-5/8 x 15-3/4 16 x 11-1/8 x 13-3/8

interior dimensions
(WxHxD in inches) Lower

24 x 16-1/4 x 18-1/4 21-1/2 x 17 x 18-1/4

Power/Ratings

Convection wattage 2500
Broiler/bake wattage 3600/2700 3600/3410 3400/2650

*WW = White on white, BB = Black on black.

GE

GE Profile

GE

®

30" Built-In Double Oven

JTP85WD White on white

• Fits most 30" cabinets • Upfront interior oven lights

Microwave Upper Oven

• 1.6 cu. ft. cavity • Sensor Cooking Controls for Auto Cook and
Reheat • Auto Defrost • Turntable • 1000 watts

Lower Oven

• Extra-large 4.4 cu. ft. self-cleaning oven with Delay Clean option

• Sure Grip designer-style handle • Two oven racks • Six embossed
rack positions • Exclusive Big ClearView

™

window

JTP85BD Black on black (not shown)

GE

27" Built-In Double Oven

JKP85BD Black on black

• Fits most 27" cabinets • Upfront interior oven lights

Microwave Upper Oven

• 1.6 cu. ft. cavity • Auto Roast • Auto Cook • Auto Defrost

• Double Duty

™

shelf • Turntable • 1000 watts

Lower Oven

• Extra-large 3.9 cu. ft. self-cleaning oven with Delay Clean
option • Sure Grip designer-style handle • Exclusive Big
ClearView

™

window • Two oven racks

JKP85WD White on white (not shown)

30" and 27" Electric Microwave Double Wall Ovens

12

*Among leading manufacturers’ brands, except models JTP56 and JTP18.
Not all features available on all models.

B

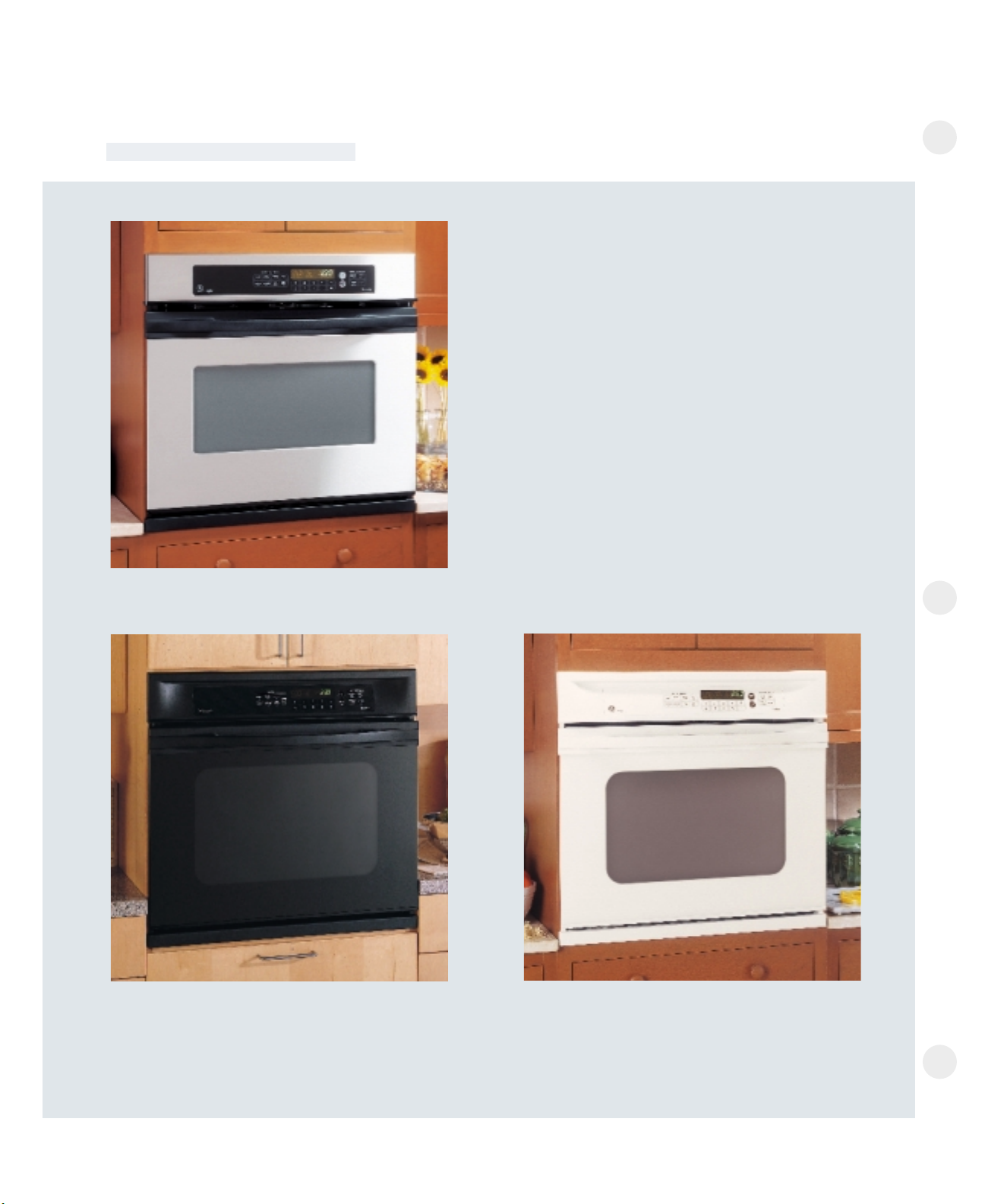

Built-In Single Ovens: 30" Electric

These models include • The largest* capacity wall oven in America! • Flush appearance installation • Fits most 30" cabinets • TrueTemp

™

System • SmartSet Electronic Controls • Certified Sabbath mode • Control lock capability • Exclusive Big ClearView™window • Variable broil

Note: bold = feature upgrade from previous model

Self-Clean Convection

GE Profile

™

30" Built-In Single Oven

JTP18SD Stainless steel

• CleanDesign oven interior • Integrated designer-style
handle • Upfront halogen interior oven light

• Extra-large

4.2 cu. ft. self-cleaning oven with Delay Clean option

• Convection Bake • Convection Roast • Roasting rack

• Proofing option • Three heavy-duty oven racks • Eight-pass
power bake • Exclusive seven embossed rack positions

• Automatic meat thermometer

Self-Clean Convection

GE Profile

30" Built-In Single Oven

JTP18BD Black on black

• Frameless glass oven door

JTP18WD White on white (not shown)

Self-Clean

GE Profile

30" Built-In Single Oven

JTP18CD Bisque

13

Single Ovens

Not all features available on all models.

30" Electric Single Wall Ovens

JTP18 JTP15

Features

Oven interior Convection/Self-Clean Self-Clean
Variable broil/Six-pass broil element ●●
SmartSet Controls ●●
Convection Bake/Roast ●
Embossed rack positions 7 6

Appearance

Color appearance* SS / WW / CC / BB SS / WW / CC / BB
Big ClearView™window ●●
Designer-style handle Integrated Sure Grip
Undercounter installation ●●

Dimensions

Oven cabinet width required (in.) 30 30
Overall dimensions (WxHxD in inches) 29-3/4 x 28-1/4 x 23-1/2
Overall oven interior (WxHxD in inches) 24 x 16-1/4 x 18-1/4 24 x 17-1/2 x 18-1/4

Power/Ratings

Convection wattage 2500
Broiler/bake wattage 3600/2700 3600/3410

*SS = Stainless Steel, WW = White on white, CC = Bisque, BB = Black on black.

GE Profile GE

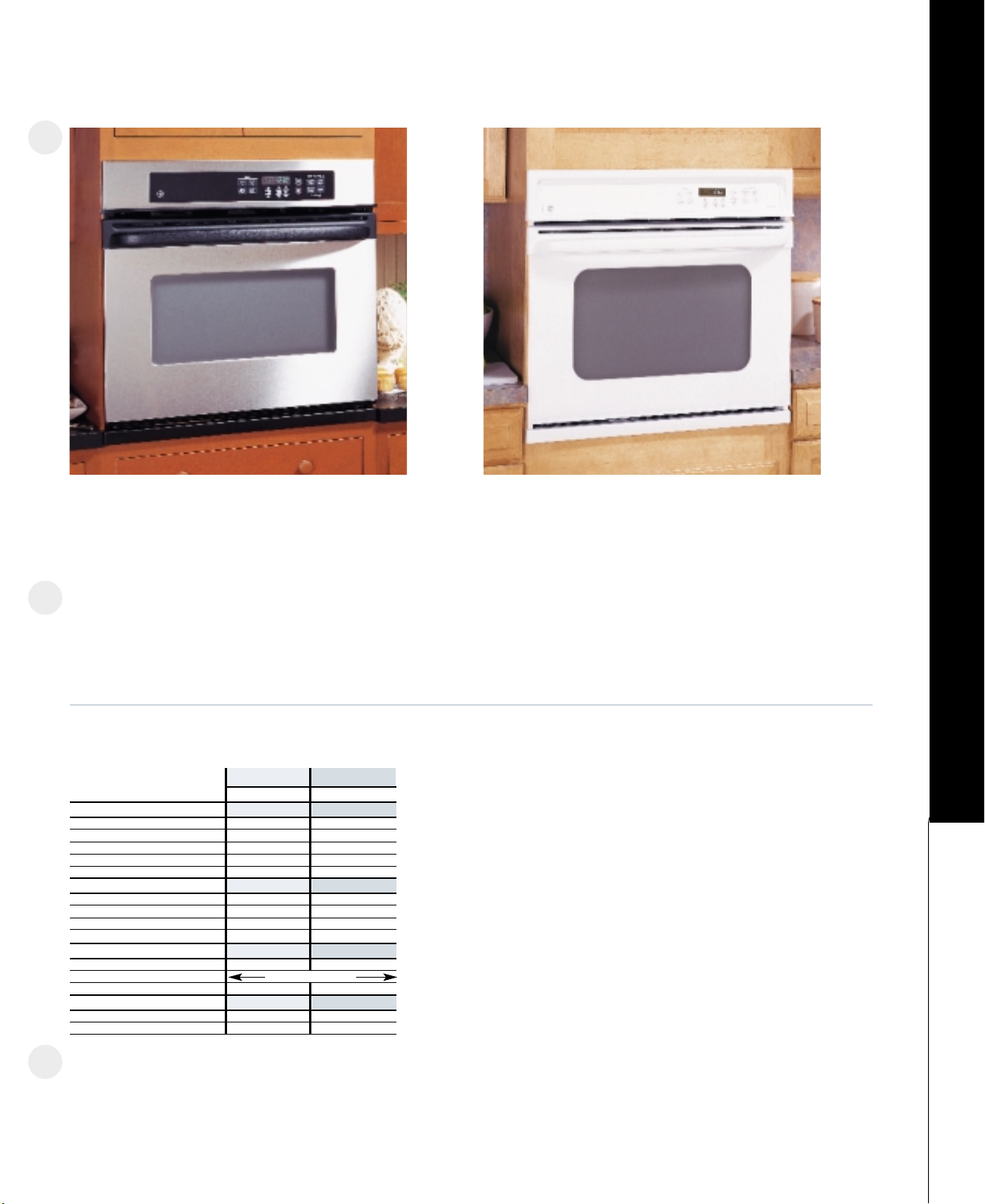

Self-Clean

GE

®

30" Built-In Single Oven

JTP15SD Stainless steel

• Sure Grip designer-style handle • Extra-large 4.4 cu. ft.
self-cleaning oven with Delay Clean option • Two oven
racks • Six embossed rack positions

JTP15CD Bisque (not shown)
JTP15BD Black on black (not shown)

Self-Clean

GE

30" Built-In Single Oven

JTP15WD White on white

• Frameless glass oven door

14

*Among leading manufacturers’ brands, except models JTP56 and JTP18.
Not all features available on all models.

B

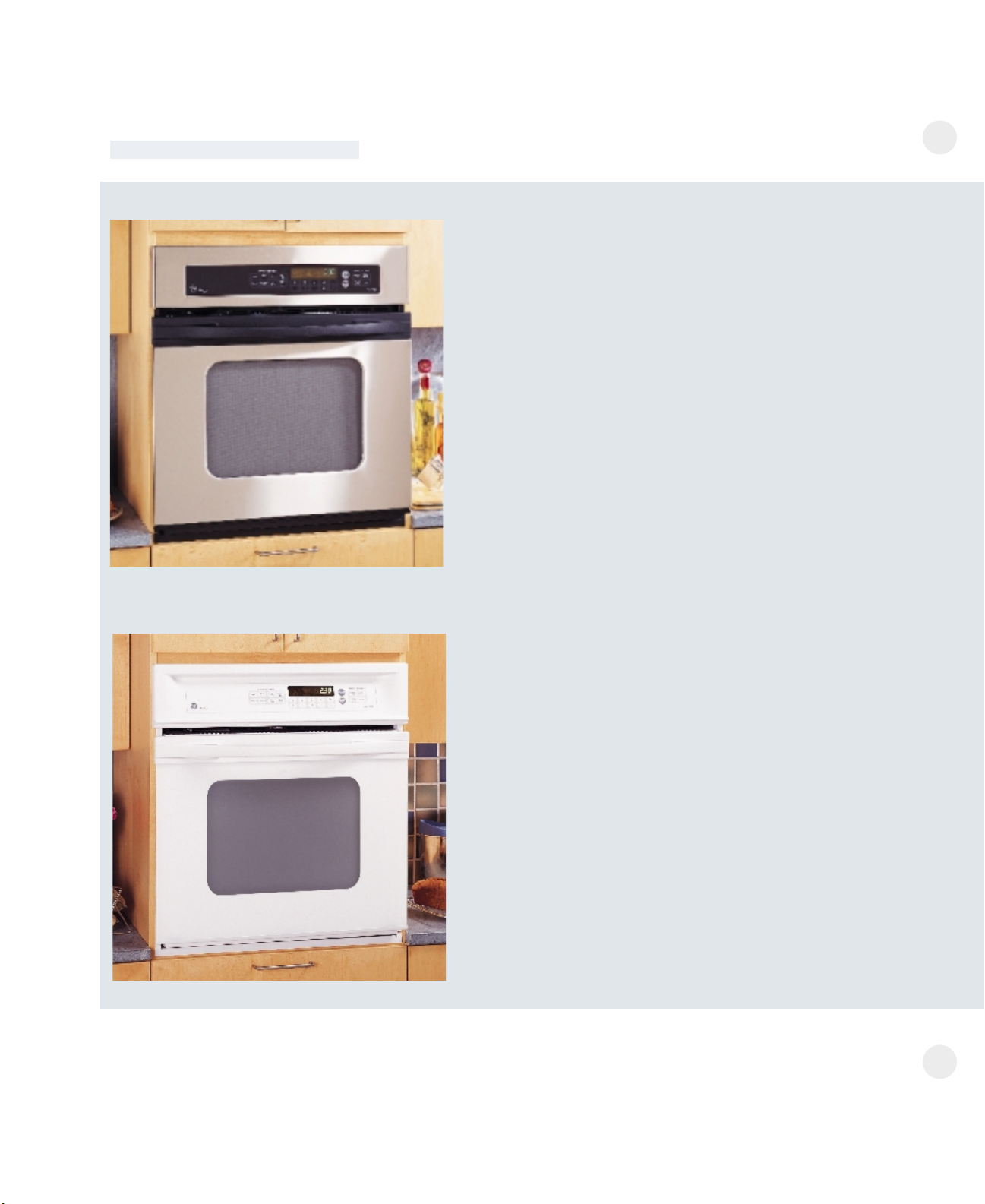

Built-In Single Ovens: 27" Electric

Self-Clean Convection

GE Profile

™

27" Built-In Single Oven

JKP18SD Stainless steel

• CleanDesign oven interior • Integrated
designer-style handle • Upfront halogen
interior oven light

• TrueTemp™System

• Extra-large 3.9 cu. ft. self-cleaning oven
with Delay Clean option

• Convection Bake

• Convection Roast • Roasting rack • Proofing

option

• Six-pass bake element • Three

heavy-duty oven racks • Four embossed
rack positions • Automatic meat thermometer

28781

These models include • The largest* capacity wall oven in America! • Flush appearance installation • Fits most 27" cabinets • SmartSet

Electronic Controls • Certified Sabbath mode • Big ClearView

™

window • Control lock capability (except model JKS05BD)

Note: bold = feature upgrade from previous model

Self-Clean Convection

GE Profile

27" Built-In Single Oven

JKP18WD White on white

• Frameless glass oven door

JKP18CD Bisque (not shown)
JKP18BD Black on black (not shown)

15

Not all features available on all models.

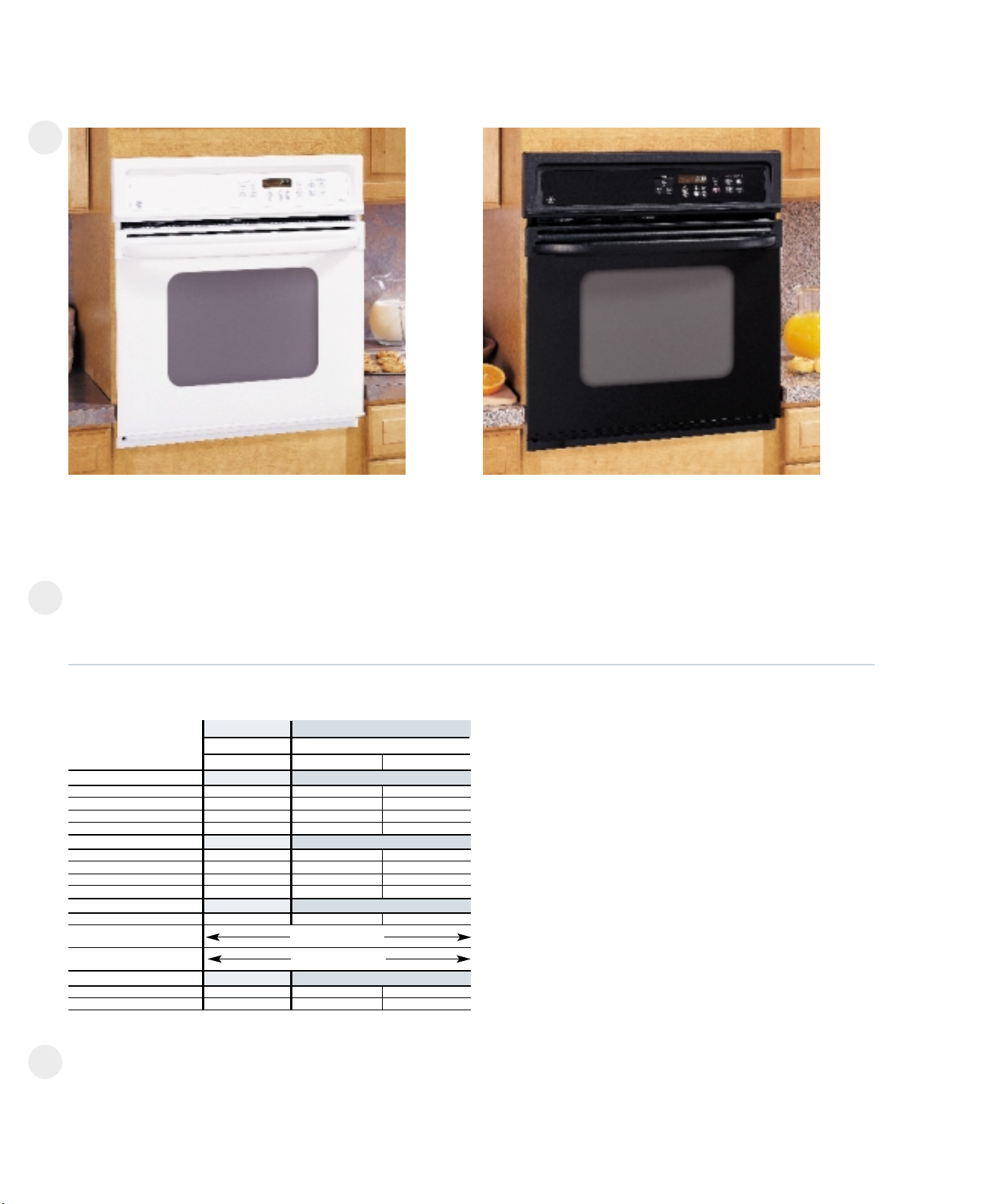

Self-Clean

Standard Clean

GE

®

27" Built-In Single Oven

JKP15WD White on white

•

TrueTemp™System • Sure Grip designer-style handle

• Extra-large 3.9 cu. ft. self-cleaning oven with Delay Clean
option

• Two oven racks • Six-pass bake element

JKP15CD Bisque (not shown)
JKP15BD Black on black (not shown)

GE

27" Built-In Single Oven

JKS05BD Black on black

• Sure Grip designer-style handle • Extra-large 3.9 cu. ft. standard
clean oven • Two oven racks

JKP18 JKP15 JKS05

Features

Oven interior Convection/Self-Clean Self-Clean Standard
Variable broil ●●●
SmartSet Controls ●●●
Convection Bake/Roast ●

Appearance

Color appearance* SS / WW / CC / BB WW / CC / BB BB
Big ClearView™window ●●●

Designer-style handle Integrated Sure Grip Sure Grip
Undercounter installation ●●●

Dimensions

Oven cabinet width required (in.) 27 27 27
Overall dimensions

(WxHxD in inches)
Overall oven interior dimensions

(WxHxD in inches)

Power/Ratings

Convection wattage 2500
Broiler/bake wattage 3400/2640 3400/2650 3400/2000

*SS = Stainless steel, WW = White on white, CC = Bisque, BB = Black on black.

Convection 27 " Single Ovens

26-5/8 x 29 x 23-5/8

21-1/2 x 17 x 18-1/4

GE GE Profile

27" Electric Single Wall Ovens

16

B

Built-In Double and Single Wall Ovens: 24" Electric

These models include • Fits most 24" cabinets • SmartSet Electronic Controls • Frameless glass oven doors • Designer-style handles

• Two oven racks (each oven) • Variable broil • Delay Bake option with Cook & Hold

Note: bold = feature upgrade from previous model

Not all features available on all models.

GE

®

24" Built-In Double Oven

JRP24BD Black on black

Upper Oven

• Self-cleaning oven with Delay Clean option

• Control lock capability

Lower Oven

• Standard clean oven • Rotary controls

GE

24" Built-In Single Oven

JRP15WW White on white

• Self-cleaning oven with Delay Clean option • Control
lock capability

JRP15BW Black on black (not shown)
JRS04BW Black on black (not shown)

• Standard clean oven

JRP24 JRP15 JRS04

Features

Oven interior Self-Clean Self-Clean Standard
SmartSet Controls ●●●

Appearance

Color appearance* BB WW / BB BB
Oven door with window ●●●
Lift-off oven door ●●●
Designer-style handle ●●●

Dimensions

Oven cabinet width required (in.) 24 24 24
Overall dimensions (WxHxD in inches) 23-3/4 x 48-5/8 x 23-1/8
Overall oven interior Upper 17 x 15 x 18-1/2

dimensions
(WxHxD in inches) Lower

17 x 15 x 18-1/2

Power/Ratings

Broiler/bake wattage 3400/2600 3400/2600 3400/2600

*WW = White on white, BB = Black on black.

Single OvensDouble Oven

23-3/4 x 28-3/16 x 23-1/8

GE

24" Electric Double and Single Wall Ovens

17

B

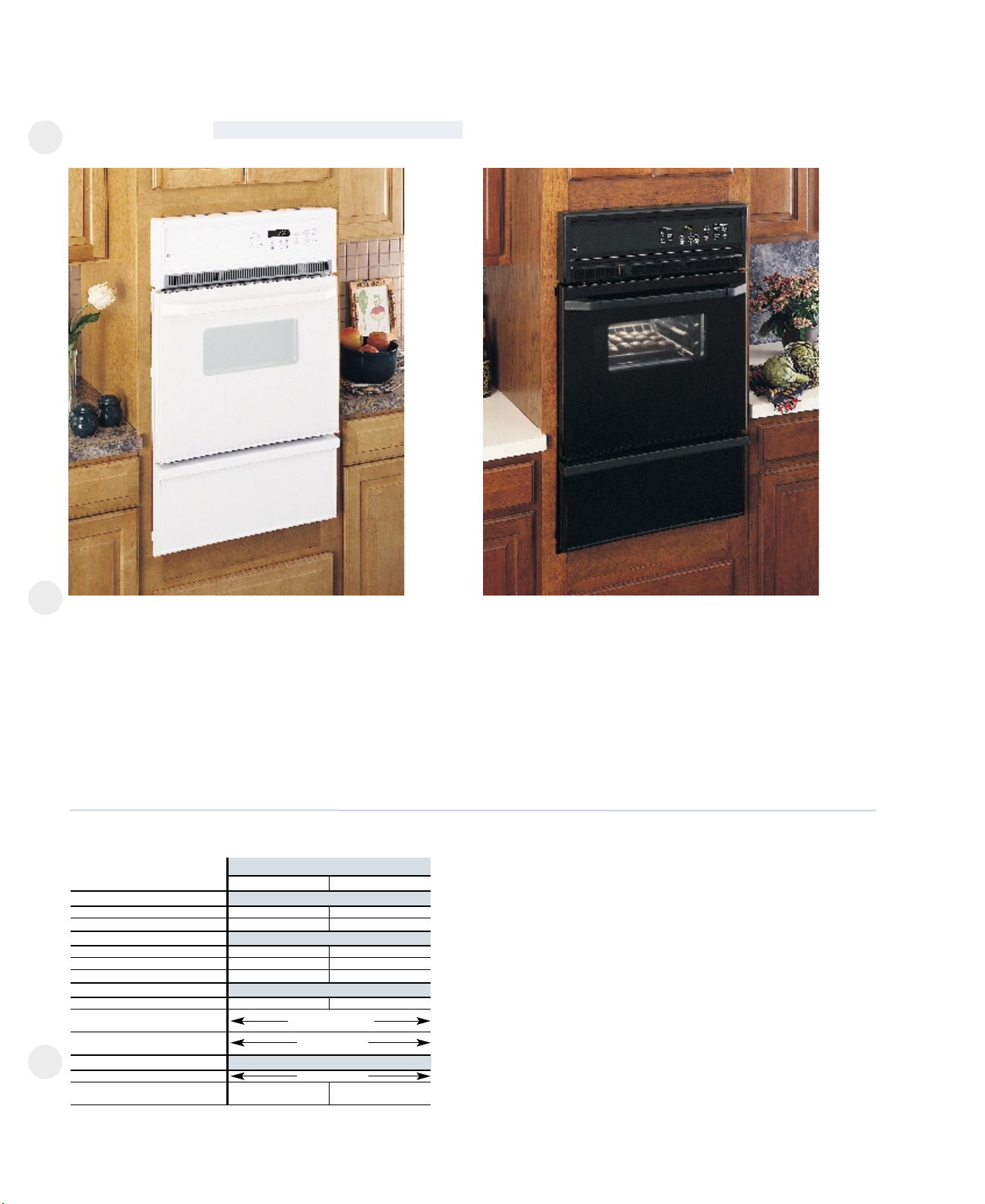

Built-In Single Wall Ovens: 24" Gas

These models include • Fits most 24" cabinets • SmartSet Electronic Controls • Electronic pilotless ignition • Frameless glass oven door

• Designer-style handle

Note: bold = feature upgrade from previous model

GE

24" Built-In Single Oven

JGRP17WEW White on white

• Self-cleaning oven with Delay Clean option • Control lock
capability • In-oven broiling • Storage drawer

JGRP17BEW Black on black (not shown)

GE

24" Built-In Single Oven

JGRS14BEW Black on black

• Standard clean oven • Separate broiler drawer

JGRP17 JGRS14

Features

Oven interior Self-Clean Standard
SmartSet Controls ●●

Appearance

Color appearance* WW / BB BB
Frameless oven door White Glass / Black Glass Black Glass
Designer-style handle ●●

Dimensions

Oven cabinet width required (in inches) 24 24
Overall dimensions

(WxHxD in inches)

23-3/4 x 38-3/8 x 23

Overall oven interior dimensions
(WxHxD in inches)

17 x 15 x 18-7/8

Power/Ratings

Gas oven electrical rating 120V, 60Hz, 5A

14.5 - Oven

Oven broiler/BTU (000’s BTU’s) 13.0 - Broil 14.5

*WW = White on white, BB = Black on black.
Factory set for Natural Gas.

GE

24" Gas Single Wall Ovens

Not all features available on all models.

Not all features available on all models.

18

B

These models include • Flush appearance installation • Temperature control with Proof, Low, Medium and High settings • Crisp/Moist

humidity control • ON/OFF switch • “ON” indicator light • One-half rack • Frameless drawer front • Integrated designer-style handle

• Removable stainless steel drawer pan • 5-piece commercial pan set

(available at additional cost)

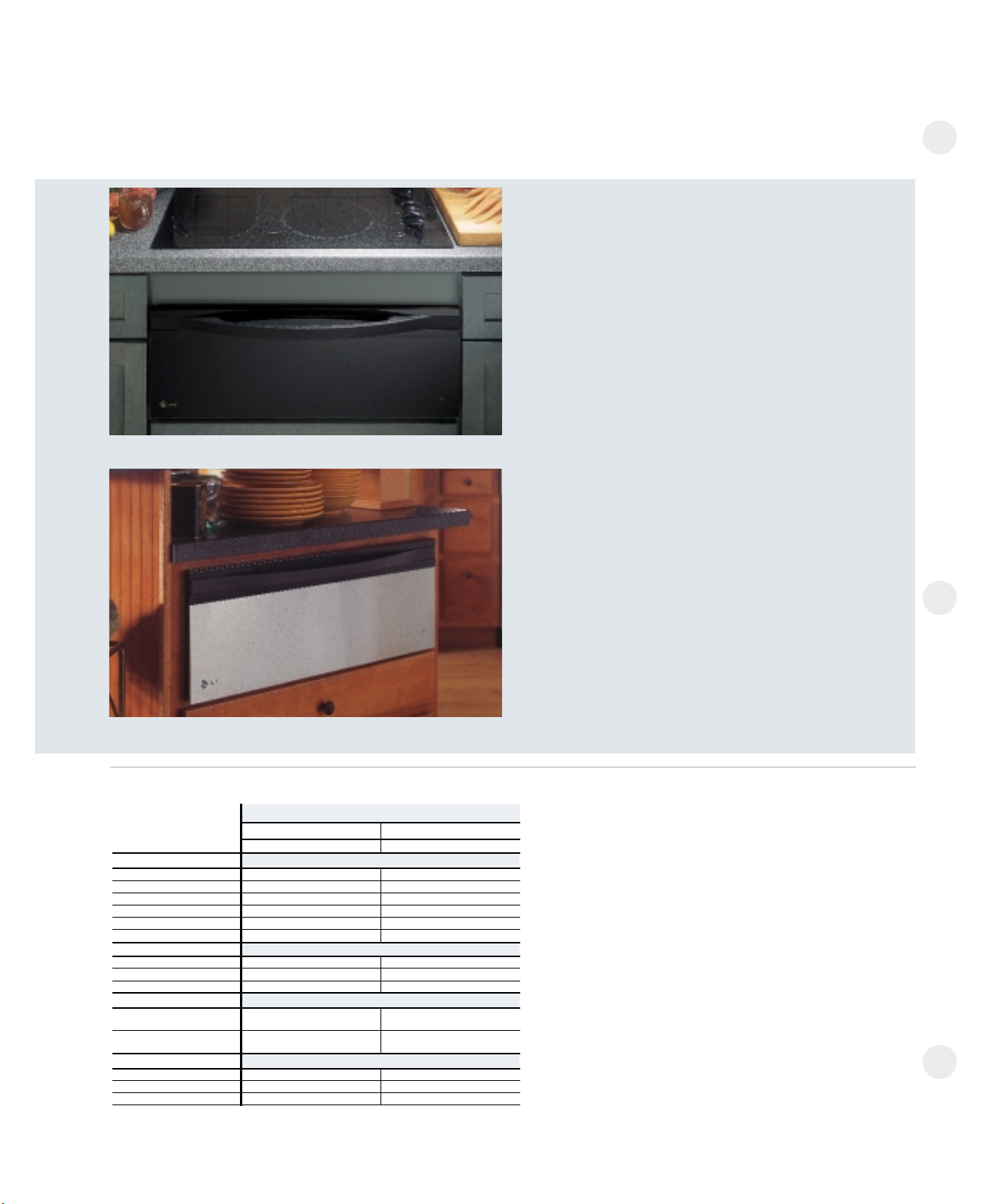

GE Profile

27" Built-In Warming Drawers

JKD910SB Stainless steel
JKD910WB White on white (not shown)
JKD910CB Bisque (not shown)
JKD910BB Black on black (not shown)

GE Profile

™

30" Built-In Warming Drawers

JTD910BB Black on black
JTD910SB Stainless steel (not shown)
JTD910WB White on white (not shown)
JTD910CB Bisque (not shown)

JTD910 JKD910

Features

Temperature control ●●
Hidden control ●●
ON/OFF switch ●●
“ON” indicator light ●●
Half rack ●●
Removable stainless steel pan ●●

Appearance

Color appearance* SS / WW / CC / BB SS / WW / CC / BB
Frameless drawer front ●●
Handle style Integrated Designer-Style Integrated Designer-Style

Dimensions

Interior dimensions
(WxHxD in inches)

23-7/8 x 6-1/4 x 22-1/16 20-7/8 x 6-1/4 x 22-1/16

Cutout dimensions
(WxHxD in inches)

28-1/2 x 9-1/4 x 23 25-1/2 x 9-1/4 x 23

Power/Ratings

KW rating @ 120V .45 .45
Amps @ 120V 15 15
Element wattage 450 450

*SS = Stainless Steel, WW = White on white, CC = Bisque, BB = Black on black.

30" Warming Drawers 27" Warming Drawers

GE Profile

30" and 27" Warming Drawers

Built-In Warming Drawers: 30" and 27" Electric

1919

Warming Drawers/

Installation Information

B

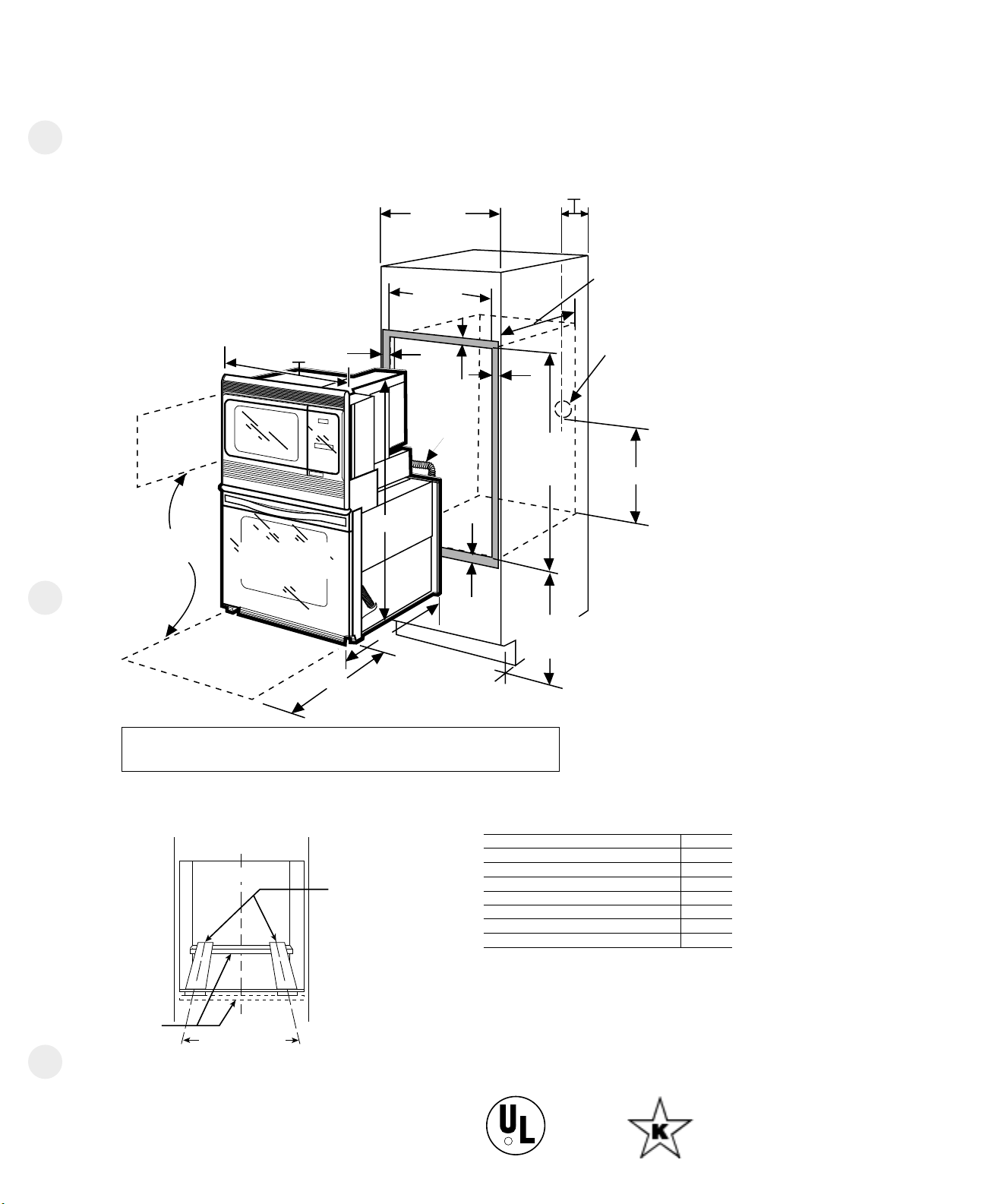

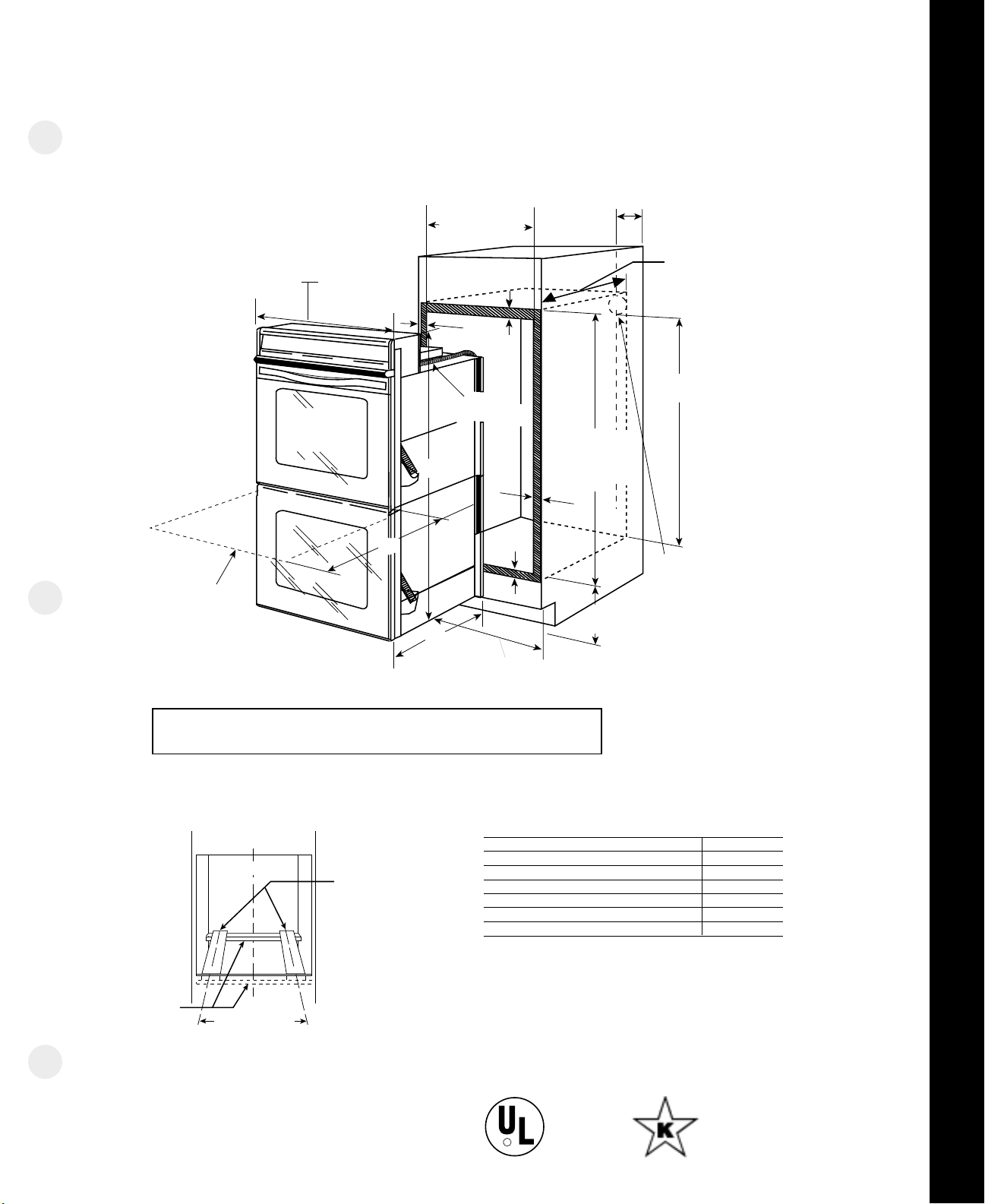

Built-In Double Ovens: 30" Electric

Models JTP56, 45, 27 (in inches)

Cabinet 30"

A – Overlap of Oven Over Side Edges of Cutout 11/16" – 3/4"
B – Overlap of Oven at Top and Bottom of Cutout 1"

Oven

C – Overall Depth 23-1/2"
D – Overall Height 52-7/8"
E – Overall Width 29-3/4"

(Must support 275 LBS.)

Note: Cabinets installed adjacent to wall ovens must have
an adhesion spec of at least 194°F temperature rating.

21" minimum

Door Opening

Allowance

5

B

B

A

A

47

Conduit

(48" long)

Junction box
location

Cutout height
51-13/16" MIN.
51-15/16" MAX.

Recommended cutout
location 12" from the floor.

Cutout width
28-1/2'' MIN.
28-5/8'' MAX.

21

Cabinet

width

30"

C

E

D

MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT

THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE

CUTOUT DEPTH

23-1/2'' MIN.

Installation Information: Before installing, consult installation instruc­tions packed with product for current dimensional data.

R

Listed by
Underwriters
Laboratories

C

L

2 x 4 or
equivalent
runners

Suitable

bracing

to support

runners

21-5/8"

over centerline

of cabinet

20

B

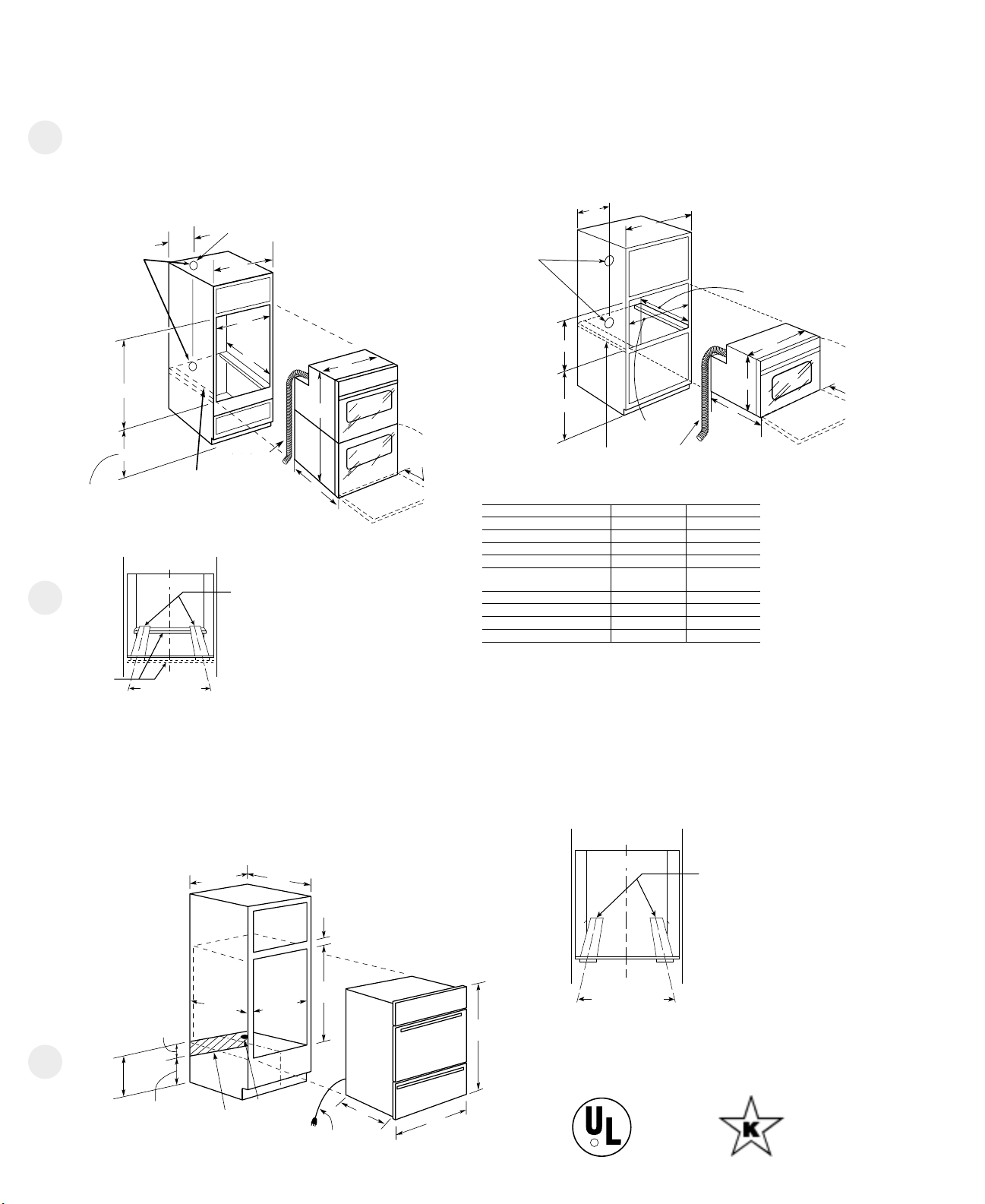

Built-In Double Ovens: 27" Electric

Models JKP56, 45, 27 (in inches)

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

10

Locate
junction box

for 27"models
either 5" MIN.

below cutout
floor or 44"
MIN. above
cutout floor

Allow 3/4"
for overlap
over all edges
of cutout

A

Recommended
cutout location
from floor

D

E

2" X 4" or
equiv. runners
(cutout floor)

20" MIN.
door opening
allowance

B

C

H

F

G

Locate
junction box

for 24"models

56" MIN. above
cutout floor

Conduit

(49" long

JKP56/45/27,

48-1/2" long

JRP24)

20

Cabinet JKP56/45/27

A – Cabinet Width Required 27" min.
B – Minimum Cabinet Depth 23-5/8"
C – Minimum Opening Width 25"
D – Opening Height 49-11/16" min.
E – Recommended Minimum

Cutout Location from Floor 13-1/4"

Oven

F – Overall Depth 23-5/8"
G – Overall Height 51"
H – Overall Width 26-5/8"

R

Listed by
Underwriters
Laboratories

Note: Cabinets installed adjacent to wall ovens must have
an adhesion spec of at least a 194°F temperature rating.

(Must support 275 LBS.)

Suitable
bracing

to support

runners

C

L

18"

Over centerline

of cabinet

2" x 4" or
equivalent
runners

Models JTP95, 85 (in inches)

21

B

Built-In Microwave Double Ovens: 30" Electric

Cabinet 30"

A – Overlap of Oven Over Side Edges of Cutout 11/16"
B – Overlap of Oven at Bottom of Cutout 1"
C – Overlap of Oven at Top of Cutout 1/2"

Oven

D – Overall Depth 23-1/2"
E – Overall Height 43-1/2"
F – Overall Width 29-3/4"

C

L

2 x 4 or
equivalent
runners

Suitable

bracing

to support

runners

21-5/8"

over centerline

of cabinet

20''

28''

21''

A

F

A

B

C

CONDUIT

(48'' LONG)

CUTOUT

HEIGHT

42-3/16'' MIN.

42-1/4'' MAX.

CUTOUT

WIDTH

28-1/2'' MIN.

28-5/8'' MAX.

Recommended

cutout location

21-5/8''

from the floor

21" Minimum

Door Allowance

JUNCTION BOX

LOCATION

CABINET

WIDTH

30''

DOOR MUST BE

REMOVED BEFORE

INSTALLATION

MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT

THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE

D

CUTOUT DEPTH

23-1/2'' MIN.

E

Note: Cabinets installed adjacent to wall ovens must have
an adhesion spec of at least 194°F temperature rating.

Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.

R

Listed by
Underwriters
Laboratories

(Must support 275 LBS.)

22

B

R

Listed by
Underwriters
Laboratories

Built-In Microwave Double Ovens: 27" Electric

Model JKP85 (in inches)

E

Recommended
cutout location
from floor

Allow minimum of
20" for clearance
to adjacent corners,
drawers, walls, etc.

20

2" X 4" or
equiv. runners

Conduit

(49" long)

Allow 3/4" for overlap
of oven over all
edges of cutout

10

A

D

Recommended
junction box
locations.
Locate junction
box either 5" MIN.
below cutout
floor or 48" MIN.
above cutout
floor

C

B

F

G

H

Cabinet 27"

A – Cabinet Width Required 27" min.
B – Minimum Cabinet Depth 23-5/8"
C – Minimum Opening Width 25"
D – Opening Height 41-1/4" max.
E – Minimum Cutout Location from Floor 22"

Oven

F – Overall Depth 23-5/8"
G – Overall Height 42-1/2"
H – Overall Width 26-5/8"

Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.

C

L

Suitable
bracing

to support

runners

18"

Over centerline

of cabinet

2" x 4" or
equivalent
runners

(Must support 275 LBS.)

Note: Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least a 194°F temperature rating.

23

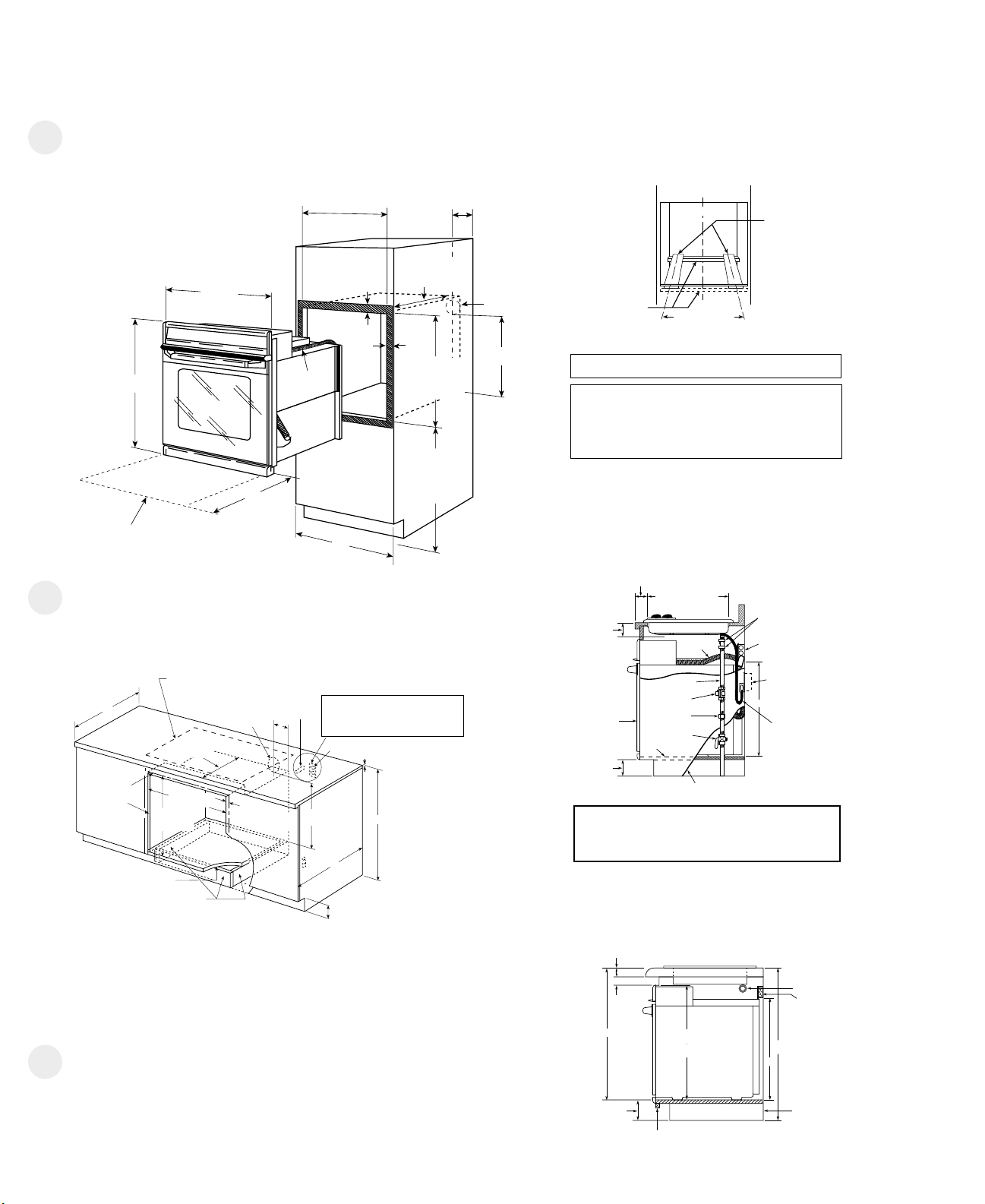

Models JTP18, 15 (in inches)

Single Oven Wall-Mount or
Cabinet Installation (in inches)

B

Built-In Single Ovens: 30" Electric

Note: These ovens are not approved for stackable or
side-by-side installations.

Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least 194°F temperature rating.

Most 30" Wall Cabinets can be used with this unit.

Cutout width
28-1/2'' MIN.
28-5/8'' MAX.

29-3/4

28-1/4

30

Recommended

cutout location

32-1/2"

from floor

21

Junction
box
location

Allow minimum of 21'' for clearance
to adjacent corners, drawers, walls, or etc.

A=Allow 1" overlap of oven over top and bottom edges of cutout.
B=Allow 11/16"-3/4" for overlap of oven over side edges of cutout.

Conduit

(48" long)

5

27-1/4'' MIN.
27-5/16'' MAX.
Cutout height

A

B

23-1/2'' MIN.
Cutout depth

22'' MIN.

Installation Information:

Before installing, consult installation instructions packed with product for current
dimensional data.

36" Ribbon cooktops (excluding JP968) are approved for use over GE 30" Single
Wall Ovens only. 30" Ribbon cooktops (excluding JP938) are approved for use
over GE 30" Single Wall Ovens. All 30" ribbon cooktops can be installed over
27" wall ovens except stainless model JKP18SD. Refer to cooktop and wall oven
installation instructions packed with product for current dimensional data.

Undercounter Installation (in inches)

5

24

25

Gas or electric cooktops may be installed over
this oven. See cooktop installation instructions
for cutout size. See label on top of oven for
approved cooktop models.

Gas (including the pressure regulator) and
electrical connections for gas cooktop must
be located in an adjacent accessible location
to the right. For a 36" gas cooktop, the
connections may be made to the left.

120 Volt
Outlet

Gas
connection

Junction box
location
240/208V

36'' MIN.

4'' To 4-1/2 '' Toe kick allowable

Match toe kick height
front and two sides

22'' MIN. above
support platform

Top and/or side
fillers may be
necessary if unit
is positioned
between
existing cabinets

28-1/2'' MIN.

28-5/8'' MAX.
27-1/4'' MIN.
27-5/16'' MAX.
Cutout height

3/4'' Support
platform required

23-1/2" MIN.
Cutout depth

Allow 11/16''
overlap over side
edges of cutout

1-1/2"
Countertop

This installation is to achieve minimum gap between bottom
of countertop and control panel. Note: For this installation,
the bottom trim will not be flush with a typical 4" toe kick.

Note: For standard or sealed burner cooktop installa­tion information over the 30" wall oven, refer to 27"
wall oven installation, page 24.

5-9/16"

Reference dim. for

MAX. support height

with typical 36" countertop

height

36" Typical
Countertop height

Power cord

Reference
5-9/16

30-7/16

Free space

1-1/2" MIN.

1-1/2" Typical countertop

Side View

22

27-5/16" MAX.

Cutout height

27-1/4" MIN.

Junction box(s) for

oven & radiant

cooktop 22" from

floor

Add suitable filler

to match adjacent

cabinets when needed

to maintain toe kick

alignment

Optional Undercounter Installation With 36" Gas
Cooktop (in inches)

Power cord
for counter unit

Junction box
for oven

Junction box in
adjacent cabinet
for counter unit
hook-up

2 (two) 90°elbows &
sufficient pipe to
connect in adjacent
cabinet

Right cabinet side

3/4" Support

Shut-off

valve

Pressure
regulator

1/2" Black

iron pipe

Union

Conduit

(48" long)

30" built-in

oven

3-1/2" MIN.
Free space

4" To 4-1/2"

3-1/4

22

19-1/16" Cutout depth

Side View

Optional Undercounter Installation With 30"
CleanDesign or Sealed Burner Gas Cooktop
(in inches)

C

L

2 x 4 or
equivalent
runners

Suitable

bracing

to support

runners

21-5/8"

over centerline

of cabinet

(Must support 275 LBS.)

24

B

Built-In Single Ovens: 27" Electric

Models JKP18, 15 and JKS05 (in inches)

Undercounter Installation Dimensions (in inches)
Excludes JKP18SD

Sealed Burner Gas Cooktop
Installation Dimensions

Standard Burner Gas Cooktop
Installation Dimensions

25

Gas or electric cooktops may be installed over this
oven. See cooktop installation instructions for cutout size.
See label on top of oven for approved cooktop models.

Gas or electric connections
for gas cooktop must be
located in an adjacent
accessible location to the right

5

240V / 208V
Junction Box
Location

32"
Typical
Countertop
Height

24

Allow 1"
unit overlap
all edges

25" MIN.
25 1/4" MAX.

27 5/8" MIN.
28 1/8" MAX.

3/4" Support
Platform Required

Must Support 150 Lbs.

22" MIN.
Above
Support
Platform

Note: Oven is rated for use only under 30" standard
or sealed burner gas and 30" CleanDesign and
Calrod®electric cooktops.

90° Street el

45° Elbow

Cabinet sides

2" Diameter hole (20-7/8"
from front of countertop
to hole center)

5" To center of 2" diameter
hole from countertop

90° Street el

45° Elbow

To center of 2" diameter
hole from countertop

Cabinet sides

3-7/16"

2" MIN. diameter hole
(23-1/4" from front
surface of countertop)

Cabinet JKP18/15, JKS05

A – Cabinet Width Required 27" min.
B – Minimum Cabinet Depth 23-5/8"
C – Minimum Opening Width 25"

Oven

D – Overall Depth 23-5/8"
E – Overall Height 29-5/8"
F – Overall Width 26-5/8"

2" x 4"
or equiv.
runners

B MIN.

C MIN.

Conduit 49" long JKP18/15, JKS05
48-1/2" long JRP15, JRS04

32-1/2

D

10

A

Allow 3/4"
for overlap
over all edges
of cutout

Locate
junction box
either 5" MIN.
below cutout
floor or 34"
MIN. above
cutout floor

Recommended
cutout location
from floor

(Minimum 15-5/8"
from floor when
installed below built-in
microwave oven)

E

G

F

2

Note: Models JKP18 and JKP15 can be installed side-by-side with
no less than 30" distance between center to center of each oven.

Note: Cabinets installed adjacent to wall ovens must have
an adhesion spec of at least 194°F temperature rating.

C

L

Suitable
bracing

to support

runners

18"

Over centerline

of cabinet

2" x 4" or
equivalent
runners

Must support 275 LBS.

Installation Information: Before installing, consult

installation instructions packed with product for current
dimensional data.

R

Listed by
Underwriters
Laboratories

Note: Model JKS05 is not approved for
stackable or side-by-side installations.

36" Ribbon cooktops (excluding JP968) are approved for use over GE 30" Single
Wall Ovens only. 30" Ribbon cooktops (excluding JP938) are approved for use
over GE 30" Single Wall Ovens. All 30" ribbon cooktops can be installed over
27" wall ovens except stainless model JKP18SD. Refer to cooktop and wall oven
installation instructions packed with product for current dimensional data.

25

B

Built-In Double and Single Ovens: 24" Electric

Built-In Single Oven: 24" Gas

Models JGRP17, JGRP15 (in inches)

38

22-3/16

7-1/2

22" MIN.
28" MAX.

24

38-3/8

23-3/4

23

14-1/2" MIN.
20-1/2" MAX.

120V
Conv.
outlet

Gas
connection

Power Cord
48" long

2-1/2" MIN.

23-5/8

24 min.

C

L

2 x 4 or
equivalent
runners

11"

over centerline

of cabinet

Installation Information: Before installing, consult
installation instructions packed with product for current
dimensional data.

(Must support 200 LBS.)

Model JRP24 (in inches) Models JRP15, JRS04 (in inches)

10

Locate
junction box

for 27"models
either

5" MIN.
below cutout
floor or 44"
MIN. above
cutout floor

Allow 3/4"
for overlap
over all edges
of cutout

A

Recommended
cutout location
from floor

D

E

2" X 4" or
equiv. runners
(cutout floor)

20" MIN.
door opening
allowance

B

C

H

F

G

Locate
junction box

for 24"models

56" MIN. above
cutout floor

Conduit

(49" long

JKP56/45/27,

48-1/2" long

JRP24)

20

Cabinet JRP24 JRP15, JRS04

A – Cabinet Width Required 24" min. 24" min.
B – Minimum Cabinet Depth 23-1/2" 23-1/2"
C – Minimum Opening Width 22-1/2" 22-1/2"
D – Opening Height 48-1/8" min. 32-1/2"
E – Recommended Minimum

Cutout Location from Floor 14" 32-1/2"

Oven

F – Overall Depth 23-1/8" 23-1/8"
G – Overall Height 48-5/8" 28-3/16"
H – Overall Width 23-3/4" 23-3/4"

R

Listed by
Underwriters
Laboratories

Note: Cabinets installed adjacent to wall ovens must have
an adhesion spec of at least a 194°F temperature rating.

2" x 4"
or equiv.
runners

B MIN.

C MIN.

Conduit 49" long JKP18/15, JKS05
48-1/2" long JRP15, JRS04

32-1/2

D

10

A

Allow 3/4"
for overlap
over all edges
of cutout

Locate
junction box
either 5" MIN.
below cutout
floor or 34"
MIN. above
cutout floor

Recommended
cutout location
from floor

(Minimum 15-5/8"
from floor when
installed below built-in
microwave oven)

E

G

F

2

C

L

2 x 4 or
equivalent
runners

Suitable

bracing

to support

runners

21-5/8"

over centerline

of cabinet

(Must support 275 LBS.)

(48-1/2" long

JRP24)

Conduit 48-1/2" long, JRP15,
JRS04

26

B

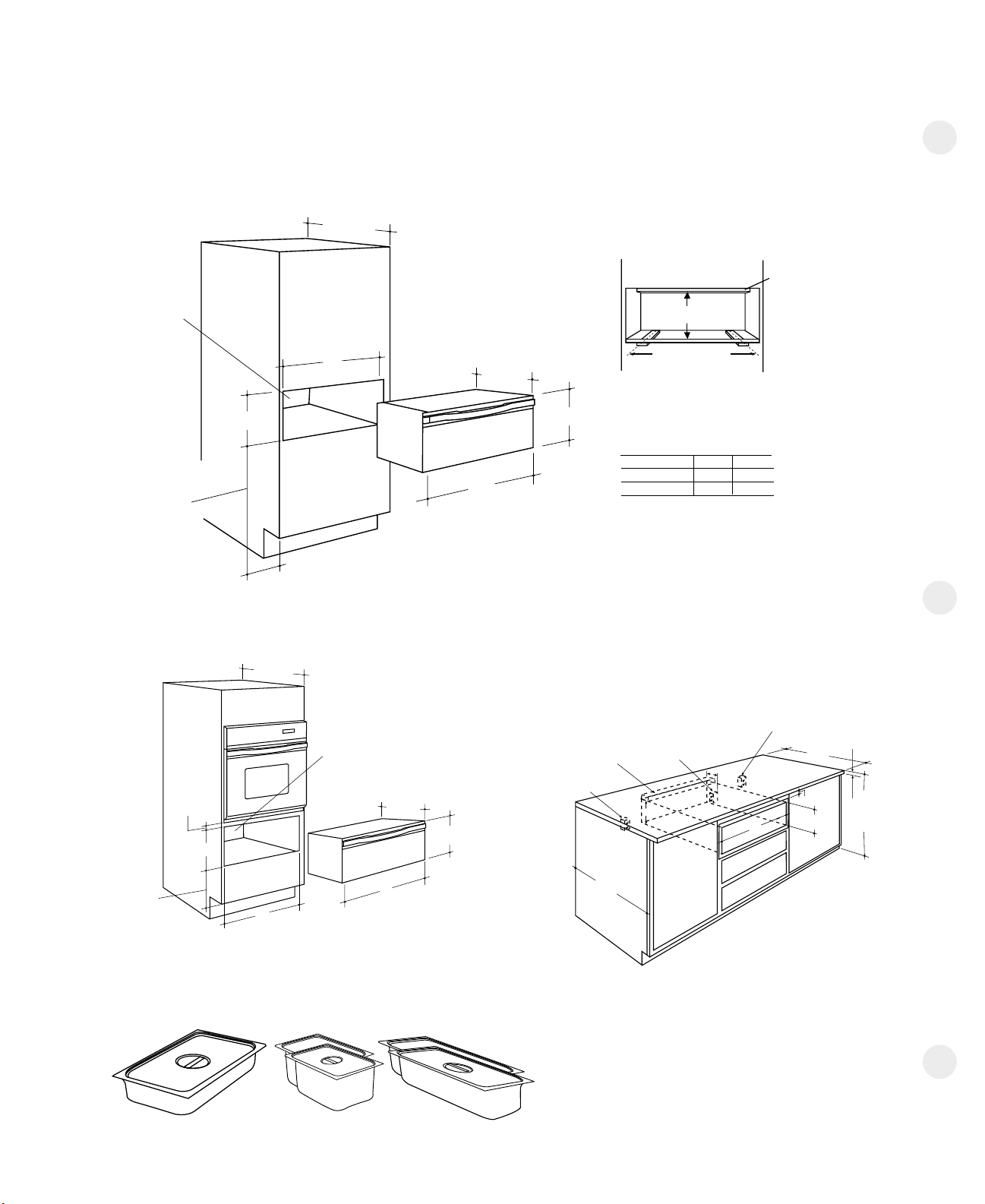

Built-In Warming Drawers

Models JTD910 and JKD910 (in inches)

AB

30" Models 28-1/2 30
27" Models 25-1/2 26-3/4

Dimensions (in inches)

A

9-1/4

Locate electrical
outlet in adjacent
cabinet no further
than 16" from
left side or 42"
from right side.

B

10-1/2

23-1/4

23-1/2" min.

inside

1" Min.
above
toekick
or adjust
to oven
installation
height

2" min.
between
cutouts

Under Oven Installation (in inches)

Pan Set Accessory for Warming Drawer—JXPN1

Undercounter Installation (in inches)

A

9-1/4

Locate
electrical
outlet in
adjacent
cabinet
16" from
left side
or 42"
from right
side.

B

10-1/2

24"
recommended
from floor
for under
countertop
installation

23-1/4

23-1/2" Min.

Inside

Electrical
outlet 16" max.
from left side.

23-1/2" min.

25"

1-1/2" Cabinet top

36"

Countertop

height

2" Min.*

A

9-1/4"

Electrical outlet 42" max.

from right side.

Electrical outlet
flush with side
of cabinet 7" max.

9"

Install
2x4 or 2x2
anti-tip block
against rear
cabinet wall
9" from floor
to bottom
of block

7"

2x4 or 2x2

runners or Solid

Bottom

Install
2x4 or 2x2
Anti-Tip
Block 9"
From Floor
to Bottom
of Block

9

Must Support 150 LBS.

Five commercial pans with lids (4" deep)

• One large pan (14 quarts)

• Two medium pans (6 quarts each)

• Two small pans (3 quarts each)

Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.

Note: When installing warming drawer
with a cooktop, allow a 2" minimum
from cooktop burner box bottom to
top of cut-out.

Consumer Selection Guide

Ratings and Shipping Weights

36" Built-In Electric CleanDesign & Coil Cooktops

JP968 JP960 JP626

KW rating @ 240V 9.6 9.6 7.4

208V 7.2 7.2 5.6

Amps @ 240V 40 40 40

208V 40 40 30

Approx. shipping weight (lbs.) 45 44 38

30" Built-In Electric CleanDesign & Coil Cooktops

JP938 JP930 JP350 JP340 JP326

KW rating @ 240V 8.1 8.1 7.7 6.4 7.4

208V 6.1 6.1 5.8 4.8 5.6

Amps @ 240V 40 40 40 30 40

208V 30 30 30 30 30

Approx. shipping weight (lbs.) 38 38 38 35 29

21" Built-In Electric Coil Cooktops

JP202 JP201

KW rating @ 240V 3.4 3.4

208V 2.5 2.5

Amps @ 240V 20 20

208V 20 20

Approx. shipping weight (lbs.) 18 18

36" Built-In Gas Cooktops

JGP963 JGP962 JGP960 JGP636 JGP628

Gas Cooktop Electrical Rating 120V, 60Hz, 5A

(1) 15.0/14.0 (1) 15.0/14.0

(1) 11.0/10.0 (1) 11.0/10.0 (1) 12.0/9.4 (1) 12.0/9.4
Burners (000’s/BTUs) (1) 9.1/8.1 (1) 9.1/8.1 (2) 9.5/7.0 (2) 9.5/7.0 (3) 9.1/8.1
Nat. Gas/LP Gas (2) 6.0/6.0 (2) 6.0/6.0 (2) 5.0/4.0 (2) 5.0/4.0 (1) 6.0/6.0

Approx. shipping weight (lbs.) 54 59 38 38 51

30" Built-In Gas Cooktops

JGP933 JGP932 JGP930 JGP336 JGP328 JGP320

Gas Cooktop Electrical Rating 120V, 60Hz, 5A

(1) 15.0/14.0 (1) 15.0/14.0

(1) 11.0/10.0 (1) 11.0/10.0 (1) 12.0/9.4 (1) 12.0/9.4
Burners (000’s/BTUs) (1) 9.1/8.1 (1) 9.1/8.1 (2) 9.5/7.0 (2) 9.5/7.0 (3) 9.1/8.1
Nat. Gas/LP Gas (2) 6.0/6.0 (2) 6.0/6.0 (1) 5.0/4.0 (1) 5.0/4.0 (1) 6.0/6.0 (4) 9.1/8.0

Approx. shipping weight (lbs.) 44 49 30 30 44 31

30" Built-In Electric Downdraft and Modular Cooktops

JP989 JP389 JP385 JP380

KW rating @ 240V 8.8 8.0 8.0 5.6

208V 6.7 –––
Amps @ 240V 40 40 40 40
Amps @ 240V 40 –––

Approx. shipping weight (lbs.) 72 72 75 68

30" Built-In Gas Downdraft and Modular Cooktops

JGP389 JGP989

Gas Cooktop Electrical Rating 120V, 60Hz, 15A 120V

(2) 10.0/9.0 Right (2) 9.1/8.5
Burners (000’s/BTUs) Side (burners) (1) 11.5/11.0
Nat. Gas/LP Gas 8.0/8.0 Grill Unit (1) 5.5/5.5

Approx. shipping weight (lbs.) 58 90

36" Integrated Gas Downdraft Cooktop

JGP656

Gas Cooktop Electrical Rating 120V, 60Hz, 15A

(1) 12.0/11.0
Burners (000’s/BTUs) (2) 9.5/9.5
Nat. Gas/LP Gas (1) 5.0/5.0

Approx. shipping weight (lbs.) 48

GE Appliances

General Electric Company
Louisville, Kentucky 40225

GEAppliances.com

Listed by
Underwriters
Laboratories

Pub. No. 3-X191
PC23247
© 2001 General Electric Company

Before purchasing any appliance on which the Federal Trade
Commission requires an energy label, read important energy
cost and efficiency information available from your retailer.

GE has a policy of continuous improvement of its products
and reserves the right to change materials and specifications
without notice.

G

GE provides cooking inspiration through innovation.

GEAppliances.com

Everything you want to know about GE appliances.

The GE Answer Center

®

800.626.2000

Questions? Call anytime.

GE Genuine Parts

800.626.2002

Accessories to enhance, upgrade or fix it.

GE Appliance Service

800.432.2737
(800.GE.CARES)

Product service at your convenience.

Industry-leading service support from—

GE is the appliance brand most often mentioned
among the brands rated as offering the best products
and services in America.

*

*Source: Louis Harris Poll – 2000

America’s

#

1

Preferred

Appliance

Brand

Frameless CleanDesign
Electric Cooktop

GE Profile™and GE®radiant cooktops
make a dramatic difference in the
kitchen, both in terms of style and
performance. With a sleek, smooth
surface and easy-to-use controls, these
cooktops offer the best of both worlds.

Deep-Recessed Gas Cooktop

GE Profile™and GE®deep-recessed gas
cooktops provide professional styling,
along with many practical conveniences.
Wide-ranging BTU output gives you
precise control over heat intensity, while
the porcelain cooking wells contain spills.

Gas-on-Glass Cooktop

GE Profile™ gas-on-glass cooktops
offer sophistication in design and
ease of cleaning. The frameless glass
surface lends a clean, built-in look to
your kitchen, and the sealed burners
help keep spills from dripping.

R
