GE AZ91H09D2C Specification Sheet

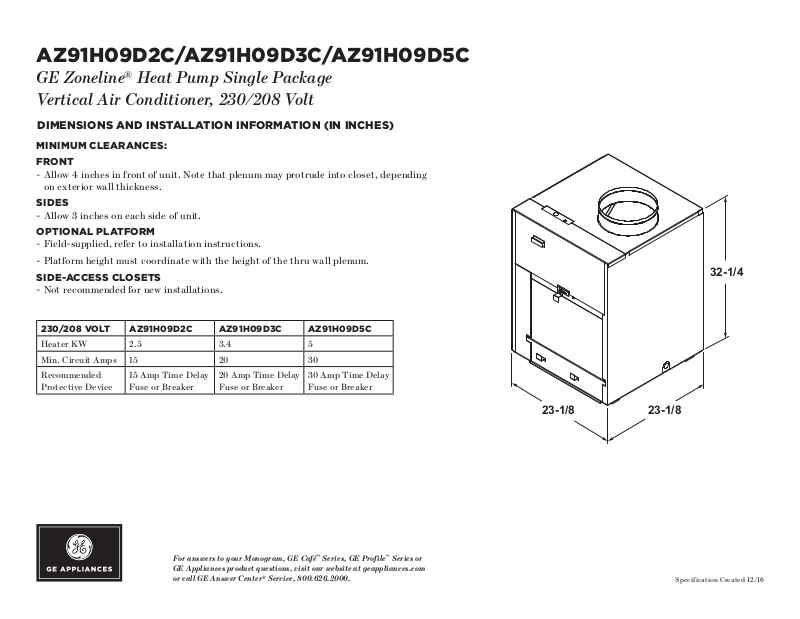

AZ91H09D2C/AZ91H09D3C/AZ91H09D5C

GE Zoneline® Heat Pump Single Package
Vertical Air Conditioner, 230/208 Volt

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

MINIMUM CLEARANCES:

FRONT

- Allow 4 inches in front of unit. Note that plenum may protrude into closet, depending
on exterior wall thickness.

SIDES

- Allow 3 inches on each side of unit.

OPTIONAL PLATFORM

- Field-supplied, refer to installation instructions.

- Platform height must coordinate with the height of the thru wall plenum.

SIDE-ACCESS CLOSETS

- Not recommended for new installations.

230/ 2 0 8 VO LT AZ91H09D2C AZ91H09D3C AZ91H09D5C

Heater KW 2.5 3.4 5

Min. Circuit Amps 15 20 30

Recommended
Protective Device

15 Amp Time Delay
Fuse or Breaker

20 Amp Time Delay
Fuse or Breaker

30 Amp Time Delay
Fuse or Breaker

32-1/4

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.

23-1/8

23-1/8

Specification Created 12/16

AZ91H09D2C/AZ91H09D3C/AZ91H09D5C

GE Zoneline® Heat Pump Single Package
Vertical Air Conditioner, 230/208 Volt

FEATURES AND BENEFITS

Cooling capacity - 9,400/9,400 BTU

Vertical space-saving design - Optimizes usable floor space

Reliable & quiet - Every component is engineered to provide exceptional performance

Corrosion treatment on outside coils

Model AZ91H09D2C - 15 amp

Model AZ91H09D3C - 20 amp

Model AZ91H09D5C - 30 amp

ZONELINE® WARRANTY*

WHAT IS COVERED

LIMITED ONE-YEAR WARRANTY

For one year from date of original purchase, we will provide, free
of charge, parts and service labor on site to repair or replace any
part of the Zoneline that fails because of a manufacturing defect.

LIMITED ADDITIONAL FOUR-YEAR WARRANTY
For an additional four years from the date of original purchase,
we will provide, free of charge, parts and on-site service labor to
repair or replace any part of the sealed refrigerating system (the
compressor, condenser, evaporator and all connecting tubing)
that fails because of a manufacturing defect.

*SEE WRITTEN WARRANTY FOR DETAILS

LIMITED 2ND THROUGH 5TH YEAR
PARTS WARRANTY

For the second through the fifth year from date of original
purchase, General Electric will provide, free of charge, parts that
fail as a result of a manufacturing defect. Parts covered are fan
motors, switches, heater, heater protectors, compressor overload,
solenoids, circuit boards, auxiliary controls, thermistors, frost
controls, capacitors and varistors. This is a limited parts-only
warranty, and does not include labor or transportation to and
from the service shop.

All warranty service will be provided by our Factory Service
Centers or by our authorized Customer Care® servicers
during normal working hours.

Closet Door

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.

Specification Created 12/16
