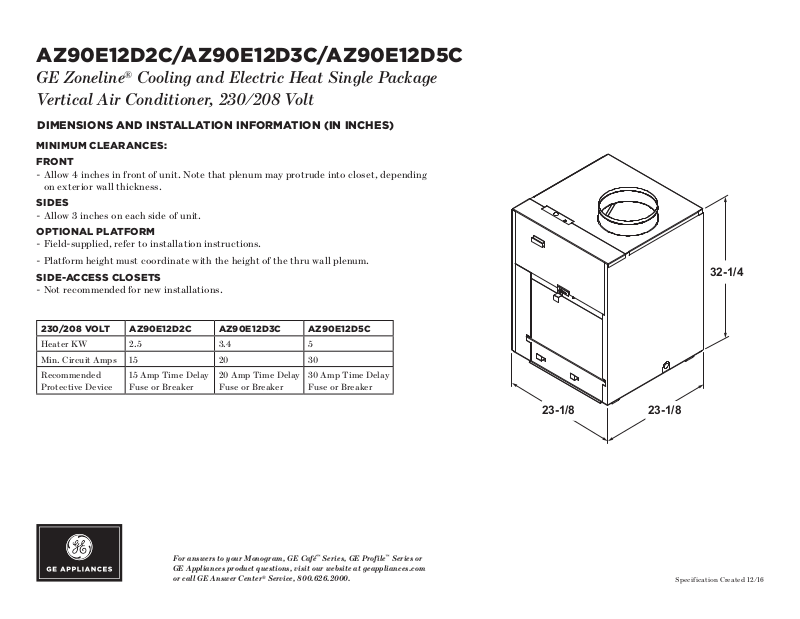

AZ90E12D2C/AZ90E12D3C/AZ90E12D5C
GE Zoneline® Cooling and Electric Heat Single Package
Vertical Air Conditioner, 230/208 Volt
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
MINIMUM CLEARANCES: FRONT
-Allow 4 inches in front of unit. Note that plenum may protrude into closet, depending on exterior wall thickness.
SIDES
- Allow 3 inches on each side of unit.
OPTIONAL PLATFORM
-Field-supplied, refer to installation instructions.
-Platform height must coordinate with the height of the thru wall plenum.
SIDE-ACCESS CLOSETS
- Not recommended for new installations.
230/208 VOLT |
AZ90E12D2C |
AZ90E12D3C |
AZ90E12D5C |
Heater KW |
2.5 |
3.4 |
5 |
|
|
|
|
Min. Circuit Amps |
15 |
20 |
30 |
|
|
|
|
Recommended |
15 Amp Time Delay |
20 Amp Time Delay |
30 Amp Time Delay |
Protective Device |
Fuse or Breaker |
Fuse or Breaker |
Fuse or Breaker |
|
32-1/4 |
23-1/8 |
23-1/8 |
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or |
|
GE Appliances product questions, visit our website at geappliances.com |
|
or call GE Answer Center® Service, 800.626.2000. |
Specification Created 12/16 |
AZ90E12D2C/AZ90E12D3C/AZ90E12D5C
GE Zoneline® Cooling and Electric Heat Single Package
Vertical Air Conditioner, 230/208 Volt
FEATURES AND BENEFITS
Cooling capacity - 12,200/11,900 BTU
Vertical space-saving design - Optimizes usable floor space
Reliable & quiet - Every component is engineered to provide exceptional performance
Corrosion treatment on outside coils
Model AZ90E12D2C - 15 amp
Model AZ90E12D3C - 20 amp
Model AZ90E12D5C - 30 amp
Closet Door
ZONELINE®WARRANTY*
WHAT IS COVERED |
LIMITED 2ND THROUGH 5TH YEAR |
|
LIMITED ONE-YEAR WARRANTY |
PARTS WARRANTY |
|
For the second through the fifth year from date of original |
||
For one year from date of original purchase, we will provide, free |
||
purchase, General Electric will provide, free of charge, parts that |
||
of charge, parts and service labor on site to repair or replace any |
||
fail as a result of a manufacturing defect. Parts covered are fan |
||
part of the Zoneline that fails because of a manufacturing defect. |
||
motors, switches, heater, heater protectors, compressor overload, |
||
LIMITED ADDITIONAL FOUR-YEAR WARRANTY |
||
solenoids, circuit boards, auxiliary controls, thermistors, frost |
||
For an additional four years from the date of original purchase, |
controls, capacitors and varistors. This is a limited parts-only |
|
we will provide, free of charge, parts and on-site service labor to |
||
warranty, and does not include labor or transportation to and |
||
repair or replace any part of the sealed refrigerating system (the |
||
from the service shop. |
||
compressor, condenser, evaporator and all connecting tubing) |
||
All warranty service will be provided by our Factory Service |
||
that fails because of a manufacturing defect. |
||
Centers or by our authorized Customer Care® servicers |
||
*SEE WRITTEN WARRANTY FOR DETAILS |
||
during normal working hours. |
||
|
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or |
|
GE Appliances product questions, visit our website at geappliances.com |
|
or call GE Answer Center® Service, 800.626.2000. |
Specification Created 12/16 |
