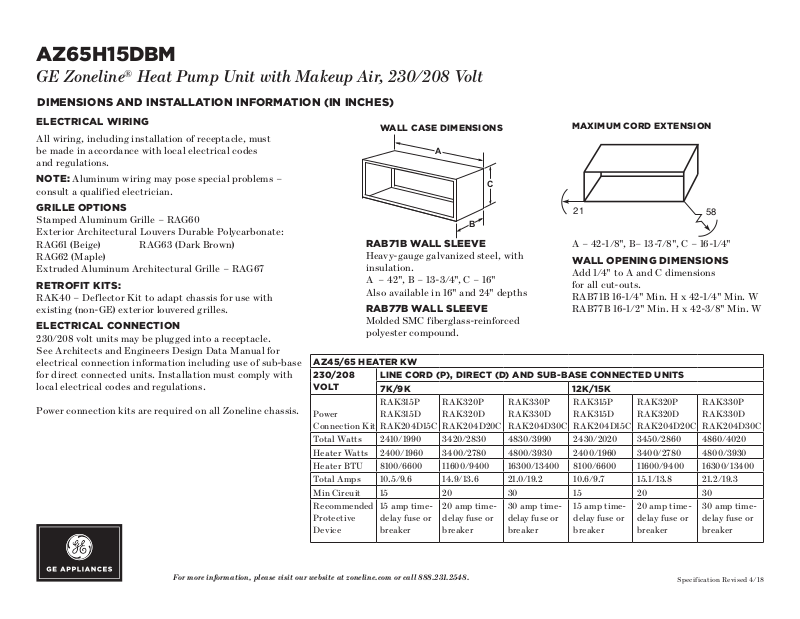

AZ65H15DBM
GE Zoneline® Heat Pump Unit with Makeup Air, 230/208 Volt
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
For more information, please visit our website at zoneline.com or call 888.231.2548.
Speci fication Revised 4/18
SIDE
VIEW
Room
Cabinet
Outside
Grille
7-1/8
RAB71A = 16
RAB77A = 16-1/4
RAB71A = 20-7/8
RAB77A = 21
A
C
B
Zoneline RAC Wall Installation
ELECTRICAL WIRING
All wiring, including installation of receptacle, must

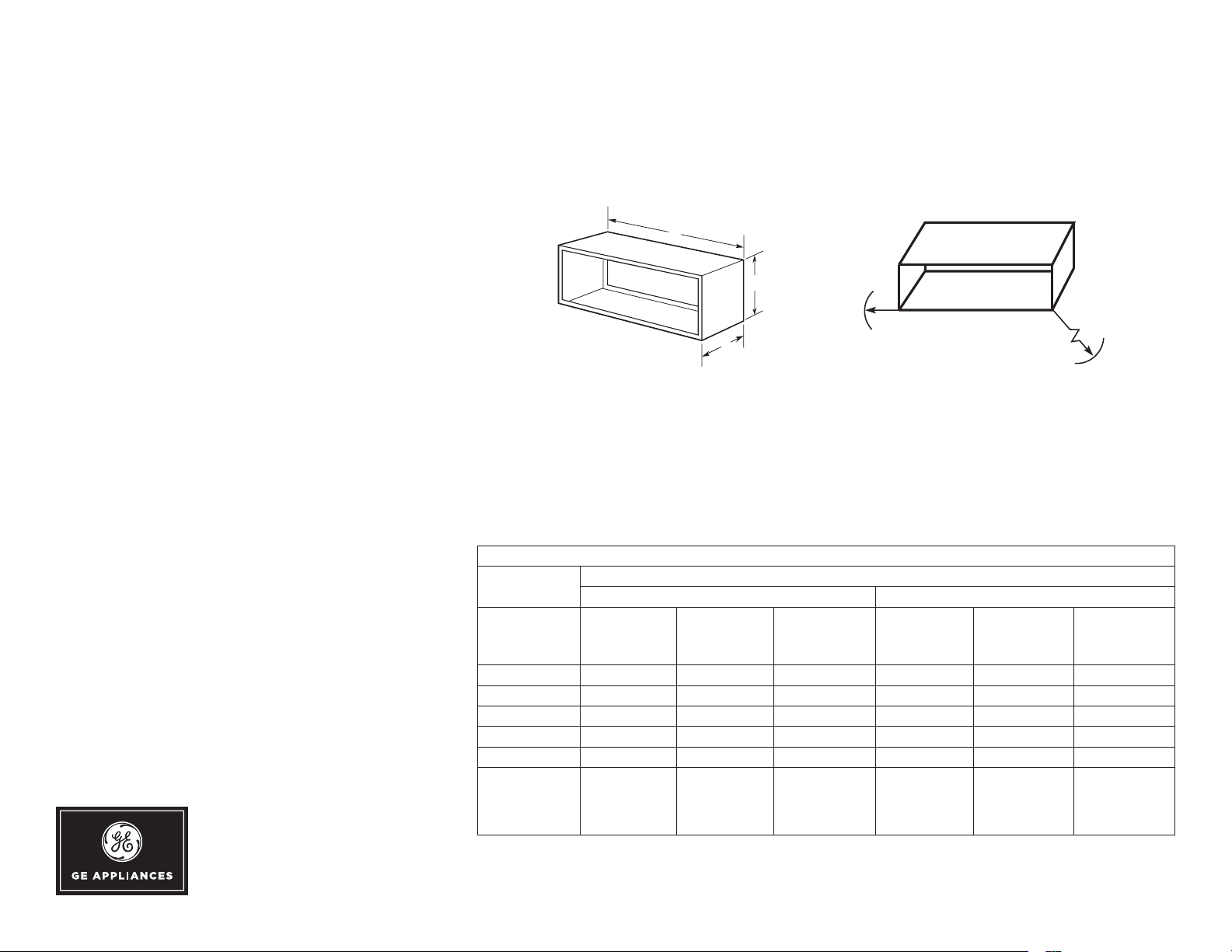

WALL CASE DIMENSIONS
be made in accordance with local electrical codes
and regulations.
NOTE: Aluminum wiring may pose special problems –
consult a qualified electrician.
GRILLE OPTIONS
Stamped Aluminum Grille – RAG60
Exterior Architectural Louvers Durable Polycarbonate:
RAG61 (Beige) RAG63 (Dark Brown)
RAG62 (Maple)
Extruded Aluminum Architectural Grille – RAG67
RETROFIT KITS:
RAK40 – Deflector Kit to adapt chassis for use with
existing (non-GE) exterior louvered grilles.
ELECTRICAL CONNECTION
230/208 volt units may be plugged into a receptacle.
See Architects and Engineers Design Data Manual for
electrical connection information including use of sub-base
for direct connected units. Installation must comply with
local electrical codes and regulations.
Power connection kits are required on all Zoneline chassis.
AZ45/65 HEATER KW
230/208
VO LT
Power
Connection Kit
Total Watts 2410/1990 3420/2830 4830/39 90 2430/2020 3450/2860 4860/4020
Heater Watts 2400/1960 3400/2780 4800/3930 2400/1960 3400/2780 4800/3930
Heater BTU 8100/6600 11600/9400 16300/13400 8100/6600 11600/9400 16300/13400
Total Amps 10.5/9.6 14. 9/13.6 21.0/19.2 10.6/9.7 15.1/13.8 21.2/19.3
Min Circuit 15 20 30 15 20 30
Recommended
Protective
Device
RAB71B WALL SLEEVE
Heavy-gauge galvanized steel, with
insulation.
A – 42", B – 13-3/4", C – 16"
Also available in 16" and 24" depths
RAB77B WALL SLEEVE
Molded SMC fiberglass-reinforced
polyester compound.
LINE CORD (P), DIRECT (D) AND SUB-BASE CONNECTED UNITS
7K/9K 12K/15K
RAK315P
RAK315D
RA K204D15C
15 amp timedelay fuse or
breaker
RAK320P
RAK320D
RAK204D20C
20 amp timedelay fuse or
breaker
RAK330P
RAK330D
RAK204D30C
30 amp timedelay fuse or
breaker
MAXIMUM CORD EXTENSION
21
58
A – 42-1/8", B– 13-7/8", C – 16-1/4"
WALL OPENING DIMENSIONS
Add 1/4" to A and C dimensions
for all cut-outs.
RAB71B 16-1/4" Min. H x 42-1/4" Min. W
RAB77B 16-1/2" Min. H x 42-3/8" Min. W
RAK315P
RAK315D
RA K204D15C
15 amp timedelay fuse or
breaker
RAK320P
RAK320D
RAK204D20C
20 amp timedelay fuse or
breaker
RAK330P
RAK330D
RAK204D30C
30 amp timedelay fuse or
breaker
Page 2
AZ65H15DBM
GE Zoneline® Heat Pump Unit with Makeup Air, 230/208 Volt
Speci fication Revised 4/18
FEATURES AND BENEFITS
Product built to order, lead times may vary
Makeup air – Delivers 25-50 CFM of continuous makeup air whenever
the room is occupied
Energy efficiency – When paired with occupancy sensing hardware,
ventilation can be halted during vacancy
Dehumidification – Dehumidifies at a rate of 5-6 pints per 24 hours
(based on CFM level)
Boost heat option – Provides supplemental resistance heat in heat
pump mode
Heat & Freeze Sentinels – Keeps the room from overheating or freezing
Electronic temperature limiting – Prevents expensive over-cooling or
over-heating of the room
Electronic touch controls with LED display
May reduce the need for individually ducted rooftop systems
Because makeup air increases room BTU load requirements and
requires additional PTAC cooling or heating, the building’s electrical
needs may be impacted
Makeup air models are not recommended for installation within two
miles of coastal areas
It is strongly recommended to install makeup air with wall thermostats
SMC base pan
Simplified structure – Easy to maintain and service
