GE AZ45E09EAP Specification

AZ45E09EAP

SIDE

VIEW

Room

Cabinet

Outside

Grille

7-1/8

RAB71A = 16
RAB77A = 16-1/4

RAB71A = 20-7/8
RAB77A = 21

A

C

B

Zoneline RAC Wall Installation

GE Zoneline® Dry Air 25 Cooling and Electric Heat Unit with Corrosion Protection, 265 Volt

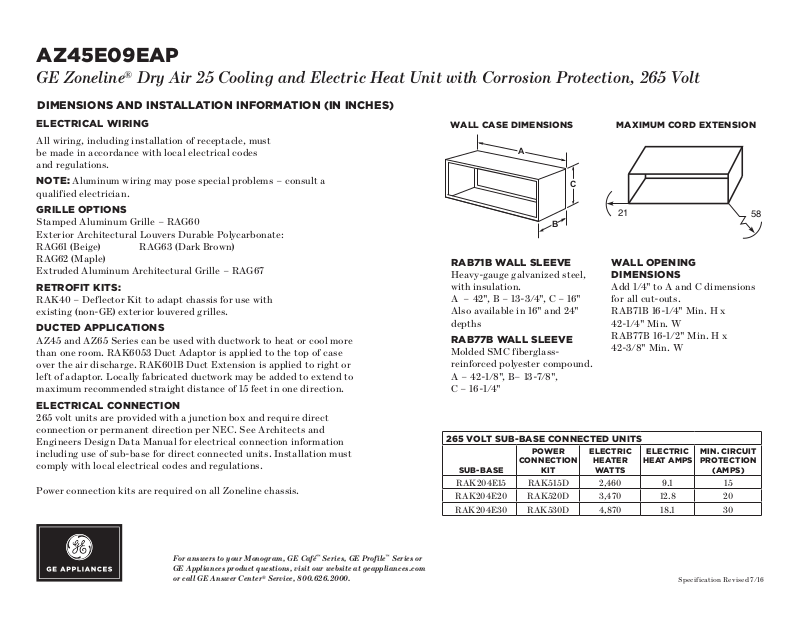

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

ELECTRICAL WIRING

All wiring, including installation of receptacle, must
be made in accordance with local electrical codes
and regulations.

NOTE: Aluminum wiring may pose special problems – consult a
qualified electrician.

GRILLE OPTIONS
Stamped Aluminum Grille – RAG60
Exterior Architectural Louvers Durable Polycarbonate:
RAG61 (Beige) RAG63 (Dark Brown)
RAG62 (Maple)
Extruded Aluminum Architectural Grille – RAG67

RETROFIT KITS:
RAK40 – Deflector Kit to adapt chassis for use with
existing (non-GE) exterior louvered grilles.

DUCTED APPLICATIONS
AZ45 and AZ65 Series can be used with ductwork to heat or cool more
than one room. RAK6053 Duct Adaptor is applied to the top of case
over the air discharge. RAK601B Duct Extension is applied to right or
left of adaptor. Locally fabricated ductwork may be added to extend to
maximum recommended straight distance of 15 feet in one direction.

ELECTRICAL CONNECTION
265 volt units are provided with a junction box and require direct
connection or permanent direction per NEC. See Architects and
Engineers Design Data Manual for electrical connection information
including use of sub-base for direct connected units. Installation must
comply with local electrical codes and regulations.

Power connection kits are required on all Zoneline chassis.

WALL CASE DIMENSIONS

RAB71B WALL SLEEVE

Heavy-gauge galvanized steel,
with insulation.
A – 42", B – 13-3/4", C – 16"
Also available in 16" and 24"
depths

RAB77B WALL SLEEVE
Molded SMC fiberglass-

MAXIMUM CORD EXTENSION

21

WALL OPENING
DIMENSIONS

Add 1/4" to A and C dimensions
for all cut-outs.
RAB71B 16-1/4" Min. H x
42-1/4" Min. W
RAB77B 16-1/2" Min. H x
42-3/8" Min. W

reinforced polyester compound.
A – 42-1/8", B– 13-7/8",
C – 16-1/4"

265 VOLT SUB-BASE CONNECTED UNITS

POWER

SUB-BASE

RAK204E15 RAK515D 2,460 9.1 15

RAK204E20 RAK520D 3,470 12.8 20

RAK204E30 RAK530D 4,870 18.1 30

CONNECTION

KIT

ELECTRIC

HEAT E R

WATTS

ELECTRIC

HEAT AMPS

MIN. CIRCUIT
PROTECTION

58

(AMPS)

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.

Speci fication Revised 7/16

AZ45E09EAP

GE Zoneline® Dry Air 25 Cooling and Electric Heat Unit with Corrosion Protection, 265 Volt

FEATURES AND BENEFITS

Perfect for high humidity climates - removes 20%­35% more moisture from the air than standard
Zoneline air conditioners* (* Varies when comparing
dehumidification rates of the 7,000/9,000/12,000 BTU
base models to their dry air model counterparts.)

Cooling capacity - 9,500 BTU

Energy efficiency - 12.1 EER

Dehumidification - 3.5 pints/hour

Indoor fan CFM (high/low) - 370/280

Fresh air vent CFM (fully open high fan) - 47

Quiet operation - Baked-on mastic sound barrier, cross
flow blower and two DC fan motors create less noise to
ensure comfort

Corrosion resistant - Extends life of the unit in sea
coast areas/corrosive environments

Heat & Freeze Sentinels - Keeps the room from
overheating or freezing

Electronic temperature limiting - Prevents expensive
over-cooling or over-heating of the room

Electronic touch controls with LED display

R-410A refrigerant

SMC base pan

Speci fication Revised 7/16
