GE AZ41E09EAB Specification
AZ41E09EAB
SIDE
VIEW
Room
Cabinet
Outside
Grille
7-1/8
RAB71A = 16
RAB77A = 16-1/4
RAB71A = 20-7/8
RAB77A = 21
A
C
B
Zoneline RAC Wall Installation

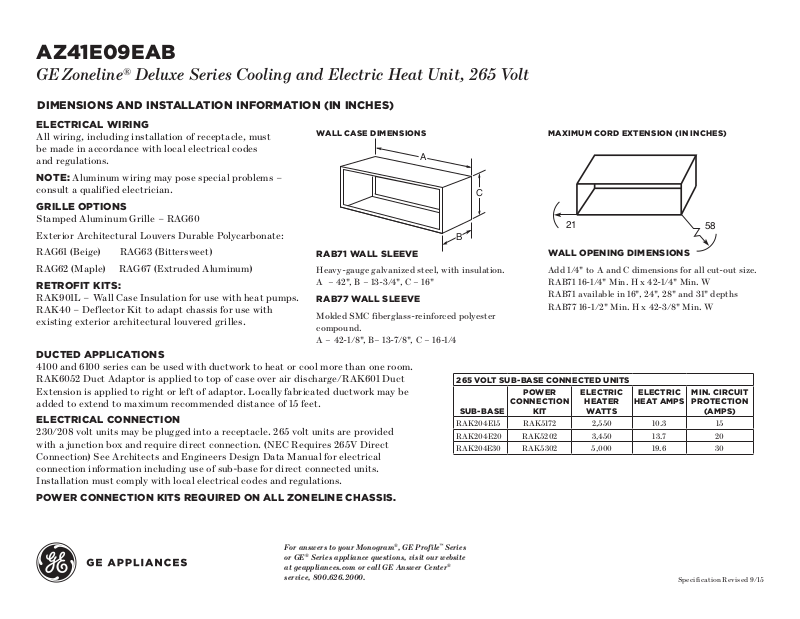

GE Zoneline® Deluxe Series Cooling and Electric Heat Unit, 265 Volt
DimEnsions anD installation information (in inchEs)
ElEctrical Wiring
All wiring, including installation of receptacle, must
be made in accordance with local electrical codes
and regulations.
notE: Aluminum wiring may pose special problems –
consult a qualified electrician.
grillE options
Stamped Aluminum Grille – RAG60
Exterior Architectural Louvers Durable Polycarbonate:
RAG61 (Beige) RAG63 (Bittersweet)
RAG62 (Maple) RAG67 (Extruded Aluminum)
rEtrofit Kits:
RAK901L – Wall Case Insulation for use with heat pumps.
RAK40 – Deflector Kit to adapt chassis for use with
existing exterior architectural louvered grilles.
DuctED applications
4100 and 6100 series can be used with ductwork to heat or cool more than one room.
RAK6052 Duct Adaptor is applied to top of case over air discharge/RAK601 Duct
Extension is applied to right or left of adaptor. Locally fabricated ductwork may be
added to extend to maximum recommended distance of 15 feet.
ElEctrical connEction
230/208 volt units may be plugged into a receptacle. 265 volt units are provided
with a junction box and require direct connection. (NEC Requires 265V Direct
Connection) See Architects and Engineers Design Data Manual for electrical
connection information including use of sub-base for direct connected units.
Installation must comply with local electrical codes and regulations.
poWEr connEction Kits rEquirED on all ZonElinE chassis.
Wall casE DimEnsions maximum corD ExtEnsion (in inchEs)
raB71 Wall slEEVE
Heavy-gauge galvanized steel, with insulation.
A – 42", B – 13-3/4", C – 16"
raB77 Wall slEEVE
Molded SMC fiberglass-reinforced polyester
compound.
A – 42-1/8", B– 13-7/8", C – 16-1/4
265 Volt suB-BasE connEctED units
suB-BasE
RAK204E15 RA K5172 2,550 10.3 15
RAK204E20 RAK5202 3,450 1 3.7 20
RAK204E30 RAK5302 5,000 19.6 30
Wall opEning DimEnsions
Add 1/4" to A and C dimensions for all cut-out size.
RAB71 16-1/4" Min. H x 42-1/4" Min. W
RAB71 available in 16", 24", 28" and 31" depths
RAB77 16-1/2" Min. H x 42-3/8" Min. W
poWEr
connEction
Kit
21
ElEctric
hEat E r
Watts
ElEctric
hEat amps
58
min. circuit
protEction
(amps)
For answers to your Monogram®, GE Profile™ Series
or GE® Series appliance questions, visit our website
at geappliances.com or call GE Answer Center®
service, 800.626.2000.
Speci fication Revised 9/15
AZ41E09EAB
GE Zoneline® Deluxe Series Cooling and Electric Heat Unit, 265 Volt
fEaturEs anD BEnEfits
9,700 BTUH cooling capacity
12.0 E.E.R.
Electronic touch controls with LED display
2.7 dehumidification (pints/hr.)
340/229 CFM indoor fan (high/low)
70/45 vent CFM
R-410A refrigerant
Electronic 7-step temperature limiting to prevent overcooling
or overheating of room
Heat Sentinel
Warm Grey Beige
Speci fication Revised 9/15
