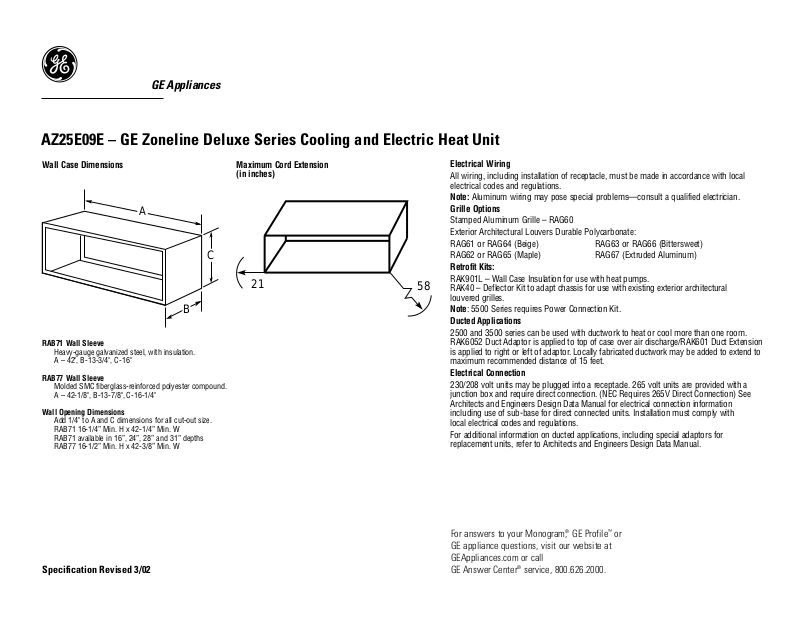

AZ25E09E – GE Zoneline Deluxe Series Cooling and Electric Heat Unit
Specification Revised 3/02
Electrical Wiring
All wiring, including installation of receptacle, must be made in accordance with local
electrical codes and regulations.
Note: Aluminum wiring may pose special problems—consult a qualified electrician.
Grille Options
Stamped Aluminum Grille – RAG60
Exterior Architectural Louvers Durable Polycarbonate:
RAG61 or RAG64 (Beige) RAG63 or RAG66 (Bittersweet)
RAG62 or RAG65 (Maple) RAG67 (Extruded Aluminum)
Retrofit Kits:
RAK901L – Wall Case Insulation for use with heat pumps.
RAK40 – Deflector Kit to adapt chassis for use with existing exterior architectural
louvered grilles.
Note: 5500 Series requires Power Connection Kit.
Ducted Applications
2500 and 3500 series can be used with ductwork to heat or cool more than one room.
RAK6052 Duct Adaptor is applied to top of case over air discharge/RAK601 Duct Extension
is applied to right or left of adaptor. Locally fabricated ductwork may be added to extend to
maximum recommended distance of 15 feet.
Electrical Connection
230/208 volt units may be plugged into a receptacle. 265 volt units are provided with a
junction box and require direct connection. (NEC Requires 265V Direct Connection) See
Architects and Engineers Design Data Manual for electrical connection information
including use of sub-base for direct connected units. Installation must comply with
local electrical codes and regulations.
For additional information on ducted applications, including special adaptors for
replacement units, refer to Architects and Engineers Design Data Manual.
A
C
B
Wall Case Dimensions
RAB71 Wall Sleeve
Heavy-gauge galvanized steel, with insulation.
A – 42", B-13-3/4", C -16"
RAB77 Wall Sleeve
Molded SMC fiberglass-reinforced polyester compound.
A – 42-1/8", B-13-7/8", C-16-1/4"
Wall Opening Dimensions
Add 1/4" to A and C dimensions for all cut-out size.
RAB71 16-1/4” Min. H x 42-1/4” Min. W
RAB71 available in 16”, 24”, 28” and 31” depths
RAB77 16-1/2” Min. H x 42-3/8” Min. W
Maximum Cord Extension
(in inches)
58
21
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
GE Appliances
AZ25E09E – GE Zoneline Deluxe Series Cooling and Electric Heat Unit
Specification Revised 3/02
Features and Benefits
• Cooling with Electric Heat
• 265V Model
• 9,000 BTUH
• 11.5 EER (BTU/Watt)
• 2.7 Dehumidification (pts/hr)
• 260/230 CFM Indoor Fan
• Solid-State Thermostat Control
• Up-Front Filters For Easy Access and Cleaning
• “Smart Fan” Fan Cycle
• Auto Frost Control
• Freeze Sentinel
™
Protects Unoccupied Rooms Against Freeze-Up
• Electronic Temperature Limiting For Restriction of Room Temperature
• Remote Control Compatibility For Wall-Mounted Thermostats
• Central Desk Control Compatibility
• Concealed Manual Vent Control
• AZ25E09E3B – 15 Amps, 2550 Watts; Base Model
• AZ25E09E3C – 15 Amps, 2550 Watts; Corrosion Model
• AZ25E09E4B – 20 Amps, 3700 Watts; Base Model
• AZ25E09E4C – 20 Amps, 3700 Watts; Corrosion Model
• AZ25E09E5B – 30 Amps, 5000 Watts; Base Model
• AZ25E09E5C – 30 Amps, 5000 Watts; Corrosion Model
