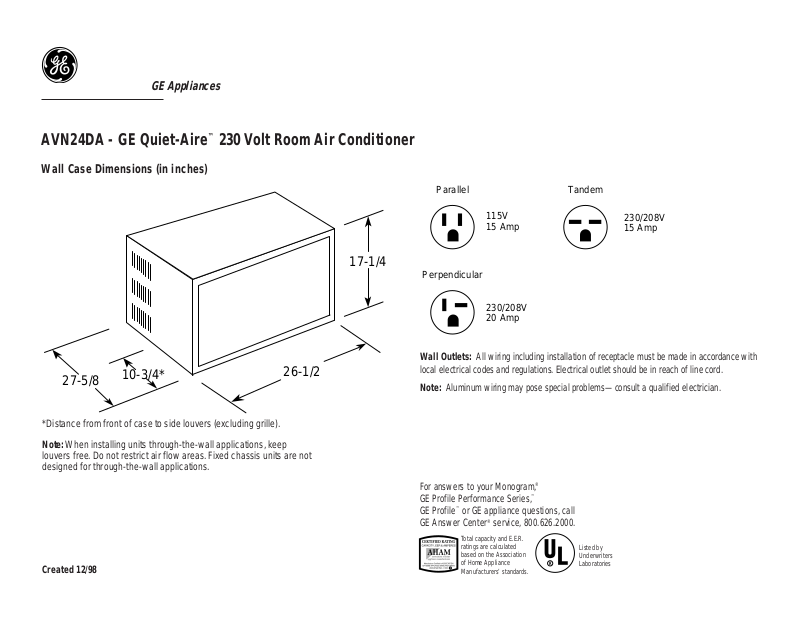

GE AVN24DA Specification

AVN24DA - GE Quiet-Aire™230 Volt Room Air Conditioner

Created 12/98

GE Appliances

Wall Case Dimensions (in inches)

Wall Outlets: All wiring including installation of receptacle must be made in accordance with

local electrical codes and regulations. Electrical outlet should be in reach of line cord.
Note: Aluminum wiring may pose special problems—consult a qualified electrician.

26-1/2

17-1/4

10-3/4*

27-5/8

Parallel

Perpendicular

115V
15 Amp

230/208V
20 Amp

Tandem

Large Tandem

230/208V
15 Amp

230/208V
30 Amp

R

R

Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.

Listed by
Underwriters
Laboratories

For answers to your Monogram,

®

GE Profile Performance Series,

™

GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.

*Distance from front of case to side louvers (excluding grille).
Note: When installing units through-the-wall applications, keep

louvers free. Do not restrict air flow areas. Fixed chassis units are not
designed for through-the-wall applications.

Created 12/98

GE Appliances

AVN24DA - GE Quiet-Aire™230 Volt Room Air Conditioner

Features and Benefits

•Contemporary White Front

•23,500/23,000 BTUH / 8.7/8.7 EER / 230/208 Volts

•8-Position Thermostat

•2 Cooling / 2 Fan Speeds

•2,700/2,640 Watts / 13.5/14.4 Amps

•8.2 Dehumidification (pints/hr)

•500 CFM

•Slide-Out Chassis

•Energy Saver Switch for Reduced Energy Consumption (2 Speeds)

•Easy Access Rigid Frame, Slide-Out Filter

•Hidden Controls Provide a Clean Contemporary Appearance

•Exhaust for Air Exchange

•Plug Type - Perpendicular

•EZ Mount Window Installation

•Model AVN24DA–White
