GE AVE22DB Specification

AVE22DB - GE 230 Volt Heat/Cool Series Room Air Conditioner with Mechanical Controls

Specification Created 5/01

GE Appliances

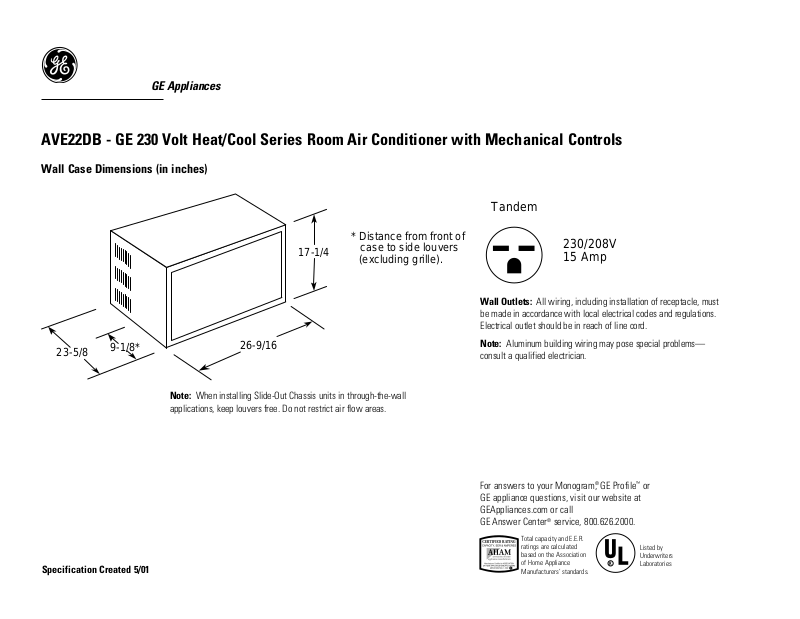

Wall Case Dimensions (in inches)

Wall Outlets: All wiring, including installation of receptacle, must

be made in accordance with local electrical codes and regulations. Electrical outlet should be in reach of line cord.

Note: Aluminum building wiring may pose special problems— consult a qualified electrician.

* Distance from front of case to side louvers (excluding grille).

26-9/16

17-1/4

9-1/8*

23-5/8

Tandem

230/208V 15 Amp

Total capacity and E.E.R. ratings are calculated based on the Association of Home Appliance Manufacturers’ standards.

Listed by Underwriters Laboratories

Note: When installing Slide-Out Chassis units in through-the-wall applications, keep louvers free. Do not restrict air flow areas.

For answers to your Monogram,® GE Profile™or GE appliance questions, visit our website at GEAppliances.com or call GE Answer Center®service, 800.626.2000.

Specification Created 5/01

GE Appliances

AVE22DB - GE 230 Volt Heat/Cool Series Room Air Conditioner with Mechanical Controls

Features and Benefits

• 22,000/21,300 BTUH (Cooling), 16,000/13,400 BTUH (Electric Heat)

• 8.5/8.5 E.E.R.

• Mechanical Controls with 10-Position Thermostat

• 2 Cooling / 2 Heating Fan Speeds (1 Fan Position)

• 2,590/2,505 Cooling Watts / 12.0/13.1 Cooling Amps / 22.8/20.9 Heating Watts

• 4-Way Variable Air Discharge

• Slide-Out Chassis

• 7.9 Dehumidification (pints/hr)

• 450 CFM

• Hidden Controls Provide Clean, Contemporary Appearance

• Easy Cleaning Rigid, Slide-Out Filter

• Exhaust for Air Exchange

• Plug Type - Tandem

• Rigid Panel Window Mounting

• Rotary Compressor

• Model AVE22DB
